2002 TOYOTA TUNDRA Owners Manual

’02 TUNDRA_U (L/O 0108)
2662002 MY TUNDRA_U (OM 34417U)
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer. Light bulbsBulb
No.WTy p e
Headlights—60/55A
Front fog lights900655B
Parking/front
turn signal/front
side marker
lights
3157NA27/8C
Rear turn signal
lights315627D
Stop/tail/rear
side marker
lights
315727/8D
Backup lights92118D
License plate
lights
Ty p e A
Ty p e B
168
1945
3.8D
D
High mounted
stoplight and
cargo lamps
92118D
Interior light—8E
Personal lights—8E
Vanity light—1.5E
Light bulbsBulb No.WTy p e
Door courtesy
lights1943.8D
Glove box light—1.2D
Step light—1.4D
A: HB2 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs (amber)
D: Wedge base bulbs
E: Double end bulbs

’02 TUNDRA_U (L/O 0108)
2672002 MY TUNDRA_U (OM 34417U)

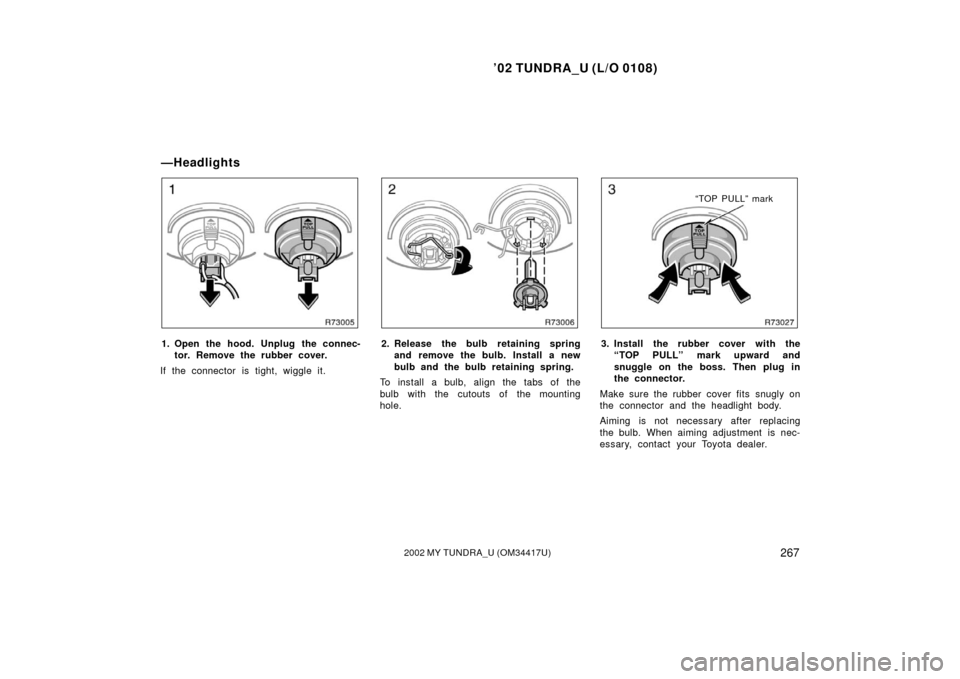

1. Open the hood. Unplug the connec-
tor. Remove the rubber cover.
If the connector is tight, wiggle it.2. Release the bulb retaining spring and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
“TOP PULL” mark
3. Install the rubber cover with the “TOP PULL” mark upward and
snuggle on the boss. Then plug in
the connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Headlights

’02 TUNDRA_U (L/O 0108)
2682002 MY TUNDRA_U (OM 34417U)

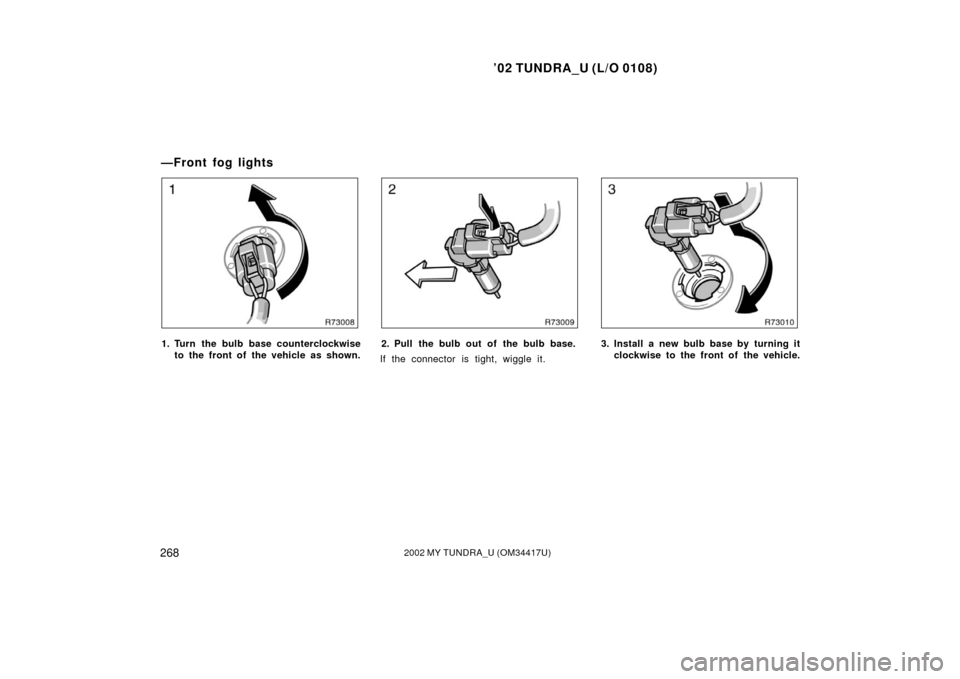

1. Turn the bulb base counterclockwise
to the front of the vehicle as shown.2. Pull the bulb out of the bulb base.
If the connector is tight, wiggle it.3. Install a new bulb base by turning it clockwise to the front of the vehicle.
—Front fog lights

’02 TUNDRA_U (L/O 0108)
2692002 MY TUNDRA_U (OM 34417U)

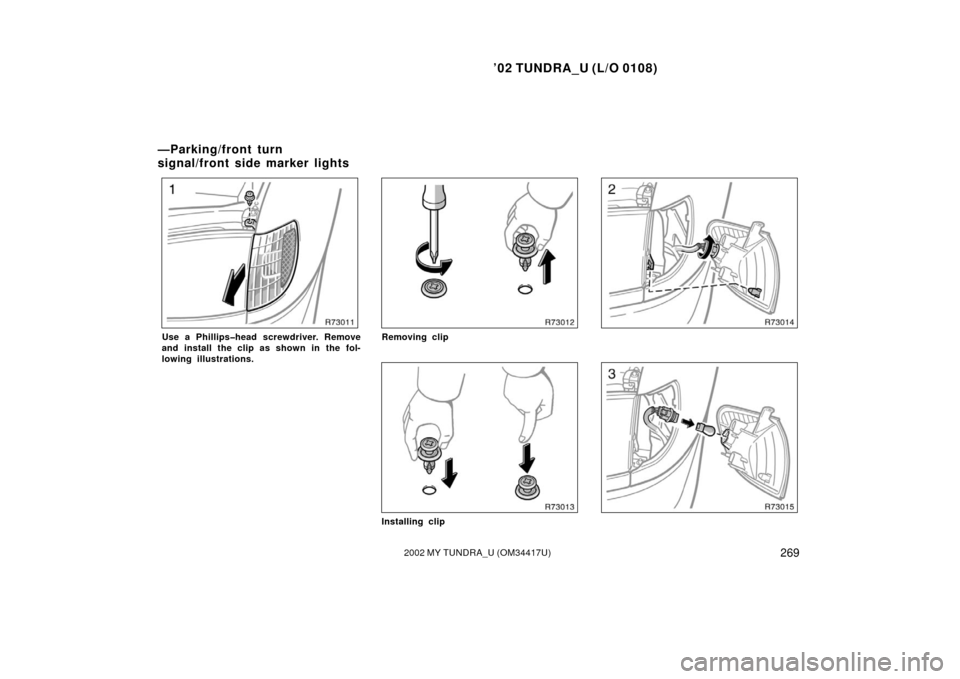

Use a Phillipshead screwdriver. Remove
and install the clip as shown in the fol-
lowing illustrations.Removing clip
Installing clip
—Parking/front turn
signal/front side marker lights

’02 TUNDRA_U (L/O 0108)
2702002 MY TUNDRA_U (OM 34417U)

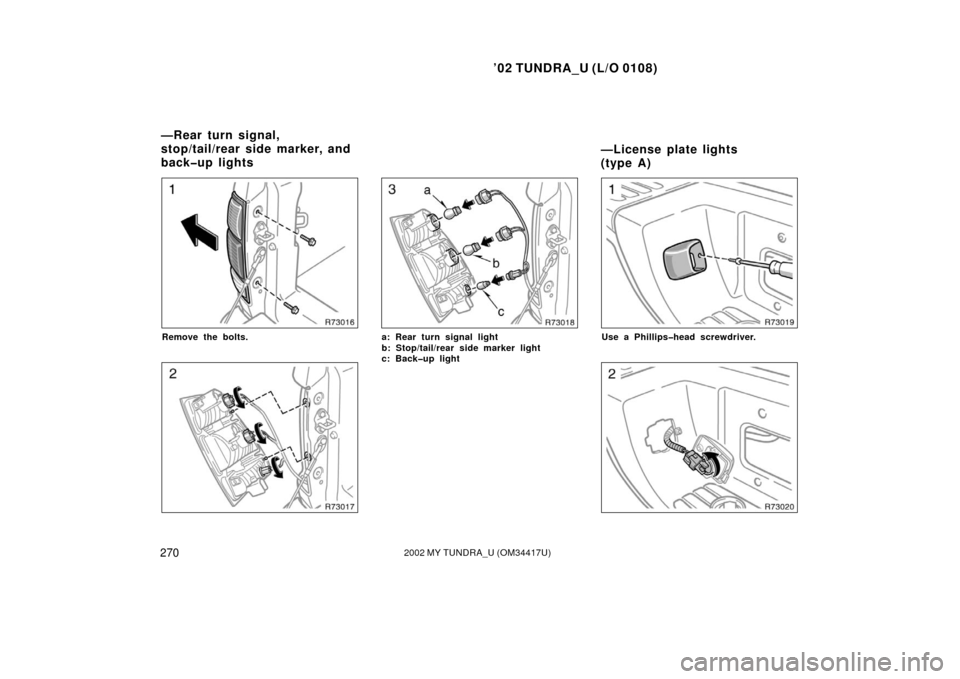

Remove the bolts.a: Rear turn signal light
b: Stop/tail/rear side marker light
c: Backup lightUse a Phillipshead screwdriver.
—Rear turn signal,
stop/tail/rear side marker, and
backup lights —License plate lights
(type A)

’02 TUNDRA_U (L/O 0108)
2712002 MY TUNDRA_U (OM 34417U)

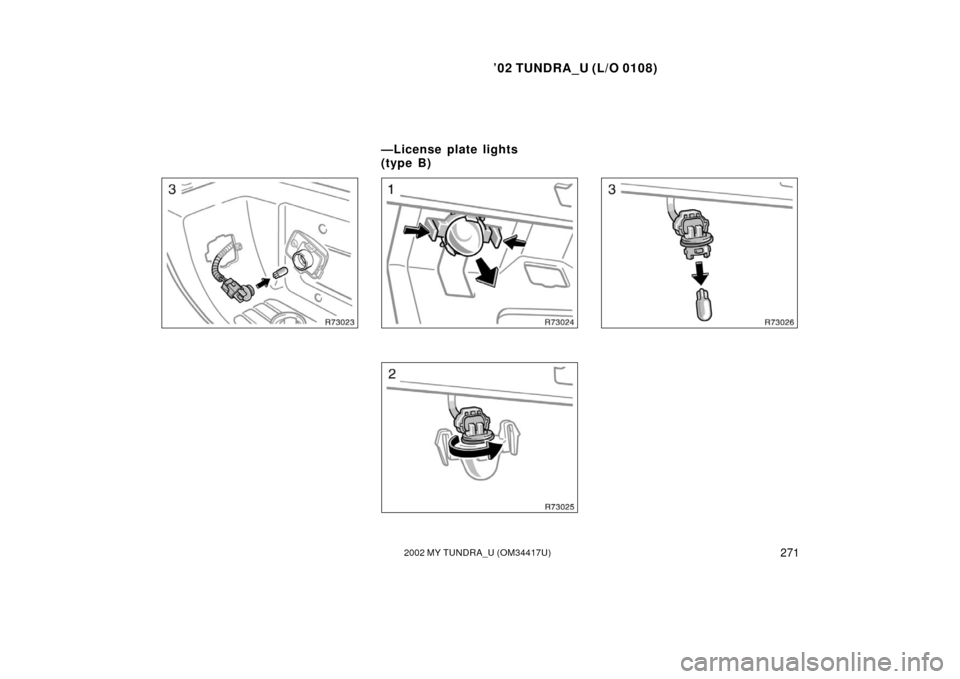

—License plate lights
(type B)

’02 TUNDRA_U (L/O 0108)
2722002 MY TUNDRA_U (OM 34417U)

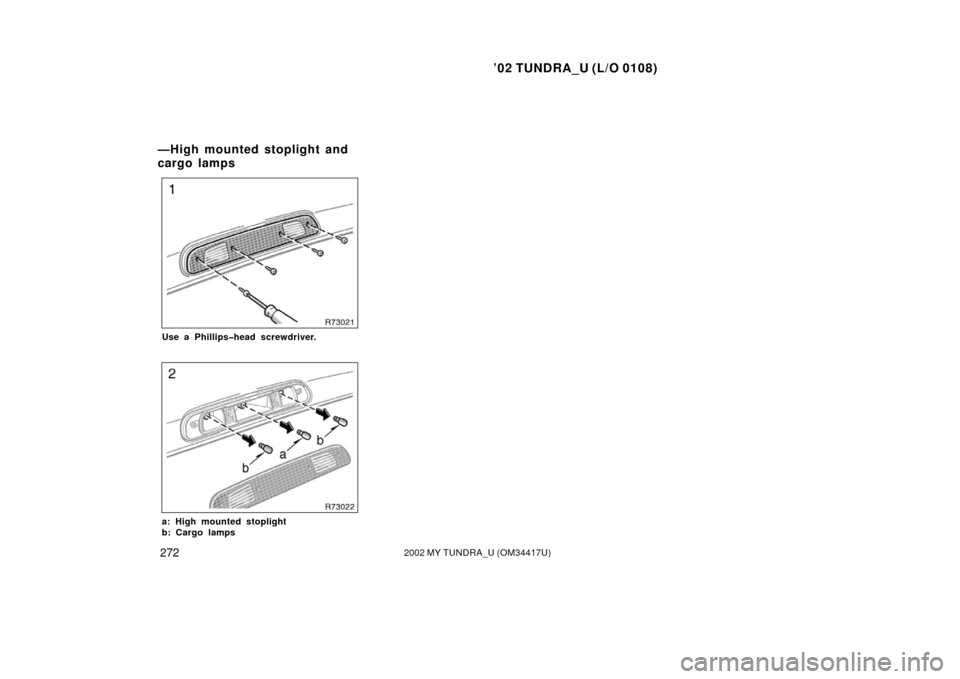

Use a Phillipshead screwdriver.
a: High mounted stoplight
b: Cargo lamps
—High mounted stoplight and
cargo lamps

’02 TUNDRA_U (L/O 0108)
2732002 MY TUNDRA_U (OM 34417U)
SPECIFICATIONS
Dimensions 274
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Payload 275
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Engine 277
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 277
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 277
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 280
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 280
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8
