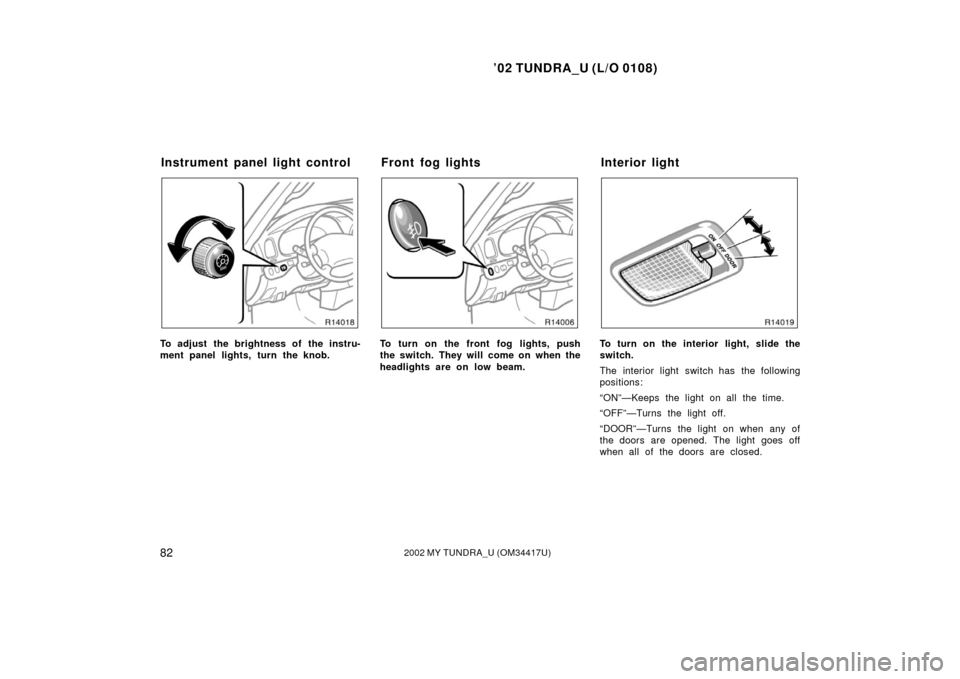

To adjust the brightness of the instru-
ment panel lights, turn the knob.To turn on the front fog lights, push
the switch. They will come on when the
headlights are on low beam.To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any of
the doors are opened. The light goes off
when all of the doors are closed.
Instrument panel light control Front fog lights Interior light

’02 TUNDRA_U (L/O 0108)
832002 MY TUNDRA_U (OM 34417U)
The personal lights operate separately.
To turn on the light, push the lens on your
side. To turn the light off, push the lens
once again.
The personal light switch has the following
positions:
“OFF”—Turns the lights off.
“DOOR”—Turns the lights on when any of

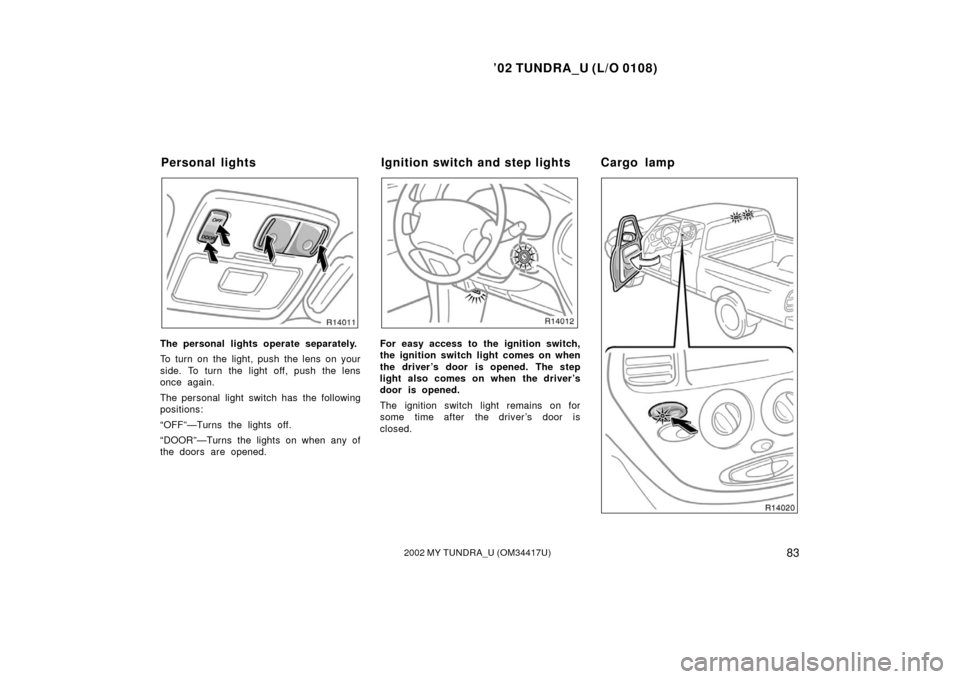

the doors are opened.For easy access to the ignition switch,
the ignition switch light comes on when
the driver’s door is opened. The step
light also comes on when the driver’s
door is opened.
The ignition switch light remains on for
some time after the driver’s door is
closed.
Personal lights Ignition switch and step lights Cargo lamp

’02 TUNDRA_U (L/O 0108)
842002 MY TUNDRA_U (OM 34417U)
The cargo lamp is designed to light up
the rear deck of your vehicle.
CARGO LAMP OPERATION
By pushing “CARGO LAMP” switch
To turn on: Push the “CARGO LAMP”
switch once.
At this time, the indicator light on the
instrument panel will come on.
To turn off: Push the “CARGO LAMP”
switch once again.
By locking and unlocking doors (ve-
hicles with the power door lock system)
You can operate the cargo lump by this
method when all the doors are closed and
the ignition switch is in the “ACC” or
“LOCK” position or the key is removed.
To turn on: Unlock the doors with the key
or the power door lock switch.
The cargo lamp will automatically turn off
after 20 seconds.
To turn off: Lock the doors with the key
or the power door lock switch. By opening and closing doors
To turn on: Open any of the doors.
To turn off: Close all the doors:
When the ignition switch is in the “ON”
position, the cargo lamp will go off im-
mediately.
When the ignition switch is in the
“ACC” or “LOCK” position or the key is
removed, the cargo lamp will automati-
cally go off after 20 seconds.
CARGO LAMP AUTOMATIC POWEROFF
FUNCTION
When the vehicle speed exceeds
approximately 5 km/h (3 mph), the car-
go lamp will go off.
To prevent the battery being dis-
charged, the cargo lamp will automati-
cally go off when the lamp remains on
for 30 minutes or more.

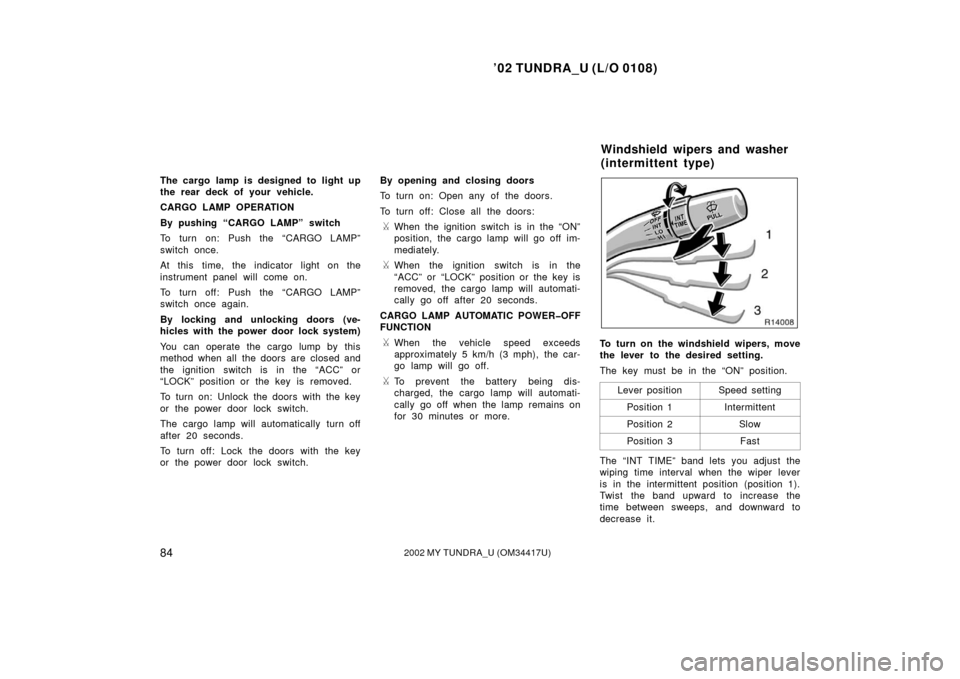

To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
The “INT TIME” band lets you adjust the
wiping time interval when the wiper lever
is in the intermittent position (position 1).
Twist the band upward to increase the
time between sweeps, and downward to
decrease it.
Windshield wipers and washer
(intermittent type)

’02 TUNDRA_U (L/O 0108)
852002 MY TUNDRA_U (OM 34417U)
To squirt washer fluid, pull the lever
toward you and release it.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” in Section 73.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.

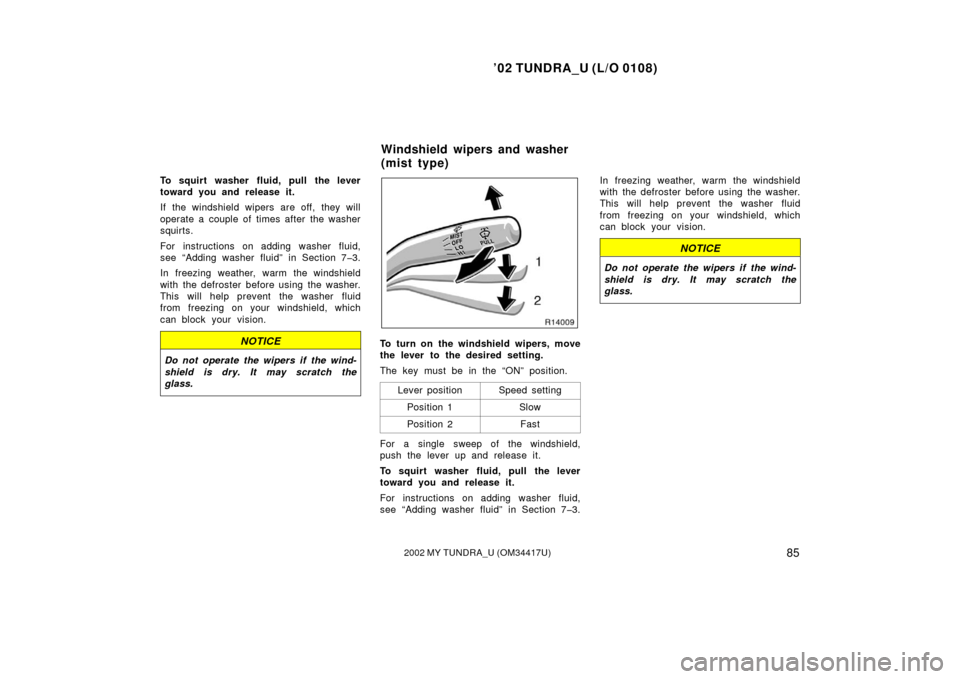

To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.
Lever position
Speed setting
Position 1Slow
Position 2Fast
For a single sweep of the windshield,
push the lever up and release it.
To squirt washer fluid, pull the lever
toward you and release it.
For instructions on adding washer fluid,
see “Adding washer fluid” in Section 73. In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Windshield wipers and washer
( mist typ e)

’02 TUNDRA_U (L/O 0108)
862002 MY TUNDRA_U (OM 34417U)

’02 TUNDRA_U (L/O 0108)
872002 MY TUNDRA_U (OM 34417U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge 88
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Engine coolant temperature gauge 88
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil pressure gauge 89
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Vo ltme te r 90
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Tachometer 90
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Odometer and two trip meters 91
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 91
. . . . . . . . . . . . . . .
SECTION 1 5

’02 TUNDRA_U (L/O 0108)
882002 MY TUNDRA_U (OM 34417U)
With tachometer
Without tachometer

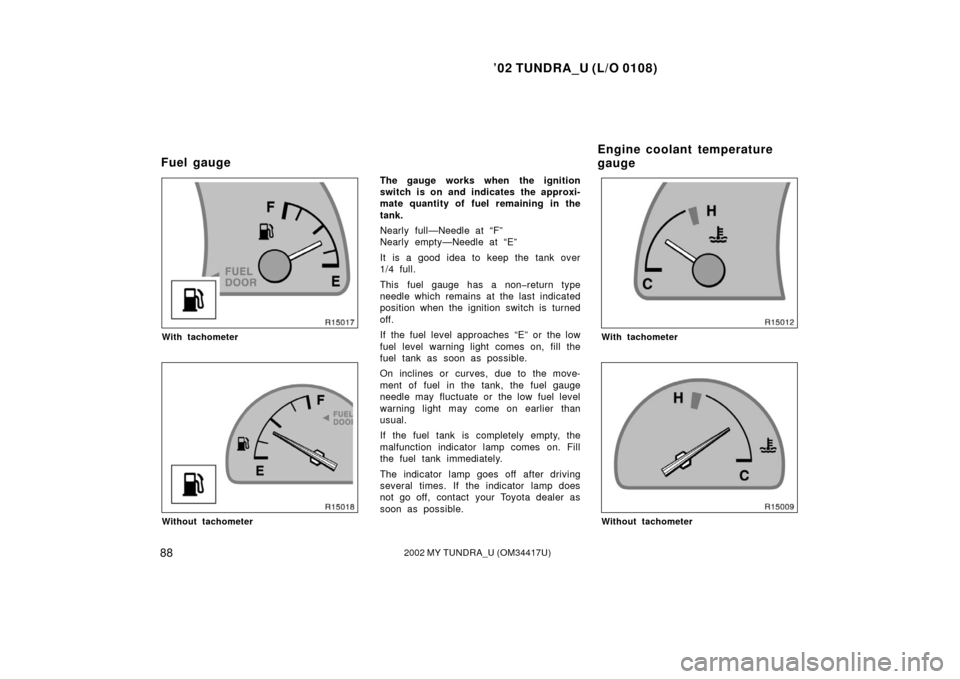

The gauge works when the ignition
switch is on and indicates the approxi-
mate quantity of fuel remaining in the
tank.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
This fuel gauge has a nonreturn type
needle which remains at the last indicated
position when the ignition switch is turned
off.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
With tachometer
Without tachometer
Fuel gauge Engine coolant temperature
gauge

’02 TUNDRA_U (L/O 0108)
892002 MY TUNDRA_U (OM 34417U)
The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stopandgo traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your ve-
hicle overheats” in Section 4.
IdlingNormal
driving

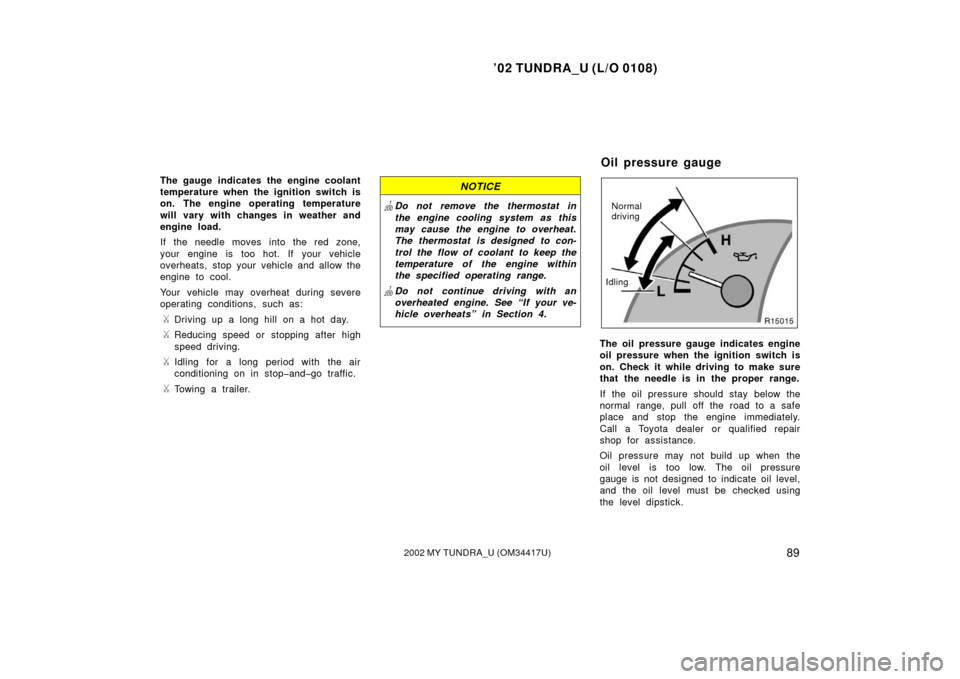

The oil pressure gauge indicates engine
oil pressure when the ignition switch is
on. Check it while driving to make sure
that the needle is in the proper range.
If the oil pressure should stay below the
normal range, pull off the road to a safe
place and stop the engine immediately.
Call a Toyota dealer or qualified repair
shop for assistance.
Oil pressure may not build up when the
oil level is too low. The oil pressure
gauge is not designed to indicate oil level,
and the oil level must be checked using
the level dipstick.
Oil pressure gauge
