11. HEAD (LH) 10 A (without daytime
running light system): Lefthand
headlight
HEAD (HI LH) 10 A (with daytime
running light system): Lefthand
headlight (high beam)
12. EFI NO.2 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system and emission control sys-
tem
13. A/C 10 A: Air conditioning system
14. DRL 7.5 A (with daytime running light system): Daytime running light
system
15. HEAD (LO RH) 10 A (with daytime running light system): Righthand
headlight (low beam)
16. HEAD (LO LH) 10 A (with daytime running light system): Lefthand
headlight (low beam)
17. WIP 20 A: Windshield wipers and
washer
18. TURN 5 A: Turn signal lights
19. ECU IG 5 A: Antilock brake system
and cruise control system
20. 4WD 20 A: Fourwheel drive control
system and A.D.D. control system 21. ACC 15 A:
Cigarette lighter, audio sys-
tem, SRS airbag system and power
rear view mirrors
22. GAUGE 10 A: Gauges and meters,
backup lights, starting system, day-
time running light system and air condi-
tioning system
23. IGN 5 A: SRS airbag system, multiport
fuel injection system/sequential multi-
port fuel injection system, discharge
system and ignition system
24. CARGO LP 5 A: Cargo lamp
25. TAIL 15 A: Tail lights, license plate
lights, instrument panel lights, parking
lights and glove box light
26. ECUB 5 A: SRS warning light
27. HORNHAZ 20 A: Emergency flashers
and horns
28. STA 5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, g auges and meters
29. STOP 15 A: Stoplights and high
mounted stoplight
Fuses (type B)
30. ABS 1 40 A: Antilock brake system
31. ABS 2 40 A: Antilock brake system 32. J/B 50 A:
All components in “POWER”,
“HORNHAZ”, “TAIL”, “CARGO LP”,
“STOP” and “ECUB” fuses
33. AM2 30 A: Ignition system
34. AM1 40 A: Starting system
35. HTR 50 A: Air conditioning system
36. POWER 30 A: Power door lock sys-
tem, power windows and power seat
37. FL 30 A: Trailer lights
Fuse (type C)
38. ALT 120 A: All components in “AM1”,
“ALTS”, “HTR”, “FR FOG”, “PWR
OUTLET 1” and “PWR OUTLET 2”
fuses

’02 TUNDRA_U (L/O 0108)
2832002 MY TUNDRA_U (OM 34417U)
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS, UNIFORM TIRE QUALITY
GRADING AND CAMPER INFORMATION
Reporting safety defects for U.S. owners 284
. . . . . . . . . . . . . . . . . . . . . .
Uniform tire quality grading 284
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Camper information 285
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
SECTION 9

’02 TUNDRA_U (L/O 0108)
2842002 MY TUNDRA_U (OM 34417U)
If you believe that your vehicle has
a defect which could cause a crash
or could cause injury or death, you
should immediately inform the Na-
tional Highway Traffic Safety Ad-
ministration (NHTSA) in addition to
notifying Toyota Motor Sales,
U.S.A., Inc. (Tollfree:
18003314331).
If NHTSA receives similar com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become in-
volved in individual problems be-
tween you, your dealer, or Toyota
Motor Sales, U.S.A., Inc. To contact NHTSA, you may either
call the Auto Safety Hotline tollfree
at 18004249393 (or 3660123 in
Washington, D.C. area) or write to:
NHTSA, U.S. Department of Trans-
portation, Washington, D.C. 20590.
You can also obtain other informa-
tion about motor vehicle safety from
the Hotline.This information has been prepared in ac-
cordance with regulations issued by the
National Highway Traffic Safety Adminis-
tration of the U.S. Department of Trans-
portation. It provides the purchasers and/
or prospective purchasers of Toyota
vehicles with information on uniform tire
quality grading.
Your Toyota dealer will help answer any
questions you may have as you read this
information.
DOT quality grades—All passenger car
tires must conform to Federal Safety
Requirements in addition to these
grades. Quality grades can be found
where applicable on the tire sidewall
between tread shoulder and maximum
section width. For example: Treadwear
200 Traction AA Temperature A
Reporting safety defects for
U.S. owners
Uniform tire quality grading

’02 TUNDRA_U (L/O 0108)
2852002 MY TUNDRA_U (OM 34417U)
Treadwear—The treadwear grade is a
comparative rating based on the wear rate
of the tire when tested under controlled
conditions on a specified government test
course. For example, a tire graded 150
would wear one and a half (11/2) times
as well on the government course as a
tire graded 100. The relative performance
of tires depends upon the actual condi-
tions of their use, however, and may de-
part significantly from the norm due to
variations in driving habits, service prac-
tices and differences in road characteris-
tics and climate.
Traction AA, A, B, C— The traction
grades, from highest to lowest, are AA, A,
B, and C, and they represent the tire’s
ability to stop on wet pavement as mea-
sured under controlled conditions on spe-
cified government test surfaces of asphalt
and concrete. A tire marked C may have
poor traction performance.
Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction. Temperature A, B, C—
The temperature
grades are A (the highest), B, and C,
representing the tire’s resistance to the
generation of heat and its ability to dissi-
pate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature
can cause the material of the tire to de-
generate and reduce tire life, and exces-
sive temperature can lead to sudden tire
failure. The grade C corresponds to a lev-
el of performance which all passenger car
tires must meet under the Federal Motor
Vehicle Safety Standard No.109. Grades B
and A represent higher levels of perfor-
mance on the laboratory test wheel than
the minimum required by law.
Warning: The temperature grades for this
tire are established for a tire that is prop-
erly inflated and not overloaded. Exces-
sive speed, underinflation, or excessive
loading, either separately or in combina-
tion, can cause heat buildup and possible
tire failure. This information has been prepared in ac-
cordance with regulation issued by the Na-
tional Highway Traffic Safety Administra-
tion of the U.S. Department of
Transportation. It provides the purchasers
and/or prospective purchasers of Toyota
vehicles with information on truckcamper
loading. Your Toyota dealer will help an-
swer any questions you may have as you
read this information.
Camper information—

’02 TUNDRA_U (L/O 0108)
2862002 MY TUNDRA_U (OM 34417U)

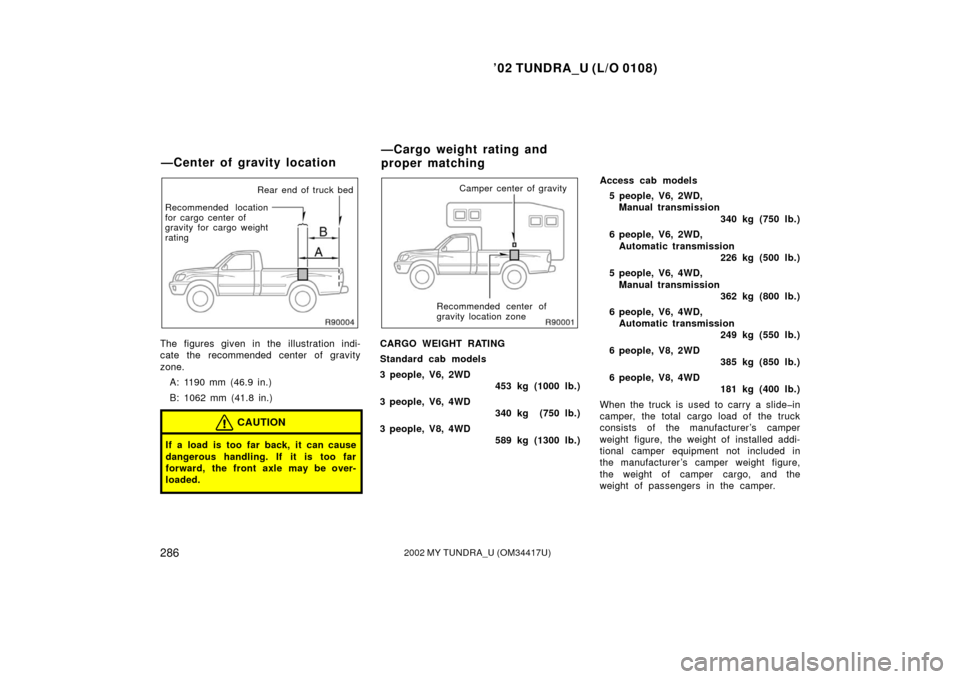

Recommended location
for cargo center of
gravity for cargo weight
rating Rear end of truck bed
The figures given in the illustration indi-
cate the recommended center of gravity
zone.
A: 1190 mm (46.9 in.)
B: 1062 mm (41.8 in.)
CAUTION
If a load is too far back, it can cause
dangerous handling. If it is too far
forward, the front axle may be over-
loaded.
Camper center of gravity
Recommended center of
gravity location zone
CARGO WEIGHT RATING
Standard cab models
3 people, V6, 2WD 453 kg (1000 lb.)
3 people, V6, 4WD 340 kg (750 lb.)
3 people, V8, 4WD 589 kg (1300 lb.)Access cab models
5 people, V6, 2WD, Manual transmission
340 kg (750 lb.)
6 people, V6, 2WD, Automatic transmission 226 kg (500 lb.)
5 people, V6, 4WD, Manual transmission 362 kg (800 lb.)
6 people, V6, 4WD, Automatic transmission 249 kg (550 lb.)
6 people, V8, 2WD 385 kg (850 lb.)
6 people, V8, 4WD 181 kg (400 lb.)
When the truck is used to carry a slidein
camper, the total cargo load of the truck
consists of the manufacturer ’s camper
weight figure, the weight of installed addi-
tional camper equipment not included in
the manufacturer ’s camper weight figure,
the weight of camper cargo, and the
weight of passengers in the camper.
—Center of gravity location —Cargo weight rating and
proper matching

’02 TUNDRA_U (L/O 0108)
2872002 MY TUNDRA_U (OM 34417U)
The total cargo load should not exceed
the truck’s cargo weight rating and the
camper ’s center of gravity should fall with-
in the truck’s recommended center of
gravity zone when installed.
CAUTION
Be careful—overloading can cause
dangerous braking and handling prob-
lems, and can damage your vehicle
and its tires.

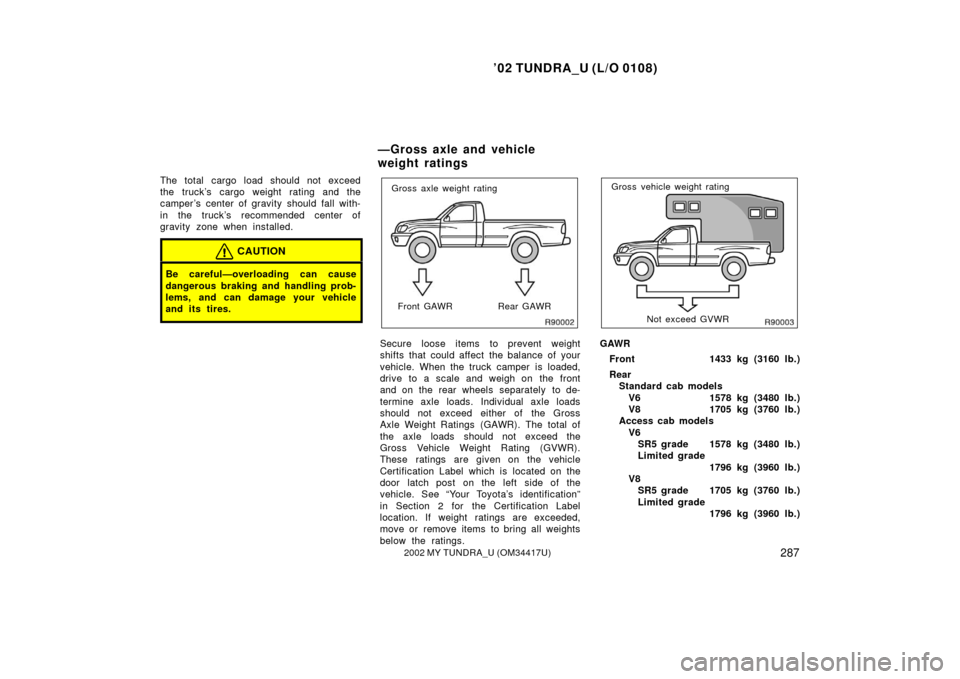

Gross axle weight rating
Front GAWR Rear GAWR
Secure loose items to prevent weight
shifts that could affect the balance of your
vehicle. When the truck camper is loaded,
drive to a scale and weigh on the front
and on the rear wheels separately to de-
termine axle loads. Individual axle loads
should not exceed either of the Gross
Axle Weight Ratings (GAWR). The total of
the axle loads should not exceed the
Gross Vehicle Weight Rating (GVWR).
These ratings are given on the vehicle
Certification Label which is located on the
door latch post on the left side of the
vehicle. See “Your Toyota’s identification”
in Section 2 for the Certification Label
location. If weight ratings are exceeded,
move or remove items to bring all weights
below the ratings.
Gross vehicle weight rating
Not exceed GVWR
GAWRFront 1433 kg (3160 lb.)
RearStandard cab models
V6 1578 kg (3480 lb.)
V8 1705 kg (3760 lb.)
Access cab models
V6SR5 grade 1578 kg (3480 lb.)
Limited grade
1796 kg (3960 lb.)
V8 SR5 grade 1705 kg (3760 lb.)
Limited grade 1796 kg (3960 lb.)
—Gross axle and vehicle
weight ratings

’02 TUNDRA_U (L/O 0108)
2882002 MY TUNDRA_U (OM 34417U)
GVWR
Twowheel drive modelsStandard cab models
2494 kg (5500 lb.)
Access cab models V6 2585 kg (5700 lb.)
V8 2812 kg (6200 lb.)
Fourwheel drive models Standard cab modelsV6 2494 kg (5500 lb.)
V8 2812 kg (6200 lb.)
Access cab models V6 2721 kg (6000 lb.)
V8
SR5 grade 2735 kg (6030 lb.)
Limited grade 2726 kg (6010 lb.)
If weight ratings are exceeded, move or
remove items to bring all weights below
the ratings.

’02 TUNDRA_U (L/O 0108)
2002 MY TUNDRA_U (OM 34417U)
Publication No. OM34417U
Part No. 01999-34417
Printed in Japan 01-0108-00
(U)
Quick index
If a service reminder indicator or warning buzzer comes on 91
. . . . . . . . .
 If your vehicle will not start 208
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
 If your engine stalls while driving 211
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 If your vehicle overheats 211
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
 If you have a flat tire 212
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
 If your vehicle needs to be towed 222
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Tips for driving during breakin period 173
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 How to start the engine 188
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
 General maintenance 237
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
 Complete index NO TAG
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Gas station information
Fuel type:
UNLEADED gasoline, Octane Rating 87 (Research Octane Number 91)
or higher
See page 173 for detailed information.
Fuel tank capacity: 100 L (26.4 gal., 22.0 lmp. gal.)
Engine oil:
API grade SJ “EnergyConserving”, SL “EnergyConserving” or ILSAC
multigrade engine oil is recommended.
See page 250 for detailed information.
Automatic transmission fluid: Automatic transmission fluid DII or DEXRON
III (DEXRONII)
See page 278 for detailed information.
Tire information: See pages 255 through 259.
Tire pressure: See page 280. s
U-4
B
