326 Towing
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index
Engine damage /Transmission damage,
Electrical malfunction
To be certain to avoid additional damage to the vehicle
powertrain, however you should do the following:
Shift automatic transmission to position “N”.
Important!
Vehicle may be towed for distances up to 30 miles
(50 km) and at a speed not to exceed 30 mph
(50 km/h).
For towing vehicle for distances exceeding 30 miles
(50 km) or if the vehicle has a damaged transfer
case, remove drive shafts to the drive axles.
When towing vehicle with one axle raised, the
electronic key in starter switch must be in
position 1.
With damage to front axle, raise front axle. Remove
drive shaft between rear axle and transfer case.
With damage to rear axle, raise rear axle and tow
vehicle with wheel lift or dolly placed under front
wheels.Notes:
When removing drive shaft, place M10 nuts on bolts as
distance sleeves and tighten using M8 nuts.
Always install new self-locking nuts when reinstalling
the drive shaft.
Caution!
If the vehicle is towed with the front axle raised, the
engine must be shut off (electronic key in starter switch
position 1). Otherwise, the 4-ETS may become engaged
which may cause loss of towing control. Switch off the
tow-away alarm (see page 43) as well as the ESP (see
page 245).
Note:
To signal turns while being towed with hazard warning
flasher in use, turn electronic key in starter switch to
position 1 and activate combination switch for left or
right turn signal in usual manner. Now deactivate the
hazard warning flasher, only the selected turn signal
will operate. Upon canceling the turn signal, the hazard
warning flasher must be activated again.
J_G463.book Seite 326 Mittwoch, 19. September 2001 8:06 08

327 Towing
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index Transmission selector lever, manually unlocking
In the case of power failure the transmission selector
lever can be manually unlocked, e.g. to tow the vehicle.

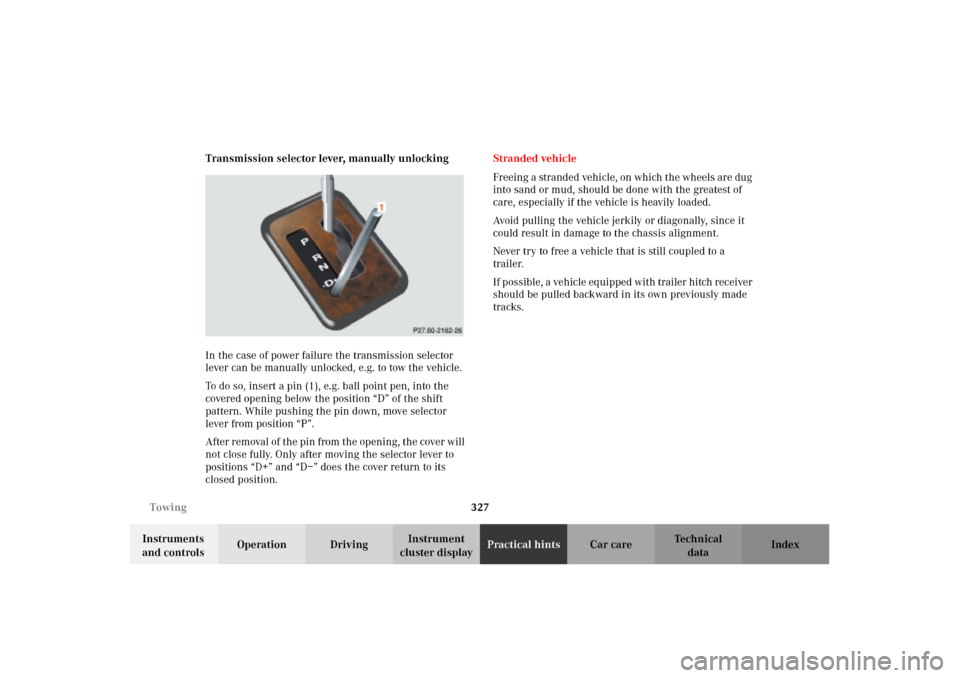

To do so, insert a pin (1), e.g. ball point pen, into the
covered opening below the position “D” of the shift
pattern. While pushing the pin down, move selector
lever from position “P”.
After removal of the pin from the opening, the cover will
not close fully. Only after moving the selector lever to
positions “D+” and “D–” does the cover return to its
closed position.Stranded vehicle
Freeing a stranded vehicle, on which the wheels are dug
into sand or mud, should be done with the greatest of
care, especially if the vehicle is heavily loaded.
Avoid pulling the vehicle jerkily or diagonally, since it
could result in damage to the chassis alignment.
Never try to free a vehicle that is still coupled to a
trailer.
If possible, a vehicle equipped with trailer hitch receiver
should be pulled backward in its own previously made
tracks.
J_G463.book Seite 327 Mittwoch, 19. September 2001 8:06 08

328 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index
Exterior lamps
Headlamp adjustment
Correct headlamp adjustment is extremely important.
Check and readjust headlamps at regular intervals and
when a bulb has been replaced.Replacing bulbs
To prevent a possible electrical short circuit, switch off
lamp prior to replacing a bulb.
When replacing bulbs, install only 12 volt bulbs with
the specified watt rating.
When replacing halogen bulbs do not touch glass
portion of bulb with bare hands. Use plain paper or a
clean cloth.

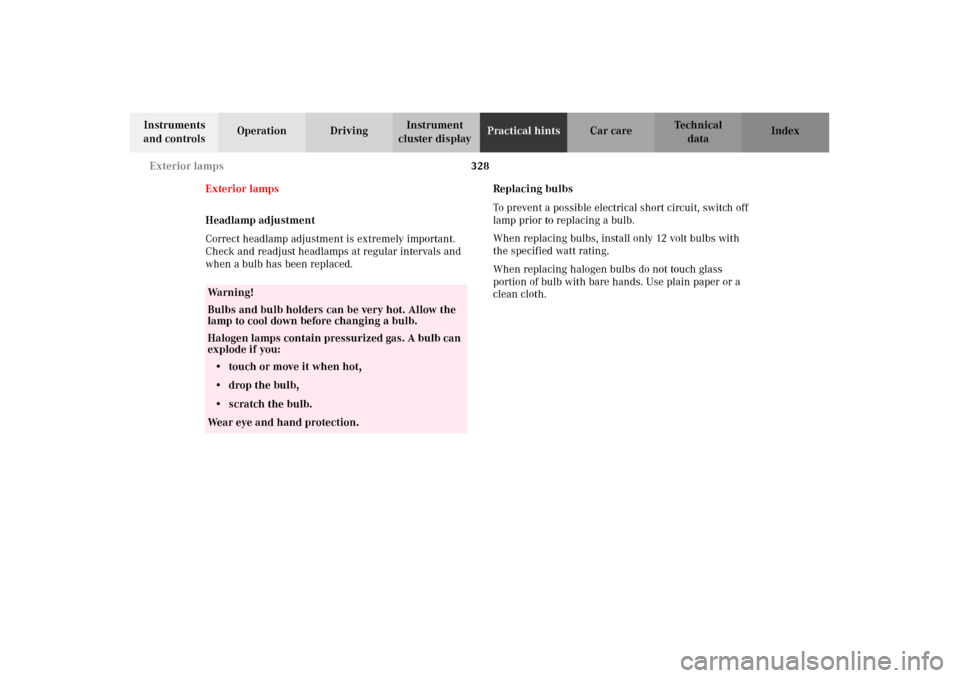

Wa r n i n g !
Bulbs and bulb holders can be very hot. Allow the
lamp to cool down before changing a bulb.
Halogen lamps contain pressurized gas. A bulb can
explode if you:
• touch or move it when hot,
•drop the bulb,
• scratch the bulb.Wear eye and hand protection.
J_G463.book Seite 328 Mittwoch, 19. September 2001 8:06 08

329 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index Headlamp assembly (Halogen)

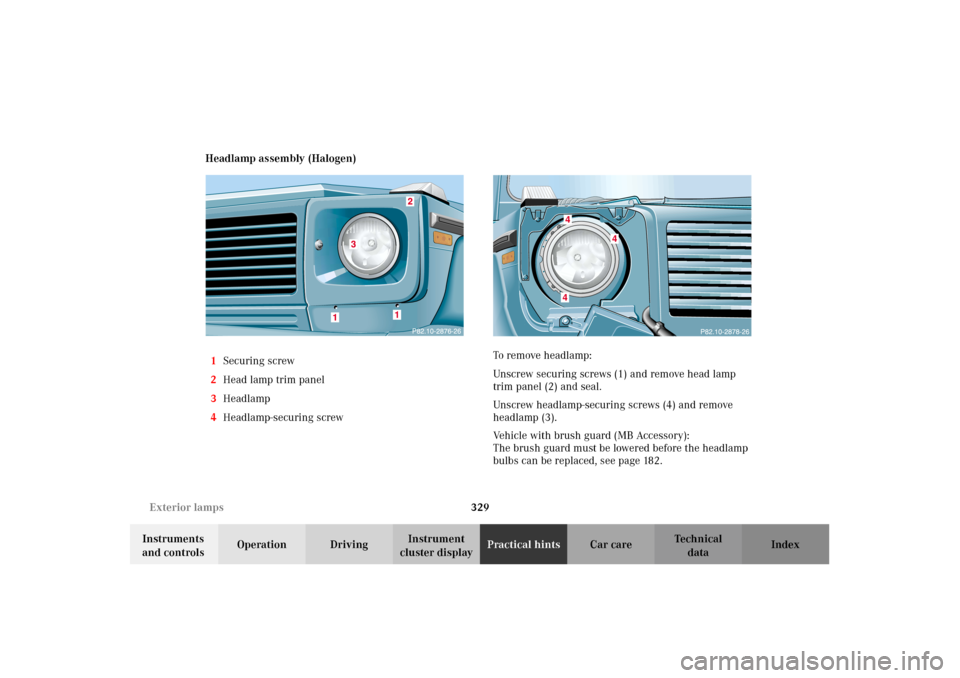

1Securing screw
2Head lamp trim panel
3Headlamp
4Headlamp-securing screwTo r e m ove h e a d l a mp :
Unscrew securing screws (1) and remove head lamp
trim panel (2) and seal.
Unscrew headlamp-securing screws (4) and remove
headlamp (3).
Vehicle with brush guard (MB Accessory):
The brush guard must be lowered before the headlamp
bulbs can be replaced, see page 182.
4
4
4
J_G463.book Seite 329 Mittwoch, 19. September 2001 8:06 08

330 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index

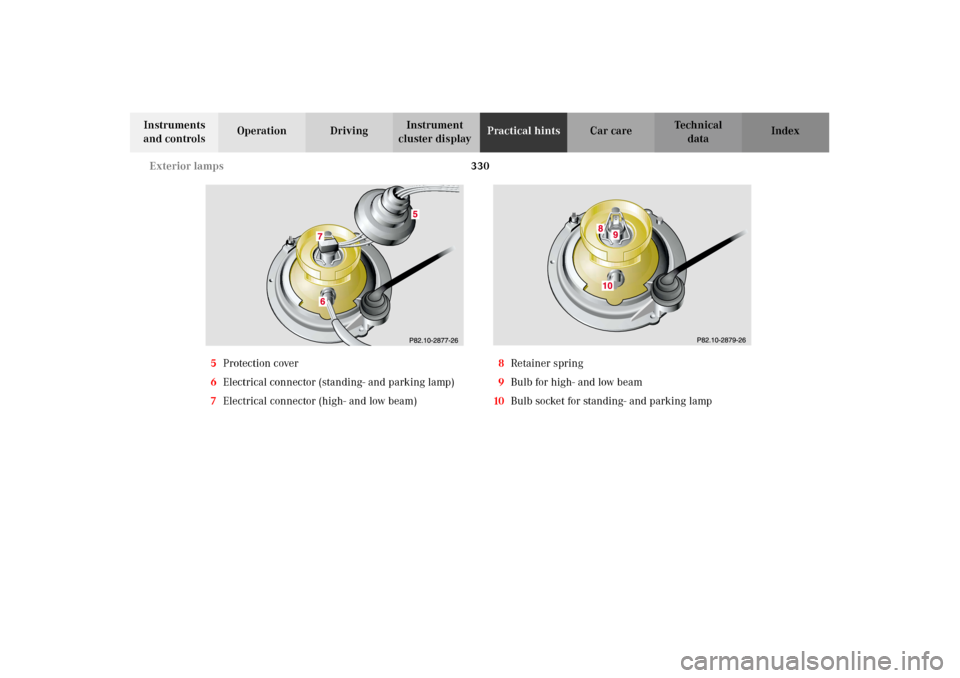

5Protection cover
6Electrical connector (standing- and parking lamp)
7Electrical connector (high- and low beam)8Retainer spring
9Bulb for high- and low beam
10Bulb socket for standing- and parking lamp
J_G463.book Seite 330 Mittwoch, 19. September 2001 8:06 08

331 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index Bulbs for low and high beam
H4 60 / 55W 12V
Remove protection cover (5) and pull off electrical
connector (6).
Unclip retainer spring (8) and take out bulb (9).
Insert new bulb so that the base locates in the recess on
the holder.
Clip in retainer spring (8), plug the electrical
connector (6) onto the bulb (9) and press on protection
cover (5).
Bulbs for parking and standing lamp
T 4W 12V
Pull off electrical connector (6) from the bulb (10).
Push bulb (10) into socket, turn counterclockwise and
remove.
Insert new bulb (10) in socket, push in and turn
clockwise until it clicks in.
Plug electrical connector (6) onto the bulb (10).To reinstall headlamp:
Insert headlamp (3) and screw in headlamp-securing
screws (4).
Install head lamp trim panel (2) and seal and screw in
securing screws (1).
J_G463.book Seite 331 Mittwoch, 19. September 2001 8:06 08

332 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index
Fog lamp, front

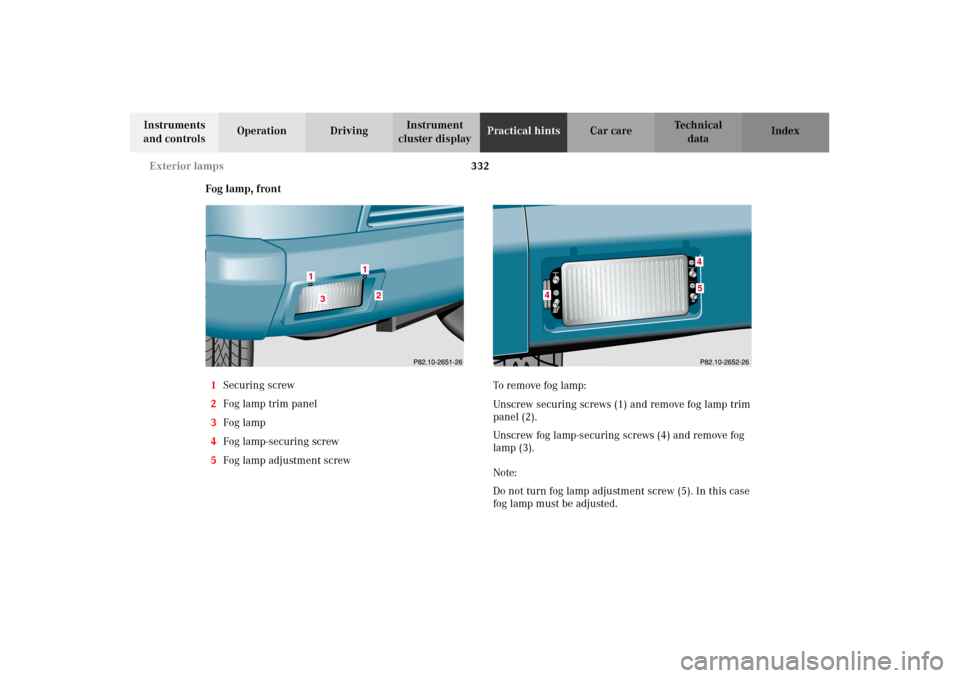

1Securing screw
2Fog lamp trim panel
3Fog lamp
4Fog lamp-securing screw
5Fog lamp adjustment screwTo r e m ove fo g l a mp :
Unscrew securing screws (1) and remove fog lamp trim
panel (2).
Unscrew fog lamp-securing screws (4) and remove fog
lamp (3).
Note:
Do not turn fog lamp adjustment screw (5). In this case
fog lamp must be adjusted.
1
1
3
2
4
45
J_G463.book Seite 332 Mittwoch, 19. September 2001 8:06 08

333 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

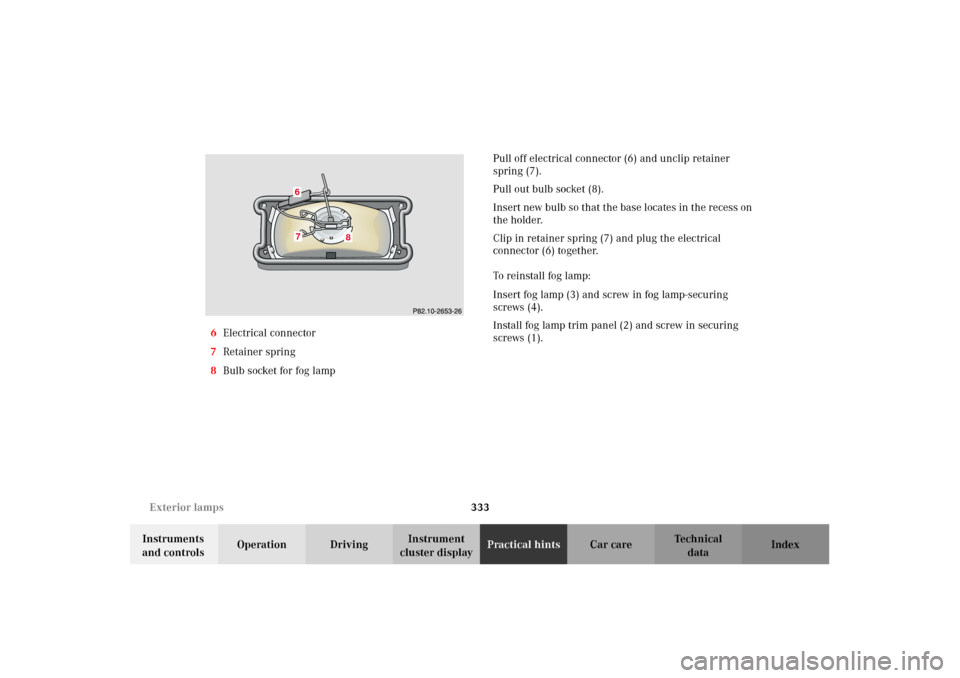

cluster displayPractical hintsCar care Index 6Electrical connector
7Retainer spring
8Bulb socket for fog lamp Pull off electrical connector (6) and unclip retainer
spring (7).
Pull out bulb socket (8).
Insert new bulb so that the base locates in the recess on
the holder.
Clip in retainer spring (7) and plug the electrical
connector (6) together.
To reinstall fog lamp:
Insert fog lamp (3) and screw in fog lamp-securing
screws (4).
Install fog lamp trim panel (2) and screw in securing
screws (1).
67
8
