2002 MERCEDES-BENZ G500 Owner's Manual

286 Malfunction and warning messages
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
TRUNK OPEN
* C = Category, see page 272
Trunk=Tailgate
HOOD* C = Category, see page 272.See page 302 for hood.
Line 1 Line 2 C*
TRUNK OPEN! 2
Line 1 Line 2 C*
HOOD OPEN! 2
J_G463.book Seite 286 Mittwoch, 19. September 2001 8:06 08

287 Malfunction and warning messages
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

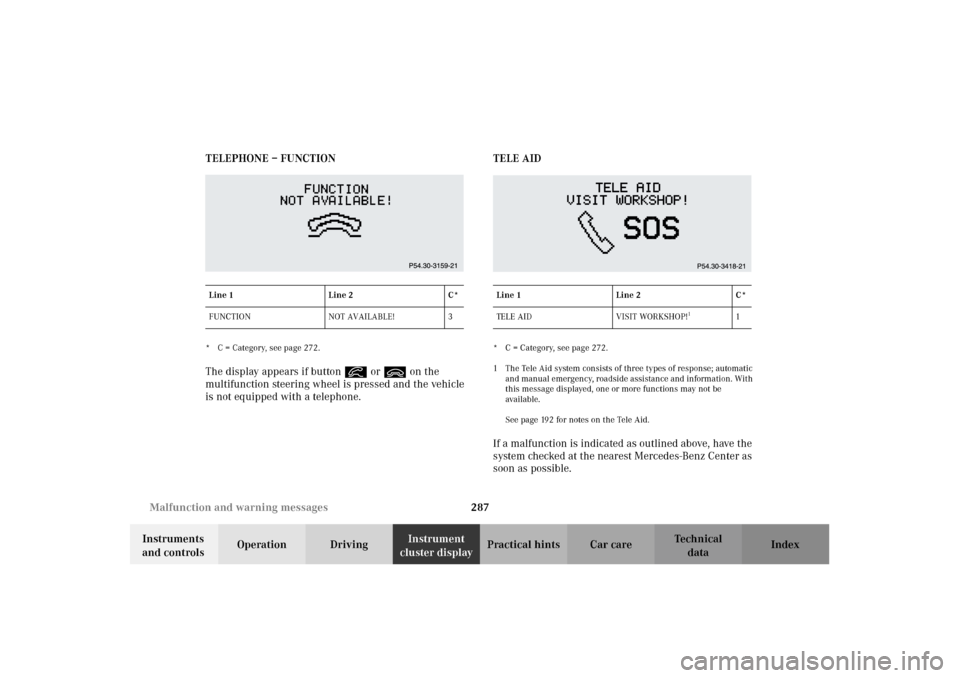

cluster displayPractical hints Car care Index TELEPHONE – FUNCTION
* C = Category, see page 272.The display appears if button í or ì on the
multifunction steering wheel is pressed and the vehicle
is not equipped with a telephone.TELE AID
* C = Category, see page 272.
1 The Tele Aid system consists of three types of response; automatic
and manual emergency, roadside assistance and information. With
this message displayed, one or more functions may not be
available.
See page 192 for notes on the Tele Aid.If a malfunction is indicated as outlined above, have the
system checked at the nearest Mercedes-Benz Center as
soon as possible.
Line 1 Line 2 C*
FUNCTION NOT AVAILABLE! 3
Line 1 Line 2 C*
TE L E A I D V I S I T WO R KS H O P !
1
1
J_G463.book Seite 287 Mittwoch, 19. September 2001 8:06 08

288 Malfunction and warning messages
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index

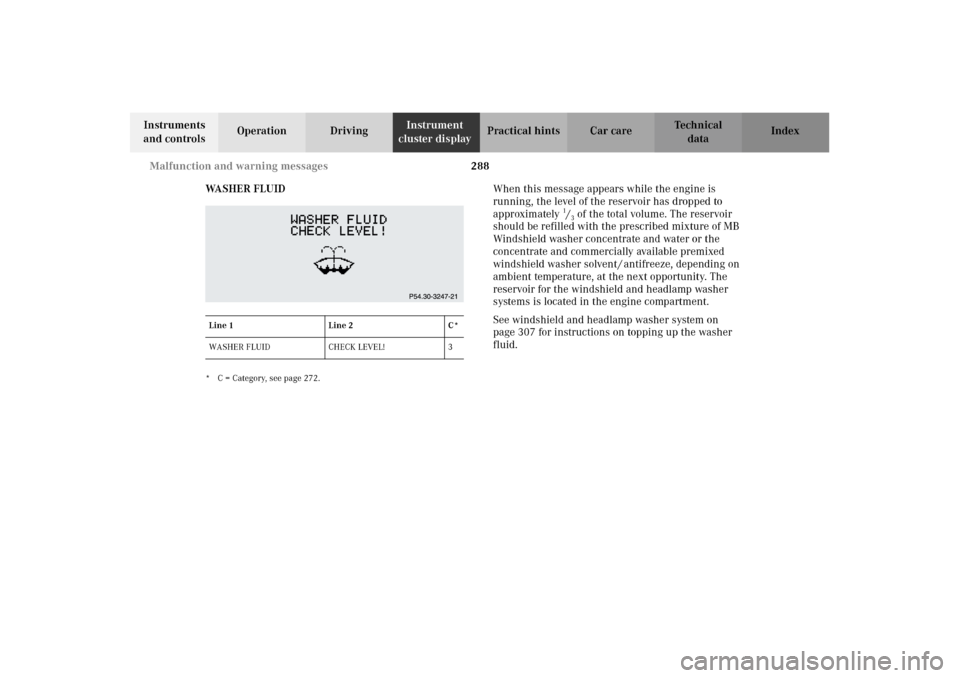

WA S H E R F L U I D
* C = Category, see page 272.
When this message appears while the engine is
running, the level of the reservoir has dropped to
approximately
1/3 of the total volume. The reservoir
should be refilled with the prescribed mixture of MB
Windshield washer concentrate and water or the
concentrate and commercially available premixed
windshield washer solvent / antifreeze, depending on
ambient temperature, at the next opportunity. The
reservoir for the windshield and headlamp washer
systems is located in the engine compartment.
See windshield and headlamp washer system on
page 307 for instructions on topping up the washer
fluid.
Line 1 Line 2 C*
WASHER FLUID CHECK LEVEL! 3
J_G463.book Seite 288 Mittwoch, 19. September 2001 8:06 08

289 Malfunction and warning messages
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

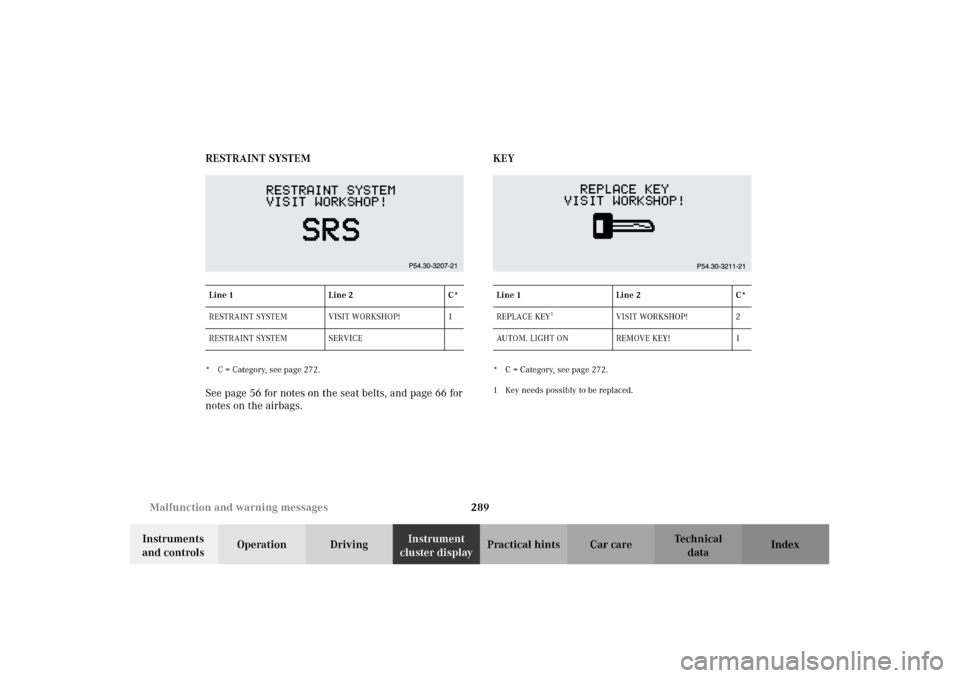

cluster displayPractical hints Car care Index RESTRAINT SYSTEM
* C = Category, see page 272.See page 56 for notes on the seat belts, and page 66 for
notes on the airbags.KEY
* C = Category, see page 272.
1 Key needs possibly to be replaced. Line 1 Line 2 C*
RESTRAINT SYSTEM VISIT WORKSHOP! 1
RESTRAINT SYSTEM SERVICELine 1 Line 2 C*
REPLACE KEY
1
VISIT WORKSHOP! 2
AUTOM. LIGHT ON REMOVE KEY! 1
J_G463.book Seite 289 Mittwoch, 19. September 2001 8:06 08

290 Malfunction and warning messages
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index

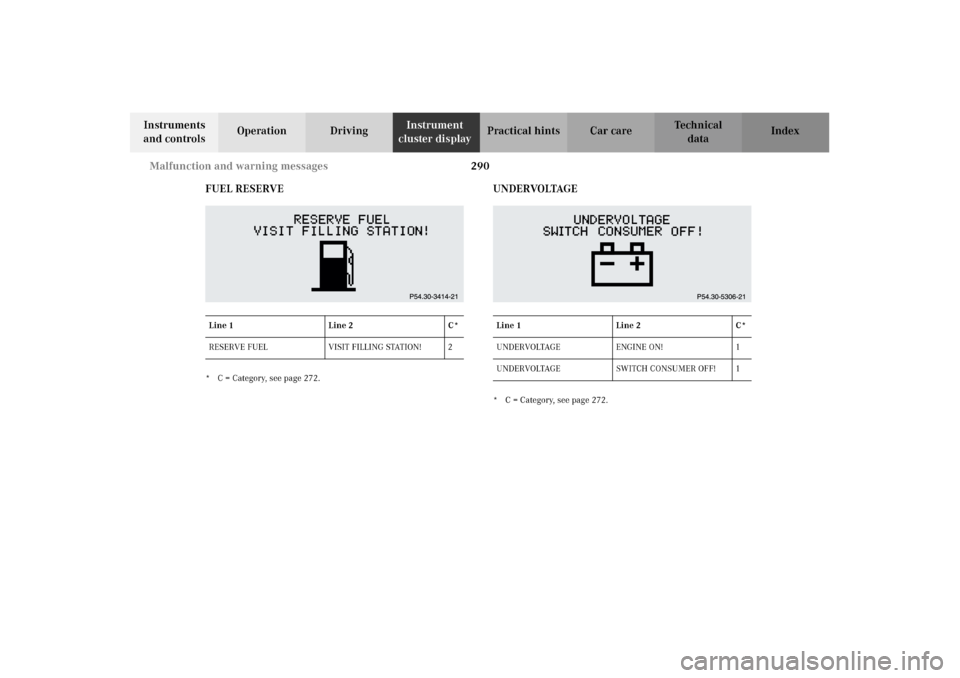

FUEL RESERVE
* C = Category, see page 272.
UNDERVOLTAGE* C = Category, see page 272. Line 1 Line 2 C*
RESERVE FUEL VISIT FILLING STATION! 2Line 1 Line 2 C*
UNDERVOLTAGE ENGINE ON! 1
UNDERVOLTAGE SWITCH CONSUMER OFF! 1
J_G463.book Seite 290 Mittwoch, 19. September 2001 8:06 08

291 Malfunction and warning messages
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index ELECTRONIC BRAKE BOOSTER (EBB)
* C = Category, see page 272.
ENGINE AIR FILTER* C = Category, see page 272.
1 The engine air filter is clogged and must be replaced. Line 1 Line 2 C*
ELECTRIC BRAKE BOOSTER VISIT WORKSHOP! 2Line 1 Line 2 C*
ENGINE AIR FILTER
1
VISIT WORKSHOP! 2
J_G463.book Seite 291 Mittwoch, 19. September 2001 8:06 08

292 Malfunction and warning messages
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index

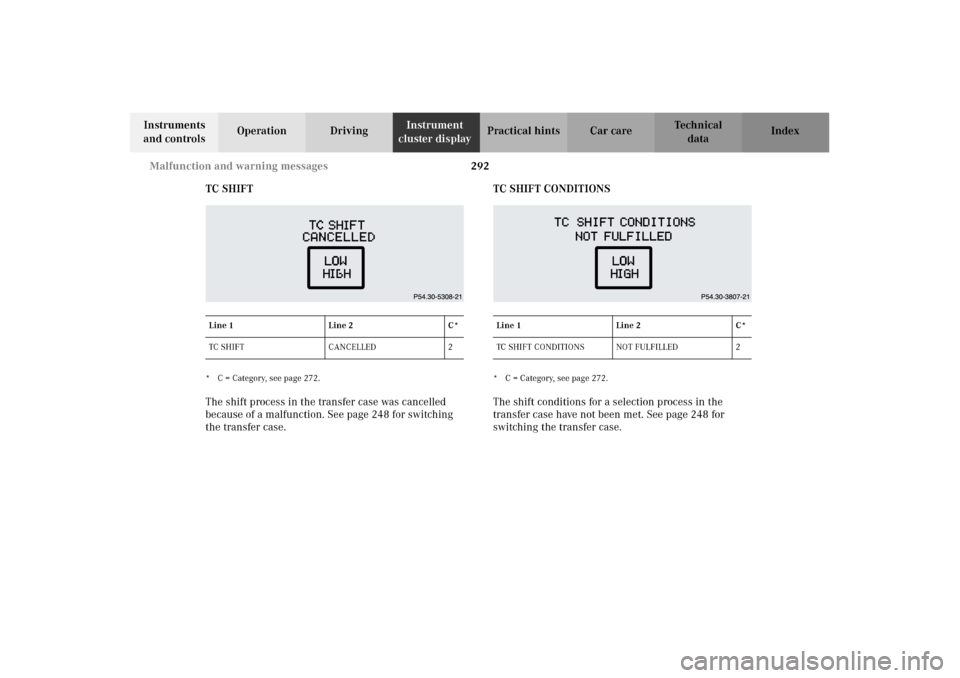

TC SHIFT
* C = Category, see page 272.The shift process in the transfer case was cancelled
because of a malfunction. See page 248 for switching
the transfer case.TC SHIFT CONDITIONS
* C = Category, see page 272.The shift conditions for a selection process in the
transfer case have not been met. See page 248 for
switching the transfer case.
Line 1 Line 2 C*
TC S HIF T C A N C EL LED 2
Line 1 Line 2 C*
TC SHIFT CONDITIONS NOT FULFILLED 2
J_G463.book Seite 292 Mittwoch, 19. September 2001 8:06 08

293 Malfunction and warning messages
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

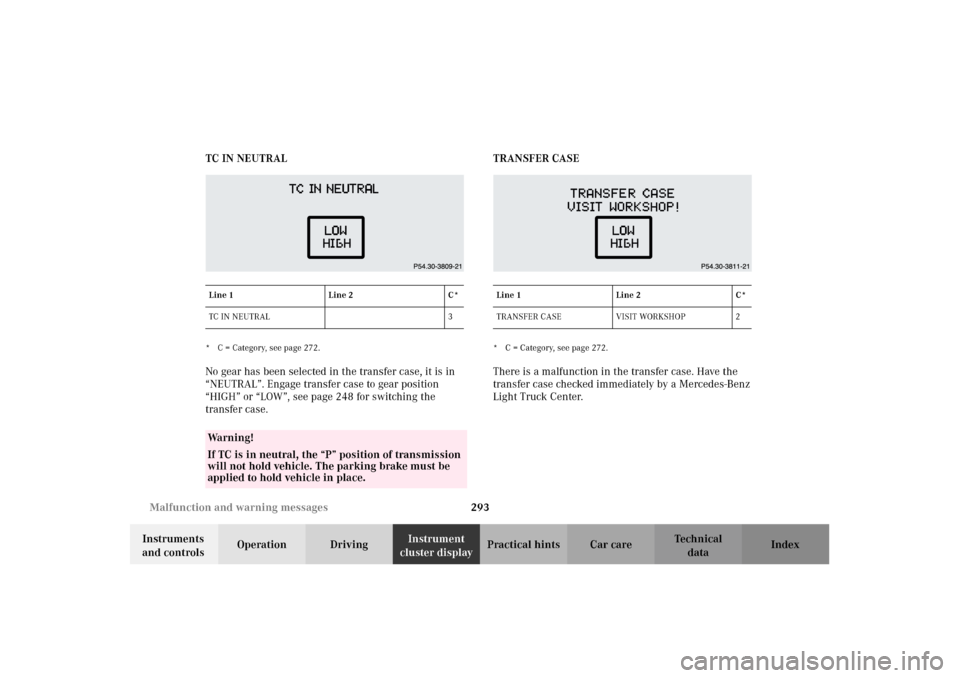

cluster displayPractical hints Car care Index TC IN NEUTRAL
* C = Category, see page 272.No gear has been selected in the transfer case, it is in
“NEUTRAL”. Engage transfer case to gear position
“HIGH” or “LOW”, see page 248 for switching the
transfer case.TRANSFER CASE
* C = Category, see page 272.There is a malfunction in the transfer case. Have the
transfer case checked immediately by a Mercedes-Benz
Light Truck Center.
Line 1 Line 2 C*
TC IN NEUTRAL 3Wa r n i n g !
If TC is in neutral, the “P” position of transmission
will not hold vehicle. The parking brake must be
applied to hold vehicle in place.
Line 1 Line 2 C*
TRANSFER CASE VISIT WORKSHOP 2
