334 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index

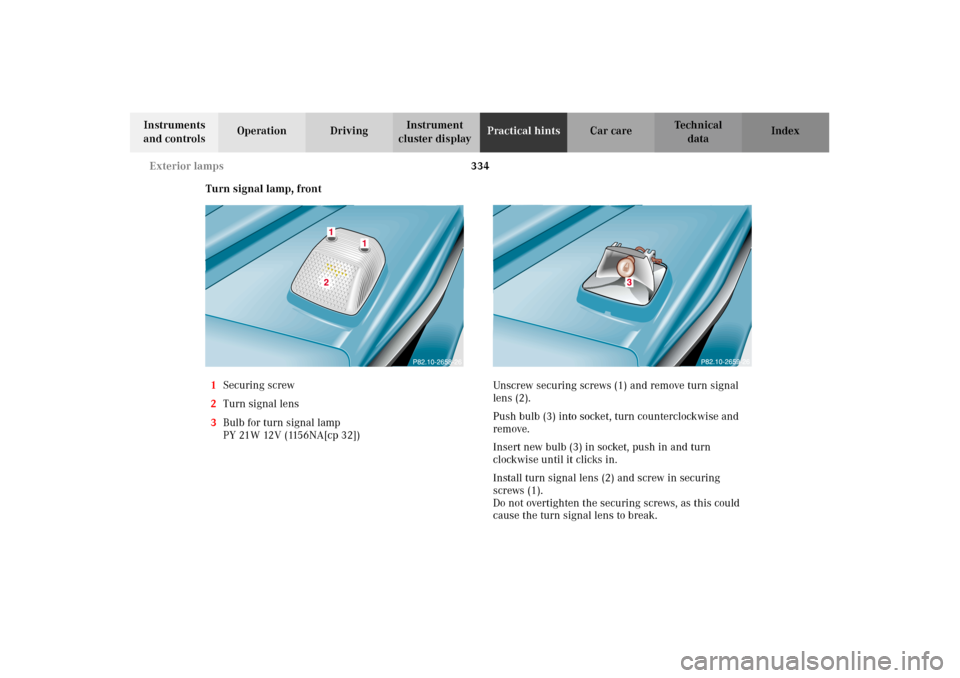

Turn signal lamp, front
1Securing screw
2Turn signal lens
3Bulb for turn signal lamp
PY 21W 12V (1156NA[cp 32])Unscrew securing screws (1) and remove turn signal
lens (2).
Push bulb (3) into socket, turn counterclockwise and
remove.
Insert new bulb (3) in socket, push in and turn
clockwise until it clicks in.
Install turn signal lens (2) and screw in securing
screws (1).
Do not overtighten the securing screws, as this could
cause the turn signal lens to break.
J_G463.book Seite 334 Mittwoch, 19. September 2001 8:06 08

335 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

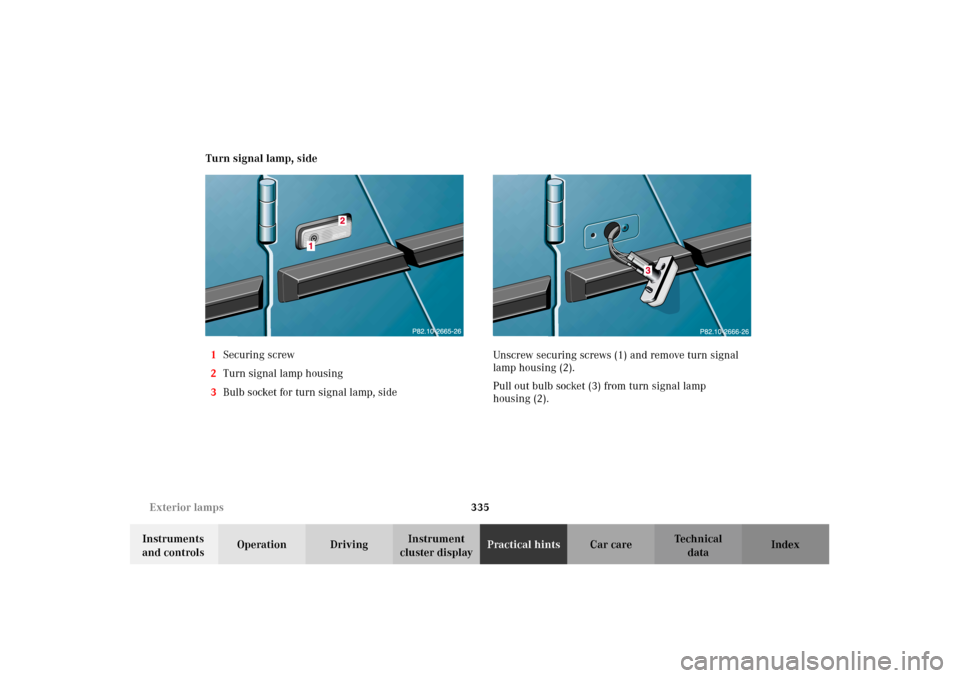

cluster displayPractical hintsCar care Index Turn signal lamp, side
1Securing screw
2Turn signal lamp housing
3Bulb socket for turn signal lamp, sideUnscrew securing screws (1) and remove turn signal
lamp housing (2).
Pull out bulb socket (3) from turn signal lamp
housing (2).
J_G463.book Seite 335 Mittwoch, 19. September 2001 8:06 08

336 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index
4Bulb for turn signal lamp, side
WY 5W 12V Pull bulb (4) from bulb socket (3).
Insert new bulb in bulb socket (3).
Insert bulb socket (3) in turn signal lamp housing (2)
and screw in securing screws (1).
Do not overtighten the securing screws, as this could
cause the turn signal lamp housing to break.
4
J_G463.book Seite 336 Mittwoch, 19. September 2001 8:06 08

337 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

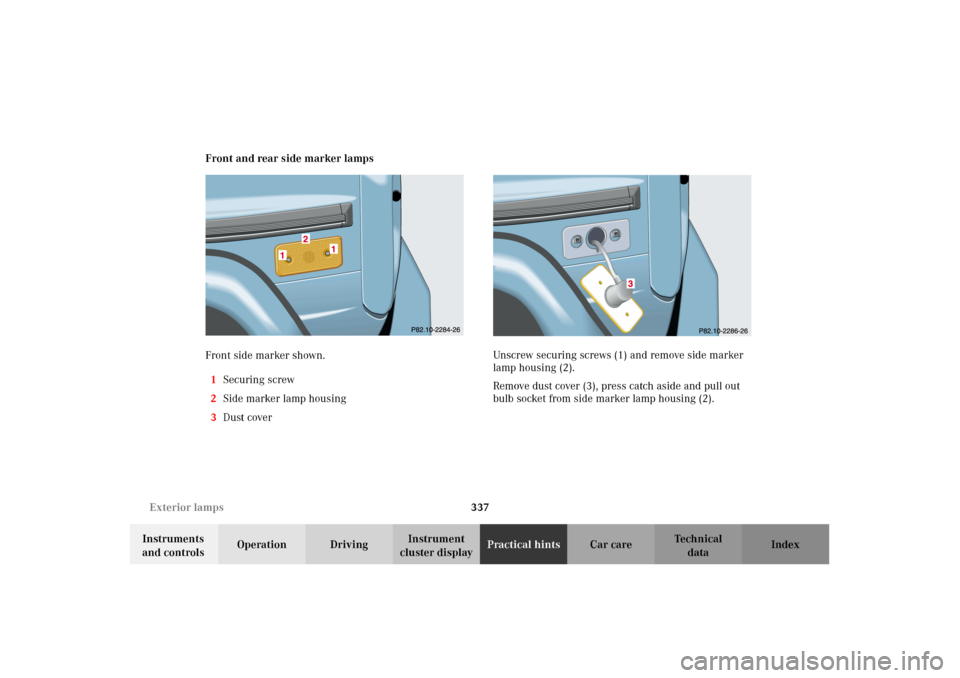

cluster displayPractical hintsCar care Index Front and rear side marker lamps
Front side marker shown.
1Securing screw
2Side marker lamp housing
3Dust coverUnscrew securing screws (1) and remove side marker
lamp housing (2).
Remove dust cover (3), press catch aside and pull out
bulb socket from side marker lamp housing (2).
J_G463.book Seite 337 Mittwoch, 19. September 2001 8:06 08

338 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index

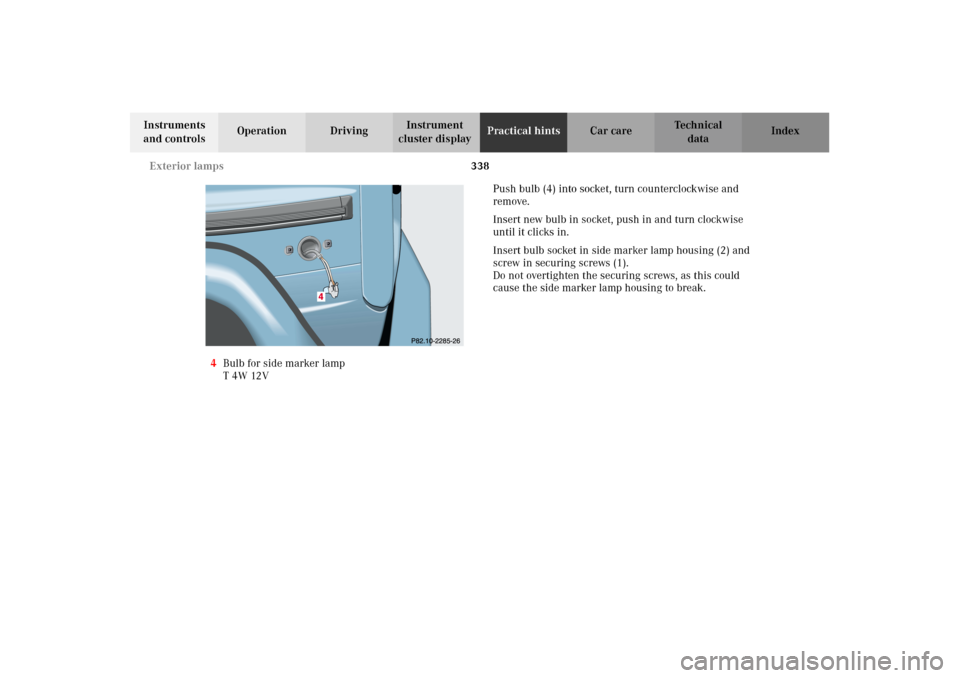

4Bulb for side marker lamp
T 4W 12V Push bulb (4) into socket, turn counterclockwise and
remove.
Insert new bulb in socket, push in and turn clockwise
until it clicks in.
Insert bulb socket in side marker lamp housing (2) and
screw in securing screws (1).
Do not overtighten the securing screws, as this could
cause the side marker lamp housing to break.
J_G463.book Seite 338 Mittwoch, 19. September 2001 8:06 08

339 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

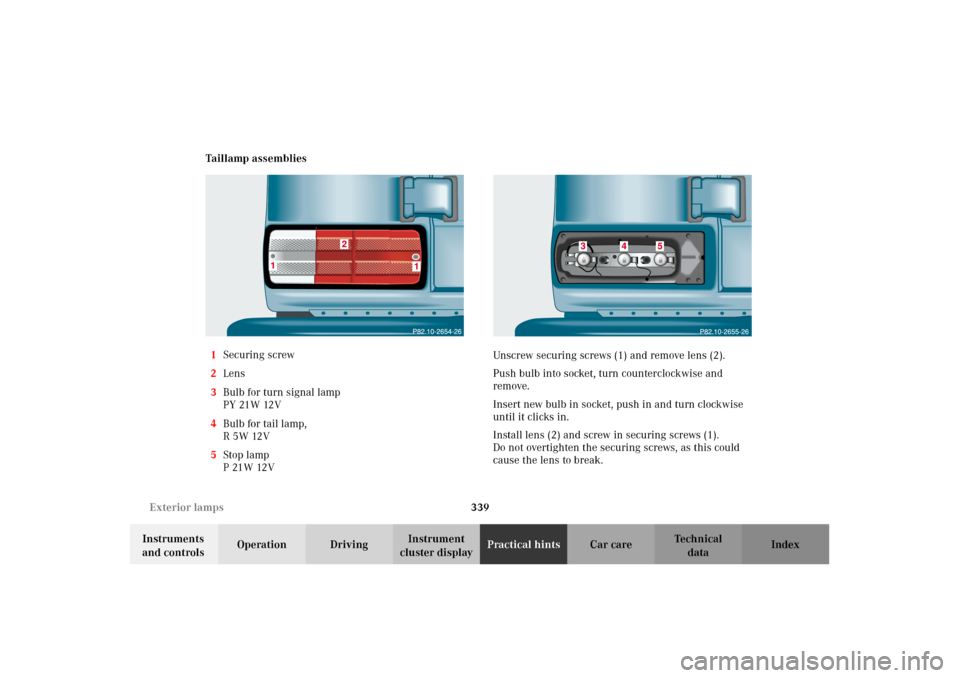

cluster displayPractical hintsCar care Index Taillamp assemblies
1Securing screw
2Lens
3Bulb for turn signal lamp
PY 21W 12V
4Bulb for tail lamp,
R5W12V
5Stop lamp
P21W12VUnscrew securing screws (1) and remove lens (2).
Push bulb into socket, turn counterclockwise and
remove.
Insert new bulb in socket, push in and turn clockwise
until it clicks in.
Install lens (2) and screw in securing screws (1).
Do not overtighten the securing screws, as this could
cause the lens to break.
J_G463.book Seite 339 Mittwoch, 19. September 2001 8:06 08

340 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index

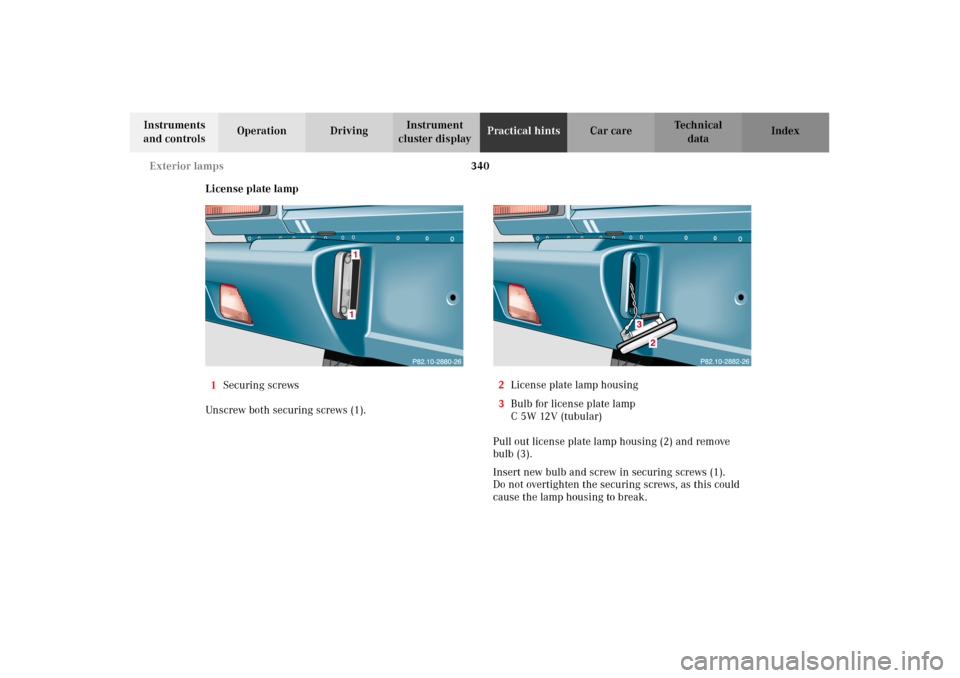

License plate lamp
1Securing screws
Unscrew both securing screws (1).2License plate lamp housing
3Bulb for license plate lamp
C5W12V (tubular)
Pull out license plate lamp housing (2) and remove
bulb (3).
Insert new bulb and screw in securing screws (1).
Do not overtighten the securing screws, as this could
cause the lamp housing to break.
11
J_G463.book Seite 340 Mittwoch, 19. September 2001 8:06 08

341 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

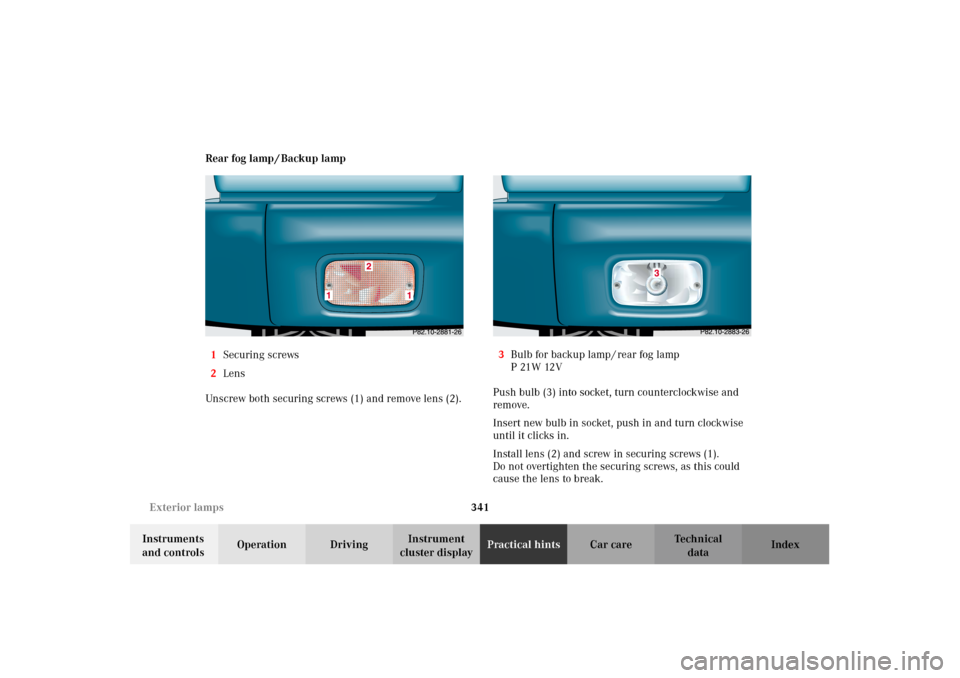

cluster displayPractical hintsCar care Index Rear fog lamp / Backup lamp
1Securing screws
2Lens
Unscrew both securing screws (1) and remove lens (2).3Bulb for backup lamp / rear fog lamp
P21W12V
Push bulb (3) into socket, turn counterclockwise and
remove.
Insert new bulb in socket, push in and turn clockwise
until it clicks in.
Install lens (2) and screw in securing screws (1).
Do not overtighten the securing screws, as this could
cause the lens to break.
