10Specifications
Technical information about your Mazda.
Identification Numbers
............................................................. 10- 2
Vehicle Information Labels ................................................... 10- 2
Specifications
............................................................................. 10- 4
Specifications ........................................................................ 10- 4
J76Y.book Page 1 Wednesday, March 27, 2002 5:04 PM

10-2
Form No. 8Q47-EA-01F
Identification Numbers

Vehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the left top side of the
dashboard. This plate can easily be seen
through the windshield.

Motor Vehicle Safety Standard
Label
Chassis Number

Vehicle Emission Control
Information Label

Tire Pressure Label
Vehicle Information Labels
J76Y.book Page 2 Wednesday, March 27, 2002 5:04 PM

10-3
Identification Numbers
Form No. 8Q47-EA-01F

Engine Number
2.5 liter V6 DOHC
Miller Cycle Engine V6 DOHC
J76Y.book Page 3 Wednesday, March 27, 2002 5:04 PM

10-4
Form No. 8Q47-EA-01F

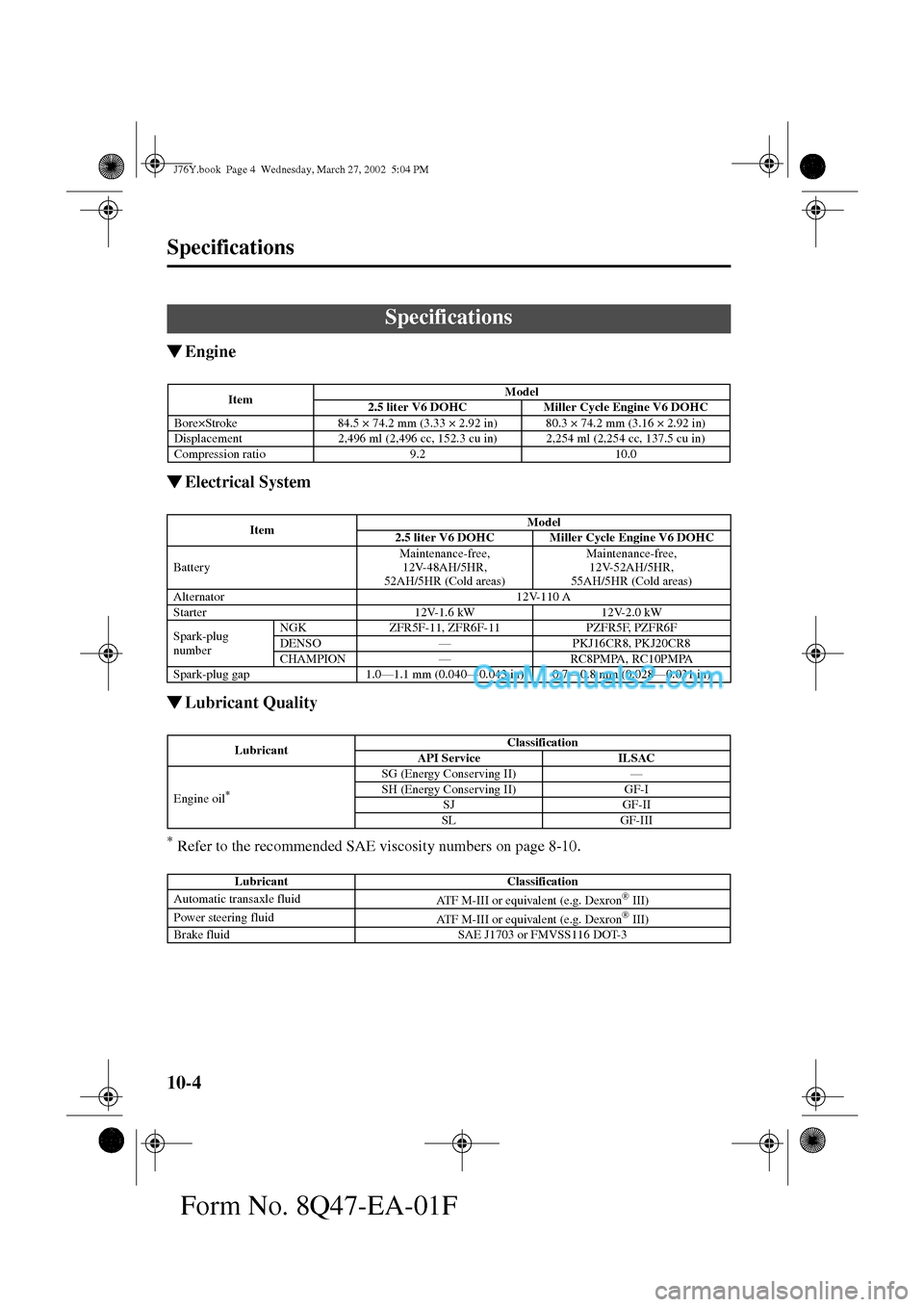

Specifications

Engine

Electrical System

Lubricant Quality
* Refer to the recommended SAE viscosity numbers on page 8-10.
Specifications
ItemModel
2.5 liter V6 DOHC Miller Cycle Engine V6 DOHC
Bore×Stroke 84.5 × 74.2 mm (3.33 × 2.92 in) 80.3 × 74.2 mm (3.16 × 2.92 in)
Displacement 2,496 ml (2,496 cc, 152.3 cu in) 2,254 ml (2,254 cc, 137.5 cu in)
Compression ratio 9.2 10.0
ItemModel
2.5 liter V6 DOHC Miller Cycle Engine V6 DOHC
BatteryMaintenance-free,
12V-48AH/5HR,
52AH/5HR (Cold areas)Maintenance-free,
12V-52AH/5HR,
55AH/5HR (Cold areas)
Alternator 12V-110 A
Starter 12V-1.6 kW 12V-2.0 kW
Spark-plug
numberNGK ZFR5F-11, ZFR6F-11 PZFR5F, PZFR6F
DENSO—PKJ16CR8, PKJ20CR8
CHAMPION—RC8PMPA, RC10PMPA
Spark-plug gap 1.0—1.1 mm (0.040—0.043 in) 0.7—0.8 mm (0.028—0.031 in)
LubricantClassification
API Service ILSAC
Engine oil
*
SG (Energy Conserving II)—
SH (Energy Conserving II) GF-I
SJ GF-II
SL GF-III
Lubricant Classification
Automatic transaxle fluid
ATF M-III or equivalent (e.g. Dexron
® III)
Power steering fluid
ATF M-III or equivalent (e.g. Dexron® III)
Brake fluid SAE J1703 or FMVSS116 DOT-3
J76Y.book Page 4 Wednesday, March 27, 2002 5:04 PM

10-5
Specifications
Form No. 8Q47-EA-01F

Capacities
(Approximate Quantities)
Check oil and fluid levels with dipsticks or reservoir gauges.

Dimensions
*With license plate holder

We i g h t s
ItemUnit
L US qt Imp qt
Engine oil2.5 liter V6 DOHCWith oil filter
replacement4.0 4.2 3.5
Without oil filter
replacement3.7 3.9 3.3
Miller Cycle
Engine V6 DOHCWith oil filter
replacement4.1 4.3 3.6
Without oil filter
replacement3.8 4.0 3.4
Coolant 7.5 7.9 6.6
Automatic transaxle
fluid2.5 liter V6 DOHC 8.0 8.4 7.0
Miller Cycle Engine V6 DOHC 7.4 7.8 6.5
Fuel tank 68 18.0 (US gal) 15.0 (Imp gal)
Item mm (in)
Overall length
4,860 (191.3), 4,870 (191.7)
*
Overall width 1,770 (69.7)
Overall height 1,395 (54.9)
Front tread 1,520 (59.8)
Rear tread 1,520 (59.8)
Wheelbase 2,750 (108.3)
Item Weight
GVWR (Gross Vehicle Weight Rating) 1,985 kg (4,376 lb)
GAWR (Gross Axle Weight Rating)Front 1,116 kg (2,460 lb)
Rear 880 kg (1,940 lb)
J76Y.book Page 5 Wednesday, March 27, 2002 5:04 PM

10-6
Specifications
Form No. 8Q47-EA-01F

Air Conditioner

Light Bulbs

Tires
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-25.
Standard tire
Temporary spare tire

Fuses
Refer to the fuse rating on page 8-34.
Gas complies with SAE J639 Maximum operating charge
R-134a 0.8 kg (28.2 oz)
Light bulb Wattage
HeadlightsHigh beam (HB3) 60
Low beam (HB4) 51
Front turn signal lights 27
Parking lights 5
Fog lights55
Side-marker lights 3.8
High-mount brake lights 5
Rear turn signal lights 21
Brake lights/Taillights 21/5
Reverse lights 18
License plate lights 5
Trunk light5
Overhead light 8
Map lightsFront 8
Rear 5
Courtesy lights 3.4
Tire sizeInflation pressure
Front Rear
P215/55 R16 91V
220 kPa (2.2 kgf/cm
2, 32 psi or lb/po2) 200 kPa (2.0 kgf/cm2, 29 psi or lb/po2)
215/50 R17 91V
230 kPa (2.3 kgf/cm2, 34 psi or lb/po2) 210 kPa (2.1 kgf/cm2, 31 psi or lb/po2)
Tire size Inflation pressure
T135/70 D16 420 kPa (60 psi)
J76Y.book Page 6 Wednesday, March 27, 2002 5:04 PM

11-1
Form No. 8Q47-EA-01F

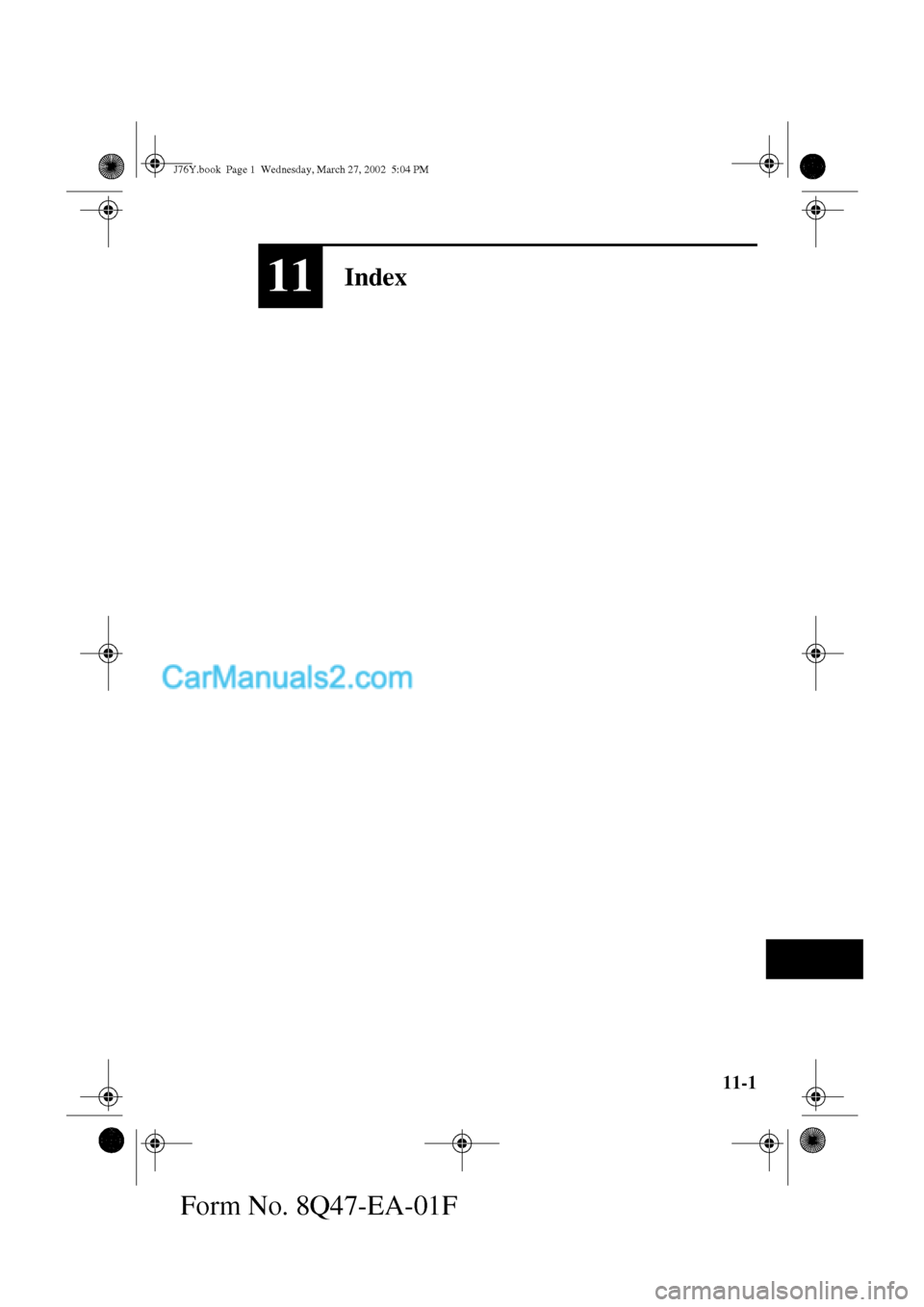

11Index
J76Y.book Page 1 Wednesday, March 27, 2002 5:04 PM

11-2
Form No. 8Q47-EA-01F
Index
A
Accessory Socket ............................. 6-40
Add-On Non-Genuine Parts and
Accessories
...................................... 9-10
Air Bag Systems
.............................. 2-23
Air Filter
.......................................... 8-20
Antenna
............................................ 6-10
Anti-Lock Brake System (ABS)
........ 5-6
Warning light
.............................. 5-7
Appearance Care
.............................. 8-38
Ashtrays
........................................... 6-37
Audio System
Audio set
................................... 6-17
Operating tips for
audio system
............................. 6-10
Safety certification
.................... 6-33
Automatic Transaxle
Driving tips
............................... 5-11
Fluid
.......................................... 8-17
Hold mode
................................ 5-10
Shift-lock override
.................... 5-10
Shift-lock system
........................ 5-9
Transaxle ranges
......................... 5-8
B
Battery
Emergency starting
................... 7-12
Maintenance
............................. 8-23
Specifications
........................... 10-4
Beeps
Ignition key reminder
............... 5-30
Lights-on reminder
................... 5-30
Seat belt warning beep
.............. 5-30
Before Starting the Engine
................. 4-5
After getting in
........................... 4-5
Before getting in
......................... 4-5
B
Body Lubrication ............................. 8-19
Brake
Fluid
.......................................... 8-15
Brakes
Anti-lock brake system (ABS)
....5-6
Foot brake
................................... 5-4
Pad wear indicator
...................... 5-7
Parking brake
.............................. 5-4
Warning light
.............................. 5-5
Break-In Period
.................................. 4-6
Bulb Replacement
............................ 8-28
C
Capacities ......................................... 10-5
Carbon Monoxide
.............................. 4-4
Catalytic Converter
............................ 4-3
Cell Phones
...................................... 9-11
Center Console
................................. 6-39
Child Restraint
Child restraint precautions
........ 2-16
Installing child-restraint
systems
...................................... 2-18
Child Safety Locks for Rear Door
..... 3-9
Cigarette Lighter
.............................. 6-36
Climate Control System
.....................6-2
Gas specifications
..................... 10-6
Clock
................................................ 6-36
Coin Box
.......................................... 6-38
Courtesy Lights
................................ 6-35
Cruise Control
.................................. 5-12
Cup Holders
..................................... 6-38
Customer Assistance
