2002 MAZDA MODEL MILLENIA Owners Manual (in English)

8-29
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F

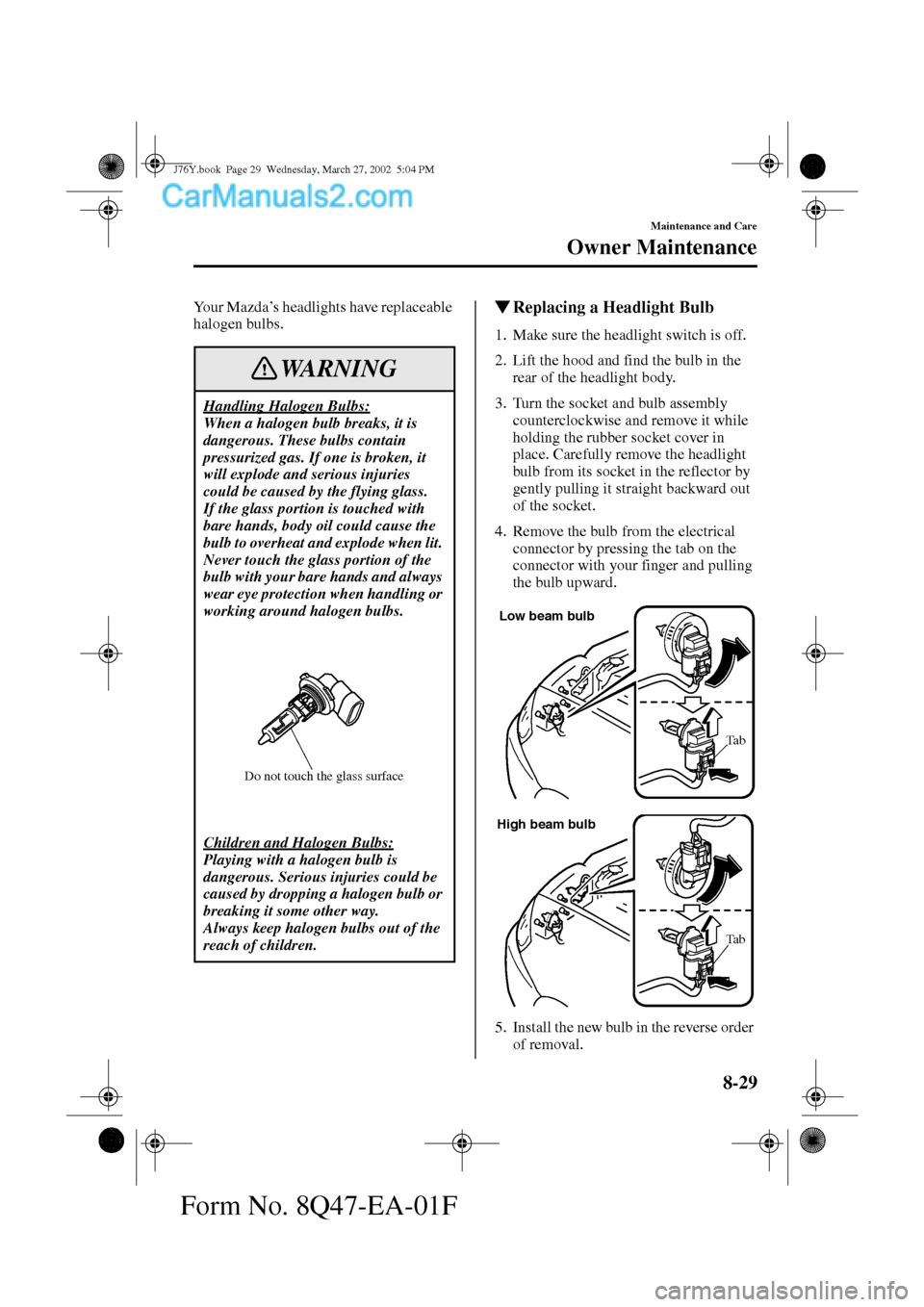

Your Mazda’s headlights have replaceable
halogen bulbs.
Replacing a Headlight Bulb
1. Make sure the headlight switch is off.
2. Lift the hood and find the bulb in the
rear of the headlight body.
3. Turn the socket and bulb assembly
counterclockwise and remove it while
holding the rubber socket cover in
place. Carefully remove the headlight
bulb from its socket in the reflector by
gently pulling it straight backward out
of the socket.
4. Remove the bulb from the electrical
connector by pressing the tab on the
connector with your finger and pulling
the bulb upward.
5. Install the new bulb in the reverse order
of removal.
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
WARNING
Do not touch the glass surface
Low beam bulb
Ta b
High beam bulb
Ta b
J76Y.book Page 29 Wednesday, March 27, 2002 5:04 PM

8-30
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F
NOTE
Use the protective cover and carton to
dispose of the old bulb promptly out of
the reach of children.
J76Y.book Page 30 Wednesday, March 27, 2002 5:04 PM

8-31
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F

Replacing a Bulb (Front)
To replace the fog light bulbs, contact an Authorized Mazda Dealer.
Front turn signal lights
Parking lightsSide-marker lights
J76Y.book Page 31 Wednesday, March 27, 2002 5:04 PM

8-32
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F

Replacing a Bulb (Interior)
To replace the bulbs, contact an Authorized Mazda Dealer.
Overhead lights
Map lights (Front)
Map lights (Rear)Courtesy lights
J76Y.book Page 32 Wednesday, March 27, 2002 5:04 PM

8-33
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F

Replacing a Bulb (Rear)
Rear turn signal lights
Brake lights/Taillights
Reverse lights
Brake lights/TaillightsHigh-mount brake lights
Trunk light
License plate lights
J76Y.book Page 33 Wednesday, March 27, 2002 5:04 PM

8-34
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F
Yo u r v e h i c l e’s electrical system is
protected by fuses.
If any lights, accessories, or controls don’t
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.

Fuse Replacement
If the electrical system doesn’t work, first
inspect fuses on the driver’s side.
1. Turn off the ignition switch and other
switches.
2. Remove the outer fuse cover.3. Open the fuse panel cover.
4. Pull the fuse straight out with the fuse
puller provided on the inside of the
outer fuse cover.
5. Inspect it and replace if it’s blown.
Fuses
Outer fuse cover
Fuse panel cover
Fuse puller
Normal Blown
J76Y.book Page 34 Wednesday, March 27, 2002 5:04 PM

8-35
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F
6. Push in a new fuse of the same rating,
and make sure it fits tightly. If it
doesn’t, have an Authorized Mazda
Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the RADIO circuit.
If the headlights or other electrical
components don’t work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.3. If a fuse is blown, replace it with a new
one of the same rating
.
When replacing the 120A fuse:
1. Turn off the ignition switch.
2. Remove the negative battery terminal.
3. Remove the A nuts.
4. Lift the fuse block and remove the B
bolts.
5. Replace the fuse with a new one of the
same rating
.
6. Install in the reverse order of removal. Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
CAUTION
Fuse block cover
Normal Blown
A
A
A B
B
120A fuse
A
J76Y.book Page 35 Wednesday, March 27, 2002 5:04 PM

8-36
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F

Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1 MAIN 120AFor protection of all
circuits
2 AD.FAN 30AAdditional cooling
fan for air conditioner
3 EGI INJ 30A Fuel injection system
4 HEAD 40A Headlights
5 IG KEY 60ARADIO, TURN,
METER, ENGINE,
S/ROOF and P/WIND
fuses, Ignition system
6COOLING
FA N30A Cooling fan
7 ABS 60A Antilock brake system
8 HEATER 40AHeater, Air
conditioner
9DEFOG 40ARear window
defroster
10 BTN 60ASTOP, ROOM and
D/LOCK fuses, Fuel
lid opener, Power
door lockDESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
11 AUDIO 20A Audio system
12 P/WINDOW 30A Power windows
13 P.SEAT 30A Power seat
14 HORN 10A Horn
15 IDL UP 10AEngine control
system
16 ST.SIGN 10A Engine control unit
17 FOG 15A Fog lights
18 S.WARM 20A Seat warmer
19 TAIL 15ATaillights, Parking
lights, License plate
lights, Dashboard
illumination, Glove
box light, Clock
20—— —
21—— —
22—— —
