2002 MAZDA MODEL MILLENIA Owners Manual (in English)

3-17
Knowing Your Mazda
Doors and Locks
Form No. 8Q47-EA-01F

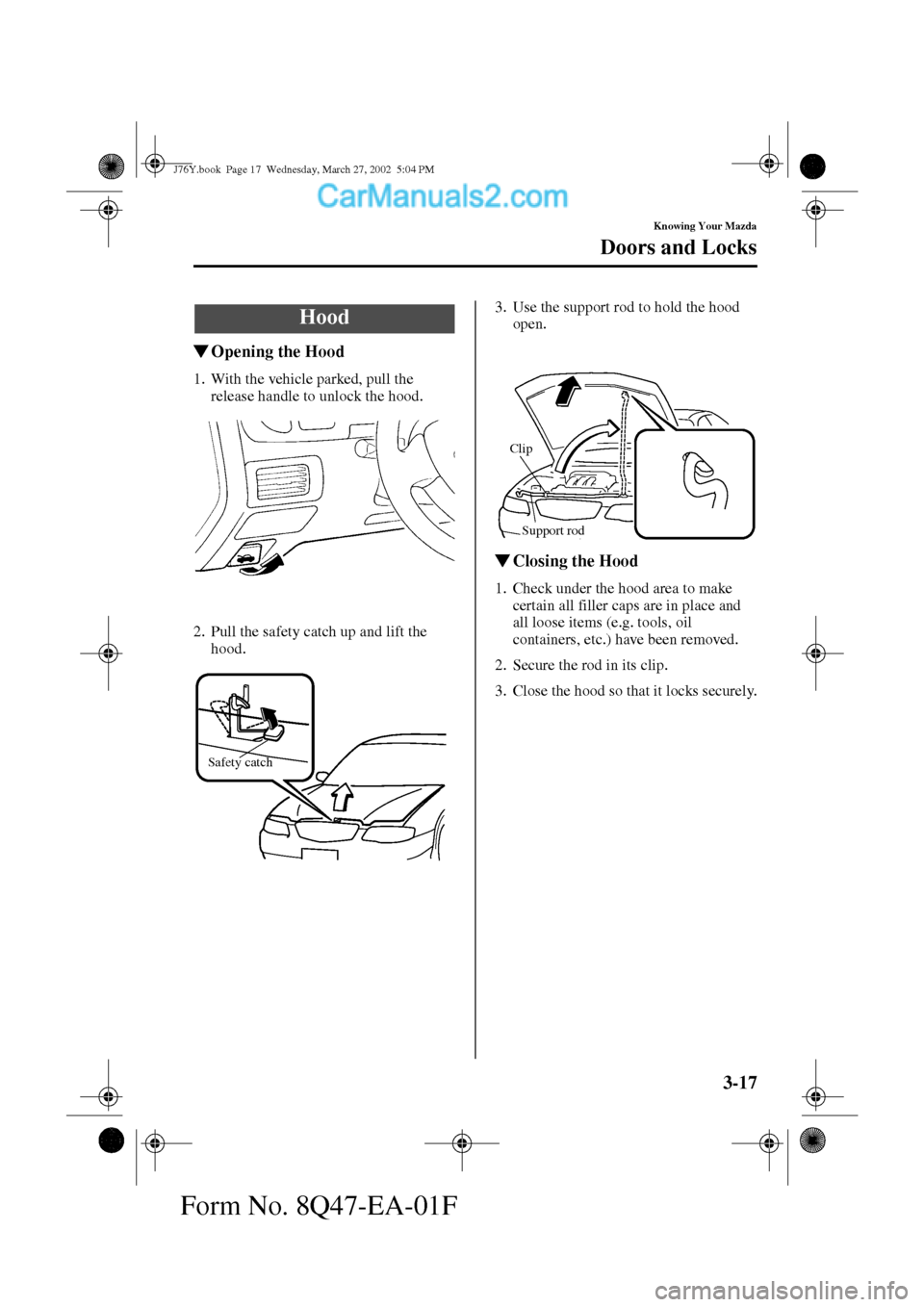

Opening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
2. Pull the safety catch up and lift the
hood.3. Use the support rod to hold the hood
open.

Closing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Secure the rod in its clip.
3. Close the hood so that it locks securely.
Hood
Safety catch
Clip
Support rod
J76Y.book Page 17 Wednesday, March 27, 2002 5:04 PM

3-18
Knowing Your Mazda
Doors and Locks
Form No. 8Q47-EA-01F
The sunroof can be opened or closed
electrically only when the ignition switch
is in the ON position.

Tilt Operation
The rear of the sunroof can be tilted open
to provide more ventilation.
To tilt, push the tilt switch.
To close, pull the tilt switch.

Slide Operation
To open to any position, pull the slide
switch towards the rear.
To close, push the slide switch forward.

Sunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the sunroof is opened, but must be closed
by hand.
Sunroof
Extending the Head or Arms
Through the Sunroof:
Extending the head, arms, or other
parts of the body through the sunroof
is dangerous. The head or arms could
hit something while the vehicle is
moving. This could cause death or
serious injury. Don’t let passengers
stand up or extend anything through
the open sunroof while the vehicle is
moving.
Closing the Sunroof:
A closing sunroof is dangerous. The
hands, head, or even neck of a person
—especially a child— could be
caught in it as it closes, causing
serious injury or even death. Make
sure the opening is clear before
closing the sunroof.
Tilt switch
Slide switch
WARNING
NOTE
After washing your Mazda or after a
rain, wipe the water off the sunroof
before operating it.
Sunshade
J76Y.book Page 18 Wednesday, March 27, 2002 5:04 PM

3-19
Knowing Your Mazda
Doors and Locks
Form No. 8Q47-EA-01F

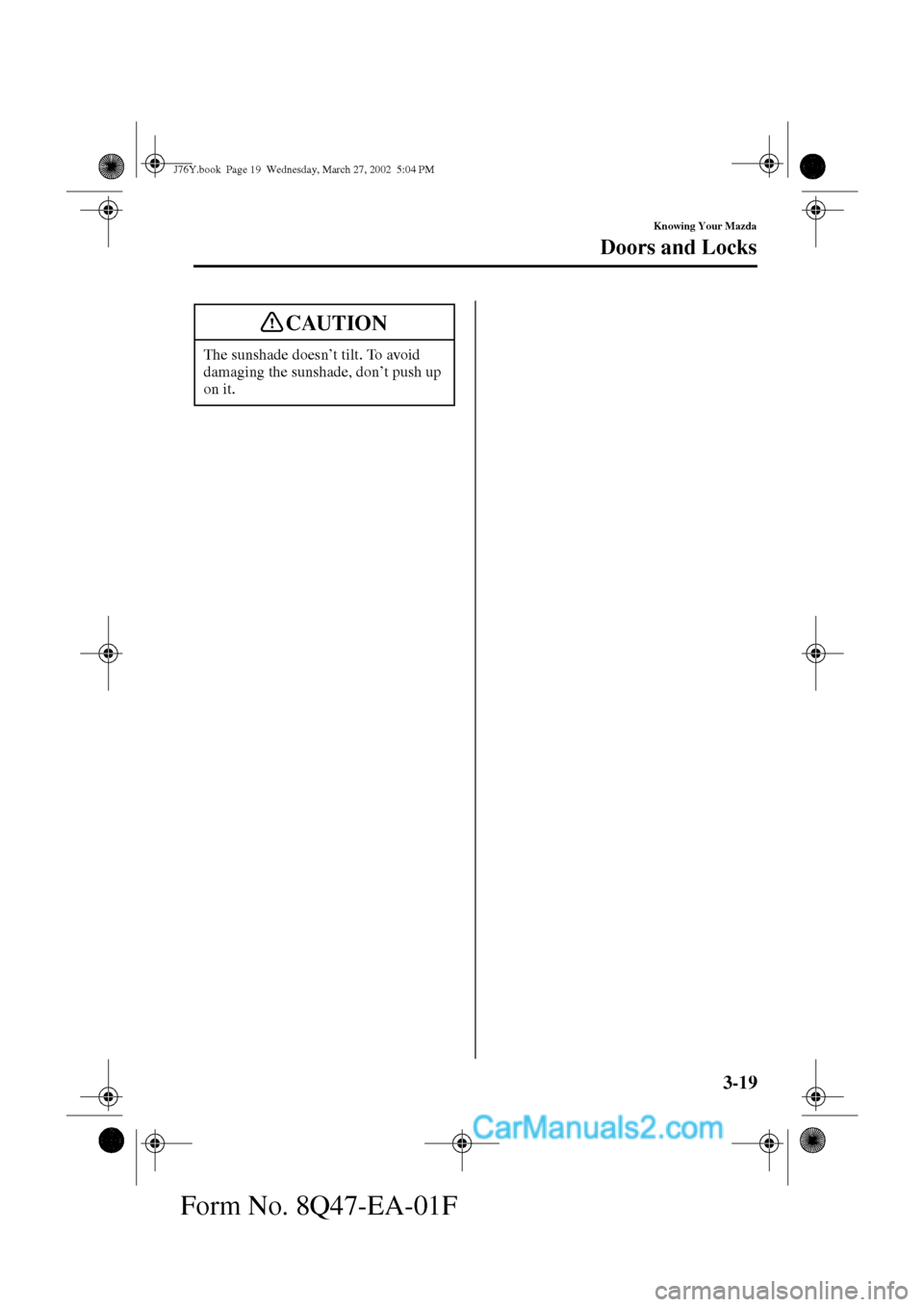

The sunshade doesn’t tilt. To avoid
damaging the sunshade, don’t push up
on it.
CAUTION
J76Y.book Page 19 Wednesday, March 27, 2002 5:04 PM

3-20
Knowing Your Mazda
Form No. 8Q47-EA-01F
Security System
The theft-deterrent system is designed to
prevent your vehicle or its contents from
being stolen when all the doors, hood, and
trunk lid are locked.
If forcible entry is attempted, the system
sounds the horn and flashes the hazard
warning lights and headlights. It also
makes the starter inoperable.
The system won’t function unless it’s
properly armed. So when you leave the
vehicle, lock all the doors, close all the
windows, take your key, your transmitter,
and make sure the security indicator light
is flashing.

Operation
What turns it on:
•Forcing open a door, the hood or the
trunk lid.
•Unlocking the driver’s door with the
inside door-lock button or door-lock
switch.
•Opening a front or rear passenger’s
door , the hood or the trunk lid by
operating an inside door-lock button ,
the hood release handle or the trunk lid
release button.What it does:
•The horn sounds intermittently and the
hazard warning lights and headlights
flash.
•The starter is bypassed so that the
engine can’t be started.
•The alarm continues for about 3
minutes, then stops.
If the system is triggered again, the lights
and horn will activate and the starter will
not work until a door or the trunk lid is
unlocked with the key or with the
transmitter.

How to Arm the System
1. Remove the key from the ignition
switch.
2. Close the hood and the trunk lid. Then
close all doors and lock them from the
outside using the key in the door. If you
have the keyless entry system, press the
LOCK button on the transmitter.
3. The indicator light comes on for about
10 seconds. Then it flashes once every
3 seconds to indicate that the system is
fully armed. It continues to flash until
the theft-deterrent system is turned off.
Theft-Deterrent System
NOTE
The theft-deterrent system operates
without the keyless entry system
transmitter, as well.
J76Y.book Page 20 Wednesday, March 27, 2002 5:04 PM

3-21
Knowing Your Mazda
Security System
Form No. 8Q47-EA-01F

To Tu r n o f f a n A r m e d S y s t e m
An armed system can be turned off by any
one of the following methods:
•Unlock a door with the key.
•Press the UNLOCK button on the
keyless entry system transmitter.
•Insert the key into the ignition switch
and turn it to the ON position.

To Stop an Alarm
A triggered alarm can be turned off by any
one of the following methods:
•Unlock a door with the key.
•Open the trunk lid with the key.
•Press the UNLOCK button or
button on the keyless entry system
transmitter.

Theft-Deterrent Labels
Labels indicating that your vehicle is
equipped with a Theft-Deterrent System
are in the glove box.
Mazda recommends that you affix them to
the lower rear corner of the front door
windows.
NOTE
The trunk lid can be opened with the
key or the transmitter even when the
system is armed. The alarm will not
come on and the system will remain
armed.
NOTE
If you have any problem with the theft-
deterrent system, consult an
Authorized Mazda Dealer.
J76Y.book Page 21 Wednesday, March 27, 2002 5:04 PM

3-22
Knowing Your Mazda
Form No. 8Q47-EA-01F
Steering Wheel and Mirrors

Auto-Tilt Steering Wheel
To change the angle of the steering wheel,
stop the vehicle, put the ignition switch in
the ON position and push the switch to
adjust the steering column up or down.Push in the AUTO button to activate the
auto-tilt function.
When you remove the key from the
ignition, the steering wheel will move up,
away from the driver.
The steering wheel will move back to its
position before the key was removed,
when the key is returned to the ignition.
Steering Wheel
Adjusting the Steering Wheel:
Adjusting the steering wheel while the
vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident. Never adjust the
steering wheel while the vehicle is
moving.
WARNING
Up
Down
J76Y.book Page 22 Wednesday, March 27, 2002 5:04 PM

3-23
Knowing Your Mazda
Steering Wheel and Mirrors
Form No. 8Q47-EA-01F

Outside Mirrors
Check the mirrors’ angles before driving.
Power control mirror
The ignition switch must be in the ON
position.
To a d j u s t :
1. Move the selector switch to the left or
right to choose the mirror.2. Depress the perimeter switch in the
appropriate direction.
After adjusting the mirror, lock the
control by moving the selector switch to
the middle position.
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
Mirrors
Convex Mirror (Passenger Side):
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears. Be
sure to look over your shoulder or to
check your inside mirror before
changing lanes.
WARNING
Selector switch
Perimeter switch
J76Y.book Page 23 Wednesday, March 27, 2002 5:04 PM

3-24
Knowing Your Mazda
Steering Wheel and Mirrors
Form No. 8Q47-EA-01F
Mirror defroster
To turn on the mirror defroster, turn the
ignition on and push the rear window
defroster switch (page 5-36).

Rearview Mirror (With Day/
Night Function)
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Do this with the day/night lever in the day
position.
Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Driving with Mirrors Folded In:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident. Always return the
outside mirrors to the driving position
before you start driving.
WARNING
Day/Night lever
Day
Night
Blocked View:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes. Don’t stack
things higher than the seatbacks.
NOTE
If your forward view is obstructed by
the mirror or the sunvisor hits the
mirror, adjust the mirror stay to the
center-horizontal position.
WARNING
View from above
Side viewStay
Stay
J76Y.book Page 24 Wednesday, March 27, 2002 5:04 PM
