Your Vehicle at a Glance
Form No. 8Q47-EA-01F
Dashboard Overview
Ashtray Auto tilt switchClimate control system
Lighter
Glove box
Audio system
Passenger-side air bag
Hazard warning flasher switchFog lights switch
Power window lock switch
Lighting control/Turn signals Instrument clusterWiper and washer lever
Driver-side air bag
Cruise control switchesIgnition switch
Center console
Hood release handle
Cup holder
Shift lever
Parking brake handle
Cruise main switch
Rear window defroster switch
TCS-OFF switch Coin box Power window
switches
Outside mirror switch
Audio control switch
(page 2-23)
(page 5-33)
(page 5-18)
(page 5-32)
(page 5-12)
(page 3-23)
(page 3-17)
(page 6-38)
(page 5-31)
(page 3-22)
(page 5-12)(page 5-36)
(page 5-37)
(page 6-2)
(page 6-10)
(page 5-8)
(page 2-23)
(page 6-36)
(page 5-16)
(page 6-37) (page 3-13)
(page 3-15)(page 6-39)
(page 6-39)
(page 6-38)
(page 5-4)
(page 5-2) (page 6-32)
J76Y.book Page 2 Wednesday, March 27, 2002 5:04 PM

8-37
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F

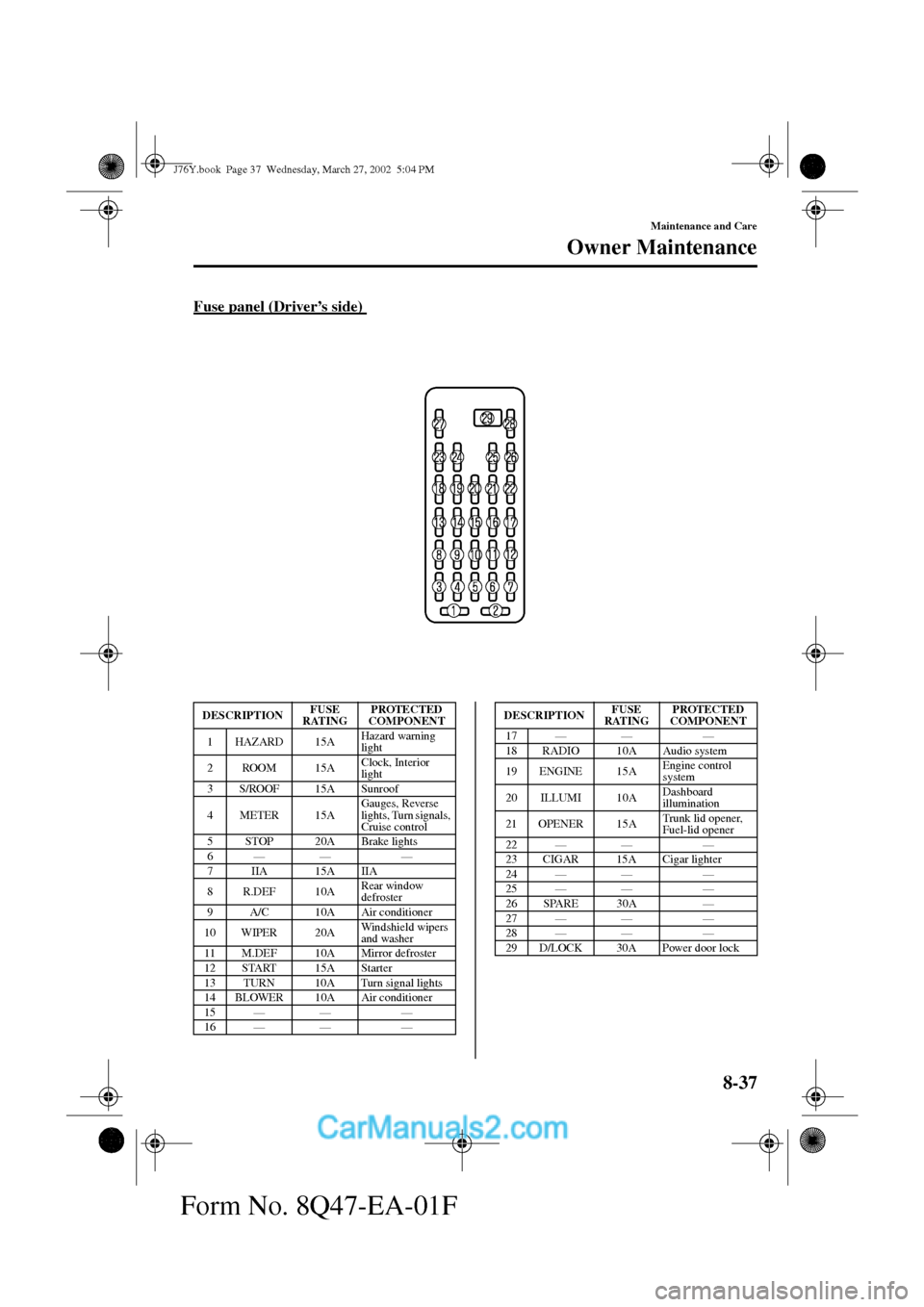

Fuse panel (Driver’s side)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1 HAZARD 15AHazard warning
light
2 ROOM 15AClock, Interior
light
3 S/ROOF 15A Sunroof
4 METER 15AGauges, Reverse
lights, Turn signals,
Cruise control
5 STOP 20A Brake lights
6—— —
7 IIA 15A IIA
8 R.DEF 10ARear window
defroster
9 A/C 10A Air conditioner
10 WIPER 20AWindshield wipers
and washer
11 M.DEF 10A Mirror defroster
12 START 15A Starter
13 TURN 10A Turn signal lights
14 BLOWER 10A Air conditioner
15—— —
16—— —DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
17—— —
18 RADIO 10A Audio system
19 ENGINE 15AEngine control
system
20 ILLUMI 10ADashboard
illumination
21 OPENER 15ATrunk lid opener,
Fuel-lid opener
22—— —
23 CIGAR 15A Cigar lighter
24—— —
25—— —
26 SPARE 30A—
27—— —
28—— —
29 D/LOCK 30A Power door lock
