2002 MAZDA MODEL MILLENIA Owners Manual (in English)

2-1
Form No. 8Q47-EA-01F
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, SRS air bags and
child-restraint systems.
Seats
.............................................................................................. 2- 2
Front Seats ............................................................................... 2- 2
Rear Seat .................................................................................. 2- 5
Seat Belt Systems
......................................................................... 2- 7
Seat Belt Precautions ............................................................... 2- 7
3-Point Type Seat Belt ............................................................. 2-10
2-Point Type Seat Belt ............................................................. 2-12
Seat Belt Extender ................................................................... 2-13
Seat Belt Warning Light .......................................................... 2-14
Seat Belt Warning Beep ........................................................... 2-15
Child Restraint
............................................................................ 2-16
Child Restraint Precautions ..................................................... 2-16
Installing Child-Restraint Systems .......................................... 2-18
SRS Air Bags
............................................................................... 2-23
Supplemental Restraint Systems (SRS) Precautions ............... 2-23
Air Bag System Description .................................................... 2-27
J76Y.book Page 1 Wednesday, March 27, 2002 5:04 PM

2-2
Essential Safety Equipment
Form No. 8Q47-EA-01F
Seats
The seat-bottom tilt, seat height, seat
slide, and seat recline can be electrically
adjusted. Move them to the desired
positions by using the switch on the seat’s
lower side.

Seat Slide
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.

Seat Recline
Change the seatback angle by turning the
reclining switch. When the seatback is at
the desired angle, release the switch.
Front Seats
•The seat-bottom power adjust is
operated by a motor. Avoid
extended operation because
excessive use can damage the
motor.
•To prevent the battery from running
down, avoid using the power adjust
when the engine is stopped. The
adjuster uses a great amount of
electric power.
•Don’t use the switch to make more
than one adjustment at a time.
CAUTION
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don’t get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back
and upright.
WARNING
J76Y.book Page 2 Wednesday, March 27, 2002 5:04 PM

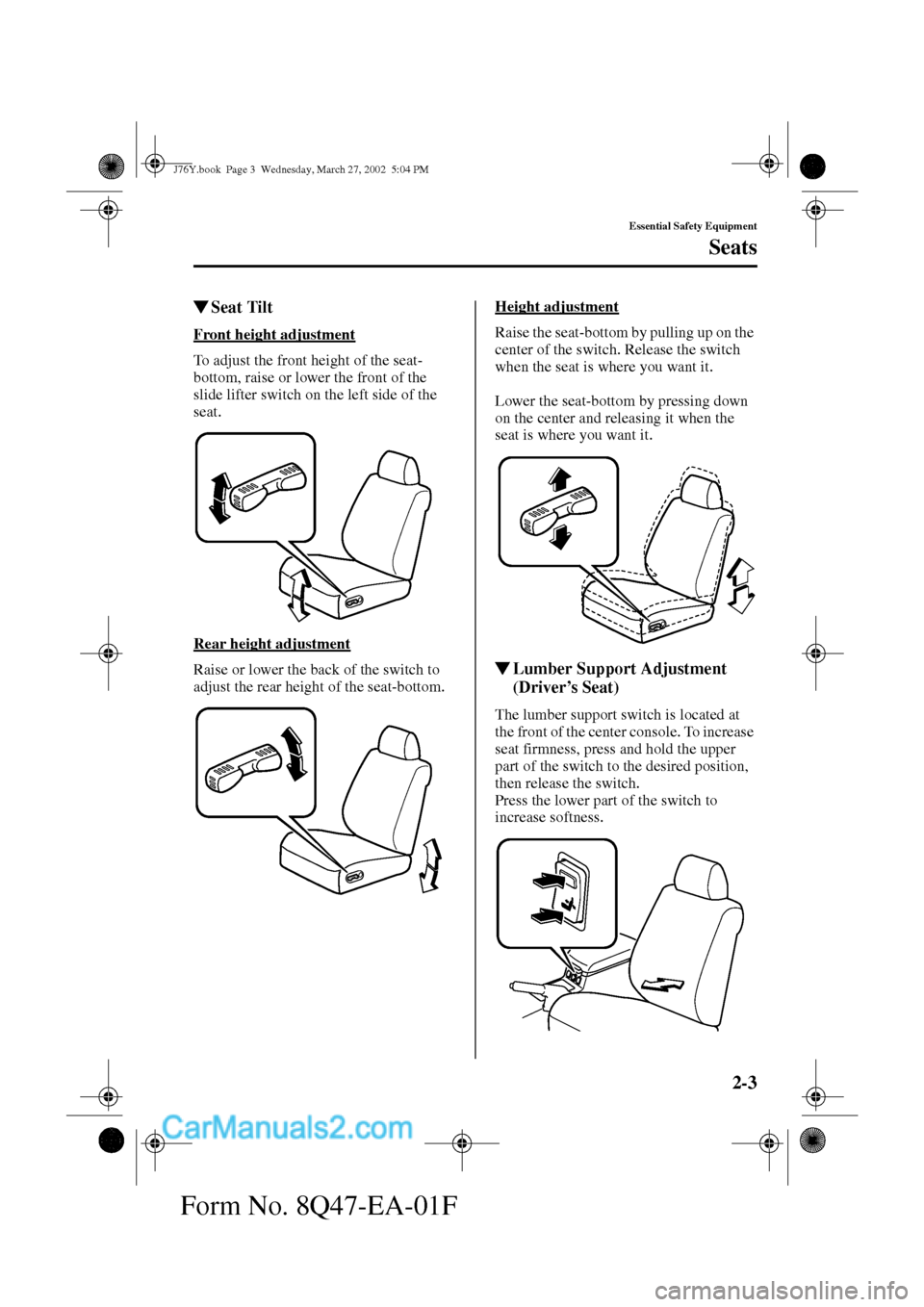

2-3
Essential Safety Equipment
Seats
Form No. 8Q47-EA-01F

Seat Tilt
Front height adjustment
To adjust the front height of the seat-
bottom, raise or lower the front of the
slide lifter switch on the left side of the
seat.
Rear height adjustment
Raise or lower the back of the switch to
adjust the rear height of the seat-bottom.Height adjustment
Raise the seat-bottom by pulling up on the
center of the switch. Release the switch
when the seat is where you want it.
Lower the seat-bottom by pressing down
on the center and releasing it when the
seat is where you want it.

Lumber Support Adjustment
(Driver’s Seat)
The lumber support switch is located at
the front of the center console. To increase
seat firmness, press and hold the upper
part of the switch to the desired position,
then release the switch.
Press the lower part of the switch to
increase softness.
J76Y.book Page 3 Wednesday, March 27, 2002 5:04 PM

2-4
Essential Safety Equipment
Seats
Form No. 8Q47-EA-01F

Head Restraint
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top
parallels the top of the passenger’s ears,
never the passenger’s neck.Angle adjustment (Driver’s seat)
To adjust the head restraint angle apply
pressure to the top of the head restraint
and change the angle to the desired
position.

Seat Warmer
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Always drive with the head restraints
inserted when seats are being used
and make sure they are properly
adjusted.
WARNING
Stop-catch release
J76Y.book Page 4 Wednesday, March 27, 2002 5:04 PM

2-5
Essential Safety Equipment
Seats
Form No. 8Q47-EA-01F

Head Restraint
NOTE
The thermostat regulates seat
temperature by turning the current on
and off.
Rear Seat
Stacking Cargo:
Stacking luggage or other cargo
higher than the seatbacks, and
putting things on the rear package
tray is dangerous. During sudden
braking or a collision, objects can
become projectiles that may hit and
injure passengers. Don’t stack things
higher than the seatbacks or put
things on the rear package tray.
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Always drive with the head restraints
inserted when seats are being used
and make sure they are properly
adjusted.
WARNING
WARNING
J76Y.book Page 5 Wednesday, March 27, 2002 5:04 PM

2-6
Essential Safety Equipment
Seats
Form No. 8Q47-EA-01F
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top
parallels the top of the passenger’s ears,
never the passenger’s neck.

Armrest
The armrest can be used or placed
upright.
Stop-catch release
Armrest
J76Y.book Page 6 Wednesday, March 27, 2002 5:04 PM

2-7
Essential Safety Equipment
Form No. 8Q47-EA-01F
Seat Belt Systems
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the outboard seat belt retractors are designed to keep the lap/shoulder belts out of the
way when not in use.
The driver’s seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and rear outboard lap/shoulder belt retractors operate in
two modes: emergency locking mode, and for child-restraint systems, automatic locking
mode.
The rear center seat positions have a lap belt with manual adjustment.
Seat Belt Precautions
Not Wearing Seat Belts:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer. Always wear your seat
belt and make sure all occupants are properly restrained.
Seat Belt Damaged During an Accident:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during
an accident before they are used again.
WARNING
J76Y.book Page 7 Wednesday, March 27, 2002 5:04 PM

2-8
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q47-EA-01F

Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should wear seat belts. Ask your doctor for specific recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
Twisted Seat Belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt isn’t
available to absorb the impact. This puts more force on the bones beneath the belt,
which could break them or cause other serious injury or death. Don’t wear twisted
seat belts.
One Belt, One Passenger:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way can’t spread the impact forces properly and the two passengers could be
crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time.
Belt retraction may become difficult if the belts and rings are soiled, so try to keep them
clean.
WARNING
CAUTION
Ring
J76Y.book Page 8 Wednesday, March 27, 2002 5:04 PM
