2002 MAZDA MODEL MILLENIA Owners Manual (in English)

6-33
Interior Comfort
Au di o S ys t em
Form No. 8Q47-EA-01F
This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
Safety Certification
•This CD player should not be adjusted or repaired by anyone except qualified service
personnel.
If servicing is required, contact an Authorized Mazda dealer.
•Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous laser exposure. Never operate the CD player
with the top case of the unit removed.
•Changes or modifications not expressly approved by Mazda may void the user’s
authority to operate this equipment.
NOTE
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
CAUTION
J76Y.book Page 33 Wednesday, March 27, 2002 5:04 PM

6-34
Interior Comfort
Form No. 8Q47-EA-01F
Interior Equipment
When you need a sunvisor, lower it for use
in front or swing it to the side.

Va n i t y M i r r o r s
To use the vanity mirror, lower the
sunvisor.

Illuminated Entry System
When the switch is in the DOOR position,
the overhead light comes on for:
•about 30 seconds after the driver’s door
is unlocked and the ignition key is
removed.
•about 15 seconds after all doors are
closed.
•about 15 seconds after the key is
removed from the ignition.
The light also goes out when:
•the ignition switch is turned to the ON
position and all doors are closed.
•the driver’s door is locked.
SunvisorsInterior Lights
NOTE
If any door is left opened, the light
goes out after about 5 minutes.
The light turns on again when the
ignition switch is turned to the ON
position, or when any door is opened
after all doors have been closed.
J76Y.book Page 34 Wednesday, March 27, 2002 5:04 PM

6-35
Interior Comfort
Interior Equipment
Form No. 8Q47-EA-01F

Overhead light

Map Lights
The map lights are switched on or off by
pressing the switches.

Courtesy Lights
Turns on when any door is open.
OFF Light off
DOOR•
Light on when any door is
open
•
Light on or off when the
illuminated entry system is on
ON Light on
ONONDOORDOOROFFOFF
Front
Rear
Courtesy light
J76Y.book Page 35 Wednesday, March 27, 2002 5:04 PM

6-36
Interior Comfort
Interior Equipment
Form No. 8Q47-EA-01F
The ignition switch must be in the ACC or
ON position.
To set the hour
Press the H (hour) button to change the
hour.
To set the minutes
Press the M (minute) button to change the
minutes.
Press the RESET button to clear minutes.
The clock will be set on the hour.
If the RESET button is pressed from
12:01 to 12:29, for example, the time will
be reset to 12:00. If pressed from
12:30 to 12:59, the time will be reset to
1:00.
(Example)
12:01—12:29
→12:00
12:30—12:59
→1:00The ignition switch must be in the ACC or
ON position.
Press the lighter in and release it. When
ready for use, it automatically pops out.
Clock
NOTE
When the power is disconnected, the
time is automatically set at 1:00.
Lighter
•Don’t touch the metal part of the
lighter, you may burn yourself.
•Don’t hold the lighter in because it
will overheat.
•Don’t use the lighter socket for
plug-in accessories such as shavers
and coffee pots. They may damage
it or cause electrical failure. Use
only a genuine Mazda lighter or the
equivalent.
•If the lighter doesn’t pop out within
30 seconds, remove it to prevent
overheating.
CAUTION
J76Y.book Page 36 Wednesday, March 27, 2002 5:04 PM

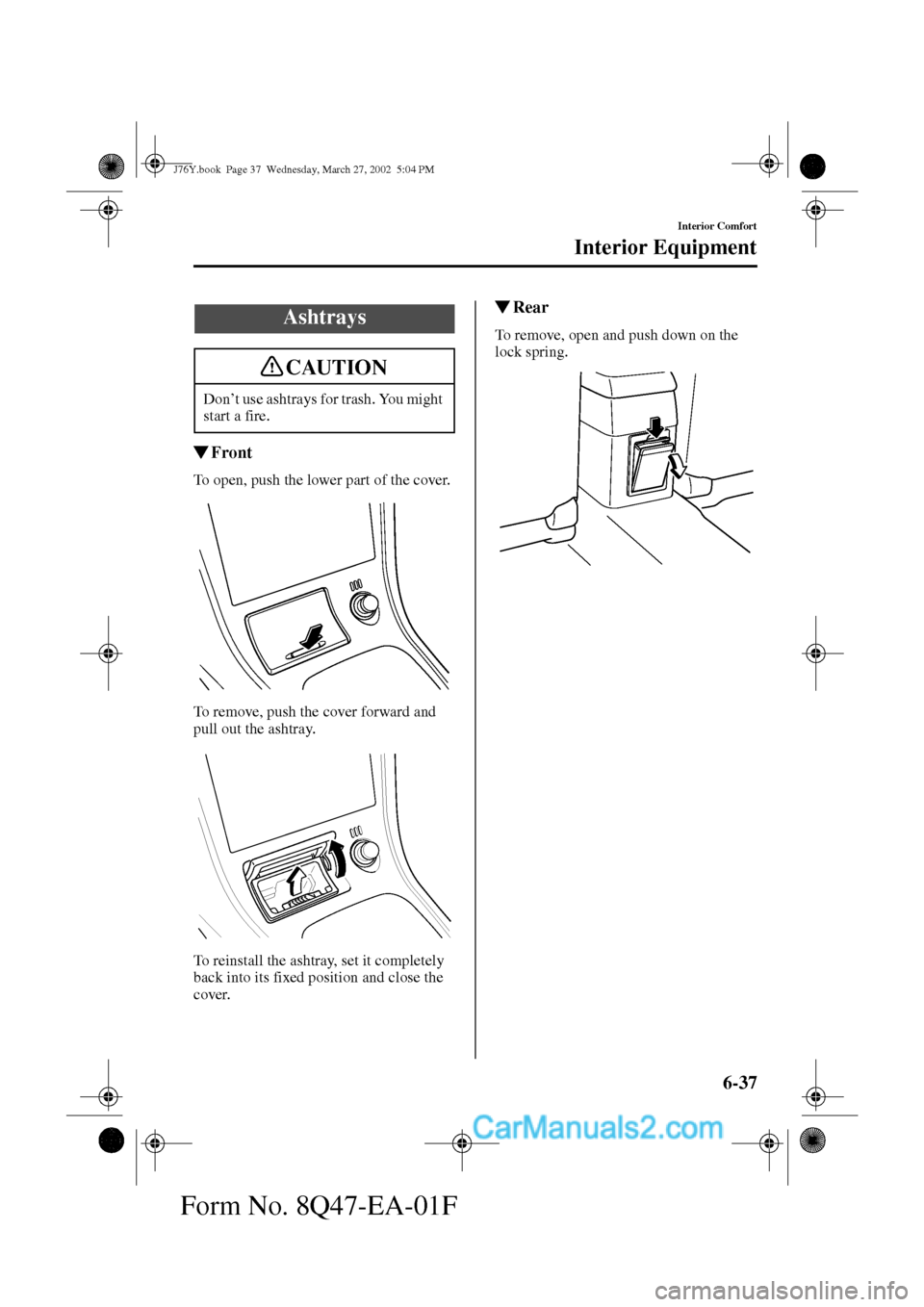

6-37
Interior Comfort
Interior Equipment
Form No. 8Q47-EA-01F

Front
To open, push the lower part of the cover.
To remove, push the cover forward and
pull out the ashtray.
To reinstall the ashtray, set it completely
back into its fixed position and close the
cover.

Rear
To remove, open and push down on the
lock spring.
Ashtrays
Don’t use ashtrays for trash. You might
start a fire.
CAUTION
J76Y.book Page 37 Wednesday, March 27, 2002 5:04 PM

6-38
Interior Comfort
Interior Equipment
Form No. 8Q47-EA-01F
To use, open the cover.

Coin Box
To open, press the release button.
Cup Holders
Using the Cup Holder:
Using the cup holder to hold hot
liquids while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded. Never use the cup
holder to hold hot liquids while the
vehicle is moving.
WARNING
Front
Rear
Storage Compartments
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility
of injury in an accident or a sudden
stop, keep the storage boxes closed
when driving.
In hot weather, don’t leave
combustible materials or objects which
will deform in extreme heat such as
lighters and glasses in the vehicle.
WARNING
CAUTION
J76Y.book Page 38 Wednesday, March 27, 2002 5:04 PM

6-39
Interior Comfort
Interior Equipment
Form No. 8Q47-EA-01F

Glove Box
To open the glove box, press the button.
The door has a lock, insert the primary
key and turn it clockwise to lock,
counterclockwise to unlock.

Center Console
To open, pull the lower release catch.Small items can be placed in the tray of
the center console lid.
To open it, pull the upper release catch.

Front-Door Storage
Compartments
To open, press the release button and lift
the cover.
Unlock
Lock
J76Y.book Page 39 Wednesday, March 27, 2002 5:04 PM

6-40
Interior Comfort
Interior Equipment
Form No. 8Q47-EA-01F

Rear-Armrest Opening
This opening can be used when you need
extra space for transporting long items
(such as skis). You can also place things
through it directly into the trunk.The ignition switch must be in the ACC or
ON position.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
12V—10A.
Accessory Socket
To prevent accessory socket damage or
electrical failure, pay attention to the
following;
•Don’t use accessories that require
more than 12V—10A.
•Don’t use accessories that are not
genuine Mazda accessories or the
equivalent.
•Close the cover when the accessory
socket is not in use.
•Correctly insert the plug into the
accessory socket.
NOTE
To prevent discharging the battery,
don’t use the socket for long periods
with the engine off or idling.
Cover
CAUTION
J76Y.book Page 40 Wednesday, March 27, 2002 5:04 PM
