TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±61
Test Description
The numbers below refer to the step numbers on the
diagnostic chart:
2. This test checks the function of the range switch
(mode switch).
3. This test checks that the scan tool commanded all
shifts, all shifts solenoids responded correctly, but
all the shifts did not occur.
DTC P0751 Shift Solenoid A Performance (Stuck Off)
StepActionYe sNo
1Were you sent here from the ªPowertrain On±Board Diagnostic
(OBD) System Checkº?
Go to Step 2
Go to OBD
System Check
Refer to
Driveability and
Emission in
Engine section
21. Install the scan tool.
2. With the engine ªoffº, turn the ignition switch ªonº.
NOTE: Before clearing DTC(s), use the scan tool to record ªFreeze
Frameº and ªFailure Recordsº for reference, as data will be lost
when the ªClear Infoº function is used.
3. Record the DTC ªFreeze Frameº and ªFailure Recordsº.
4. With the engine operating, apply the brake pedal and select
each transmission range DL, D2, D3, D4, N, R, and P.
Does each selected transmission range match the ªTR Switchº on
the scan tool?
Go to Step 3
Go to ªRange
Switch Logic
Tableº
31. While the engine is operating, raise the drive wheels.
2. With the transmission in D4 range, use the scan tool to
command 1st, 2nd and 3rd, and 4th gears while accelerating
the vehicle.
Was a 1±1±4±4 only shift pattern detected? (Road testing the
vehicle may be necessary).
Go to Step 4
Go to Diagnostic
Aids
4Check the shift solenoid/hydraulic circuit for:

One or both of the shift solenoids for an internal malfunction.

Contamination or sediment in one or both of the shift
solenoids.

Damaged seals on one or both of the shift solenoids.
Refer to
Solenoid (Main Case Valve Body) in Automatic
Transmission (4L30±E) section.
Was a problem found and corrected?Go to Step 5
Go to Diagnostic
Aids
51. After the repair is complete, use the scan tool to select ªDTCº,
then ªClear Infoº function and road test the vehicle.
2. Review the scan tool ªDTC Infoº.
Has the last test failed or is the current DTC displayed?
Begin diagnosis
again
Go to
Step 1
Repair verified
Exit DTC table

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±63
Test Description
The numbers below refer to the step numbers on the
diagnostic chart:
2. This test checks the function of the range switch
(mode switch).
3. This test checks that the scan tool commanded all
shifts, all shifts solenoids responded correctly, but
all the shifts did not occur.
DTC P0752 Shift Solenoid A Performance (Stuck On)
StepActionYe sNo
1Were you sent here from the ªPowertrain On±Board Diagnostic
(OBD) System Checkº?
Go to Step 2
Go to OBD
System Check
Refer to
Driveability and
Emissions in
Engine section
21. Install the scan tool.
2. With the engine ªoffº, turn the ignition switch ªonº.
NOTE: Before clearing DTC(s), use the scan tool to record ªFreeze
Frameº and ªFailure Recordsº for reference, as data will be lost
when the ªClear Infoº function is used.
3. Record the DTC ªFreeze Frameº and ªFailure Recordsº.
4. With the engine operating, apply the brake pedal and select
each transmission range DL, D2, D3, D4, N, R, and P.
Does each selected transmission range match the ªTR Switchº on
the scan tool?
Go to Step 3
Go to ªRange
Switch Logic
Tableº
31. While the engine is operating, raise the drive wheels.
2. With the transmission in D4 range, use the scan tool to
command 1st, 2nd and 3rd, and 4th gears while accelerating
the vehicle.
Was a 2±2±3±3 only shift pattern detected? (Road testing the
vehicle may be necessary).
Go to Step 4
Go to Diagnostic
Aids
4Check the shift solenoid/hydraulic circuit for:

One or both of the shift solenoids for an internal malfunction.

Contamination or sediment in one or both of the shift
solenoids.

Damaged seals on one or both of the shift solenoids.
Refer to
Solenoid (Main Case Valve Body) in Automatic
Transmission (4L30±E) section.
Was a problem found and corrected?Go to Step 5
Go to Diagnostic
Aids
51. After the repair is complete, use the scan tool to select ªDTCº,
then ªClear Infoº function and road test the vehicle.
2. Review the scan tool ªDTC Infoº.
Has the last test failed or is the current DTC displayed?
Begin diagnosis
again
Go to
Step 1
Repair verified
Exit DTC table

7A1±66
TRANSMISSION CONTROL SYSTEM (4L30±E)

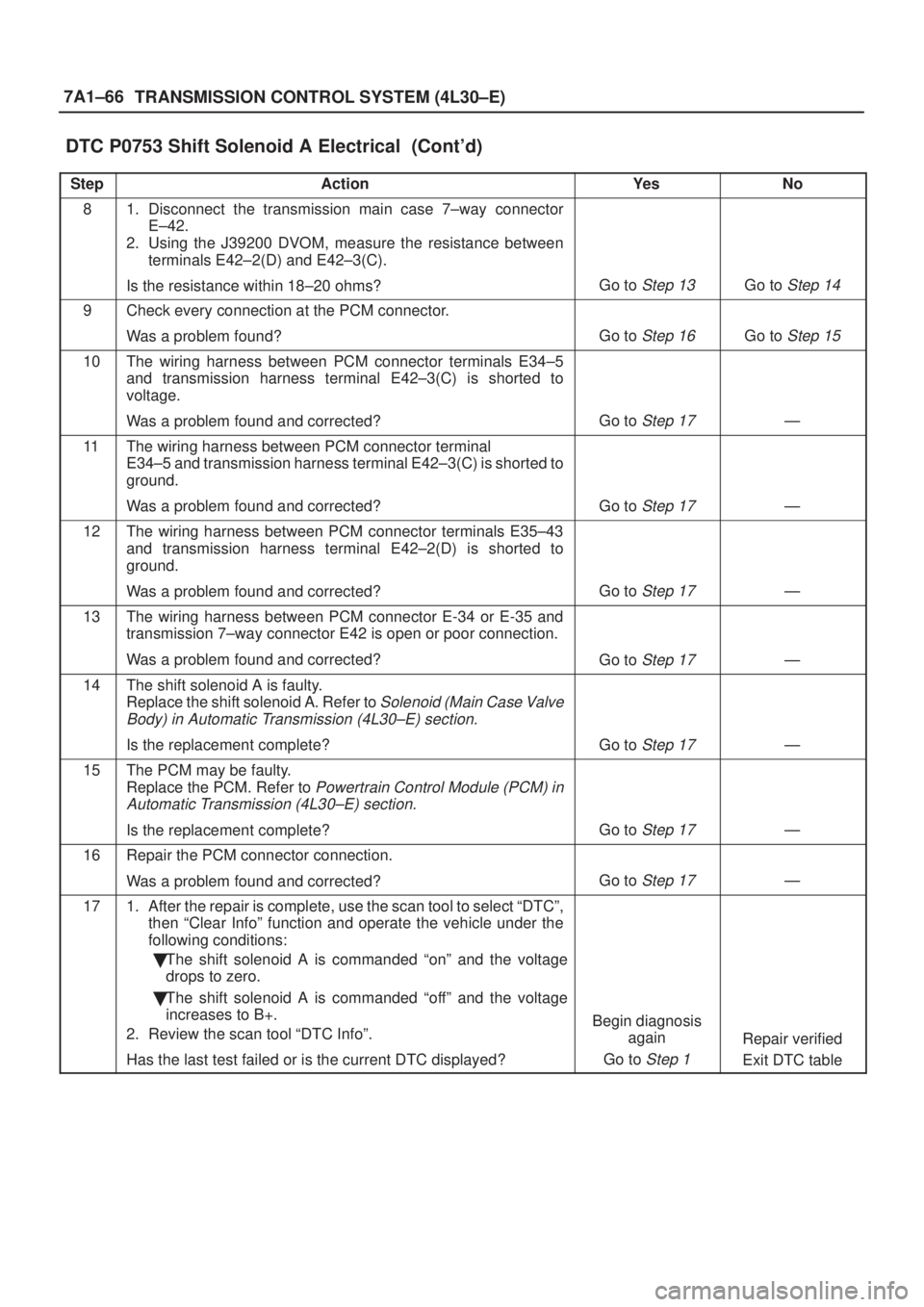

DTC P0753 Shift Solenoid A Electrical (Cont'd)
StepNo Ye s Action
81. Disconnect the transmission main case 7±way connector
E±42.
2. Using the J39200 DVOM, measure the resistance between
terminals E42±2(D) and E42±3(C).
Is the resistance within 18±20 ohms?
Go to Step 13Go to Step 14
9Check every connection at the PCM connector.
Was a problem found?
Go to Step 16Go to Step 15
10The wiring harness between PCM connector terminals E34±5
and transmission harness terminal E42±3(C) is shorted to
voltage.
Was a problem found and corrected?
Go to Step 17Ð
11The wiring harness between PCM connector terminal
E34±5 and transmission harness terminal E42±3(C) is shorted to
ground.
Was a problem found and corrected?
Go to Step 17Ð
12The wiring harness between PCM connector terminals E35±43
and transmission harness terminal E42±2(D) is shorted to
ground.
Was a problem found and corrected?
Go to Step 17Ð
13The wiring harness between PCM connector E-34 or E-35 and
transmission 7±way connector E42 is open or poor connection.
Was a problem found and corrected?
Go to Step 17Ð
14The shift solenoid A is faulty.
Replace the shift solenoid A. Refer to
Solenoid (Main Case Valve
Body) in Automatic Transmission (4L30±E) section.
Is the replacement complete?Go to Step 17Ð
15The PCM may be faulty.
Replace the PCM. Refer to
Powertrain Control Module (PCM) in
Automatic Transmission (4L30±E) section.
Is the replacement complete?Go to Step 17Ð
16Repair the PCM connector connection.
Was a problem found and corrected?
Go to Step 17Ð
171. After the repair is complete, use the scan tool to select ªDTCº,
then ªClear Infoº function and operate the vehicle under the
following conditions:

The shift solenoid A is commanded ªonº and the voltage
drops to zero.

The shift solenoid A is commanded ªoffº and the voltage
increases to B+.
2. Review the scan tool ªDTC Infoº.
Has the last test failed or is the current DTC displayed?
Begin diagnosis
again
Go to
Step 1
Repair verified
Exit DTC table

7A1±68
TRANSMISSION CONTROL SYSTEM (4L30±E)
Test Description
The numbers below refer to the step numbers on the
diagnostic chart
:
2. This test checks the function of the range switch
(mode switch).
3. This test checks for selected gear ratio vs. a ratio
not obtainable under normal driving conditions.
DTC P0756 Shift Solenoid B Performance (Stuck Off)
StepActionYe sNo
1Were you sent here from the ªPowertrain On±Board Diagnostic
(OBD) System Checkº?
Go to Step 2
Go to OBD
System Check
Refer to
Driveability and
Emission in
Engine section
21. Install the scan tool.
2. With the engine ªoffº, turn the ignition switch ªonº.
NOTE: Before clearing DTC(s), use the scan tool to record ªFreeze
Frameº and ªFailure Recordsº for reference, as data will be lost
when the ªClear Infoº function is used.
3. Record the DTC ªFreeze Frameº and ªFailure Recordsº.
4. With the engine operating, apply the brake pedal and select
each transmission range DL, D2, D3, D4, N, R, and P.
Does each selected transmission range match the ªTR Switchº on
the scan tool?
Go to Step 3
Go to ªRange
Switch Logic
Tableº
31. While the engine is operating, raise the drive wheels.
2. With the transmission in D4 range, use the scan tool to
command 1st, 2nd, and 3rd, and 4th gears while accelerating
the vehicle.
Was a 4±3±3±4 shift pattern detected? (Road testing the vehicle
may be necessary.)
Go to Step 4
Go to Diagnostic
Aids
4Check the shift solenoid/hydraulic circuit for:

One or both of the shift solenoids for an internal malfunction.

Contamination or sediment in one or both of the shift
solenoids.

Damaged seals on the one or both of the shift solenoids.
Refer to
Solenoid (Main Case Valve Body) in Automatic
Transmission (4L30±E) section.
Was a problem found and corrected?Go to Step 5
Go to Diagnostic
Aids
51. After the repair is complete, use the scan tool to select ªDTCº,
then ªClear Infoº function and road test the vehicle.
2. Review the scan tool ªDTC Infoº.
Has the last test failed or is the current DTC displayed?
Begin diagnosis
again
Go to
Step 1
Repair verified
Exit DTC table

7A1±70
TRANSMISSION CONTROL SYSTEM (4L30±E)
Test Description
The numbers below refer to the step numbers on the
diagnostic chart:
2. This test checks the function of the range switch
(mode switch).
3. This test checks for selected gear ratio vs. a ratio
not obtainable under normal driving conditions.
DTC P0757 Shift Solenoid B Performance (Stuck On)
StepActionYe sNo
1Were you sent here from the ªPowertrain On±Board Diagnostic
(OBD) System Checkº?
Go to Step 2
Go to OBD
System Check
Refer to
Driveability and
Emissions in
Engine section
21. Install the scan tool.
2. With the engine ªoffº, turn the ignition switch ªonº.
NOTE: Before clearing DTC(s), use the scan tool to record ªFreeze
Frameº and ªFailure Recordsº for reference, as data will be lost
when the ªClear Infoº function is used.
3. Record the DTC ªFreeze Frameº and ªFailure Recordsº.
4. With the engine operating, apply the brake pedal and select
each transmission range DL, D2, D3, D4, N, R, and P.
Does each selected transmission range match the ªTR Switchº on
the scan tool?
Go to Step 3
Go to ªRange
Switch Logic
Tableº
31. While the engine is operating, raise the drive wheels.
2. With the transmission in D4 range, use the scan tool to
command 1st, 2nd, and 3rd, and 4th gears while accelerating
the vehicle.
Was a 4±3±3±4 shift pattern detected? (Road testing the vehicle
may be necessary.)
Go to Step 4
Go to Diagnostic
Aids
4Check the shift solenoid/hydraulic circuit for:

One or both of the shift solenoids for an internal malfunction.

Contamination or sediment in one or both of the shift
solenoids.

Damaged seals on the one or both of the shift solenoids.
Refer to
Solenoid (Main Case Valve Body) in Automatic
Transmission (4L30±E) section.
Was a problem found and corrected?Go to Step 5
Go to Diagnostic
Aids
51. After the repair is complete, use the scan tool to select ªDTCº,
then ªClear Infoº function and road test the vehicle.
2. Review the scan tool ªDTC Infoº.
Has the last test failed or is the current DTC displayed?
Begin diagnosis
again
Go to
Step 1
Repair verified
Exit DTC table

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±73
DTC P0758 Shift Solenoid B Electrical
StepActionYe sNo
1Were you sent here from the ªPowertrain On±Board Diagnostic
(OBD) System Checkº?
Go to Step 2
Go to OBD
System Check
Refer to
Driveability and
Emission in
Engine section
21. Install the scan tool.
2. With the engine ªonº, turn the ignition switch ªonº.
NOTE: Before clearing DTC(s), use the scan tool to record ªFreeze
Frameº and ªFailure Recordsº for reference, as data will be lost
when the ªClear Infoº function is used.
3. Record the DTC ªFreeze Frameº and ªFailure Recordsº.
Were DTCs P0753, P0758, P1860 set?
Go to Step 4Go to Step 3
31. The engine ªonº.
2. Apply brake pedal and select transmission range ªDº.
3. Press and hold down the winter switch and select transmission
mode ªwinterº.
Does the scan tool display DTC P0758 at 3rd gear?
Go to Step 7
Go to Diagnostic
Aids
41. Turn the ignition ªoffº.
2. Disconnect the E-34 (BLUE) and E-35 (RED) PCM
connectors.
3. Turn the ignition ªonº.
4. Using the J39200 DVOM, measure the voltage between PCM
connector terminals E35±31 and E35±1.
Is the voltage within 10 ± 12 volts?
Go to Step 13Go to Step 5
51. Turn the ignition ªoffº.
2. Using the J39200 DVOM, measure the resistance between
PCM connector terminals E35±31 and E35±43.
Is the resistance within 18 ± 20 ohms?
Go to Step 14Go to Step 6
61. Disconnect the transmission main case connector E±42.
2. Using the J39200 DVOM, measure the resistance between
terminals E42±6(A) and E42±2(D).
Is the resistance within 18 ± 20 ohms?
Go to Step 15Go to Step 16
71. Turn the ignition ªoffº.
2. Disconnect the E-34 (BLUE) and E-35 (RED) PCM
connectors.
3. Using the J39200 DVOM, measure the resistance between
PCM connector terminals E35±31 and E35±43.
Is the resistance within 18 ± 20 ohms?
Go to Step 8Go to Step 10
8Using the J39200 DVOM, check a continuity between PCM
connector terminal E35±31 and ground.
Is there a continuity?
Go to Step 17Go to Step 9
9Using the J39200 DVOM, check a continuity between PCM
connector terminal E35±43 and ground.
Is there a continuity?
Go to Step 18Go to Step 11
101. Disconnect the transmission main case connector E-42.
2. Using the J39200 DVOM, measure the resistance between
terminals E42±6(A) and E42±2(D).
Is the resistance within 18 ± 20 ohms?
Go to Step 19Go to Step 20

7A1±74
TRANSMISSION CONTROL SYSTEM (4L30±E)
DTC P0758 Shift Solenoid B Electrical (Cont'd)
StepNo Ye s Action
11Check every connection of the PCM.
Was a problem found and corrected?
Go to Step 22Go to Step 12
121. Connect the E-34 (BLUE) and E-35 (RED) PCM connectors to
the PCM.
2. Turn the ignition ªonº, the engine ªonº.
3. Repeat Step 3.
Does the scan tool display DTC P0758 at 3rd gear?
Go to Step 21
Go to Diagnostic
Aids
13The wiring harness between PCM connector terminal
E35±31 and transmission main case terminal E42±6(A) is shorted
to voltage.
Was a problem found and corrected?
Go to Step 22Ð
14The PCM internal terminal E35±31 is shorted to voltage.
Replace the PCM. Refer to
Powertrain Control Module (PCM) in
Automatic Transmission (4L30±E) section.
Is the replacement complete?Go to Step 22Ð
15The wiring harness between PCM connector and transmission
main case 7-way connector is shorted.
Was a problem found and corrected?
Go to Step 22Ð
16The shift solenoid B is faulty, or the internal wiring harness from
the shift solenoid B is shorted.
Was a problem found and corrected?
Go to Step 22Ð
17The wiring harness between PCM connector terminal
E35±31 and transmission main case connector terminal
E42±6(A) is shorted to ground.
Was a problem found and corrected?
Go to Step 22Ð
18The wiring harness between PCM connector terminal E35±43
and transmission main case connector terminal E42±2(D) is
shorted to ground.
Was a problem found and corrected?
Go to Step 22Ð
19The wiring harness between PCM connector terminal E35±31
and transmission main case connector terminal E42±6(A), or
between PCM connector terminal E35±43 and main case
connector terminal E42±2(D) is open.
Was a problem found and corrected?
Go to Step 22Ð
20The internal wiring harness from the shift solenoid B is open, or
the shift solenoid B is faulty.
Was a problem found and corrected?
Go to Step 22Ð
21Replace the PCM.
Is the replacement complete?
Go to Step 22Ð
221. After the repair is complete, use the scan tool to select ªDTCº,
then ªClear Infoº function and operate the vehicle under the
following conditions:

The shift solenoid B is commanded ªonº and voltage drops to
zero.

The shift solenoid B is commanded ªoffº and voltage
increases to B+.
2. Review the scan tool ªDTC Infoº.
Has the last test failed or is the current DTC displayed?
Begin diagnosis
again
Go to
Step 1
Repair verified
Exit DTC table

7A1±78
TRANSMISSION CONTROL SYSTEM (4L30±E)

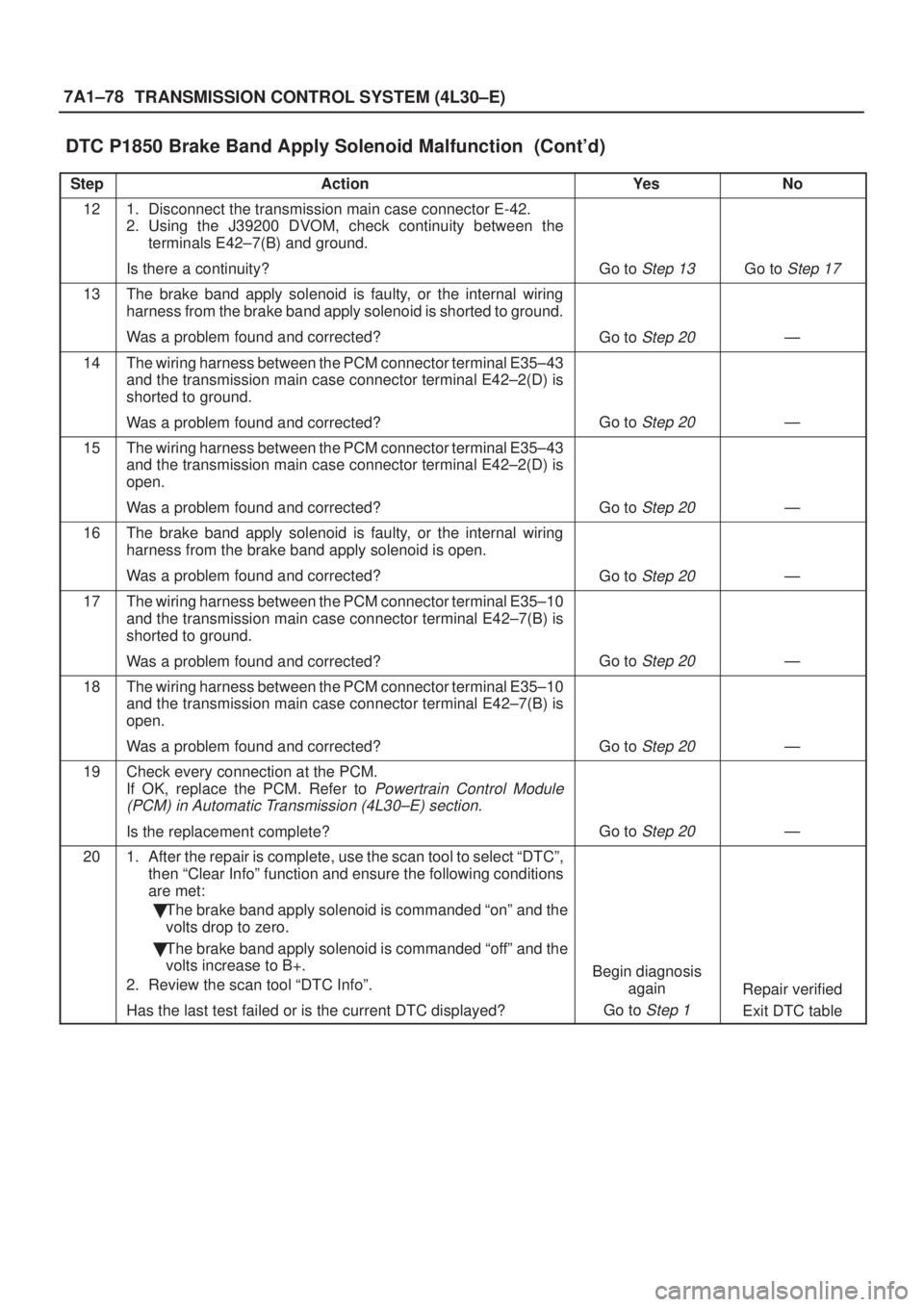

DTC P1850 Brake Band Apply Solenoid Malfunction (Cont'd)
StepNo Ye s Action
121. Disconnect the transmission main case connector E-42.
2. Using the J39200 DVOM, check continuity between the
terminals E42±7(B) and ground.
Is there a continuity?
Go to Step 13Go to Step 17
13The brake band apply solenoid is faulty, or the internal wiring
harness from the brake band apply solenoid is shorted to ground.
Was a problem found and corrected?
Go to Step 20Ð
14The wiring harness between the PCM connector terminal E35±43
and the transmission main case connector terminal E42±2(D) is
shorted to ground.
Was a problem found and corrected?
Go to Step 20Ð
15The wiring harness between the PCM connector terminal E35±43
and the transmission main case connector terminal E42±2(D) is
open.
Was a problem found and corrected?
Go to Step 20Ð
16The brake band apply solenoid is faulty, or the internal wiring
harness from the brake band apply solenoid is open.
Was a problem found and corrected?
Go to Step 20Ð
17The wiring harness between the PCM connector terminal E35±10
and the transmission main case connector terminal E42±7(B) is
shorted to ground.
Was a problem found and corrected?
Go to Step 20Ð
18The wiring harness between the PCM connector terminal E35±10
and the transmission main case connector terminal E42±7(B) is
open.
Was a problem found and corrected?
Go to Step 20Ð
19Check every connection at the PCM.
If OK, replace the PCM. Refer to
Powertrain Control Module
(PCM) in Automatic Transmission (4L30±E) section.
Is the replacement complete?Go to Step 20Ð
201. After the repair is complete, use the scan tool to select ªDTCº,
then ªClear Infoº function and ensure the following conditions
are met:

The brake band apply solenoid is commanded ªonº and the
volts drop to zero.

The brake band apply solenoid is commanded ªoffº and the
volts increase to B+.
2. Review the scan tool ªDTC Infoº.
Has the last test failed or is the current DTC displayed?
Begin diagnosis
again
Go to
Step 1
Repair verified
Exit DTC table
