RESTRAINT CONTROL SYSTEM 9J1±32
5. This test determines whether the malfunction is in
CKT IB06±YEL/BLK.
6. This test determines whether the malfunction is in
the SRS coil assembly or the driver air bag
assembly.Diagnostic Aids:
An intermittent condition is likely to be caused by a short
to ground in the driver air bag assembly circuit. Inspect
CKTs IB05±YEL and IB06±YEL/BLK carefully for cutting
or chafing.

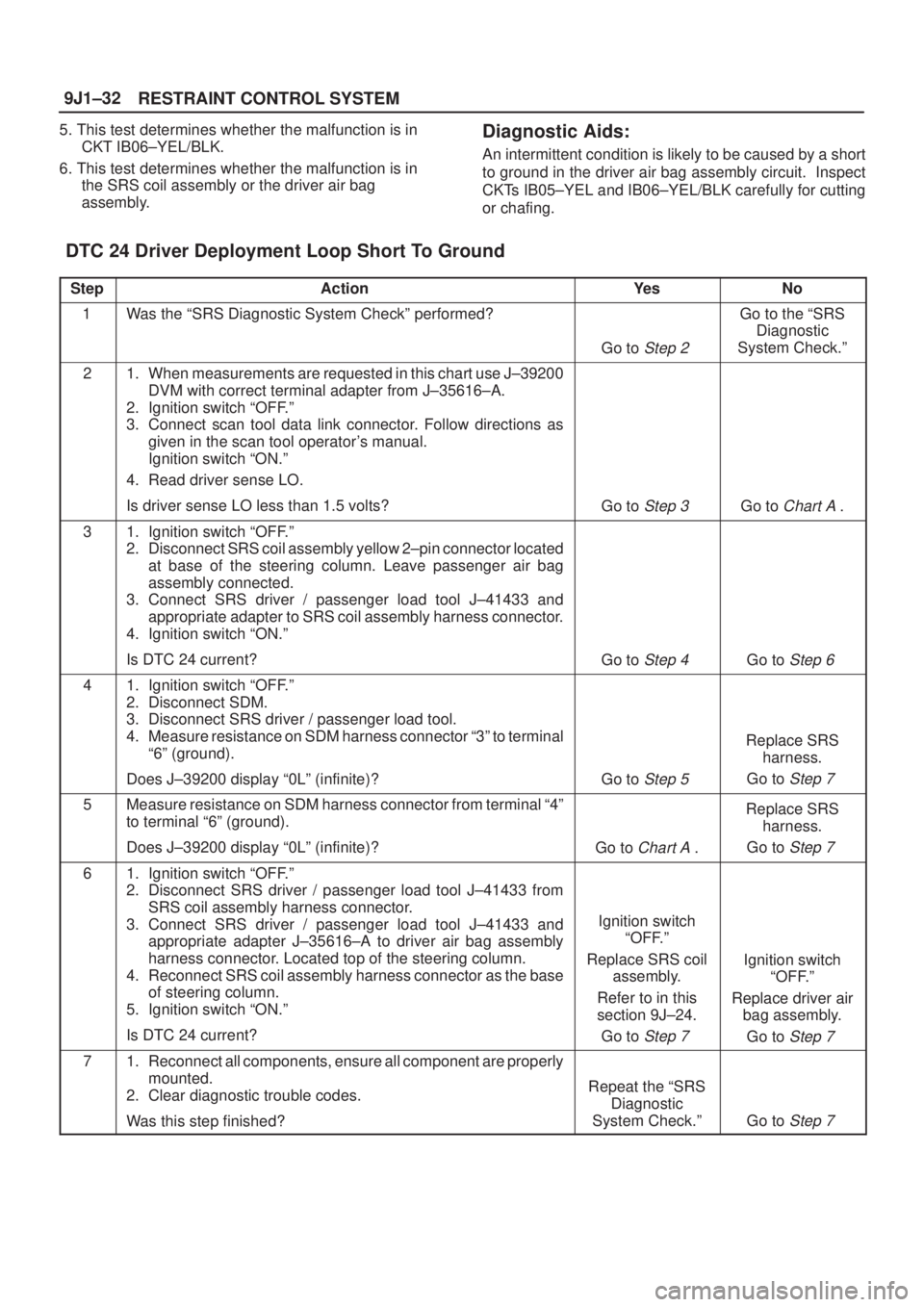

DTC 24 Driver Deployment Loop Short To Ground
StepActionYe sNo
1Was the ªSRS Diagnostic System Checkº performed?
Go to Step 2
Go to the ªSRS
Diagnostic
System Check.º
21. When measurements are requested in this chart use J±39200
DVM with correct terminal adapter from J±35616±A.
2. Ignition switch ªOFF.º
3. Connect scan tool data link connector. Follow directions as
given in the scan tool operator's manual.
Ignition switch ªON.º
4. Read driver sense LO.
Is driver sense LO less than 1.5 volts?
Go to Step 3 Go to Chart A .
31. Ignition switch ªOFF.º
2. Disconnect SRS coil assembly yellow 2±pin connector located
at base of the steering column. Leave passenger air bag
assembly connected.
3. Connect SRS driver / passenger load tool J±41433 and
appropriate adapter to SRS coil assembly harness connector.
4. Ignition switch ªON.º
Is DTC 24 current?
Go to Step 4 Go to Step 6
41. Ignition switch ªOFF.º
2. Disconnect SDM.
3. Disconnect SRS driver / passenger load tool.
4. Measure resistance on SDM harness connector ª3º to terminal
ª6º (ground).
Does J±39200 display ª0Lº (infinite)?
Go to Step 5
Replace SRS
harness.
Go to
Step 7
5Measure resistance on SDM harness connector from terminal ª4º
to terminal ª6º (ground).
Does J±39200 display ª0Lº (infinite)?
Go to Chart A .
Replace SRS
harness.
Go to
Step 7
61. Ignition switch ªOFF.º
2. Disconnect SRS driver / passenger load tool J±41433 from
SRS coil assembly harness connector.
3. Connect SRS driver / passenger load tool J±41433 and
appropriate adapter J±35616±A to driver air bag assembly
harness connector. Located top of the steering column.
4. Reconnect SRS coil assembly harness connector as the base
of steering column.
5. Ignition switch ªON.º
Is DTC 24 current?
Ignition switch
ªOFF.º
Replace SRS coil
assembly.
Refer to in this
section 9J±24.
Go to
Step 7
Ignition switch
ªOFF.º
Replace driver air
bag assembly.
Go to
Step 7
71. Reconnect all components, ensure all component are properly
mounted.
2. Clear diagnostic trouble codes.
Was this step finished?
Repeat the ªSRS
Diagnostic
System Check.º
Go to Step 7
9J1±35
RESTRAINT CONTROL SYSTEM

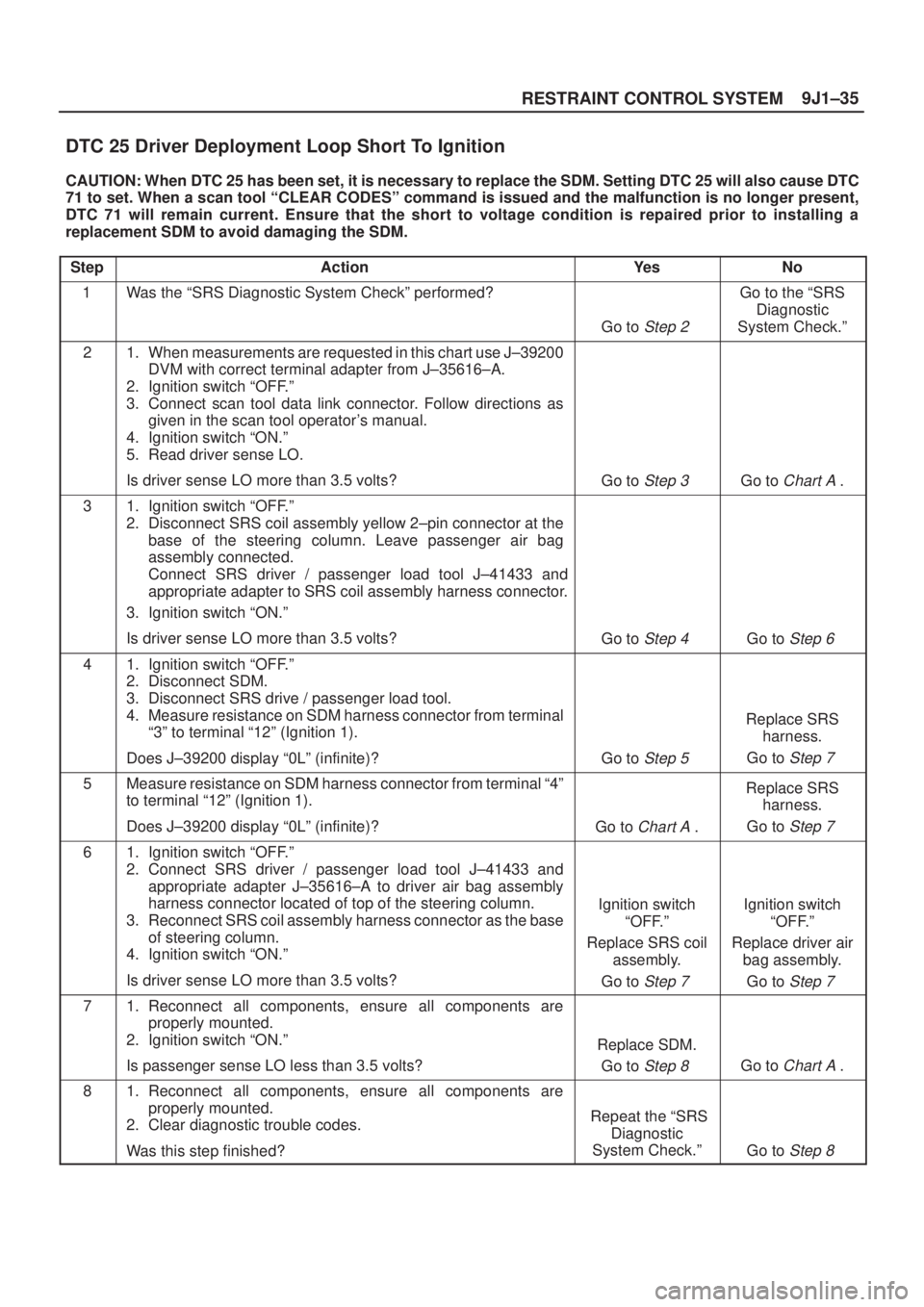

DTC 25 Driver Deployment Loop Short To Ignition
CAUTION: When DTC 25 has been set, it is necessary to replace the SDM. Setting DTC 25 will also cause DTC
71 to set. When a scan tool ªCLEAR CODESº command is issued and the malfunction is no longer present,
DTC 71 will remain current. Ensure that the short to voltage condition is repaired prior to installing a
replacement SDM to avoid damaging the SDM.
Step
ActionYe sNo
1Was the ªSRS Diagnostic System Checkº performed?
Go to Step 2
Go to the ªSRS
Diagnostic
System Check.º
21. When measurements are requested in this chart use J±39200
DVM with correct terminal adapter from J±35616±A.
2. Ignition switch ªOFF.º
3. Connect scan tool data link connector. Follow directions as
given in the scan tool operator's manual.
4. Ignition switch ªON.º
5. Read driver sense LO.
Is driver sense LO more than 3.5 volts?
Go to Step 3 Go to Chart A .
31. Ignition switch ªOFF.º
2. Disconnect SRS coil assembly yellow 2±pin connector at the
base of the steering column. Leave passenger air bag
assembly connected.
Connect SRS driver / passenger load tool J±41433 and
appropriate adapter to SRS coil assembly harness connector.
3. Ignition switch ªON.º
Is driver sense LO more than 3.5 volts?
Go to Step 4 Go to Step 6
41. Ignition switch ªOFF.º
2. Disconnect SDM.
3. Disconnect SRS drive / passenger load tool.
4. Measure resistance on SDM harness connector from terminal
ª3º to terminal ª12º (Ignition 1).
Does J±39200 display ª0Lº (infinite)?
Go to Step 5
Replace SRS
harness.
Go to
Step 7
5Measure resistance on SDM harness connector from terminal ª4º
to terminal ª12º (Ignition 1).
Does J±39200 display ª0Lº (infinite)?
Go to Chart A .
Replace SRS
harness.
Go to
Step 7
61. Ignition switch ªOFF.º
2. Connect SRS driver / passenger load tool J±41433 and
appropriate adapter J±35616±A to driver air bag assembly
harness connector located of top of the steering column.
3. Reconnect SRS coil assembly harness connector as the base
of steering column.
4. Ignition switch ªON.º
Is driver sense LO more than 3.5 volts?
Ignition switch
ªOFF.º
Replace SRS coil
assembly.
Go to
Step 7
Ignition switch
ªOFF.º
Replace driver air
bag assembly.
Go to
Step 7
71. Reconnect all components, ensure all components are
properly mounted.
2. Ignition switch ªON.º
Is passenger sense LO less than 3.5 volts?
Replace SDM.
Go to
Step 8 Go to Chart A .
81. Reconnect all components, ensure all components are
properly mounted.
2. Clear diagnostic trouble codes.
Was this step finished?
Repeat the ªSRS
Diagnostic
System Check.º
Go to Step 8
