2002 ISUZU AXIOM display

6E±574
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
resistance of 100,000 ohms at ±40
C (±40
F). High
temperature causes low resistance of 70 ohms at 130
C
(266
F) . The PCM supplies a 5-volt signal to the sensor
through a resistor in the PCM and monitors the signal
voltage. The voltage will be high when the incoming air is
cold. The voltage will be low when the incoming air is hot.
By measuring the voltage, the PCM calculates the
incoming air temperature. The IAT sensor signal is used
to adjust spark timing according to the incoming air
density.
The Tech 2 displays the temperature of the air entering
the engine. The temperature should read close to the
ambient air temperature when the engine is cold and rise
as underhood temperature increases. If the engine has
not been run for several hours (overnight), the IAT sensor
temperature and engine coolant temperature should read
close to each other. A fault in the IAT sensor circuit will set
DTC P0112 or DTC P0113.
Linear Exhaust Gas Recirculation (EGR)
Control
The PCM monitors the exhaust gas recirculation (EGR)
actual position and adjusts the pintle position accordingly.
The PCM uses information from the following sensors to
control the pintle position:

Engine coolant temperature (ECT) sensor.

Throttle position (TP) sensor.

Mass air flow (MAF) sensor.
Mass Air Flow (MAF) Sensor
The mass air flow (MAF) sensor measures the difference
between the volume and the quantity of air that enters the
engine. ªVolumeº means the size of the space to be filled.
ªQuantityº means the number of air molecules that will fit
into the space. This information is important to the PCM
because heavier, denser air will hold more fuel than
lighter, thinner air. The PCM adjusts the air/fuel ratio as
needed depending on the MAF value. The Tech 2 reads
the MAF value and displays it in terms of grams per
second (gm/s). At idle, the Tech 2 should read between
4-7 gm/s on a fully warmed up engine. Values should
change quickly on acceleration. Values should remain
stable at any given RPM. A failure in the MAF sensor or
circuit will set DTC P0101, DTC P0102, or DTC P0103.
0007
Manifold Absolute Pressure (MAP) Sensor
The manifold absolute pressure (MAP) sensor responds
to changes in intake manifold pressure (vacuum). The
MAP sensor signal voltage to the PCM varies from below
2 volts at idle (high vacuum) to above 4 volts with the
ignition ON, engine not running or at wide-open throttle
(low vacuum).
The MAP sensor is used to determine the following:

Manifold pressure changes while the linear EGR flow
test diagnostic is being run. Refer to
DTC P0401.

Barometric pressure (BARO).
If the PCM detects a voltage that is lower than the
possible range of the MAP sensor, DTC P0107 will be set.
A signal voltage higher than the possible range of the
sensor will set DTC P0108. An intermittent low or high
voltage will set DTC P1107, respectively. The PCM can
detect a shifted MAP sensor. The PCM compares the
MAP sensor signal to a calculated MAP based on throttle
position and various engine load factors. If the PCM
detects a MAP signal that varies excessively above or
below the calculated value, DTC P0106 will set.
055RW004

6E±576
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

Diagnostics
± Malfunction Indicator Lamp
± Data Link Connector (DLC)
± Data Output

Transmission Control Module
PCM Service Precautions
The PCM is designed to withstand normal current draws
associated with vehicle operation. Avoid overloading any
circuit. When testing for opens and shorts, do not ground
or apply voltage to any of the PCM's circuits unless
instructed to do so. These circuits should only be tested
using digital voltmeter J 39200. The PCM should remain
connected to the PCM or to a recommended breakout
box.
Reprogramming The PCM
Reprogramming of the PCM is done without removing it
from the vehicle . This provides a flexible and
cost-effective method of making changes in software
calibrations.
Refer to the latest Techline information on
reprogramming or flashing procedures.
Throttle Position (TP) Sensor
The throttle position (TP) sensor is a potentiometer
connected to the throttle shaft on the throttle body. The
PCM monitors the voltage on the signal line and
calculates throttle position. As the throttle valve angle is
changed (accelerator pedal moved), the TP sensor signal
also changes. At a closed throttle position, the output of
the TP1 sensor is low. As the throttle valve opens, the
output increases so that at wide open throttle (WOT), the
output voltage should be above 92% (Tech 2 Display).
The PCM calculates fuel delivery based on throttle valve
angle (driver demand). A broken or loose TP sensor may
cause intermittent bursts of fuel from an injector and
unstable idle because the PCM thinks the throttle is
moving.
060RY00027
Transmission Fluid Temperature (TFT)
Sensor
The transmission fluid temperature sensor is a thermistor
which changes its resistance based on the temperature of
the transmission fluid. For a complete description of the
TFT sensor, refer to
4L30-E Automatic Transmission
Diagnosis
section.
A failure in the TFT sensor or associated wiring will cause
DTC P0712 or DTC P0713 to set. In this case, engine
coolant temperature will be substituted for the TFT
sensor value and the transmission will operate normally.
Transmission Range Switch (Mode Switch)
IMPORTANT:The vehicle should not be driven with the
transmission range switch disconnected; idle quality will
be affected.
The four inputs from the transmission range switch
indicate to the PCM which position is selected by the
transmission selector lever. This information is used for
ignition timing, EVAP canister purge, EGR operation.
For more information on the transmission on the
transmission range switch, refer to
4L30-E Automatic
Transmission
section.
Vehicle Speed Sensor (VSS)
The PCM determines the speed of the vehicle by
converting a pulsing voltage signal from the vehicle speed
sensor (VSS) into miles per hour. The PCM uses this
signal to operate the cruise control, speedometer, and the
TCC and shift solenoids in the transmission. For more
information on the TCC and shift solenoids, refer to
4L30-E Automatic Transmission section.
0008
Use of Circuit Testing Tools
Do not use a test light to diagnose the powertrain
electrical systems unless specifically instructed by the
diagnostic procedures. Use Connector Test Adapter Kit J
35616 whenever diagnostic procedures call for probing
connectors.

7A1±6
TRANSMISSION CONTROL SYSTEM (4L30±E)
Shift Control
The transmission gear is shifted according to the shift
pattern selected by the driver. In shifting gears, the gear
ratio is controlled by the ON/ OFF signal using the shift
solenoid A and the shift solenoid B.
Band Apply Control
The band apply is controlled when in the 3±2 downshift
(engine overrun prevention) and the garage shift (shock
control).
The band apply solenoid is controlled by the signal from
the Pulse Width Modulation (PWM) to regulate the flow of
the oil.
Torque Converter Clutch Control
(Electronically Controlled Capacity Clutch
= ECCC)
The clutch apply is controlled by moving the converter
clutch valve by commanding Torque Converter Clutch
(TCC) solenoid using the PWM signal.
Line Pressure Control
The throttle signal allows the current signal to be sent to
the force motor. After receiving the current signal, the
force motor activates the pressure regulator valve to
regulate the line pressure.
On±Board Diagnostic System
Several malfunction displays can be stored in the
Powertrain Control Module (PCM) memory, and read out
of it afterward.
The serial data lines, which are required for the testing of
the final assembly and the coupling to other electronic
modules, can be regulated by this function.
Fail Safe Mechanism
If there is a problem in the transmission system, the PCM
will go into a ªbackupº mode.
The vehicle can still be driven, but the driver must use the
select lever to shift gears.
Torque Management Control
The transmission control side sends the absolute spark
advance signal to the engine control side while the
transmission is being shifted. This controls the engine
spark timing in compliance with the vehicle running
condition to reduce the shocks caused by the change of
speed.
ATF Warning Control
The oil temperature sensor detects the ATF oil
temperature to control the oil temperature warning, TCC,
and the winter mode.
Reverse Lock Out Control
With the selector lever in reverse position, the PCM will
not close the PWM solenoid until the vehicle is below 11
km/h (6.8 mph), thus preventing reverse engagement
above this speed.
Downhill Control
This mode is automatically activated from ªNORMALº
mode only when downhill conditions are recognized.
The shift pattern is identical to ªNORMALº mode except
3-4 and 4-3 shift lines at low throttle modified to get engine
braking on a larger speed range.
ECCC lines unchanged compared to ªNORMALº mode.
Uphill Control
When Uphill condition are recognized the 2-3 and 3-4 shift
and TCC apply take place only when the engine torque is
sufficient in order to avoid shift hunting.

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±15

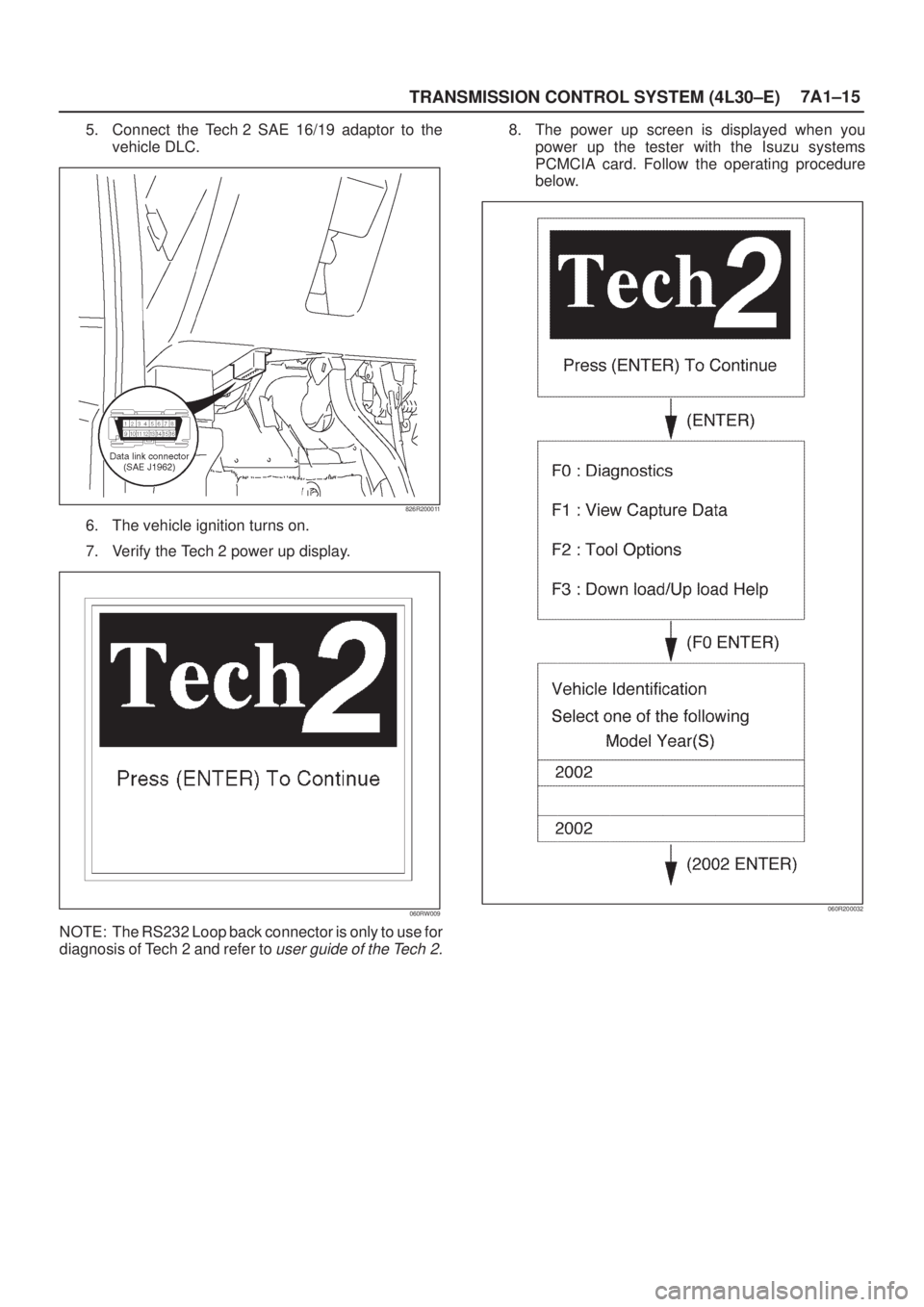

5. Connect the Tech 2 SAE 16/19 adaptor to the
vehicle DLC.
826R200011
6. The vehicle ignition turns on.
7. Verify the Tech 2 power up display.
060RW009
NOTE: The RS232 Loop back connector is only to use for
diagnosis of Tech 2 and refer to
user guide of the Tech 2.
8. The power up screen is displayed when you
power up the tester with the Isuzu systems
PCMCIA card. Follow the operating procedure
below.
060R200032

7A1±16
TRANSMISSION CONTROL SYSTEM (4L30±E)
060R200033
Once the test vehicle has been identified an ªApplication
(Powertrain) Menuº screen appears. Please select the
appropriate application.
The following table shows, which functions are used for
the available equipment versions.
F0: Diagnostic Trouble Codes
F0: Read DTC Info Ordered By Priority
F1: Clear DTC Information
F2: DTC Information
F1: Data Display
F0: Transmission Data
F2: Snap Shot
F3: Actuator Tests
F0: Lamps
F0: Check Light
F1: Winter Drive Lamp
F2: Power Drive Lamp
F3: AT Oil Temperature Lamp
F1: Solenoids
F0: Solenoid 1-2/3-4 Test
F1: Solenoid 2-3 Test
F2: TCC Solenoid
F3: Band Apply Solenoid
F4: Pressure Control Solenoid (PCS)
F4: Function Tests
F0: Reset Oil Life Monitor

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±17
Diagnostic Trouble Codes
The purpose of the ªDiagnostic Trouble Codesº mode is to
display stored PCM trouble codes.
When ªDiagnostic Trouble Codesº is selected an
ªApplication Menuº screen appears.
Clear DTC Information
The purpose of the ªClear DTC Informationº mode is to
command the clearing of stored PCM trouble codes.
When ªClear DTC Informationº is selected, a ªClear DTC
Informationº, warning screen appears. This screen
informs you that by cleaning DTC's, ªall stored DTC
information in controller will be erasedº.
Do you want to clear DTC's (Yes/No).
Press either the Yes or No key when answering.
After clearing codes, confirm system operation by test
driving the vehicle.
Allow the vehicle to shift through all four forward gears in a
manner which attempts to repeat the failure condition.
NOTE: When the trouble has not been repaired and the
trouble code cannot be erased, check the vehicle again.
DTC Information
When ªDTC Informationº is selected, an ªApplication
Menuº appears with a list of DTC information function
keys addressing DTC specifics and their origins.
Function key selections may vary for particular vehicle
and/or system.
Data Display
The purpose of the ªData Displayº mode is to
continuously monitor data parameters.
The current actual values of all important sensors and
signals in the system are display through F1 mode.
When ªData Displayº is selected an ªApplication Menuº
appears. Please select either ªEngineº or ªTransmission
Data Displayº.
See ªTransmission Dataº on next page.
Snapshot
When ªSnapshotº is selected an ªApplication Menuº
appears.
When ªTransmission Snapshotº application is selected
from the ªApplication Menuº, a ªSnapshot Menuº
appears, displaying several options. ªSnapshotº options
may vary from one system to another.
ªSnapshotº allows a recording of all vehicle parameters.
There parameters may then be replayed at a future point
in time.
This action allows you to focus on making the condition
occur, rather than trying to view all of the data in
anticipation of the fault. The snapshot will collect
parameter information around a trigger point that you
select.
When a snapshot is taken. It is recorded onto the
PCMCIA memory card. When the Tech 2 is powered
down. Snapshots are not lost.
Actuator Tests
The purpose of ªActuator Testsº mode is to check for
correct operation of electronic system actuators.Lamps
You can operate the lamps by pressing the ON and OFF
buttons.
Preconditions: none
Solenoid
Solenoid 1-2/3-4, Solenoid 2-3, TCC Solenoid
You can operate the solenoids by pressing the ON and
OFF buttons.
Preconditions: P±N position, no vehicle speed, no engine
speed
Band Apply Solenoid
You can operate the solenoid by pressing the ON and
OFF buttons.
Preconditions: P-N position, idle engine speed, no vehicle
speed.
Pressure Control Solenoid (PCS)
You can set desired PCS Current using the ªIncrementº
(+25) and ªDecrementº (±25) button. The PC Solenoid
Data informs about PCS Current, Pressure and Duty
Cycle.
Preconditions: P±N position, no engine speed, no vehicle
speed
Reset Oil Life Monitor
Displays parameter ªOil Life Monitorº and resets to 100%
if Yes-button is pressed on Reset-question. ªNoº leaves
test.
Preconditions: no vehicle speed, no engine speed
NOTE:
Freeze Frame (Powertrain DTC A/B Type)
Freeze Frame is an element of the Diagnostic Manage-
ment System which stores various vehicle information at
the moment an emissions-related fault is stored in
memory and when the MIL is commanded on. These data
can help to identify the cause of a fault. Refer to
Storing
And Erasing Freeze Frame Data
for more detailed in-
formation.
Failure Records (Powertrain DTC C/D Type)
Failure Records data is an enhancement of the OBD II
Freeze Frame feature. Failure Records store the same
vehicle information as does Freeze Frame, but it will store
that information for any fault which is stored in on-board
memory, while Freeze Frame stores information only for
emission-related faults that command the MIL on.

7A1±22
TRANSMISSION CONTROL SYSTEM (4L30±E)
IMPORTANT:Only four Fail Records can be stored.
Each Fail Record is for a different DTC. It is possible that
there will not be Fail Records for every DTC if multiple
DTCs are set.
Clear DTC
NOTE: If you clear the DTC (Diagnostic Trouble Codes)
you will not be able to read any codes recorded during the
last occurrence.
NOTE: To use the DTC again to identify a problem, you
will need to reproduce the fault or the problem. This may
require a new test drive or just turning the ignition on (this
depends on the nature of the fault).
1. If you have a Tech 2:
1. Connect the Tech 2 if it is still not connected GO
THROUGH Tech 2 OBD II CONNECTION.
2. Push ªF1: Clear DTC Informationº in the
Application Menu and answer ªYesº to the
question ªDo you want to clear DTC's?º
a. When a malfunction still exists and the Tech 2
displays ª4L30E CODES NOT CLEAREDº. This
means that the problem is still there or that the
recovery was not done. Please GO TO DTC
CHECK.
b. When a malfunction has been repaired and the
recovery is done. The Tech 2 displays ª4L30E
CODES CLEAREDº.
2. If you have no Tech 2:
Disconnect the PCM battery feed as necessary.
DTC Check
1. Diagnostic Trouble Codes (DTC) have been identified
by Tech 2.
2. You have written the list of the DTCs. The order of the
malfunctions has no meanings for this PCM. Usually
only one or two malfunctions should be set for a given
problem.
3. Check directly the DTCs you identified. The DTCs are
sorted by number. Refer to
Diagnostic Trouble Code
(DTC) Identification in this section.
PCM Precaution
The PCM can be damaged by:
1. Electrostatic discharge
2. The short circuit of some terminals to voltage or to
ground.
Electrostatic Discharge Damage Description:
1. Electronic components used to control systems are
often designed to carry very low voltage, and are very
susceptible to damage caused by electrostatic
discharge. It is possible for less than 100 volts of
static electricity to cause damage to some electronic
components. By comparison, it takes as much as
4,000 volts for a person to even feel the zap of a static
discharge.2. There are several ways for a person to become
statically charged. The most common methods of
charging are by friction and induction. An example of
charging by friction is a person sliding across a car
seat, in which a charge of as much as 25,000 volts
can build up. Charging by induction occurs when a
person with well insulated shoes stands near a highly
charged object and momentarily touches ground.
Charges for the same polarity are drained off, leaving
the person highly charged with the opposite polarity.
Static charges of either type can cause damage,
therefore, it is important to use care when handling
and testing electronic components.
NOTICE: To prevent possible electrostatic
discharge damage:
1. Do not touch the PCM connector pins or soldered
components on the PCM circuit board.
2. Be sure to follow the guidelines listed below if
servicing any of these electronic components:
3. Do not open the replacement part package until it is
time to install the part.
4. Avoid touching electrical terminals of the part.
5. Before removing the part from its package, ground
the package to a known good ground on the vehicle.
6. Always touch a known good ground before handling
the part. This step should be repeated before
installing the part if the part has been handled while
sliding across the seat, while sitting down from a
standing position or while walking some distance.
Information On PCM
1. The Powertrain Control Module (PCM) is located in
the center console and is the control center of the
electronic transmission control system.
2. The PCM must be maintained at a temperature below
85
(185
F) at all times. This is most essential if the
vehicle is put through a paint baking process. The
PCM will become inoperative if its temperature
exceeds 85
C (185
F). Therefore, it is
recommended that the PCM be removed or that
temporary insulation be placed around the PCM
during the time the vehicle is in a paint oven or other
high temperature process.
3. The PCM is designed to process the various inputs
and then respond by sending the appropriate
electrical signals to control transmission upshift,
downshift, shift feel and torque converter clutch
engagement.
4. The PCM constantly interprets information from the
various sensors, and controls the systems that affect
transmission and vehicle performance. By analyzing
operational problems, the PCM is able to perform a
diagnostic function by displaying DTC(s) and aid the
technician in making repairs.

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±23
Intermittent Conditions
If the Tech 2 displays a diagnostic trouble code as
intermittent, or if after a test drive a DTC does not
reappear though the detection conditions for this DTC are
present, the problem is most likely a faulty electrical
connection or loose wiring. Terminals and grounds should
always be the prime suspect. Intermittents rarely occur
inside sophisticated electronic components such as the
PCM.
Use the DTC information to understand which wires and
sensors are involved.
When an intermittent problem is encountered, check
suspect circuits for:
1. Poor terminal to wire connection.
2. Terminals not fully seated in the connector body
(backed out).
3. Improperly formed or damaged terminals.
4. Loose, dirty, or corroded ground connections:
HINT: Any time you have an intermittent in more than
one circuit, check whether the circuits share a
common ground connection.5. Pinched or damaged wires.
6. Electro±Magnetic Interference (EMI):
HINT: Check that all wires are properly routed away
from coil, and generator. Also check for improperly
installed electrical options, such as lights, 2±way
radios, etc.
Use the F2: SNAPSHOT mode of the Tech 2 to help
isolate the cause of an intermittent fault. The snapshot
mode will record information before and after the problem
occurs. Set the snapshot to ªtriggerº on the suspect DTC.
If you notice the reported symptom during the test drive,
trigger the snapshot manually.
After the snapshot has been triggered, command the
Tech 2 to play back the flow of data recorded from each of
the various sensors. Signs of an intermittent fault in a
sensor circuit are sudden unexplainable jump in data
values out of the normal range.
Transmission And PCM Identification
The chart below contains a list of all important information
concerning rear axle ratio, Powertrain Control Module
(PCM), and transmission identification.
VEHICLE
Rr axlePCMTRANSMISSION
TypeEngine
Rr axle
RatioISUZU Parts No.Calibration
CodeIsuzu Part No.Model Code
Isuzu /35LV64 3008±97287±830±0G268±96023±779±0YB (4y4)
Axiom3.5L V64.3008±09389±969±0G268±96024±169±0YE (4y2)
240R200001
