2002 CHEVROLET TRAIL BLAZER Owners Manual

2-60

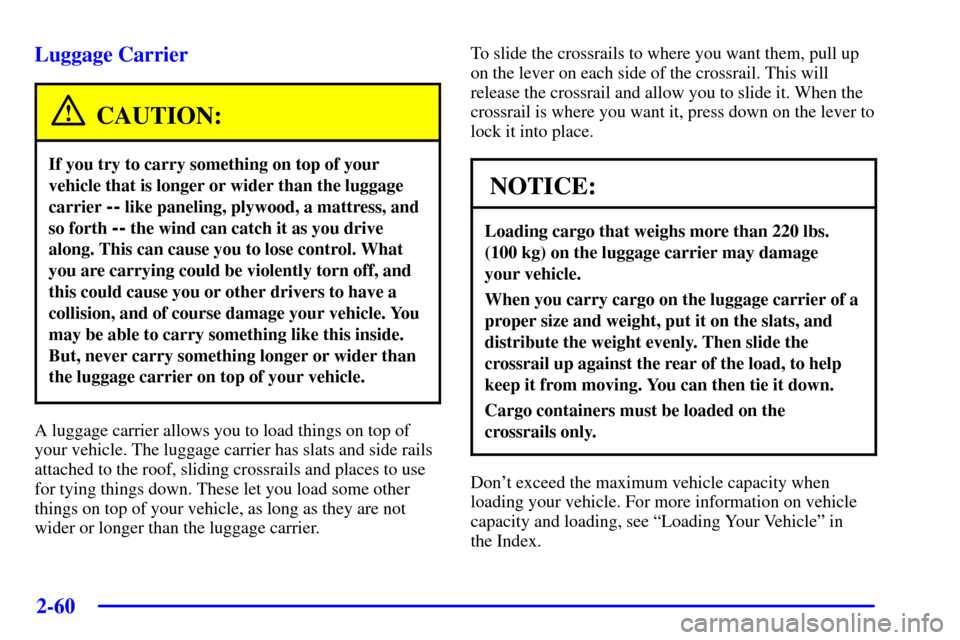

Luggage Carrier
CAUTION:
If you try to carry something on top of your
vehicle that is longer or wider than the luggage
carrier
-- like paneling, plywood, a mattress, and
so forth
-- the wind can catch it as you drive
along. This can cause you to lose control. What
you are carrying could be violently torn off, and
this could cause you or other drivers to have a
collision, and of course damage your vehicle. You
may be able to carry something like this inside.
But, never carry something longer or wider than
the luggage carrier on top of your vehicle.
A luggage carrier allows you to load things on top of
your vehicle. The luggage carrier has slats and side rails
attached to the roof, sliding crossrails and places to use
for tying things down. These let you load some other
things on top of your vehicle, as long as they are not
wider or longer than the luggage carrier.To slide the crossrails to where you want them, pull up
on the lever on each side of the crossrail. This will
release the crossrail and allow you to slide it. When the
crossrail is where you want it, press down on the lever to
lock it into place.
NOTICE:
Loading cargo that weighs more than 220 lbs.
(100 kg) on the luggage carrier may damage
your vehicle.
When you carry cargo on the luggage carrier of a
proper size and weight, put it on the slats, and
distribute the weight evenly. Then slide the
crossrail up against the rear of the load, to help
keep it from moving. You can then tie it down.
Cargo containers must be loaded on the
crossrails only.
Don't exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, see ªLoading Your Vehicleº in
the Index.

2-61
To prevent damage or loss of cargo as you're driving,
check now and then to make sure the luggage carrier is
locked and cargo is still securely fastened.
Ashtrays and Cigarette Lighter
The front ashtray is removable and fits into the
front cupholder.
NOTICE:
Don't put papers and other things that burn into
your ashtray. If you do, cigarettes or other
smoking materials could set them on fire,
causing damage.
To remove the front ashtray, pull the covered bin out of
the cupholder.
To use the lighter, press it in all the way, and let go.
When it's ready, it will pop back out by itself.
NOTICE:
Don't hold a cigarette lighter in with your hand
while it is heating. If you do, it won't be able to
back away from the heating element when it's
ready. That can make it overload, damaging the
lighter and the heating element.
Sun Visors
To block out glare, you can pull the visor down. You can
also swing the visor from side
-to-side.
Visor Vanity Mirror
Pull the sun visor down to expose the vanity mirror.
Illuminated Visor Vanity Mirror
(If Equipped)
Pull the sun visor down and lift the mirror cover to turn
on the lamps.

2-62
Accessory Power Outlets
With the accessory power outlets, you can plug in
auxiliary electrical equipment such as a cellular
telephone or CB radio.
Your vehicle has three accessory power outlets. The first
outlet is located to the right of the cigarette lighter on
the instrument panel. The second outlet is located on the
rear of the center console, and the third one is located in
the rear of the vehicle near the liftgate.
Remove the cover from the outlet to use the outlet.
Be sure to put the cover back on when not using the
accessory power outlet.
Certain electrical accessories may not be compatible
with the accessory power outlet and could result in
blown vehicle or adaptor fuses. If you experience a
problem, see your dealer for additional information on
the accessory power outlets.NOTICE:
Adding some electrical equipment to your vehicle
can damage it or keep other things from working
as they should. This wouldn't be covered by your
warranty. Check with your dealer before adding
electrical equipment, and never use anything that
exceeds the fuse rating.
When adding electrical equipment, be sure to follow
the proper installation instructions included with
the equipment.
NOTICE:
Power outlets are designed for accessory plugs
only. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of
the power outlet can cause damage not covered
by your warranty.

2-63
OnStar
System (If Equipped)
OnStar is a vehicle communications system that offers a
variety of services and provides a hands
-free
communication link between you and the OnStar Center.
A service subscription agreement and fee are required in
order to receive OnStar service. Services are available
24 hours a day, 7 days a week. For more information,
call 1
-888-ONSTAR-7 (1-888-667-8277).
OnStar Services Button: Press this button once to
contact an advisor who will be able to assist you with
these services. If you are not quickly connected, the
system will automatically reset and redial. This ensures
connection to the center; there is no additional action
required. Press the Call Answer/End button to cancel the
automatic redial.
Emergency Button: In an emergency situation,
press the emergency service button. Upon receiving the
call, an advisor at the center will locate your vehicle and
assess the situation. If necessary, the advisor will alert
the nearest emergency service provider.
Call ANSWER/END Button: Use this button
to answer a call. (If you are receiving a call, the audio
system will mute, and the ring will be heard). Press this
button at the end of a call to disconnect and return the
audio system to its previous settings. This button will
also cancel a call if one of the buttons is accidentally
pressed or if the automatic redial function is activated.

2-64
Volume Control: You can control the volume of the
OnStar System using either the volume control knob
on the radio or using the steering wheel volume control
(if equipped).
Telltale Light: This light will indicate the status of
the system. A solid green light will come on when you
start the vehicle to let you know that the system is on
and is ready to make or receive calls.
If the light blinks green it means that an incoming or
outgoing call is in progress. Press the Call
ANSWER/END button if you notice the light blinking
and you are not on a call.
The light will be red in the event of an OnStar system
malfunction. If this occurs press the OnStar button to
attempt to contact an advisor. If the connection is made,
the advisor will assist you with steps to take to make
sure that the system is functioning properly. If you
cannot contact the advisor, take your vehicle to your
dealership as soon as possible for assistance.
Safety and Security Services
Automatic Notification of Air Bag Deployment: If an
air bag deploys, a priority emergency signal is
automatically sent to the center. An advisor will locate
your vehicle's position, try to contact you and assist you
in the situation. If the center is unable to contact you, an
emergency service provider will be contacted.
Stolen Vehicle Tracking: Call the center at
1
-888-4-ONSTAR (1-888-466-7827) to report your
vehicle stolen. The system can then locate and track
your vehicle and the advisor will be able to notify the
proper authorities.
Roadside Assistance with Location: For vehicle
breakdowns, press the OnStar button. An advisor will
contact the appropriate help.
Remote Diagnostics: If an instrument panel light comes
on, the center can perform a check of the engine
on
-board computer. An advisor can then recommend
what action needs to be taken.

2-65
OnStar MED-NET: Med-Net can store your personal
medical history and provide it to emergency personnel if
necessary. (Requires activation and additional fee.)
Remote Door Unlock: To contact the center, call
1
-888-4-ONSTAR. You will be required to provide
your security information. An advisor will send a
command to your vehicle to unlock itself. The advisor
can delay unlocking your vehicle. Remote Door Unlock
is disabled 48 hours after the vehicle is parked to
maintain the battery charge.
Vehicle Locator Service: To contact the center, call
1
-888-4-ONSTAR. You will be required to provide your
security information. An advisor will send a command
to your vehicle to sound the horn and/or flash the lamps.
In order to provide you with excellent service, calls with
the OnStar Center may be monitored or recorded.
Premium Services (Includes Safety and
Security Services)
Route Support: An advisor can provide directions or
guidance to anywhere you want to go. In addition, they
can help you locate gas stations, rest areas, ATMs,
hospitals, hotels, stores, eateries and more.
Concierge Services: The concierge advisor can obtain
tickets, reservations, or help with vacation/trip planning
and other unique items and services.
Ride Assist: An advisor can locate transportation in the
event that you are unable to drive.

2-66
OnStar System Limitations
Complete limitations can be found on the Subscriber
Services Agreement.
OnStar Service is:

available in the 48 contiguous United States, Alaska,
Hawaii and Canada;

available when the vehicle is within the operating
range of a cellular provider;

subject to limitations caused by atmospheric
conditions, such as severe weather or topographical
conditions, such as mountainous terrain;

subject to cellular carrier equipment limitations.
Global positioning capabilities used to deliver
OnStar service will not be available if satellite signals
are obstructed.
OnStar will not function if the vehicle's battery is
discharged or disconnected. It may also be inoperative
if the vehicle is in an accident and the OnStar or vehicle
electrical system components are damaged.Safety and security services are provided by existing
governmental emergency service providers. OnStar will
use reasonable efforts to contact the appropriate
emergency service provider and request assistance but
cannot promise that they will respond to the call in a
timely manner or at all.
Sunroof (Option)
Your vehicle may be equipped with a power sliding
sunroof. To open or close your sunroof, the ignition or
Retained Accessory Power (RAP) must be active. See
ªRetained Accessory Powerº in the Index.
Press and release the back of the button in the overhead
console to open the sunroof. You can press the front of
the button to close the sunroof. Once the sunroof is
closed, press the forward side of the button to open the
sunroof to the vent position.
The sunroof is also equipped with a sunshade which you
can pull forward to block sun rays.

2-67
HomeLink
Transmitter (If Equipped)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of
the device.Changes and modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
Programming the HomeLink Transmitter
Do not use the HomeLink Transmitter with any garage
door opener that does not have the ªstop and reverseº
feature. This includes any garage door opener model
manufactured before April 1, 1982.
Be sure that people and objects are clear of the garage
door you are programming.
It is recommended that a new battery be installed in
your hand
-held transmitter for quicker and more
accurate transmission of the radio frequency.
Your vehicle's engine should be turned off while
programming the transmitter. Follow these steps to
program up to three channels:
1. Decide which one of the three channels (one of the
HomeLink buttons) you want to program.
2. Press and hold the desired button on HomeLink
through Step 3.
