2002 CHEVROLET TRAIL BLAZER Owners Manual

6-59
Mini Fuses Usage
1 ECAS
2 Passenger's Side
High
-Beam Headlamp
3 Passenger's Side
Low
-Beam Headlamp
4 Back
-Up Trailer Lamps
5 Driver's Side
High
-Beam Headlamp
6 Driver's Side
Low
-Beam Headlamp
7 WASH
8ATC
9 Windshield Wipers
10 Powertrain Control Module B
11 Fog Lamps
12 ST/LP
13 Cigarette Lighter
14 COILS
15 RIDE
16 TBD
-- Ignition 1Mini Fuses Usage
17 Crank
18 Air Bag
19 ELEK Brake
20 Cooling Fan
21 Horn
22 Ignition E
23 ETC
24 Instrument Panel Cluster, Driver
Information Center
25 Automatic Shift Lock
Control System
26 ENG 1
27 Back
-Up
28 Powertrain Control Module 1
29 Oxygen Sensor
30 Air Conditioning
31 TBC
50 Passenger's Side Trailer TRN
51 Driver's Side Trailer TRN
52 Hazard Flashers

6-60
J-Case Fuses Usage
32 Trailer
33 Anti
-Lock Brakes (ABS)
34 Ignition A
35 Blower Motor
36 Ignition B
Micro Relays Usage
37 Blank
38 Rear Window Washer
39 Fog Lamps
40 Horn
41 Fuel Pump
42 Windshield Wipers/Washer
43 High
-Beam Headlamp
44 Air Conditioning
Solid
State RelaysUsage
45 Cooling Fan
46 HDMMini Relay Usage
47 Starter
Miscellaneous Usage
48 Instrument Panel Battery
49 Fuse Puller

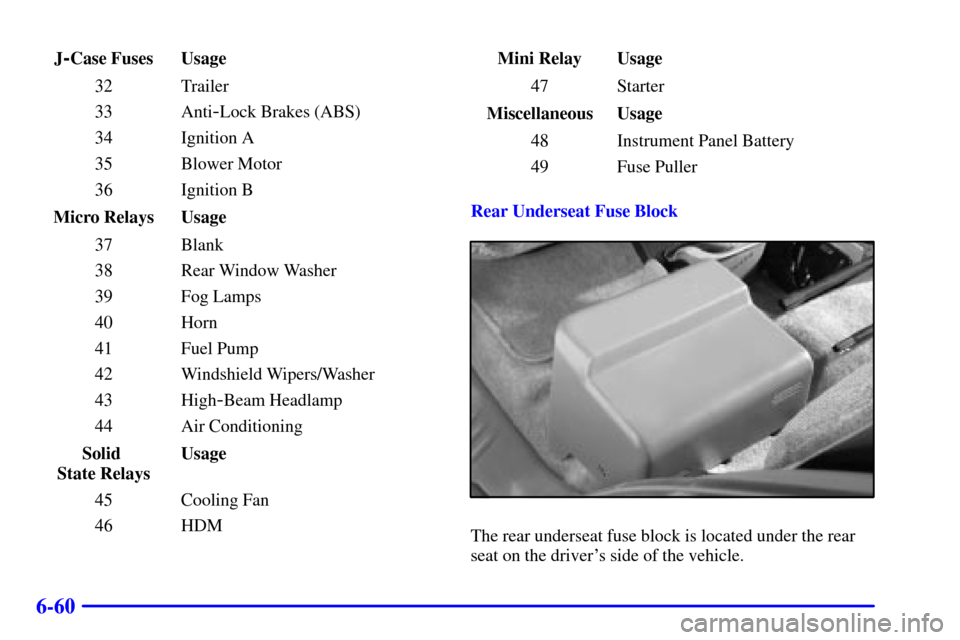

Rear Underseat Fuse Block
The rear underseat fuse block is located under the rear
seat on the driver's side of the vehicle.

6-61
Fuse Usage
01 Right Door Control Module
02 Left Door Control Module
03 LGM 2
04 TBC 3
05 Rear Fog Lamps
06 LGM/DSM
07 TBC 2
08 Power Seats
09 Blank
10 DDM
11 AMP
12 PDM
13 Rear Climate Controls
14 Left Rear Parking Lamps
15 Auxiliary Power 2
16 VEH CHMSL

6-62
Fuse Usage
17 Right Rear Parking Lamps
18 LOCKS
19 Blank
20 Sunroof
21 LOCK
23 Blank
24 UNLOCK
25 Blank
26 Blank
27 OH Battery/OnStar

System
29 Rainsense Wipers
30 Parking Lamps
31 TBC 4CC
32 TBC5
33 Front Wipers
34 VEH STOP
35 BlankFuse Usage
36 HVAC B
37 Front Parking Lamps
38 Left Turn Signal
39 HVAC 1
40 TBC 4
41 Radio
42 TR PARK
43 Right Turn Signal
44 HVAC
45 Rear Fog Lamps
46 Auxiliary Power 1
47 Ignition 0
48 Four
-Wheel Drive
49 Blank
50 TBC IG
51 Brakes
52 TBC RUN

6-63
Replacement Bulbs
Lamps Number
Tail and Stoplamps 3157. . . . . . . . . . . . . . . . . . . . .
Rear Turn Signal Lamps 3157. . . . . . . . . . . . . . . . .
For any bulb not listed here contact your dealer.
Capacities and Specifications
Engine Specifications
Engine Description ªVORTECº 4200. . . . . . . . . . . .
Type L6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VIN Code S. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Firing Order 1
-5-3-6-2-4 . . . . . . . . . . . . . . . . . . . . . .
Spark Plug Gap 0.050 inches (1.25 mm). . . . . . . . . .
Wheel and Tires
Wheel Nut Torque 100 lb-ft (140 N´m) . . . . . . . . . . .
Capacities
Cooling System 13.9 quarts (13.1 L). . . . . . . . . . . . .
Crankcase 7.0 quarts (6.6 L). . . . . . . . . . . . . . . . . . . .
Transmission
(Drain and Refill) 5.0 quarts (4.7 L). . . . . . . . . . . .
Differential Fluid
Rear 4.0 pints (1.9 L). . . . . . . . . . . . . . . . . . . . . . . .
Front 2.6 pints (0.8 L). . . . . . . . . . . . . . . . . . . . . . .
Fuel Tank 18.7 U.S. gallons (75.7 L). . . . . . . . . . . . .
All capacities are approximate. When adding, be sure to
fill to the appropriate level, as recommended in this
manual. Recheck the fluid level after filling.
Normal Maintenance
Replacement Parts
Engine Oil Filter PF59*. . . . . . . . . . . . . . . . . . . . . . .
Engine Air Cleaner/Filter A2014C*. . . . . . . . . . . . . . .
Automatic Transmission
Filter Kit GM Part No. 24200796. . . . . . . . . . . . . . .
Spark Plugs 41
-965* . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Filter GF831*. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper Blade 20.0 inches (50.8 cm). . . . .
Backglass Wiper Blade 14.0 inches (35.6 cm). . . . . .
*ACDelco

part number

7-
7-1
Section 7 Maintenance Schedule
This section covers the maintenance required for your vehicle. Your vehicle needs these services to retain its safety,
dependability and emission control performance.
7
-2 Introduction
7
-4 Part A: Scheduled Maintenance Services
7
-5 Scheduled Maintenance
7
-15 Part B: Owner Checks and Services7
-20 Part C: Periodic Maintenance Inspections
7
-22 Part D: Recommended Fluids and Lubricants
7
-25 Part E: Maintenance Record

7-2
Have you purchased the GM Protection Plan? The Plan
supplements your new vehicle warranties. See your
Warranty and Owner Assistance booklet or your dealer
for details.
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance can even
affect the quality of the air we breathe. Improper fluid
levels or the wrong tire inflation can increase the level
of emissions from your vehicle. To help protect our
environment, and to keep your vehicle in good
condition, please maintain your vehicle properly.
Maintenance Requirements
Maintenance intervals, checks, inspections and
recommended fluids and lubricants as prescribed in this
manual are necessary to keep your vehicle in good
working condition. Any damage caused by failure to
follow recommended maintenance may not be covered
by warranty.

7-3 How This Section is Organized
This maintenance schedule is divided into five parts:
ªPart A: Scheduled Maintenance Servicesº explains
what to have done and how often. Some of these
services can be complex, so unless you are technically
qualified and have the necessary equipment, you should
let your dealer's service department or another qualified
service center do these jobs.
CAUTION:
Performing maintenance work on a vehicle can
be dangerous. In trying to do some jobs, you can
be seriously injured. Do your own maintenance
work only if you have the required know
-how
and the proper tools and equipment for the job.
If you have any doubt, have a qualified
technician do the work.
If you want to get the service information, see ªService
and Owner Publicationsº in the Index.ªPart B: Owner Checks and Servicesº tells you
what should be checked and when. It also explains
what you can easily do to help keep your vehicle in
good condition.
ªPart C: Periodic Maintenance Inspectionsº explains
important inspections that your dealer's service
department or another qualified service center
should perform.
ªPart D: Recommended Fluids and Lubricantsº lists
some recommended products necessary to help keep
your vehicle properly maintained. These products, or
their equivalents, should be used whether you do the
work yourself or have it done.
ªPart E: Maintenance Recordº is a place for
you to record and keep track of the maintenance
performed on your vehicle. Keep your maintenance
receipts. They may be needed to qualify your vehicle
for warranty repairs.
