2002 CHEVROLET TRAIL BLAZER Owners Manual

2-52
Compass Operation
Press the on/off button once to turn the compass
on or off.
There is a compass display in the window in the upper
right corner of the mirror face. The compass displays a
maximum of two characters. For example, ªNEº is
displayed for north
-east.
Compass Calibration
Press and hold the on/off button down for nine seconds
to activate the compass calibration mode. ªCALº will be
displayed in the compass window on the mirror.
The mirror can be calibrated in one of two ways:

Drive the vehicle in circles at 5 mph (8 km/h) or less
until the display shows ªCAL,º or

drive the vehicle on your everyday routine.
(This method may take longer to calibrate).Compass Variance
The mirror is set to zone eight upon leaving the factory.
It will be necessary to adjust the compass to compensate
for compass variance if you live outside zone eight.
Under certain circumstances, such as during a long
distance cross
-country trip, it will be necessary to adjust
for compass variance. Compass variance is the
difference between earth's magnetic north and true
geographic north. If not adjusted to account for compass
variance, your compass could give false readings.
To adjust for compass variance, do the following:
1. Find your current location and variance zone number
on the map.

2-53
2. Press and hold the on/off button for six seconds.
Release the button when ªZONEº is displayed.
The number shown is the current zone number.3. Scroll through the zone numbers that appear in the
compass/temperature window on the mirror by
pressing the on/off button. Once you find your zone
number, release the button. After about four seconds,
the mirror will return to the compass and
temperature display, and the new zone number will
be set.
Outside Mirrors
Adjust your outside mirrors so you can see a little of the
side of your vehicle.
Fold the mirrors in before before entering a car wash. To
do this, pull the mirrors in toward the vehicle. Push the
mirrors back out when finished.

2-54

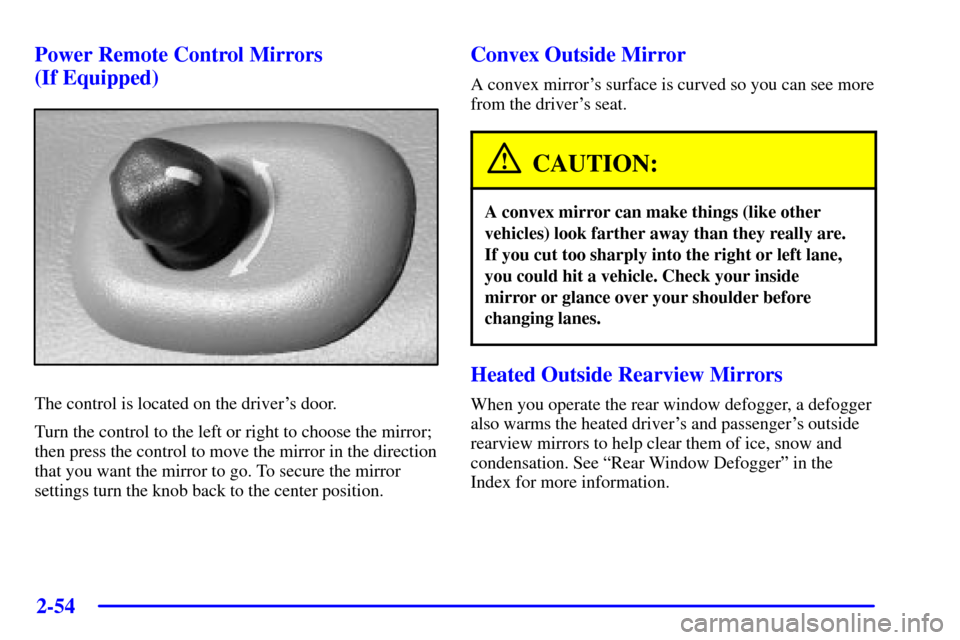

Power Remote Control Mirrors
(If Equipped)
The control is located on the driver's door.
Turn the control to the left or right to choose the mirror;
then press the control to move the mirror in the direction
that you want the mirror to go. To secure the mirror
settings turn the knob back to the center position.
Convex Outside Mirror
A convex mirror's surface is curved so you can see more
from the driver's seat.
CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right or left lane,
you could hit a vehicle. Check your inside
mirror or glance over your shoulder before
changing lanes.
Heated Outside Rearview Mirrors
When you operate the rear window defogger, a defogger
also warms the heated driver's and passenger's outside
rearview mirrors to help clear them of ice, snow and
condensation. See ªRear Window Defoggerº in the
Index for more information.

2-55
Electrochromic Rearview Outside Mirror
with Curb View Assist (If Equipped)
If your vehicle has this feature, the driver's outside
mirror will adjust for the glare of the headlamps behind
you. See ªElectrochromic Day/Night Rearview Mirror
with Compass and OnStar

º earlier in this section.
If your vehicle is equipped with memory mirrors, it will
also be capable of performing the curb view assist
mirror function. This feature will cause the passenger's
and/or driver's mirror to tilt to a preselected position
when the vehicle is in REVERSE (R). This feature may
be useful in allowing you to view the curb when you are
parallel parking.When the vehicle is shifted out of REVERSE (R) and a
short delay has occurred, the passenger's and/or driver's
mirror will return to its original position.
To change the preselected tilt position, adjust the mirrors
to the desired position while the vehicle is in
REVERSE (R). When the vehicle is shifted out of
REVERSE (R), this new position is saved in memory
as the tilt position.
This feature can be enabled/disabled through the Driver
Information Center. See ªPersonalization Featuresº in
the Index for more information.

2-56

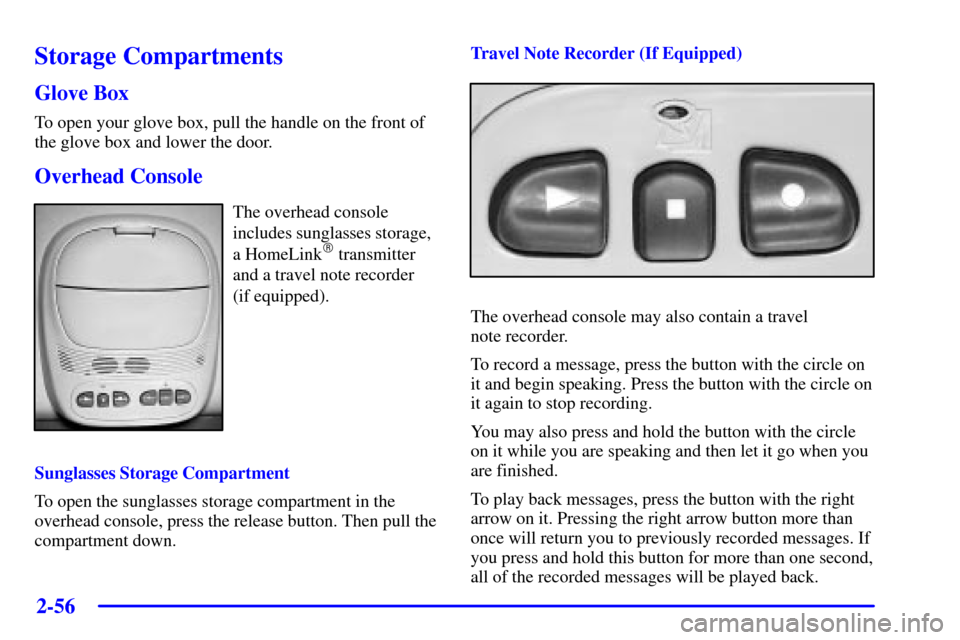

Storage Compartments
Glove Box
To open your glove box, pull the handle on the front of
the glove box and lower the door.
Overhead Console
The overhead console
includes sunglasses storage,
a HomeLink

transmitter
and a travel note recorder
(if equipped).
Sunglasses Storage Compartment
To open the sunglasses storage compartment in the
overhead console, press the release button. Then pull the
compartment down.Travel Note Recorder (If Equipped)
The overhead console may also contain a travel
note recorder.
To record a message, press the button with the circle on
it and begin speaking. Press the button with the circle on
it again to stop recording.
You may also press and hold the button with the circle
on it while you are speaking and then let it go when you
are finished.
To play back messages, press the button with the right
arrow on it. Pressing the right arrow button more than
once will return you to previously recorded messages. If
you press and hold this button for more than one second,
all of the recorded messages will be played back.

2-57
To delete messages, press the button with the square
on it while the message is playing. If you press and
hold the right arrow button and the circle button at the
same time for a half of a second, all of the messages will
be deleted.
Door Storage
You will find a storage compartment on each of the
front doors.
Front Storage Area (If Equipped)
If your vehicle has this console compartment, squeeze
the front lever while lifting the top to open it. You can
store cassettes and compact discs in the slots in front
of the compartment.
Your vehicle's console will be equipped with
cupholders located on the front and rear of the
storage compartment.
The console may also contain one or more of the
following components:

Rear Seat Audio Controls

Rear Seat Accessory Power Outlets

Fan ControlFor more information on these components, please see
the Index for that item.
If your vehicle has the center armrest compartment, lift
the cover to expose the storage area which includes slots
for cassettes or compact discs..
Convenience Net (If Equipped)
You may have a convenience net in the rear of your
vehicle to help keep small items, like gloves and light
clothing, in place during sharp turns or quick stops
and starts.
The net is not designed to retain these items during
off
-road use. The net is not for larger, heavier items.
To use the convenience net, do the following:
1. Attach the upper loops to the retainers on either side
of the liftgate opening (the label should be in the
upper passenger's side corner, visible from the rear
of the vehicle).
2. Attach the lower hooks to the rear cargo tie downs
on the floor.

2-58
Cargo Security Shade (If Equipped)
If your vehicle has a cargo cover, you can use it to cover
items in the cargo area of your vehicle.
To install the cargo cover, do the following:
1. Align the endcap with the pocket in the trim panel
located behind the rear seat.
2. Compress the opposite endcap, align it with the
pocket located on the opposite side of the trim panel
and release.
3. Grasp the handle and unroll the cover. Latch the
posts into the sockets on the inside of the vehicle to
secure it.To remove the cargo cover, do the following:
1. Release the cover from the latch posts and carefully
roll it back up.
2. Compress one endcap and remove it from the pocket
in the trim panel.
3. Remove the cargo cover from the other endcap so
that you can remove the shade from the vehicle.
CAUTION:
An improperly stored cargo cover could be
thrown about the vehicle during a collision or
sudden maneuver. You or others could be
injured. If you remove the cover, always store it
outside of the vehicle. When you put it back,
always be sure that it is securely reattached.

2-59

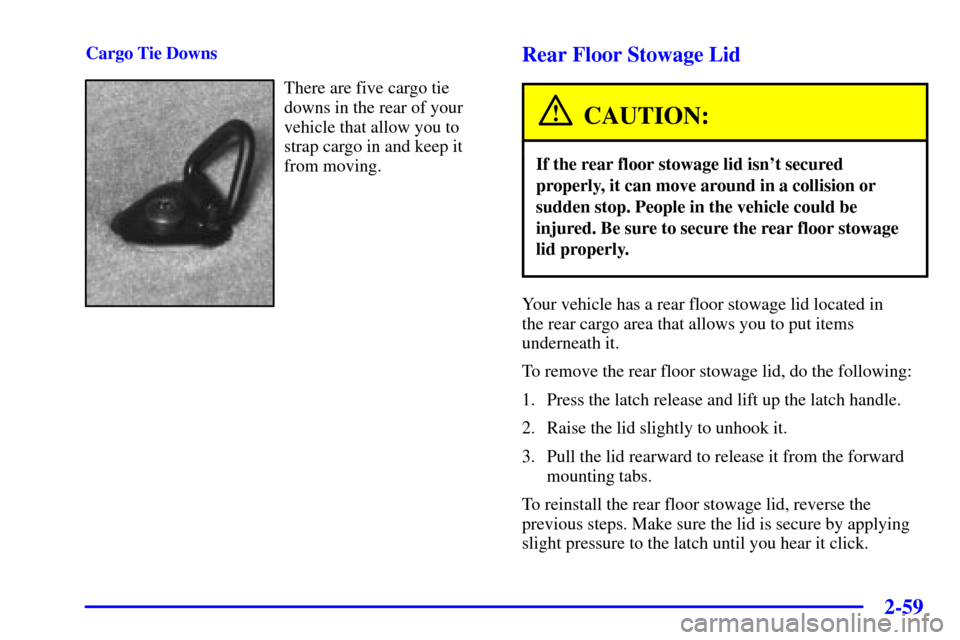

Cargo Tie Downs
There are five cargo tie
downs in the rear of your
vehicle that allow you to
strap cargo in and keep it
from moving.
Rear Floor Stowage Lid
CAUTION:
If the rear floor stowage lid isn't secured
properly, it can move around in a collision or
sudden stop. People in the vehicle could be
injured. Be sure to secure the rear floor stowage
lid properly.
Your vehicle has a rear floor stowage lid located in
the rear cargo area that allows you to put items
underneath it.
To remove the rear floor stowage lid, do the following:
1. Press the latch release and lift up the latch handle.
2. Raise the lid slightly to unhook it.
3. Pull the lid rearward to release it from the forward
mounting tabs.
To reinstall the rear floor stowage lid, reverse the
previous steps. Make sure the lid is secure by applying
slight pressure to the latch until you hear it click.
