EM-180
[YD22DDTi]
PRIMARY TIMING CHAIN

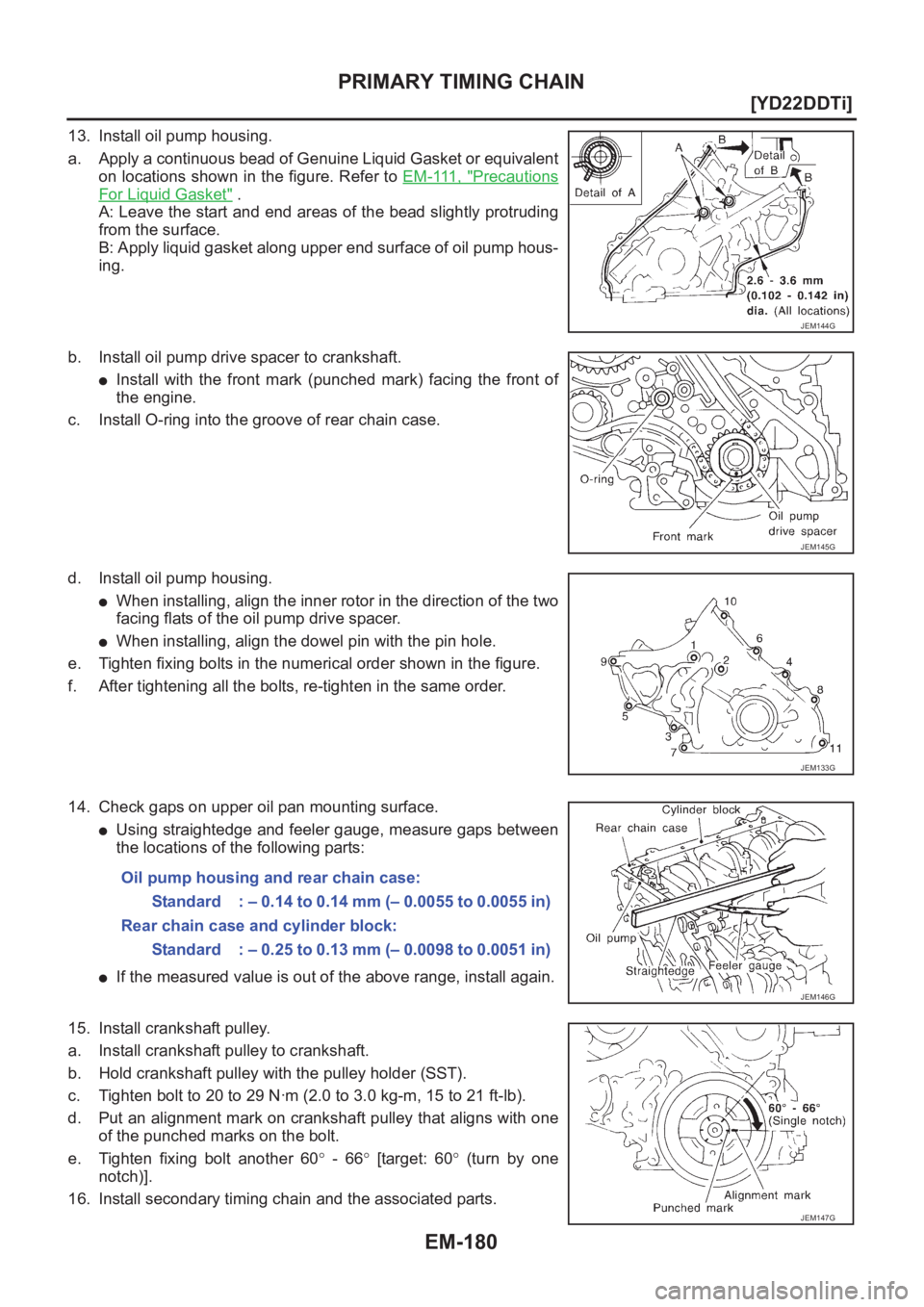

13. Install oil pump housing.
a. Apply a continuous bead of Genuine Liquid Gasket or equivalent
on locations shown in the figure. Refer to EM-111, "
Precautions
For Liquid Gasket" .
A: Leave the start and end areas of the bead slightly protruding
from the surface.
B: Apply liquid gasket along upper end surface of oil pump hous-
ing.
b. Install oil pump drive spacer to crankshaft.
●Install with the front mark (punched mark) facing the front of
the engine.
c. Install O-ring into the groove of rear chain case.
d. Install oil pump housing.
●When installing, align the inner rotor in the direction of the two
facing flats of the oil pump drive spacer.
●When installing, align the dowel pin with the pin hole.
e. Tighten fixing bolts in the numerical order shown in the figure.
f. After tightening all the bolts, re-tighten in the same order.
14. Check gaps on upper oil pan mounting surface.
●Using straightedge and feeler gauge, measure gaps between
the locations of the following parts:
●If the measured value is out of the above range, install again.
15. Install crankshaft pulley.
a. Install crankshaft pulley to crankshaft.
b. Hold crankshaft pulley with the pulley holder (SST).
c. Tighten bolt to 20 to 29 N·m (2.0 to 3.0 kg-m, 15 to 21 ft-lb).
d. Put an alignment mark on crankshaft pulley that aligns with one
of the punched marks on the bolt.
e. Tighten fixing bolt another 60° - 66° [target: 60° (turn by one
notch)].
16. Install secondary timing chain and the associated parts.
JEM144G
JEM145G
JEM133G
Oil pump housing and rear chain case:
Standard : – 0.14 to 0.14 mm (– 0.0055 to 0.0055 in)
Rear chain case and cylinder block:
Standard : – 0.25 to 0.13 mm (– 0.0098 to 0.0051 in)
JEM146G
JEM147G

EM-182
[YD22DDTi]
CYLINDER HEAD
CYLINDER HEAD
PFP:11041
On-Vehicle ServiceEBS00LRV
CHECKING COMPRESSION PRESSURE
1. Warm up engine thoroughly. Then, stop it.
2. Using CONSULT-II, make sure no error codes are indicated for self-diagnosis items. Refer to EC-1412,
"Basic Inspection" .
●Do not disconnect CONSULT-II until the end of this operation; it will be used to check engine rpm and
for error detection at the end of this operation.
3. Disconnect the negative battery terminal.
4. Remove charge air cooler. Refer to EM-122, "
Removal and Installation"
5. To prevent fuel from being injected during inspection, remove
fuel supply pump fuse [ENG CONT (20A)] from fuse box on the
left side of engine compartment.
●Among marks on fuse box, [ENG CONT 2 (20A)] is for fuel
supply pump fuse.
6. Remove glow plugs from all the cylinders. Refer to EM-138,
"Removal and Installation" .
CAUTION:
●Before removal, clean the surrounding area to prevent
entry of any foreign materials into the engine.
●Carefully remove glow plugs to prevent any damage or
breakage.
●Handle with care to avoid applying any shock to glow plugs.
7. Install adapter to installation holes of glow plugs and connect
compression gauge for diesel engine.
8. Connect battery negative terminal.
9. Set the ignition switch to “START” and crank. When gauge
pointer stabilizes, read compression pressure and engine rpm.
Repeat the above steps for each cylinder.
●Always use a fully-charged battery to obtain specified engine
speed.
Compression pressure
Unit: kPa (bar, kg/cm2 , psi)/rpm
●When engine rpm is out of the specified range, check the specific gravity of battery liquid. Measure
again under corrected conditions.
●If engine rpm exceeds the limit, check valve clearance and combustion chamber components (valves,
valve seats, cylinder head gaskets, piston rings, pistons, cylinder bores, cylinder block upper and lower
surfaces) and measure again.
●If compression pressure is low in some cylinders, apply engine oil from glow plug installation hole. Then
check pressure again.
–If compression pressure becomes normal after applying engine oil, piston ring may be worn or dam-
aged. Check piston ring for malfunction. If any, replace piston ring.
–If compression pressure is still low after applying engine oil, valve may be malfunctioning. Check valve
for malfunction. If contact malfunction is found, replace valve or valve seat.
●If compression pressure in adjacent two cylinders is low after applying engine oil, pressure may be
leaking from gasket. In this case, replace cylinder head gasket.
10. Complete this operation as follows:
PBIC0680E
: 18 - 21 N·m (1.8 - 2.2 kg-m, 13 - 15 ft-lb)
SEM112G
Standard Minimum Difference limit between cylinders
2,893 (28.9, 29.5, 419)/200 2,452 (24.52, 25.0, 356)/200 490 (4.90, 5.0, 71)/200

EM-186
[YD22DDTi]
CYLINDER HEAD
*: Measured with head bolts tightened
2. Apply a continuous bead of Genuine Liquid Gasket or equivalent
on the surface shown in the figure.
A: Apply bead so that it does not protrude into oil passage. Refer
to E M - 111 , "
Precautions For Liquid Gasket" .
B: Minimize the overlapping area of the bead, with start and end
areas of bead as shown in the figure.
Apply so that the portion marked * comes at an external loca-
tion but cannot be viewed externally after engine is assembled.
3. Install cylinder head assembly.
●Tighten bolts in numerical order as shown in the figure
according to the following procedure:
a. Apply engine oil to bolt threads and seat surfaces.
b. Tighten bolts to 29 to 38 N·m (2.9 to 3.9 kg-m, 21 to 28 ft-lb).
c. Tighten 180° to 185° [target: 180°] (angular tightening).
d. Loosen completely to 0 N·m (0 kg-m, 0 in-lb) in the reverse order
of that shown in the figure.
e. Tighten bolts to 35 to 44 N·m (3.5 to 4.5 kg-m, 26 to 32 ft-lb).
f. Tighten 90° to 95° [target: 90°] (angular tightening)
g. Tighten another 90° to 95° [target: 90°] (angular tightening).
●When an angle wrench is not used, paint an alignment
mark on the head of cylinder head bolt and cylinder head
surface before tightening. Check the angle with a protrac-
tor.
4. Install glow plug.
●To avoid damage, glow plugs should be removed only
when required.
●Handle with care to avoid applying shock. When dropped
from approx. 100 mm (3.94 in) or higher, always replace
with a new one.
●Before installing, remove carbon depositing on mounting hole of glow plug with a reamer.
5. Install engine coolant temperature sensor and thermal transmitter.
PBIC1256E
JEM149G
JEM166G

CYLINDER HEAD
EM-187
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

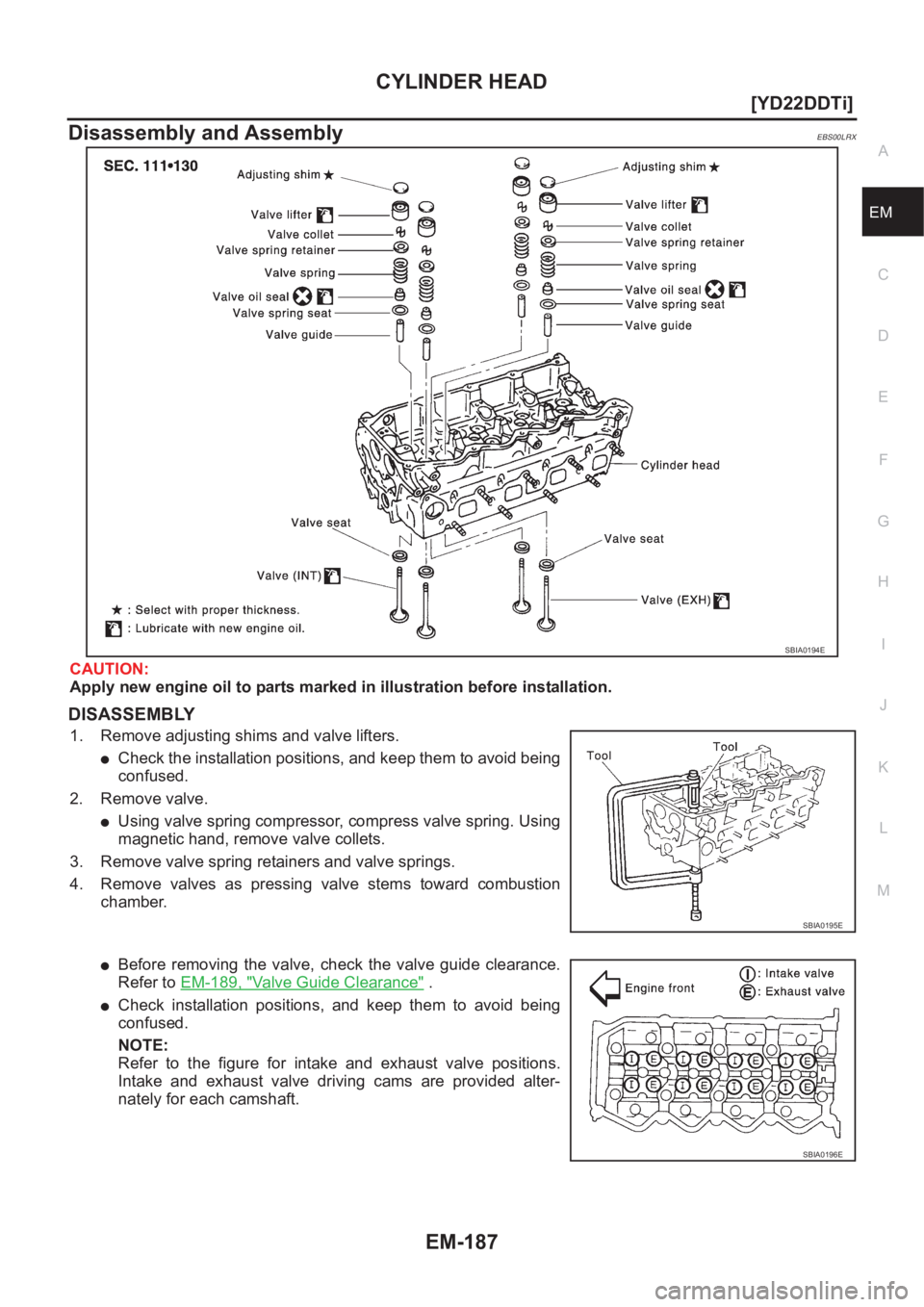

Disassembly and AssemblyEBS00LRX
CAUTION:
Apply new engine oil to parts marked in illustration before installation.
DISASSEMBLY
1. Remove adjusting shims and valve lifters.
●Check the installation positions, and keep them to avoid being
confused.
2. Remove valve.
●Using valve spring compressor, compress valve spring. Using
magnetic hand, remove valve collets.
3. Remove valve spring retainers and valve springs.
4. Remove valves as pressing valve stems toward combustion
chamber.
●Before removing the valve, check the valve guide clearance.
Refer to EM-189, "
Valve Guide Clearance" .
●Check installation positions, and keep them to avoid being
confused.
NOTE:
Refer to the figure for intake and exhaust valve positions.
Intake and exhaust valve driving cams are provided alter-
nately for each camshaft.
SBIA0194E
SBIA0195E
SBIA0196E

EM-188
[YD22DDTi]
CYLINDER HEAD

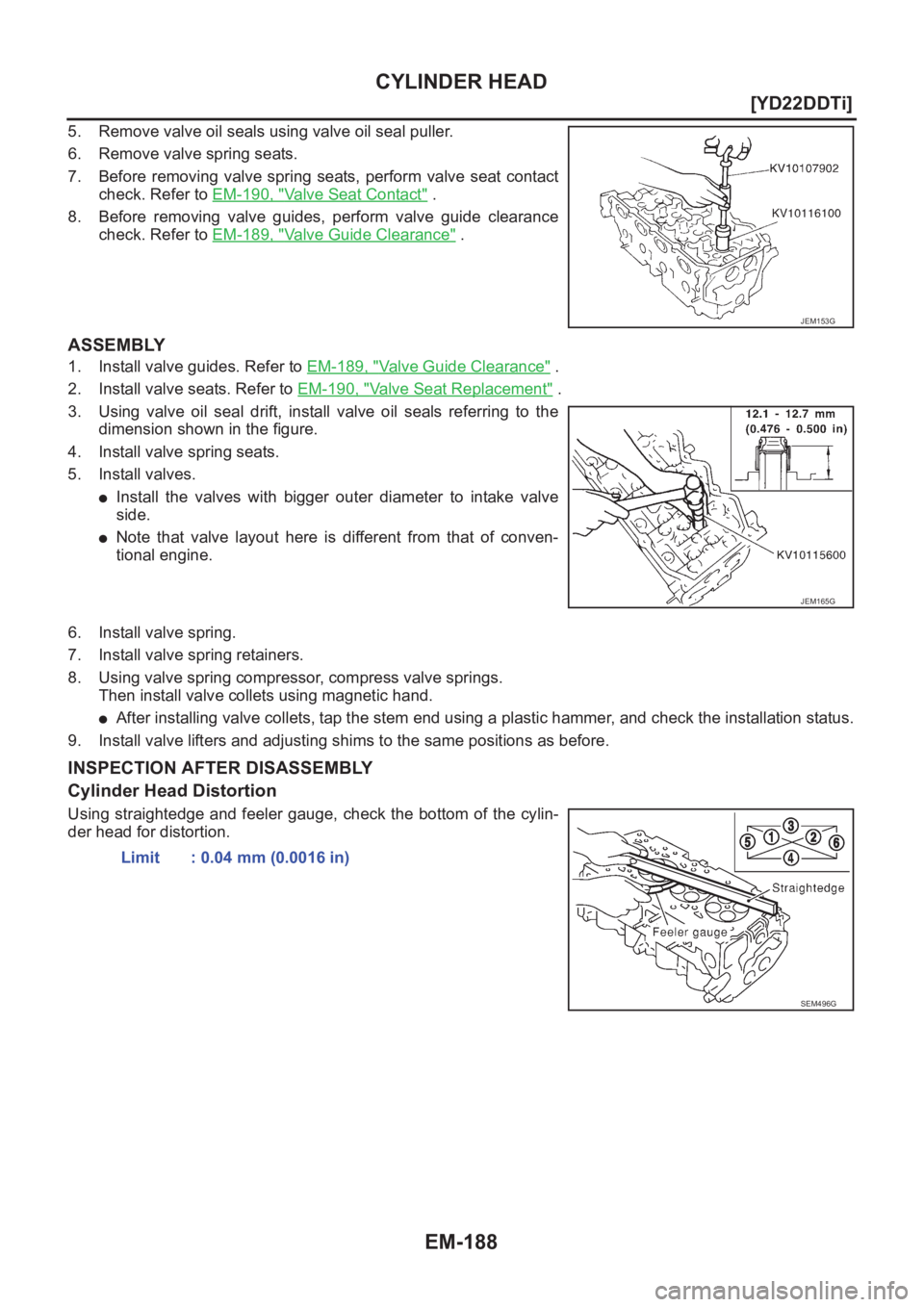

5. Remove valve oil seals using valve oil seal puller.
6. Remove valve spring seats.
7. Before removing valve spring seats, perform valve seat contact
check. Refer to EM-190, "
Valve Seat Contact" .
8. Before removing valve guides, perform valve guide clearance
check. Refer to EM-189, "
Valve Guide Clearance" .
ASSEMBLY
1. Install valve guides. Refer to EM-189, "Valve Guide Clearance" .
2. Install valve seats. Refer to EM-190, "
Valve Seat Replacement" .
3. Using valve oil seal drift, install valve oil seals referring to the
dimension shown in the figure.
4. Install valve spring seats.
5. Install valves.
●Install the valves with bigger outer diameter to intake valve
side.
●Note that valve layout here is different from that of conven-
tional engine.
6. Install valve spring.
7. Install valve spring retainers.
8. Using valve spring compressor, compress valve springs.
Then install valve collets using magnetic hand.
●After installing valve collets, tap the stem end using a plastic hammer, and check the installation status.
9. Install valve lifters and adjusting shims to the same positions as before.
INSPECTION AFTER DISASSEMBLY
Cylinder Head Distortion
Using straightedge and feeler gauge, check the bottom of the cylin-
der head for distortion.
JEM153G
JEM165G
Limit : 0.04 mm (0.0016 in)
SEM496G

ENGINE ASSEMBLY
EM-195
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

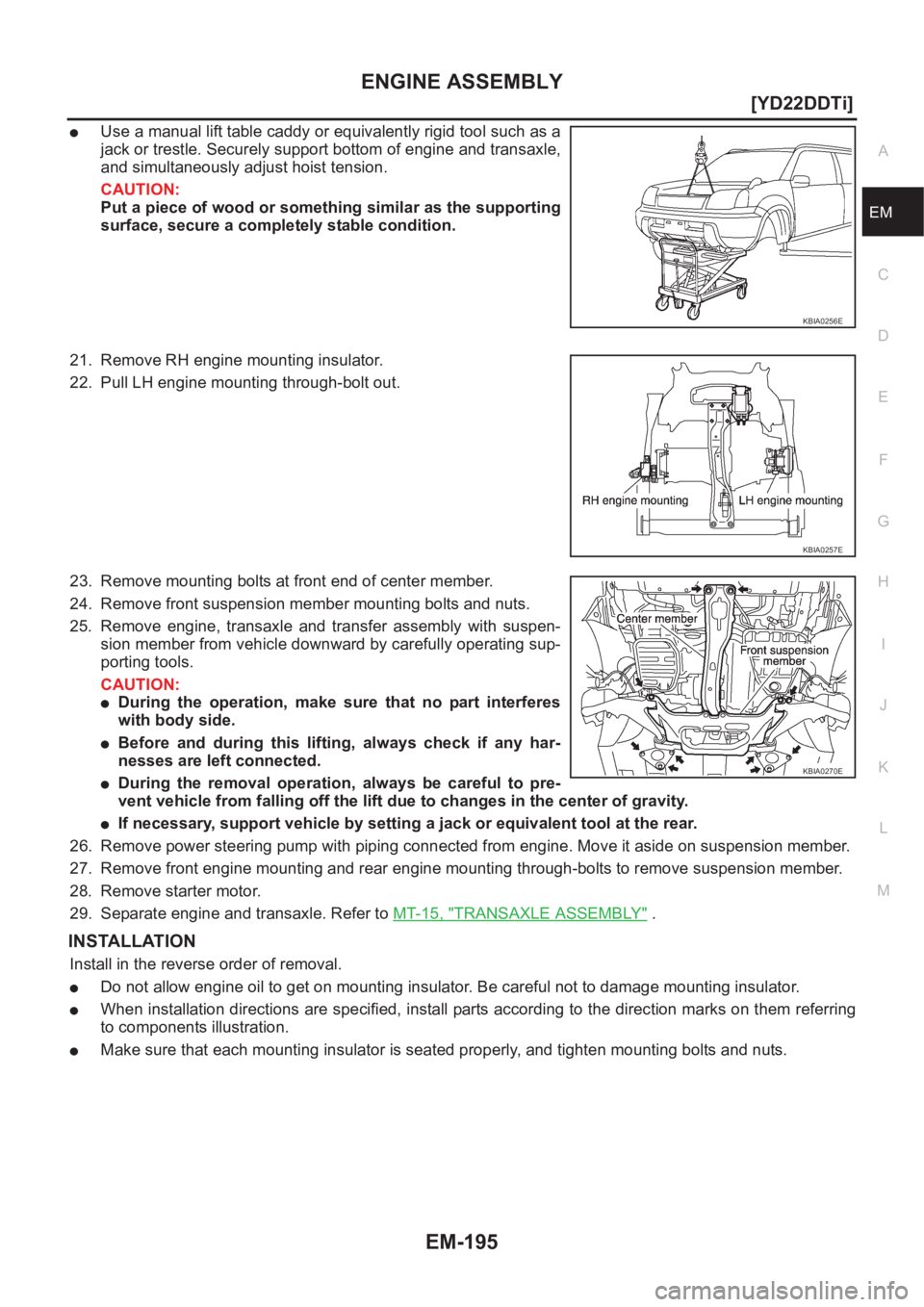

●Use a manual lift table caddy or equivalently rigid tool such as a
jack or trestle. Securely support bottom of engine and transaxle,
and simultaneously adjust hoist tension.
CAUTION:
Put a piece of wood or something similar as the supporting
surface, secure a completely stable condition.
21. Remove RH engine mounting insulator.
22. Pull LH engine mounting through-bolt out.
23. Remove mounting bolts at front end of center member.
24. Remove front suspension member mounting bolts and nuts.
25. Remove engine, transaxle and transfer assembly with suspen-
sion member from vehicle downward by carefully operating sup-
porting tools.
CAUTION:
●During the operation, make sure that no part interferes
with body side.
●Before and during this lifting, always check if any har-
nesses are left connected.
●During the removal operation, always be careful to pre-
vent vehicle from falling off the lift due to changes in the center of gravity.
●If necessary, support vehicle by setting a jack or equivalent tool at the rear.
26. Remove power steering pump with piping connected from engine. Move it aside on suspension member.
27. Remove front engine mounting and rear engine mounting through-bolts to remove suspension member.
28. Remove starter motor.
29. Separate engine and transaxle. Refer to MT-15, "
TRANSAXLE ASSEMBLY" .
INSTALLATION
Install in the reverse order of removal.
●Do not allow engine oil to get on mounting insulator. Be careful not to damage mounting insulator.
●When installation directions are specified, install parts according to the direction marks on them referring
to components illustration.
●Make sure that each mounting insulator is seated properly, and tighten mounting bolts and nuts.
KBIA0256E
KBIA0257E
KBIA0270E

EM-196
[YD22DDTi]
ENGINE ASSEMBLY
INSPECTION AFTER INSTALLATION
●Before starting engine check the levels of engine coolant, lubrications and working engine oils. If less than
required quantity, fill to the specified level.
●Before starting engine, bleed air from fuel piping. Refer to FL-16, "Air Bleeding" .
●Run engine to check for unusual noise and vibration.
●Warm up engine thoroughly to make sure there is no leakage of engine coolant, lubricants, working
engine oil, fuel and exhaust gas.
●Bleed air from passages in pipes and tubes of applicable lines.

EM-202
[YD22DDTi]
CYLINDER BLOCK
ASSEMBLY
1. Blow air sufficiently to inside engine coolant passage, engine oil
passage, crankcase and cylinder bore to remove foreign matter.
2. Install oil jet relief valve.
3. Install oil jet.
●Align knock pin on back of oil jet with hole on block when
installing oil jet.
4. Install main bearings and thrust bearings.
a. Remove contamination, dust and engine oil from bearing mount-
ing positions on cylinder block and main bearing caps.
b. Install thrust bearings on both sides of No. 3 housing on cylinder
block.
●Install thrust bearings with oil groove facing to crankshaft arm
(outside).
c. Being careful with the direction, install main bearings.
●Install main bearings with the oil holes and grooves onto the
cylinder block side, and those without oil holes and grooves
onto the main cap side.
●While installing bearings, apply engine oil to bearing surfaces
(inside). Do not apply engine oil to rear surfaces, but clean
them completely.
●Align stopper notches on bearings to install them.
●Check that the oil holes on the cylinder block body are mated
with the oil hole positions on the bearings.
5. Install crankshaft to cylinder block.
●Make sure crankshaft rotates smoothly by hand.
6. Install main bearing caps.
●Identify main bearing caps by the punched mark. Install cor-
rectly matching the journal No. on the bearing cap and the
journal with the front mark facing forward.
●Main bearing caps are commonly processed with the cylinder
block. Therefore, caps and cylinder block should be replaced
as a set.
7. Check the main bearing cap bolts for deformation. Refer to EM-
217, "MAIN BEARING CAP BOLT DEFORMATION" .
PBIC0389E
JEM224G
JEM213G
JEM225G
