CYLINDER BLOCK
EM-95
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
CRANKSHAFT RUNOUT
●Place a V-block on a precise flat table to support the journals on
the both end of the crankshaft.
●Place a dial gauge straight up on the No. 3 journal.
●While rotating the crankshaft, read the movement of the pointer
on the dial gauge. (Total indicator reading)
CONNECTING ROD BEARING OIL CLEARANCE
Method of Measurement
●Install the connecting rod bearings to the connecting rod and the
cap, and tighten the connecting rod bolts to the specified torque.
Using a inside micrometer measure the inner diameter of con-
necting rod bearing.
(Oil clearance) = (Inner diameter of connecting rod bearing) –
(Outer diameter of crankshaft pin)
●If out of specifications, check connecting rod big end inner diam-
eter and crankshaft pin outer diameter, and select appropriate
connecting rod bearing to adjust clearance to specifications.
Refer to EM-83, "
HOW TO SELECT CONNECTING ROD BEARING" .
Method of Using Plastigage
●Remove engine oil and dust on the crankshaft pin and the sur-
faces of each bearing completely.
●Cut a plastigage slightly shorter than the bearing width, and
place it in crankshaft axial direction, avoiding oil holes.
●Install the connecting rod bearings to the connecting rod cap,
and tighten the connecting rod bolts to the specified torque.
CAUTION:
Never rotate the crankshaft.
●Remove the connecting rod cap and bearings, and using the
scale on the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is same as that described in “Method of Mea-
surement”.
MAIN BEARING OIL CLEARANCE
Method of Measurement
●Install the main bearings to the cylinder block and bearing cap. Measure the main bearing inner diameter
with the bearing cap bolt tightened to the specified torque.
(Oil clearance) = (Inner diameter of main bearing) – (Outer diameter of crankshaft journal)
●If out of specification, check main bearing housing inner diameter and crankshaft journal outer diameter,
and select appropriate main bearing to adjust clearance to specifications. Refer to EM-85, "
HOW TO
SELECT MAIN BEARING" . Limit: Less than 0.05 mm (0.002 in)
PBIC0271E
Standard : 0.028 - 0.045 mm (0.0011 - 0.0018 in)
Limit : 0.10 mm (0.0039 in)
PBIC0119E
EM142
Standard
No. 1, 3 and 5 journals : 0.012 - 0.022 mm (0.0005 - 0.0009 in)
No. 2 and 4 journals : 0.018 - 0.028 mm (0.0007 - 0.0011 in)
Limit : 0.1 mm (0.004 in)

EM-110
[YD22DDTi]

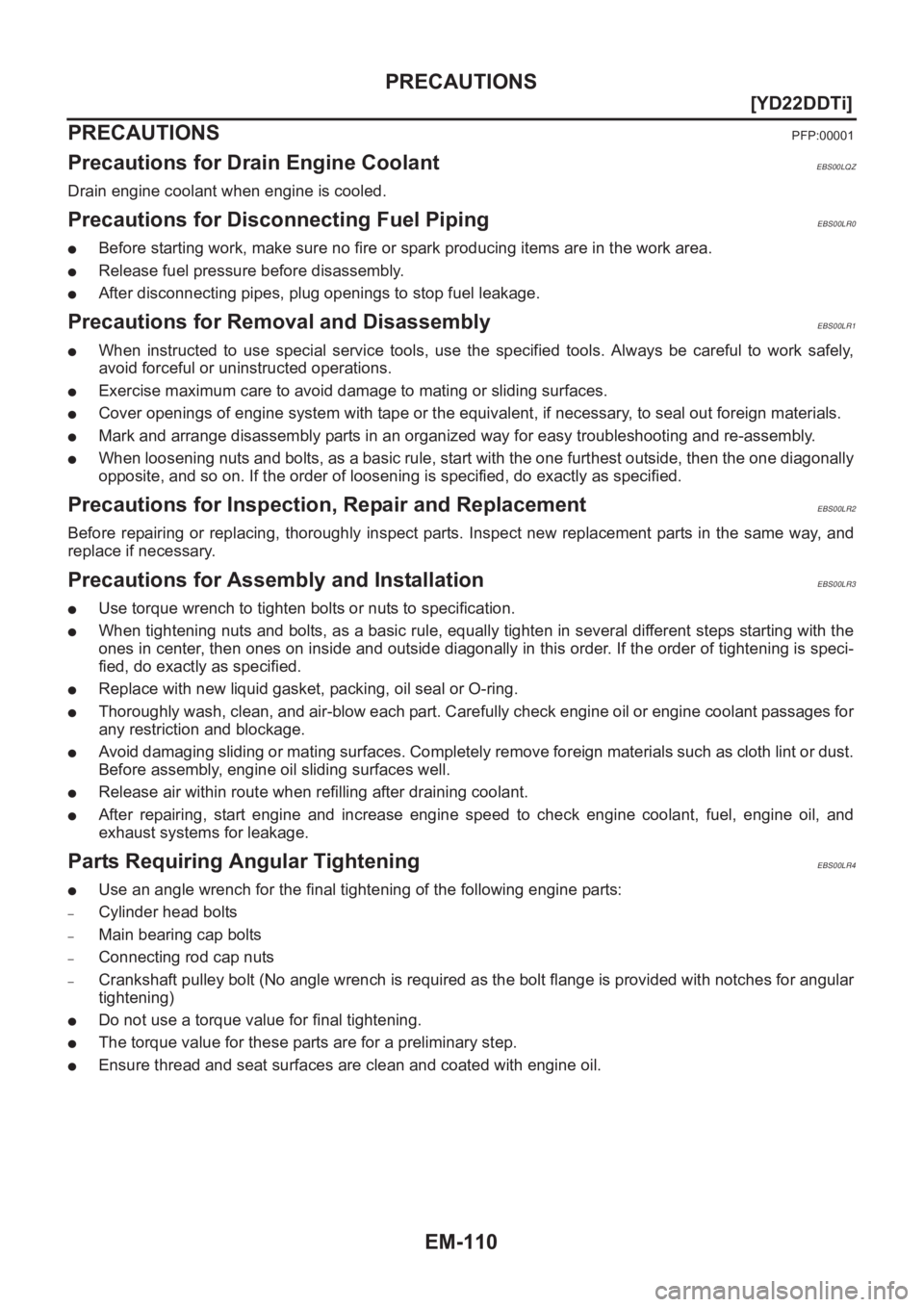

PRECAUTIONS
[YD22DDTi]PRECAUTIONSPFP:00001
Precautions for Drain Engine CoolantEBS00LQZ
Drain engine coolant when engine is cooled.
Precautions for Disconnecting Fuel PipingEBS00LR0
●Before starting work, make sure no fire or spark producing items are in the work area.
●Release fuel pressure before disassembly.
●After disconnecting pipes, plug openings to stop fuel leakage.
Precautions for Removal and DisassemblyEBS00LR1
●When instructed to use special service tools, use the specified tools. Always be careful to work safely,
avoid forceful or uninstructed operations.
●Exercise maximum care to avoid damage to mating or sliding surfaces.
●Cover openings of engine system with tape or the equivalent, if necessary, to seal out foreign materials.
●Mark and arrange disassembly parts in an organized way for easy troubleshooting and re-assembly.
●When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified.
Precautions for Inspection, Repair and ReplacementEBS00LR2
Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
Precautions for Assembly and InstallationEBS00LR3
●Use torque wrench to tighten bolts or nuts to specification.
●When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the
ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is speci-
fied, do exactly as specified.
●Replace with new liquid gasket, packing, oil seal or O-ring.
●Thoroughly wash, clean, and air-blow each part. Carefully check engine oil or engine coolant passages for
any restriction and blockage.
●Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust.
Before assembly, engine oil sliding surfaces well.
●Release air within route when refilling after draining coolant.
●After repairing, start engine and increase engine speed to check engine coolant, fuel, engine oil, and
exhaust systems for leakage.
Parts Requiring Angular TighteningEBS00LR4
●Use an angle wrench for the final tightening of the following engine parts:
–Cylinder head bolts
–Main bearing cap bolts
–Connecting rod cap nuts
–Crankshaft pulley bolt (No angle wrench is required as the bolt flange is provided with notches for angular
tightening)
●Do not use a torque value for final tightening.
●The torque value for these parts are for a preliminary step.
●Ensure thread and seat surfaces are clean and coated with engine oil.

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING
EM-117
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Use the Chart Below to Help You Find the Cause of the Symptom.EBS00LR9
1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.
A: Closely related B: Related C: Sometimes related —: Not relatedLocation
of noiseType of
noiseOperating condition of engine
Source of
noiseCheck itemRefer-
ence page Before
warm-
upAfter
warm-
upWhen
start-
ingWhen
idlingWhen
racingWhile
driving
Top of
engine
Rocker
cover
Cylinder
headTicking or
clickingCA—AB—Tappet
noiseValve clearanceEM-163
Rattle C A — A B CCamshaft
bearing
noiseCamshaft oil clearance
Camshaft runoutEM-160EM-159
Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil panSlap or
knock—A—BB—Piston pin
noisePiston to piston pin
clearance
Connecting rod bush-
ing oil clearance (Small
end)EM-210
EM-212
Slap or
rapA ——BBAPiston
slap noisePiston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsionEM-214EM-211
EM-211
EM-212
Knock A B C B B BConnect-
ing rod
bearing
noiseConnecting rod bush-
ing oil clearance (Small
end)
Connecting rod bear-
ing oil clearance (Big
end)EM-212EM-216
Knock A B — A B CMain
bearing
noiseMain bearing oil clear-
ance
Crankshaft runoutEM-216EM-216
Front of
engine
Timing
chain
coverTapping or
tickingA A —BBBTiming
chain and
chain ten-
sioner
noiseTiming chain cracks
and wear
Timing chain tensioner
operationEM-167
EM-172
Front of
engineSqueak-
ing or fizz-
ingAB—B—CDrive belts
(Sticking
or slip-
ping)Drive belts deflection
EM-118
CreakingA B ABABDrive belts
(Slipping)Idler pulley bearing
operation
Squall
CreakA B —BABWater
pump
noiseWater pump operationCO-39,
"WATER
PUMP"

EM-118
[YD22DDTi]
DRIVE BELTS
DRIVE BELTS
PFP:02117
Checking Drive BeltsEBS00LRA
●Before inspecting the engine, make sure the engine has cooled
down; wait approximately 30 minutes after the engine has been
stopped.
●Visually inspect all belts for wear, damage or cracks on contact-
ing surfaces and edge areas.
●When measuring deflection, apply 98 N (10 kg, 22 lb) at the
marked point ( ).
CAUTION:
●When checking belt deflection immediately after installa-
tion, first adjust it to the specified value. Then, after turn-
ing the crankshaft two turns or more, re-adjust to the
specified value to avoid variation in deflection between
pulleys.
●Tighten idler pulley lock nut by hand and measure deflection without looseness.
Belt Deflection:
*: When engine is cold.
Tension AdjustmentEBS00LRB
●Adjust belts with the parts shown below.
CAUTION:
●When a new belt is installed as a replacement, adjust it to the value specified under “New” value
because of insufficient adaptability with pulley grooves.
●If the belt deflection of the current belt is out of the “Limit for re-adjusting”, adjust to the
“Adjusted” value.
●When checking belt deflection immediately after installation, first adjust it to the specified value.
Then, after turning crankshaft two turns or more, re-adjust it to the specified value to avoid vari-
ation in deflection between pulleys.
●Make sure the belts are fully fitted into the pulley grooves during installation.
●Handle with care to avoid smearing the belts with engine oil or cooling water etc.
●Do not twist or bend the belts with strong force.
JEM249G
Applied beltBelt deflection with 98 N (10 kg, 22 lb) force applied* mm (in)
New Adjusted Limit for re-adjusting
Air conditioner compressor belt 4 - 5 (0.16 - 0.20) 6 - 7 (0.24 - 0.28) 8.5 (0.335)
Alternator and water pump belt 9.0 - 10.5 (0.354 - 0.413) 11.0 - 12.5 (0.433 - 0.492) 16.5 (0.650)
Applied belt Belt adjustment method
Air conditioner compressor belt Adjusting bolt on idler pulley
Alternator and water pump belt Adjusting bolt on alternator

EM-124
[YD22DDTi]
INTAKE MANIFOLD
9. Remove vacuum hose.
10. Remove injection tube. Refer to EM-144, "
Removal and Installa-
tion" .
11. Remove water pipe.
12. Remove fuel hose.
●To prevent fuel from flowing out, plug the opening of the hose
with plug after disconnection.
CAUTION:
Be careful not to spill fuel in the engine component.
13. Loosen bolts and nuts in the reverse order of that shown in the
figure.
CAUTION:
Do not disassemble or adjust swirl control valve.
14. Remove electronic EGR volume control valve from intake mani-
fold.
INSPECTION AFTER REMOVAL
Surface Distortion
Check distortion on the mounting surface with a straightedge and
feeler gauge.
INSTALLATION
Following instructions below, install in reverse order of removal.
1. Install electronic EGR volume control valve.
●Handle with care avoiding any shocks.
●Do not disassemble or adjust.
2. Install intake manifold.
●Tighten fixing bolts and nuts in numerical order as shown in the figure.
●When stud bolts come off, install with the following torque.
PBIC0982E
PBIC0676E
Limit : 0.1 mm (0.004 in)
PBIC0677E
: 10 - 11 N·m (1.0 - 1.2 kg-m, 87 - 104 in-lb)

INTAKE MANIFOLD
EM-125
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
3. Install water hose.
●Install water hose by referring to identification marks avoiding
twisting.
●When an insert stopper is not provided with the pipe, insert
the hose up to dimension A. When the pipe is shorter than
dimension A, insert hose fully until it reaches the end.
●When an insert stopper is provided on the pipe side, insert the
hose until it reaches the bulge.
●When marking is provided on the pipe, insert hose until it cov-
ers half of the marking.
4. Install remaining parts in reverse order of removal.
5. Before starting engine, bleed air from fuel piping. Refer to FL-16,
"Air Bleeding" .
INSPECTION AFTER INSTALLATION
Start engine and increase engine speed to check for fuel leak.Dimension A : 25 - 30 mm (0.984 - 1.181 in)
SBIA0156E

EM-128
[YD22DDTi]
EXHAUST MANIFOLD AND TURBOCHARGER

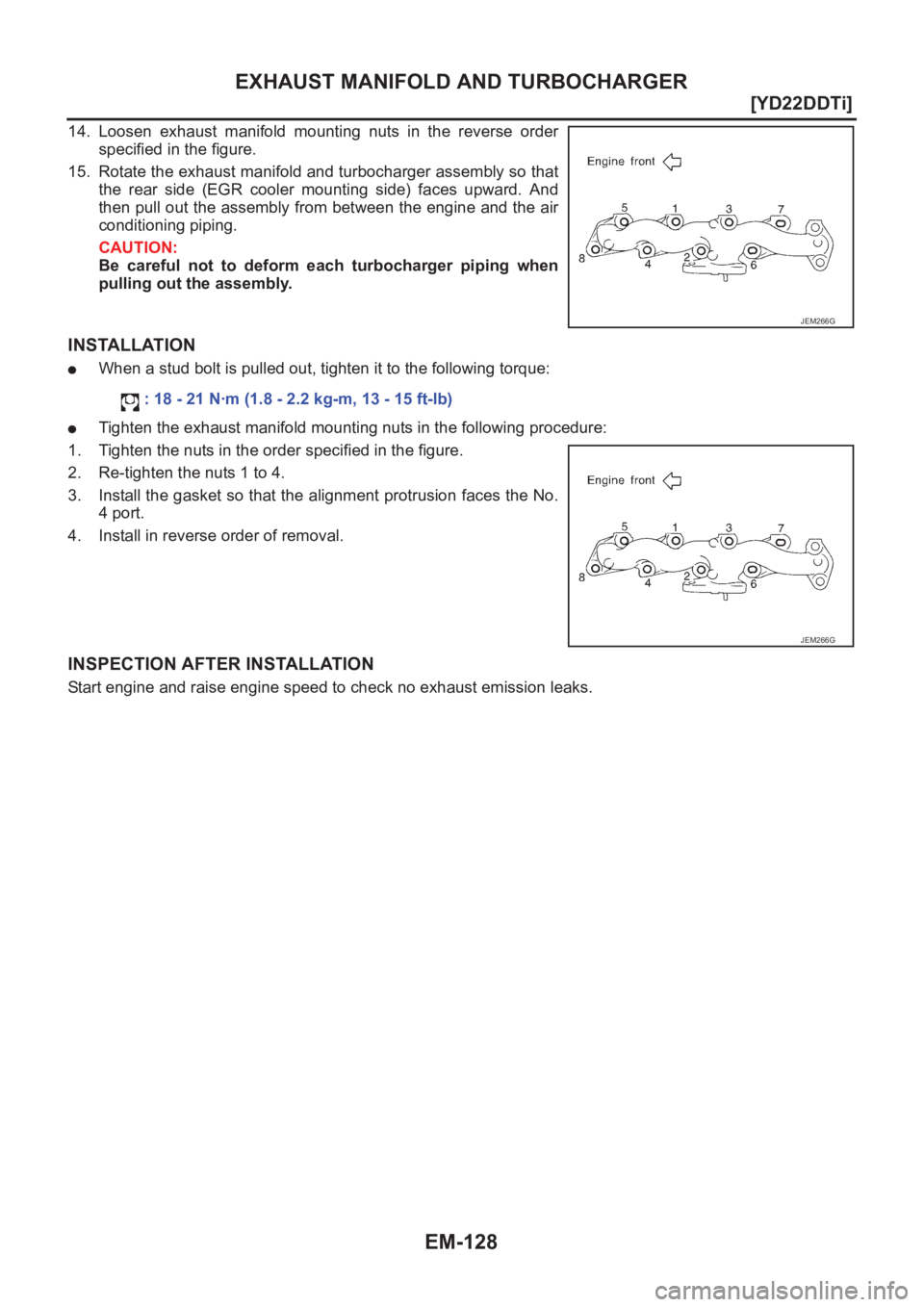

14. Loosen exhaust manifold mounting nuts in the reverse order
specified in the figure.
15. Rotate the exhaust manifold and turbocharger assembly so that
the rear side (EGR cooler mounting side) faces upward. And
then pull out the assembly from between the engine and the air
conditioning piping.
CAUTION:
Be careful not to deform each turbocharger piping when
pulling out the assembly.
INSTALLATION
●When a stud bolt is pulled out, tighten it to the following torque:
●Tighten the exhaust manifold mounting nuts in the following procedure:
1. Tighten the nuts in the order specified in the figure.
2. Re-tighten the nuts 1 to 4.
3. Install the gasket so that the alignment protrusion faces the No.
4 port.
4. Install in reverse order of removal.
INSPECTION AFTER INSTALLATION
Start engine and raise engine speed to check no exhaust emission leaks.
JEM266G
: 18 - 21 N·m (1.8 - 2.2 kg-m, 13 - 15 ft-lb)
JEM266G

EXHAUST MANIFOLD AND TURBOCHARGER
EM-131
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

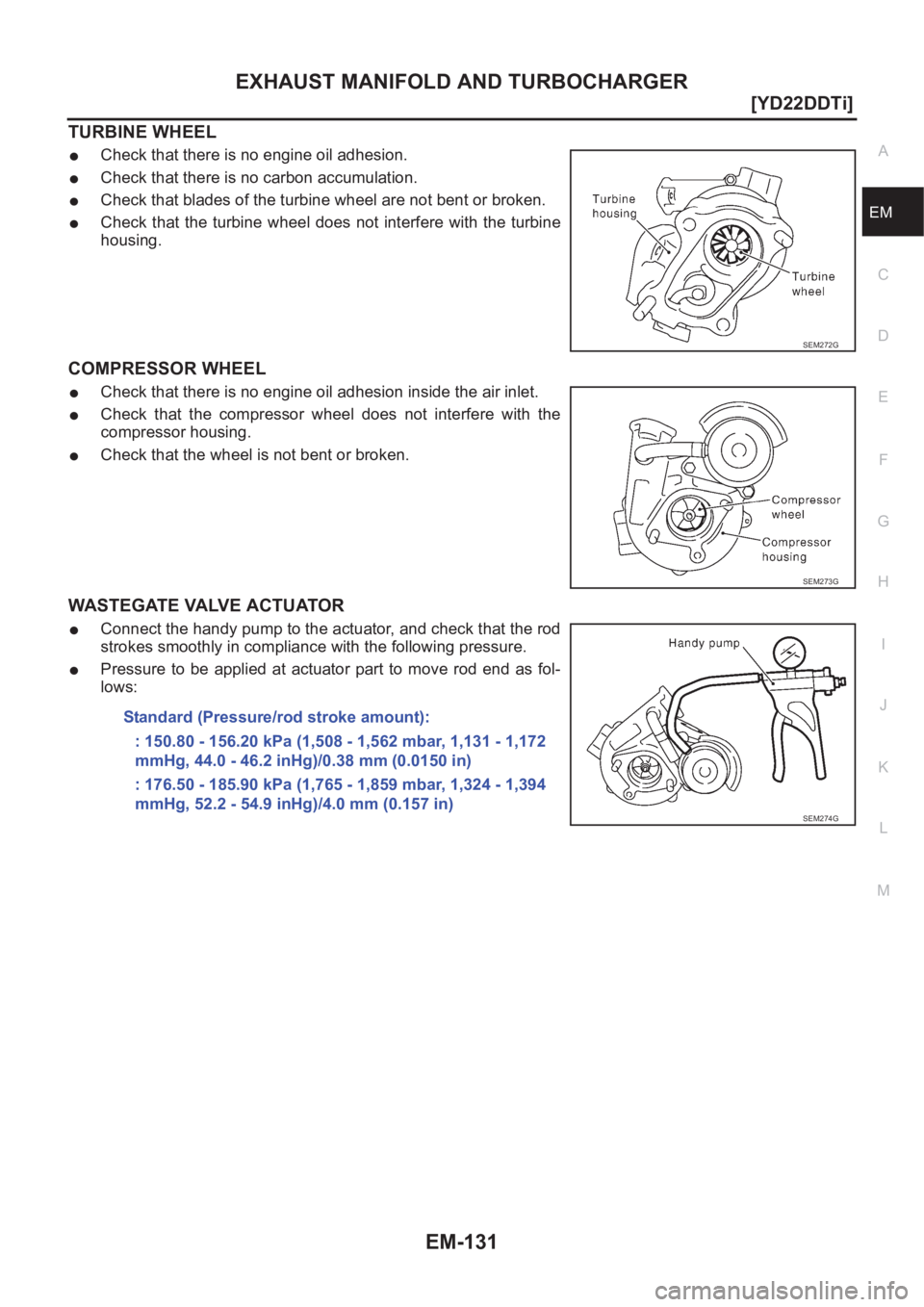

TURBINE WHEEL
●Check that there is no engine oil adhesion.
●Check that there is no carbon accumulation.
●Check that blades of the turbine wheel are not bent or broken.
●Check that the turbine wheel does not interfere with the turbine
housing.
COMPRESSOR WHEEL
●Check that there is no engine oil adhesion inside the air inlet.
●Check that the compressor wheel does not interfere with the
compressor housing.
●Check that the wheel is not bent or broken.
WASTEGATE VALVE ACTUATOR
●Connect the handy pump to the actuator, and check that the rod
strokes smoothly in compliance with the following pressure.
●Pressure to be applied at actuator part to move rod end as fol-
lows:
SEM272G
SEM273G
Standard (Pressure/rod stroke amount):
: 150.80 - 156.20 kPa (1,508 - 1,562 mbar, 1,131 - 1,172
mmHg, 44.0 - 46.2 inHg)/0.38 mm (0.0150 in)
: 176.50 - 185.90 kPa (1,765 - 1,859 mbar, 1,324 - 1,394
mmHg, 52.2 - 54.9 inHg)/4.0 mm (0.157 in)
SEM274G
