LU-24
[YD22DDTi]

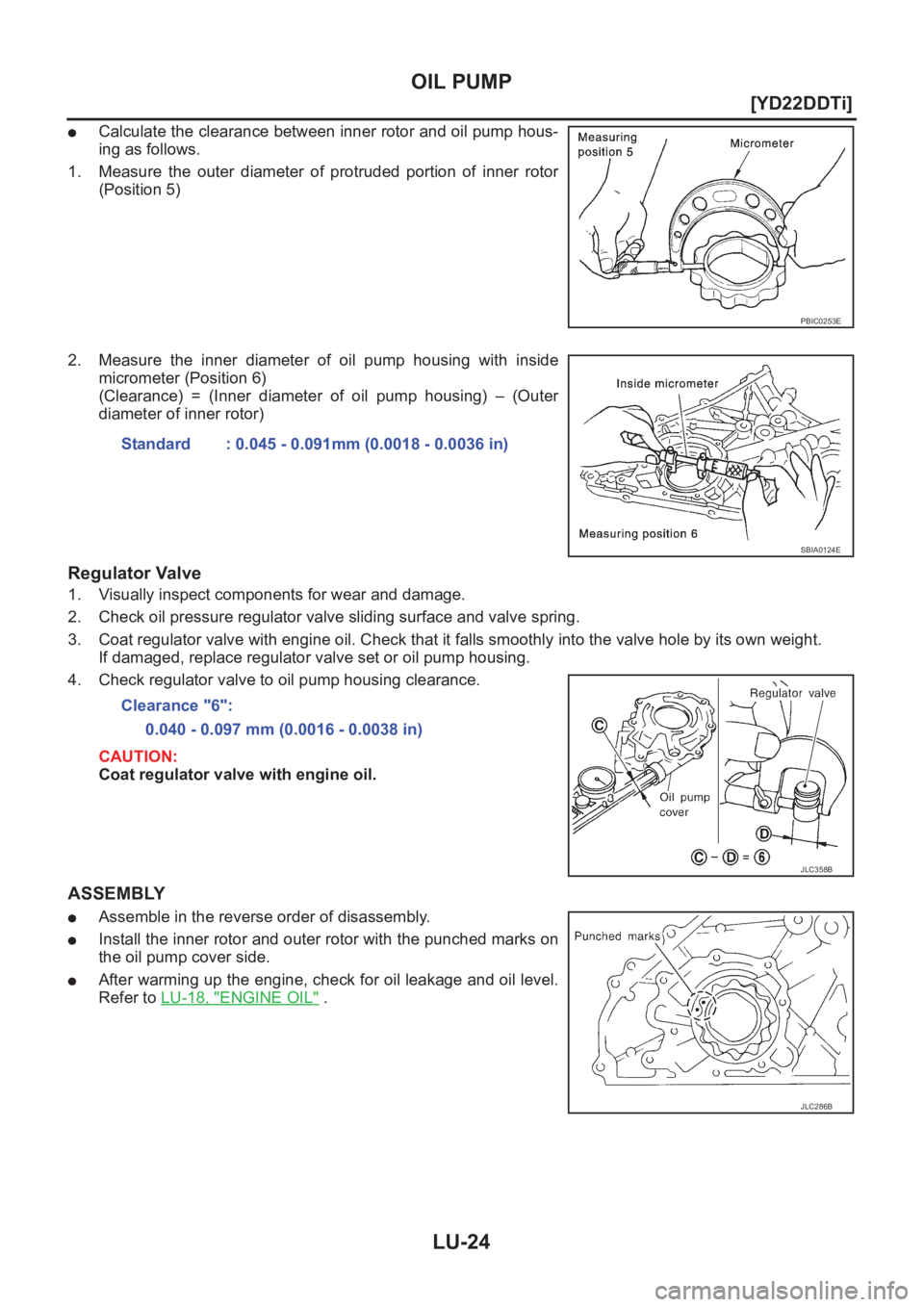

OIL PUMP
●Calculate the clearance between inner rotor and oil pump hous-
ing as follows.
1. Measure the outer diameter of protruded portion of inner rotor
(Position 5)
2. Measure the inner diameter of oil pump housing with inside
micrometer (Position 6)
(Clearance) = (Inner diameter of oil pump housing) – (Outer
diameter of inner rotor)
Regulator Valve
1. Visually inspect components for wear and damage.
2. Check oil pressure regulator valve sliding surface and valve spring.
3. Coat regulator valve with engine oil. Check that it falls smoothly into the valve hole by its own weight.
If damaged, replace regulator valve set or oil pump housing.
4. Check regulator valve to oil pump housing clearance.
CAUTION:
Coat regulator valve with engine oil.
ASSEMBLY
●Assemble in the reverse order of disassembly.
●Install the inner rotor and outer rotor with the punched marks on
the oil pump cover side.
●After warming up the engine, check for oil leakage and oil level.
Refer to LU-18, "
ENGINE OIL" .
PBIC0253E
Standard : 0.045 - 0.091mm (0.0018 - 0.0036 in)
SBIA0124E
Clearance "6":
0.040 - 0.097 mm (0.0016 - 0.0038 in)
JLC358B
JLC286B

OIL COOLER
LU-25
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
LU
OIL COOLERPFP:21305
Removal and InstallationEBS00OE8
CAUTION:
●Be careful not to get burned when the engine and engine oil are hot.
●When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.
●Completely wipe off any engine oil that adhere to the engine and the vehicle.
REMOVAL
1. Remove front RH wheel and engine side cover.
2. Remove the exhaust front tube. Refer to EX-2, "
EXHAUST SYSTEM" .
3. Drain coolant by removing cylinder block drain plug and radiator drain cock.
INSPECTION
Oil Cooler
Check oil cooler for cracks. check oil cooler for clogging by blowing through coolant inlet. If necessary, replace
oil cooler assembly.
INSTALLATION
Installation is in reverse order of removal.
●Confirm that no foreign objects are adhering to the installation
planes of the oil cooler or cylinder block.
●Tighten the connecting bolt after aligning the stopper on the cyl-
inder block side with protrusion of the oil cooler.
●After for warming up the engine, check for engine oil and engine
coolant leakage and for engine oil level. Refer to LU-18,
"ENGINE OIL" .
PBIC1231E
1. Oil cooler 2. O-ring 3. Water hose
4. Gasket 5. Water hose connector 6. Connecting bolt
SBIA0126E

CO-1
ENGINE COOLING SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION
A
CO
ENGINE COOLING SYSTEM
QR
PRECAUTIONS .......................................................... 3
Precautions For Liquid Gasket ................................. 3
REMOVAL OF LIQUID GASKET .......................... 3
LIQUID GASKET APPLICATION PROCEDURE ..... 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
OVERHEATING CAUSE ANALYSIS .......................... 5
Troubleshooting Chart .............................................. 5
COOLING SYSTEM .................................................... 7
Cooling Circuit .......................................................... 7
System Drawing ....................................................... 8
ENGINE COOLANT .................................................... 9
Inspection ................................................................. 9
LEVEL CHECK ..................................................... 9
CHECKING RADIATOR SYSTEM FOR LEAKS ..... 9
Changing Engine Coolant ........................................ 9
DRAINING ENGINE COOLANT ........................... 9
REFILLING ENGINE COOLANT ........................ 10
FLUSHING COOLING SYSTEM ......................... 10
RADIATOR .................................................................11
Removal and Installation ......................................... 11
REMOVAL ............................................................ 11
INSTALLATION .................................................... 11
Disassembly and Assembly Radiator Fan ............. 12
DISASSEMBLY ................................................... 12
ASSEMBLY ......................................................... 12
Checking Radiator Cap .......................................... 12
Checking Radiator .................................................. 13
RADIATOR (ALUMINUM TYPE) .............................. 14
Disassembly and Assembly ................................... 14
PREPARATION ................................................... 14
DISASSEMBLY ................................................... 14
ASSEMBLY ......................................................... 15
INSPECTION ...................................................... 17WATER PUMP .......................................................... 18
Removal and Installation ........................................ 18
REMOVAL ........................................................... 18
INSPECTION AFTER REMOVAL ....................... 19
INSTALLATION ................................................... 19
INSPECTION AFTER INSTALLATION ................ 19
THERMOSTAT AND WATER CONTROL VALVE .... 20
Removal and Installation ........................................ 20
REMOVAL ........................................................... 20
INSPECTION AFTER REMOVAL ....................... 21
INSTALLATION ................................................
... 21
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 22
Standard and Limit .................................................. 22
CAPACITY ........................................................... 22
THERMOSTAT .................................................... 22
WATER CONTROL VALVE ................................. 22
RADIATOR ....................................................... ... 22
Tightening Torque ................................................... 22
YD22DDTi
PRECAUTIONS ........................................................ 23
Precautions For Liquid Gasket ............................... 23
REMOVAL OF LIQUID GASKET ......................... 23
LIQUID GASKET APPLICATION PROCEDURE ... 23
PREPARATION ......................................................... 24
Special Service Tools ............................................. 24
OVERHEATING CAUSE ANALYSIS ........................ 25
Troubleshooting Chart ............................................ 25
COOLING SYSTEM .................................................. 27
Cooling Circuit ........................................................ 27
System Drawing ..................................................... 28
ENGINE COOLANT .................................................. 29
Inspection ............................................................... 29
LEVEL CHECK .................................................... 29
CHECKING RADIATOR SYSTEM FOR LEAKS ... 29
Changing Engine Coolant ....................................... 29
DRAINING ENGINE COOLANT .......................... 29
REFILLING ENGINE COOLANT ......................... 30
FLUSHING COOLING SYSTEM ......................... 31

OVERHEATING CAUSE ANALYSIS
CO-5
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

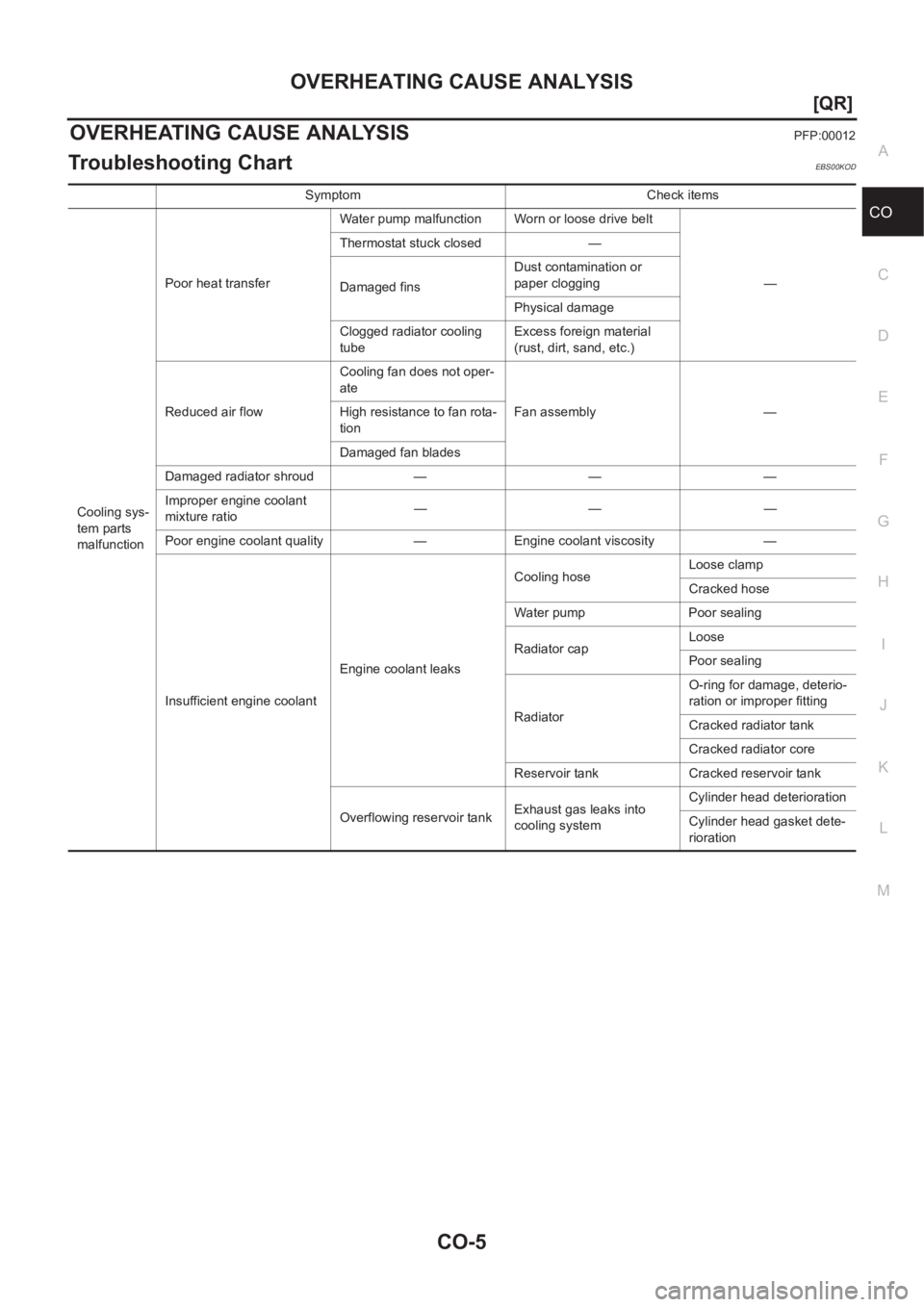

OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartEBS00KOD
Symptom Check items
Cooling sys-
tem parts
malfunctionPoor heat transferWater pump malfunction Worn or loose drive belt
— Thermostat stuck closed —
Damaged finsDust contamination or
paper clogging
Physical damage
Clogged radiator cooling
tubeExcess foreign material
(rust, dirt, sand, etc.)
Reduced air flowCooling fan does not oper-
ate
Fan assembly — High resistance to fan rota-
tion
Damaged fan blades
Damaged radiator shroud — — —
Improper engine coolant
mixture ratio—— —
Poor engine coolant quality — Engine coolant viscosity —
Insufficient engine coolantEngine coolant leaksCooling hoseLoose clamp
Cracked hose
Water pump Poor sealing
Radiator capLoose
Poor sealing
RadiatorO-ring for damage, deterio-
ration or improper fitting
Cracked radiator tank
Cracked radiator core
Reservoir tank Cracked reservoir tank
Overflowing reservoir tankExhaust gas leaks into
cooling systemCylinder head deterioration
Cylinder head gasket dete-
rioration

CO-6
[QR]

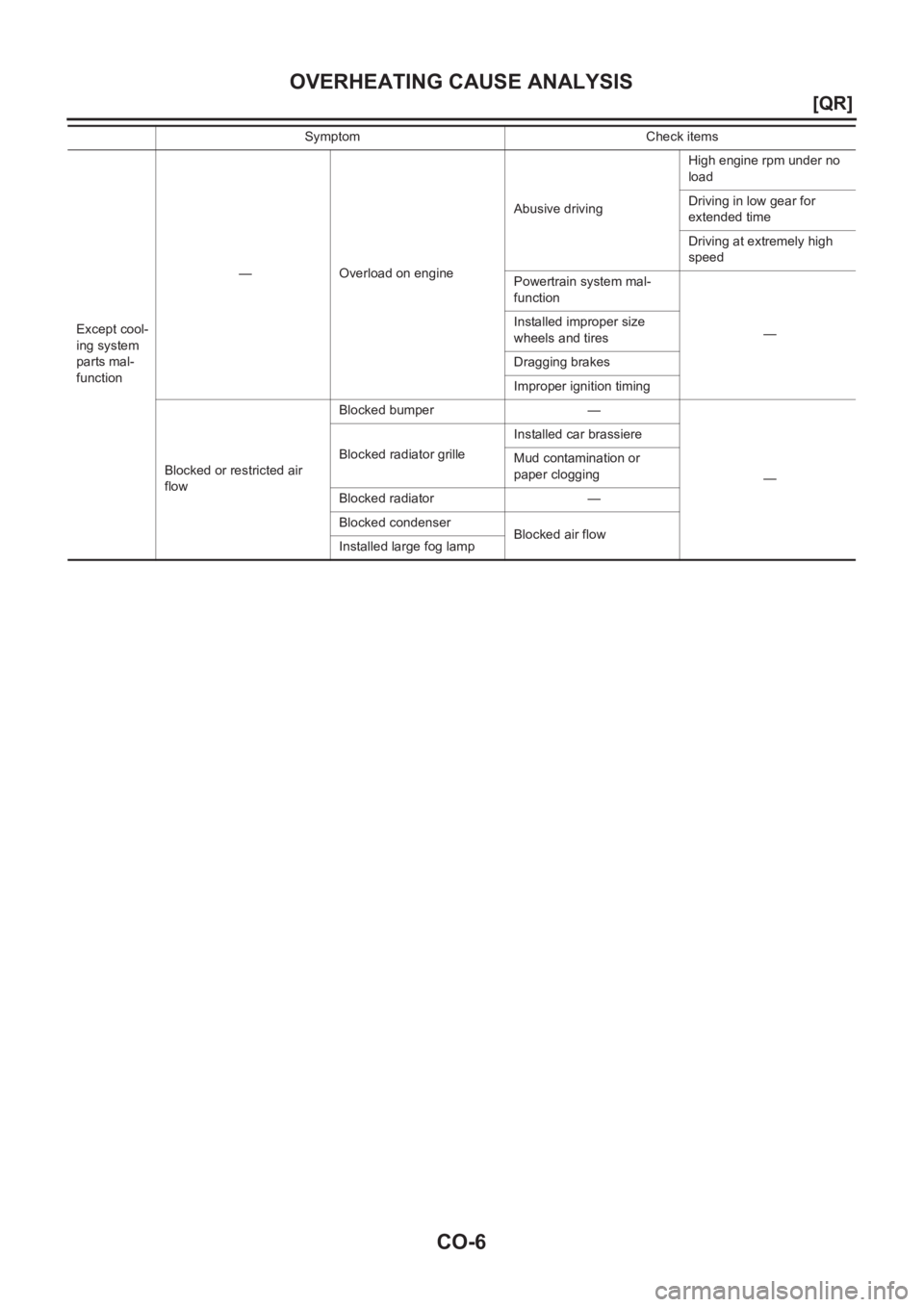

OVERHEATING CAUSE ANALYSIS
Except cool-
ing system
parts mal-
function— Overload on engineAbusive drivingHigh engine rpm under no
load
Driving in low gear for
extended time
Driving at extremely high
speed
Powertrain system mal-
function
— Installed improper size
wheels and tires
Dragging brakes
Improper ignition timing
Blocked or restricted air
flowBlocked bumper —
— Blocked radiator grilleInstalled car brassiere
Mud contamination or
paper clogging
Blocked radiator —
Blocked condenser
Blocked air flow
Installed large fog lamp Symptom Check items

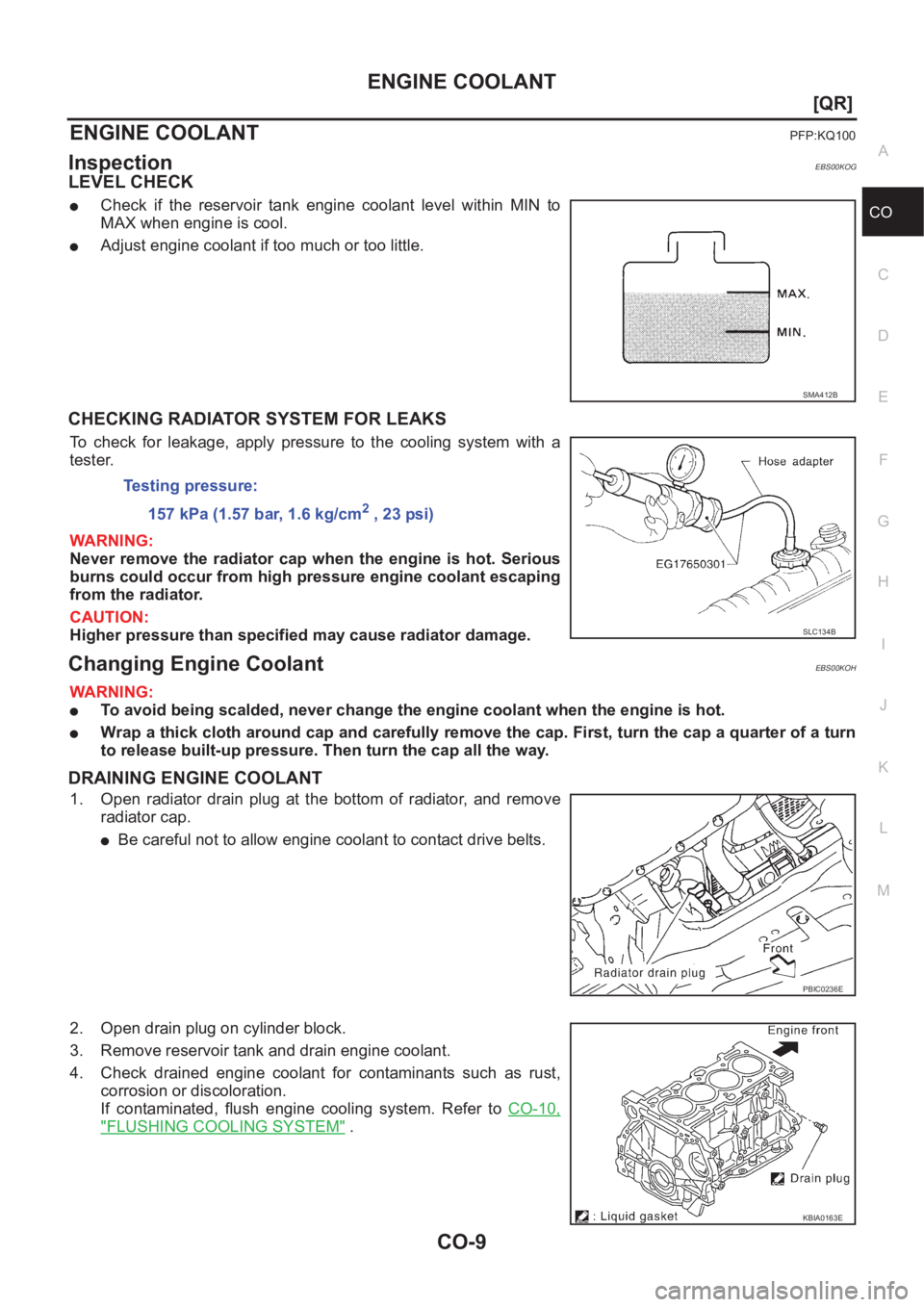

ENGINE COOLANT
CO-9
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO
ENGINE COOLANTPFP:KQ100
InspectionEBS00KOG
LEVEL CHECK
●Check if the reservoir tank engine coolant level within MIN to
MAX when engine is cool.
●Adjust engine coolant if too much or too little.
CHECKING RADIATOR SYSTEM FOR LEAKS
To check for leakage, apply pressure to the cooling system with a
tester.
WARNING:
Never remove the radiator cap when the engine is hot. Serious
burns could occur from high pressure engine coolant escaping
from the radiator.
CAUTION:
Higher pressure than specified may cause radiator damage.
Changing Engine CoolantEBS00KOH
WARNING:
●To avoid being scalded, never change the engine coolant when the engine is hot.
●Wrap a thick cloth around cap and carefully remove the cap. First, turn the cap a quarter of a turn
to release built-up pressure. Then turn the cap all the way.
DRAINING ENGINE COOLANT
1. Open radiator drain plug at the bottom of radiator, and remove
radiator cap.
●Be careful not to allow engine coolant to contact drive belts.
2. Open drain plug on cylinder block.
3. Remove reservoir tank and drain engine coolant.
4. Check drained engine coolant for contaminants such as rust,
corrosion or discoloration.
If contaminated, flush engine cooling system. Refer to CO-10,
"FLUSHING COOLING SYSTEM" .
SMA412B
Testing pressure:
157 kPa (1.57 bar, 1.6 kg/cm
2 , 23 psi)
SLC134B
PBIC0236E
KBIA0163E

CO-10
[QR]
ENGINE COOLANT
REFILLING ENGINE COOLANT
1. Install reservoir tank, radiator drain plug and cylinder block drain plug.
●Apply sealant to the thread of cylinder block drain plug.
Use Genuine Liquid Gasket or equivalent.
2. Fill radiator and reservoir tank to specified level.
●Use genuine Nissan engine coolant or equivalent in its
quality. Refer to MA-16, "
RECOMMENDED FLUIDS AND
LUBRICANTS" .
●Pour engine coolant slowly of less than 2 (1-3/4 lmp qt)
a minute to allow air in system to escape.
3. Warm up engine to normal operating temperature without radia-
tor cap installed.
●If engine coolant overflows radiator filler hole, install
radiator cap.
4. Run engine at 3,000 rpm for 10 seconds and return to idle speed
with radiator cap installed.
●Repeat two or three times.
Watch engine coolant temperature gauge so as not to overheat the engine.
5. Stop engine and cool down to less than approximately 50°C(122°F).
●Cool down using a fan to reduce the time.
●If necessary, refill radiator up to filler neck with engine coolant.
6. Refill reservoir tank to MAX level line with engine coolant.
7. Repeat steps 4 through 6 two or more times with radiator cap installed until engine coolant level no longer
drops.
8. Check cooling system for leaks with engine running.
9. Warm up engine, and check for sound of engine coolant flow while running engine from idle up to 3,000
rpm with heater temperature controller set at several position between COOL and WARM.
●Sound may be noticeable at heater unit.
10. If sound is heard, bleed air from cooling system by repeating steps 4 through 6 until engine coolant level
no longer drops.
●Clean excess engine coolant from engine.
FLUSHING COOLING SYSTEM
1. Fill radiator and reservoir tank with water and reinstall radiator cap.
2. Run engine and warm it up to normal operating temperature.
3. Rev engine two or three times under no-load.
4. Stop engine and wait until it cools down.
5. Drain water.
6. Repeat steps 1 through 5 until clear water begins to drain from radiator. Cylinder block drain plug:
: 7.8 - 11.8 N·m (0.8 -1.2 kg-m , 69 - 104 in-lb)
Engine coolant capacity (With reservoir tank):

Approx. 7.1 (6-1/4 Imp qt)
SMA182B
Reservoir tank: 0.6 (1/2 lmp qt)
SMA412B

RADIATOR
CO-11
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

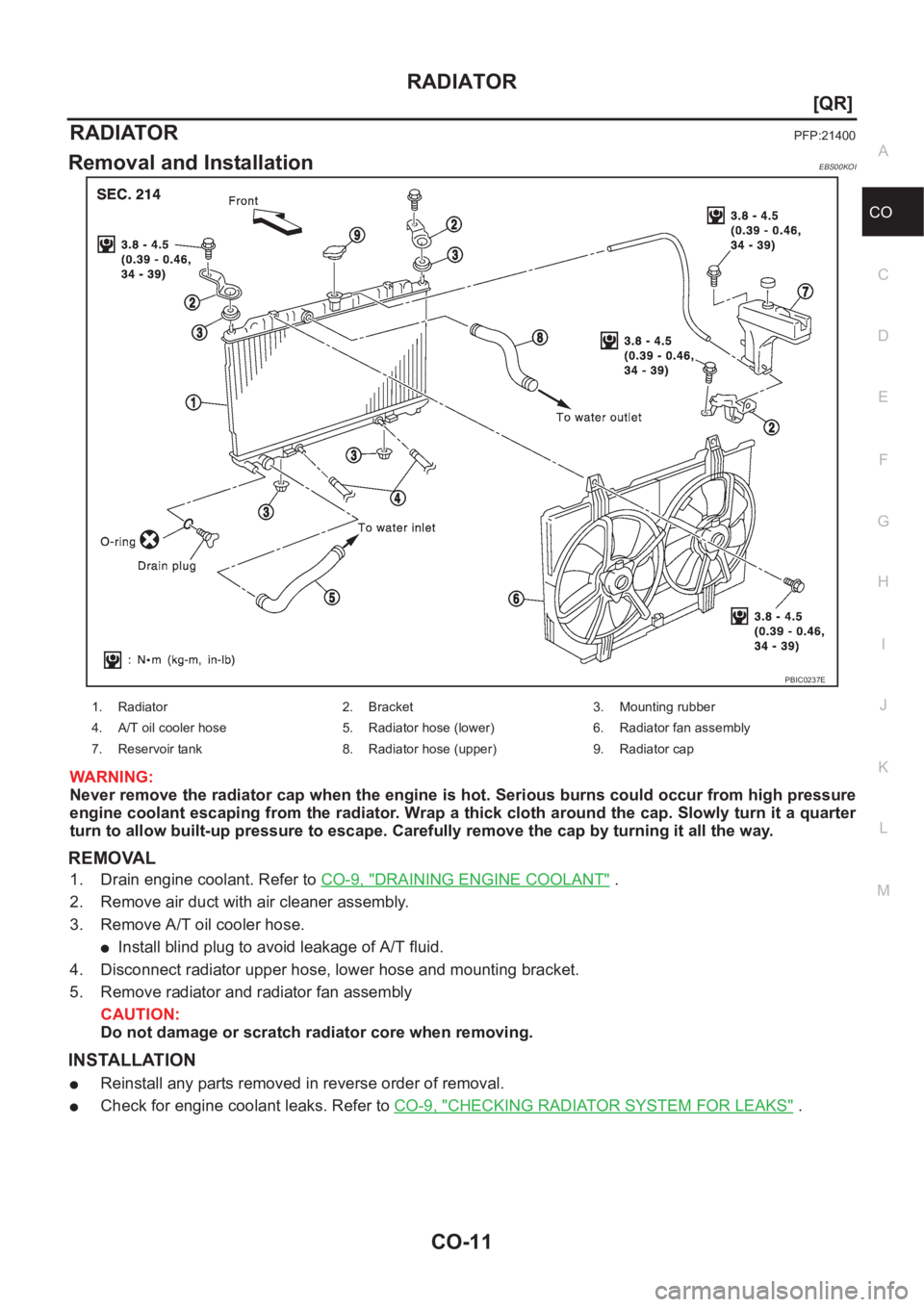

RADIATORPFP:21400
Removal and InstallationEBS00KOI
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter
turn to allow built-up pressure to escape. Carefully remove the cap by turning it all the way.
REMOVAL
1. Drain engine coolant. Refer to CO-9, "DRAINING ENGINE COOLANT" .
2. Remove air duct with air cleaner assembly.
3. Remove A/T oil cooler hose.
●Install blind plug to avoid leakage of A/T fluid.
4. Disconnect radiator upper hose, lower hose and mounting bracket.
5. Remove radiator and radiator fan assembly
CAUTION:
Do not damage or scratch radiator core when removing.
INSTALLATION
●Reinstall any parts removed in reverse order of removal.
●Check for engine coolant leaks. Refer to CO-9, "CHECKING RADIATOR SYSTEM FOR LEAKS" .
PBIC0237E
1. Radiator 2. Bracket 3. Mounting rubber
4. A/T oil cooler hose 5. Radiator hose (lower) 6. Radiator fan assembly
7. Reservoir tank 8. Radiator hose (upper) 9. Radiator cap
