EC-308
[QR25(WITH EURO-OBD)]
DTC P1146 HO2S2
DTC Confirmation Procedure
EBS00M8J
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
●For the best results, perform “DTC WORK SUPPORT” at a temperature of 0 to 30°C (32 to 86°F).
●Open engine hood before conducting following procedure.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch “OFF” and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least one minute under no
load.
4. Let engine idle for one minute.
5. Select “HO2S2 (B1) P1146” of “HO2S2” in “DTC WORK SUPPORT” mode with CONSULT-II and follow
the instruction of CONSULT-II.
6. Make sure that “OK” is displayed after touching “SELF-DIAG RESULTS”.
If “NG” is displayed, refer to EC-311, "
Diagnostic Procedure" .
If “CAN NOT BE DIAGNOSED” is displayed, perform the following.
a. Turn ignition switch “OFF” and leave the vehicle in a cool place (soak the vehicle).
b. Turn ignition switch “ON” and select “COOLANTEMP/S” in “DATA MONITOR” mode with CONSULT-II.
c. Start engine and warm it up while monitoring “COOLANTEMP/S” indication on CONSULT-II.
d. When “COOLANTEMP/S” indication reaches to 70°C (158°F), go to step 3.
Overall Function CheckEBS00M8K
Use this procedure to check the overall function of the heated oxygen sensor 2 circuit. During this check, a
DTC might not be confirmed.
WITH GST
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch “OFF” and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least one minute under no
load.
4. Let engine idle for one minute.
5. Set voltmeter probes between ECM terminal 95 (HO2S2 signal) and engine ground.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1146
11 4 6Heated oxygen sensor
2 minimum voltage
monitoringThe minimum voltage from the sensor is not
reached to the specified voltage.
●Harness or connectors
(The sensor circuit is open or shorted)
●Heated oxygen sensor 2
●Fuel pressure
●Injectors
PBIB0818E
EC-316
[QR25(WITH EURO-OBD)]
DTC P1147 HO2S2
DTC Confirmation Procedure
EBS00M8T
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
●For the best results, perform “DTC WORK SUPPORT” at a temperature of 0 to 30°C (32 to 86°F).
●Open engine hood before conducting following procedure.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch “OFF” and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least one minute under no
load.
4. Let engine idle for one minute.
5. Select “HO2S2 (B1) P1147” of “HO2S2” in “DTC WORK SUPPORT” mode with CONSULT-II and follow
the instruction of CONSULT-II.
6. Make sure that “OK” is displayed after touching “SELF-DIAG RESULTS”.
If “NG” is displayed, refer to EC-319, "
Diagnostic Procedure" .
If “CAN NOT BE DIAGNOSED” is displayed, perform the following.
a. Turn ignition switch “OFF” and leave the vehicle in a cool place (soak the vehicle).
b. Turn ignition switch “ON” and select “COOLANTEMP/S” in “DATA MONITOR” mode with CONSULT-II.
c. Start engine and warm it up while monitoring “COOLANTEMP/S” indication on CONSULT-II.
d. When “COOLANTEMP/S” indication reaches to 70°C (158°F), go to step 3.
Overall Function CheckEBS00M8U
Use this procedure to check the overall function of the heated oxygen sensor 2 circuit. During this check, a
DTC might not be confirmed.
CAUTION:
Always drive vehicle at a safe speed.
WITH GST
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch “OFF” and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least one minute under no
load.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1147
11 4 7Heated oxygen sensor
2 maximum voltage
monitoringThe maximum voltage from the sensor is not
reached to the specified voltage.
●Harness or connectors
(The sensor circuit is open or shorted)
●Heated oxygen sensor 2
●Fuel pressure
●Injectors
●Intake air leaks
PBIB0819E
DTC P1217 ENGINE OVER TEMPERATURE
EC-323
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
System DescriptionEBS00M8Z
COOLING FAN CONTROL
The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant
pressure, and air conditioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].
OPERATION
CONSULT-II Reference Value in Data Monitor ModeEBS00M90
Specification data are reference values.
Sensor Input Signal to PCMECM func-
tionActuator
Wheel sensor Vehicle speed
Cooling
fan controlCooling fan relay(s) Engine coolant temperature sensor Engine coolant temperature
Air conditioner switch Air conditioner “ON” signal
Ignition switch Start signal
Refrigerant pressure sensor Refrigerant pressure
PBIB0576E
MONITOR ITEM CONDITION SPECIFICATION
AIR COND SIG
●Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON

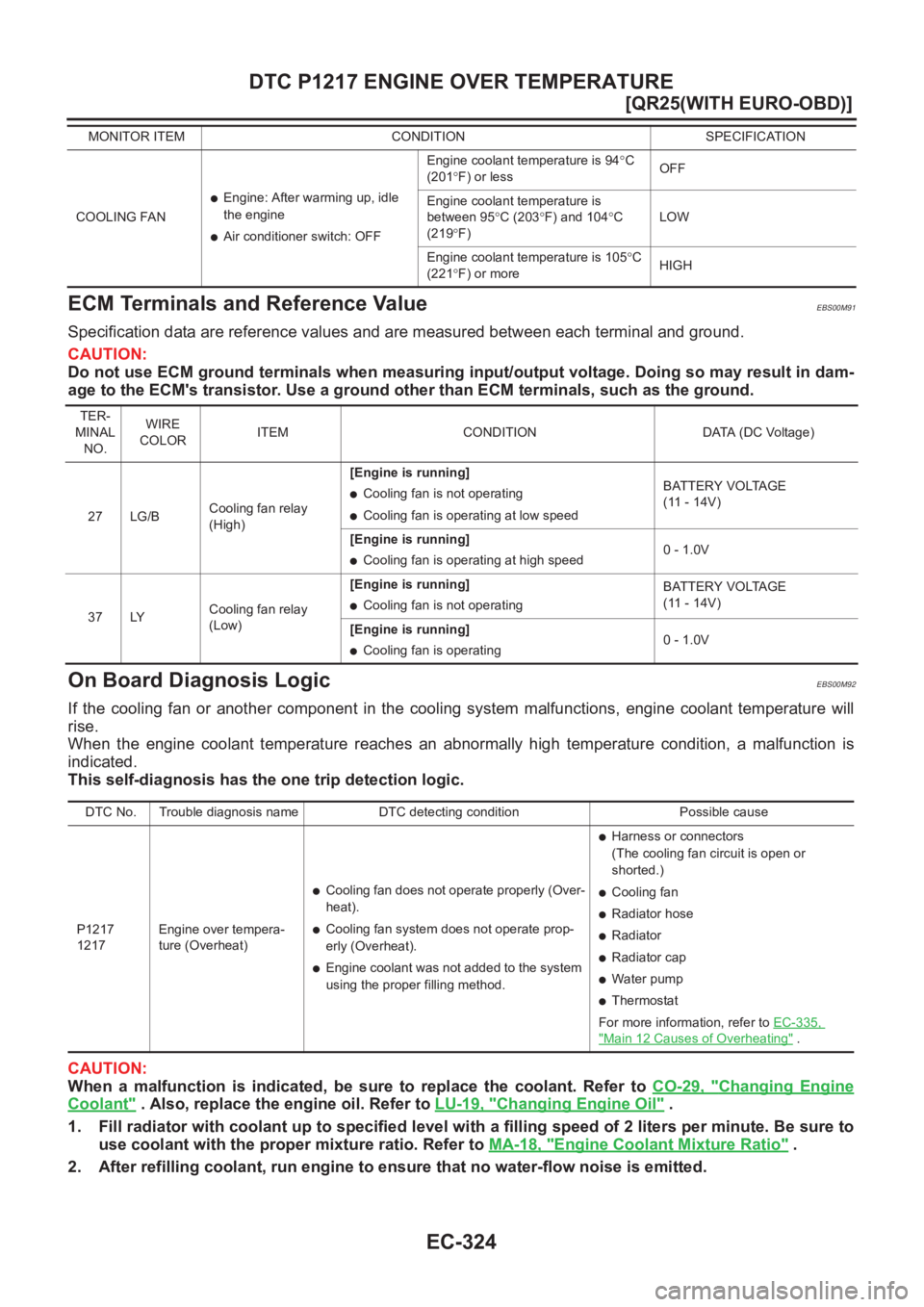

EC-324
[QR25(WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
ECM Terminals and Reference Value
EBS00M91
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00M92
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.
This self-diagnosis has the one trip detection logic.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-29, "
Changing Engine
Coolant" . Also, replace the engine oil. Refer to LU-19, "Changing Engine Oil" .
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio. Refer to MA-18, "
Engine Coolant Mixture Ratio" .
2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.
COOLING FAN
●Engine: After warming up, idle
the engine
●Air conditioner switch: OFFEngine coolant temperature is 94°C
(201°F) or lessOFF
Engine coolant temperature is
between 95°C (203°F) and 104°C
(219°F)LOW
Engine coolant temperature is 105°C
(221°F) or moreHIGH MONITOR ITEM CONDITION SPECIFICATION
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
27 LG/BCooling fan relay
(High)[Engine is running]
●Cooling fan is not operating
●Cooling fan is operating at low speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Cooling fan is operating at high speed0 - 1.0V
37 LYCooling fan relay
(Low)[Engine is running]
●Cooling fan is not operatingBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Cooling fan is operating0 - 1.0V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217
1217Engine over tempera-
ture (Overheat)
●Cooling fan does not operate properly (Over-
heat).
●Cooling fan system does not operate prop-
erly (Overheat).
●Engine coolant was not added to the system
using the proper filling method.
●Harness or connectors
(The cooling fan circuit is open or
shorted.)
●Cooling fan
●Radiator hose
●Radiator
●Radiator cap
●Water pump
●Thermostat
For more information, refer to EC-335,
"Main 12 Causes of Overheating" .
DTC P1217 ENGINE OVER TEMPERATURE
EC-325
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Overall Function CheckEBS00M93
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-328,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-328,
"Diagnostic Procedure" .
3. Turn ignition switch “ON”.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. If the results are NG, go to EC-328, "
Diagnostic Procedure" .
WITH GST
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-328,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-328,
"Diagnostic Procedure" .
3. Start engine.
Be careful not to overheat engine.
4. Set temperature control lever to full cold position.
5. Turn air conditioner switch “ON”.
6. Turn blower fan switch “ON”.
7. Run engine at idle for a few minutes with air conditioner operating.
Be careful not to overheat engine.
SEF621W
SEF646X
SEF621W
EC-326
[QR25(WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
8. Make sure that cooling fan operates at low speed.
If NG, go to EC-328, "
Diagnostic Procedure" .
If OK, go to the following step.
9. Turn ignition switch “OFF”.
10. Turn air conditioner switch and blower fan switch “OFF”.
11. Disconnect engine coolant temperature sensor harness connector.
12. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
13. Restart engine and make sure that cooling fan operates at
higher speed than low speed.
Be careful not to overheat engine.
14. If NG, go to EC-328, "
Diagnostic Procedure" .
SEC163BA
MEC475B
EC-330
[QR25(WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
5. CHECK COOLING FAN HIGH SPEED OPERATION
Without CONSULT-II
1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relays-2 and -3.
3. Turn air conditioner switch and blower fan switch “OFF”.
4. Disconnect engine coolant temperature sensor harness connector.
5. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
6. Restart engine and make sure that cooling fans-1 and -2 oper-
ate at higher speed than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go to EC-
334, "PROCEDURE B" .)
6. CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the
pressure drops.
CAUTION:
Higher than the specified pressure may cause radiator damage.
Pressure should not drop.
OK or NG
OK >> GO TO 7.
NG >> Check the following for leak
●Hose
●Radiator
●Water pump
Refer to CO-18, "
WATER PUMP" .
7. CHECK RADIATOR CAP
Apply pressure to cap with a tester.
OK or NG
OK >> GO TO 8.
NG >> Replace radiator cap.
MEC475B
Testing pressure:157 kPa (1.57 bar, 1.6 kg/cm2 , 23
psi)
SLC754A
Radiator cap relief pressure: 59 - 98 kPa (0.59 - 0.98 bar,
0.6 - 1.0 kg/cm
2 , 9 - 14 psi)
SLC755A
DTC P1217 ENGINE OVER TEMPERATURE
EC-331
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
8.CHECK THERMOSTAT
1. Check valve seating condition at normal room temperatures.
It should seat tightly.
2. Check valve opening temperature and valve lift.
3. Check if valve is closed at 5°C (9°F) below valve opening tem-
perature.
For details, refer to CO-20, "
THERMOSTAT AND WATER CON-
TROL VALVE" .
OK or NG
OK >> GO TO 9.
NG >> Replace thermostat
9.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-153, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace engine coolant temperature sensor.
10.CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go to EC-335, "
Main 12 Causes of Overheating" .
>>INSPECTION END Valve opening temperature: 82°C (180°F) [standard]
Valve lift: More than 8 mm/95°C
(0.31 in/203°F)
SLC343
