2001 NISSAN PICK-UP height

Inspection and Adjustment
VALVE
Valve clearance adjustment
Unit: mm (in)
Valve clearance (Hot)
Intake 0.31 - 0.39 (0.012 - 0.015)
Exhaust0.33 - 0.41 (0.013 - 0.016)
(Except for Europe)
0.39 - 0.47 (0.015 - 0.019) (For Europe)
CAMSHAFT AND CAMSHAFT BEARING
SEM568AEM120
Unit: mm (in)
Standard Limit
Cam height (A)Intake 42.505 - 42.695 (1.673 - 1.681) Ð
Exhaust 40.905 - 41.095 (1.610 - 1.618) Ð
Wear limit of cam height Ð 0.2 (0.008)
Camshaft journal to bearing clearance 0.045 - 0.090 (0.0018 - 0.0035) 0.12 (0.0047)
Inner diameter of camshaft bearing#1 to #5
journals28.000 - 28.025 (1.1024 - 1.1033) Ð
Outer diameter of camshaft journal (D)#1 to #5
journals27.935 - 27.955 (1.0998 - 1.1006) Ð
Camshaft runout* Less than 0.02 (0.0008) 0.04 (0.0016)
Camshaft end play 0.070 - 0.148 (0.0028 - 0.0058) 0.2 (0.008)
Valve timing (Degree on crankshaft)Except for Europe For Europe
Ð
a 216 224
b 232 224 Ð
cþ1 þ1 Ð
d53 45 Ð
e4 7 Ð
f32 37 Ð
* Total indicator reading
SERVICE DATA AND SPECIFICATIONS (SDS)KA24DE
EM-3086

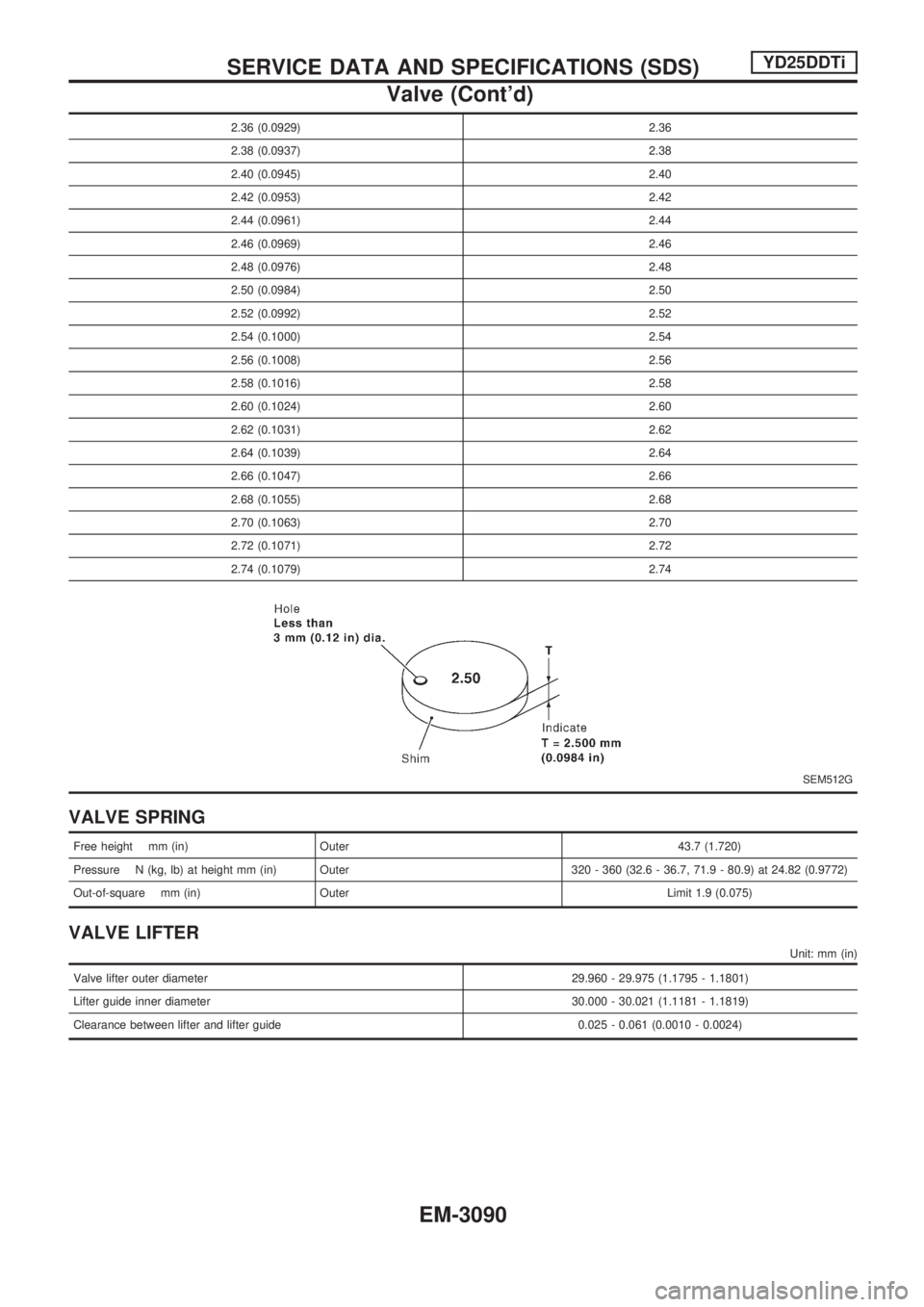

2.36 (0.0929) 2.36
2.38 (0.0937) 2.38
2.40 (0.0945) 2.40
2.42 (0.0953) 2.42
2.44 (0.0961) 2.44
2.46 (0.0969) 2.46
2.48 (0.0976) 2.48
2.50 (0.0984) 2.50
2.52 (0.0992) 2.52
2.54 (0.1000) 2.54
2.56 (0.1008) 2.56
2.58 (0.1016) 2.58
2.60 (0.1024) 2.60
2.62 (0.1031) 2.62
2.64 (0.1039) 2.64
2.66 (0.1047) 2.66
2.68 (0.1055) 2.68
2.70 (0.1063) 2.70
2.72 (0.1071) 2.72
2.74 (0.1079) 2.74
SEM512G
VALVE SPRING
Free height mm (in) Outer 43.7 (1.720)
Pressure N (kg, lb) at height mm (in) Outer 320 - 360 (32.6 - 36.7, 71.9 - 80.9) at 24.82 (0.9772)
Out-of-square mm (in) Outer Limit 1.9 (0.075)
VALVE LIFTER
Unit: mm (in)
Valve lifter outer diameter 29.960 - 29.975 (1.1795 - 1.1801)
Lifter guide inner diameter 30.000 - 30.021 (1.1181 - 1.1819)
Clearance between lifter and lifter guide 0.025 - 0.061 (0.0010 - 0.0024)
SERVICE DATA AND SPECIFICATIONS (SDS)YD25DDTi
Valve (Cont'd)
EM-3090

Valve Seat
Unit: mm (in)
SEM546G
JEM253G
Standard Service
Cylinder head seat recess diameter (D)Intake 30.000 - 30.016 (1.1181 - 1.1817) 30.500 - 30.516 (1.2008 - 1.2014)
Exhaust 29.000 - 29.016 (1.1417 - 1.1424) 29.500 - 29.516 (1.1614 - 1.1620)
Valve seat interference fitIntake 0.064 - 0.100 (0.0025 - 0.0039)
Exhaust 0.064 - 0.096 (0.0025 - 0.0038)
Valve seat outer diameter (d)Intake 30.080 - 30.100 (1.1842 - 1.1850) 30.580 - 30.600 (1.2039 - 1.2047)
Exhaust 29.080 - 29.096 (1.1449 - 1.1455) 29.580 - 29.596 (1.1646 - 1.1652)
Height (h)Intake 7.0 - 7.1 (0.276 - 0.280) 6.60 - 6.70 (0.2598 - 0.2638)
Exhaust 6.7 - 6.8 (0.264 - 0.268) 6.3 - 6.4 (0.248 - 0.252)
SERVICE DATA AND SPECIFICATIONS (SDS)YD25DDTi
EM-3092

Depth (H)Intake 8.83 - 9.13 (0.3476 - 0.3594)
Exhaust 9.06 - 9.36 (0.3567 - 0.3685)
Depth (L)Intake 36.53 - 36.98 (1.4382 - 1.4559)
Exhaust 36.53 - 37.01 (1.4382 - 1.4571)
Camshaft and Camshaft Bearing
Unit: mm (in)
Standard Limit
Camshaft journal to bearing clearance 0.045 - 0.086 (0.0018 - 0.0034) 0.045 - 0.086 (0.0018 - 0.0034)
Inner diameter of camshaft bearingNo. 1
30.500 - 30.521 (1.2008 - 1.2016)
No. 2, 3, 4, 5
24.000 - 24.021 (0.9449 - 0.9457)Ð
Outer diameter of camshaft journalNo. 1
30.435 - 30.455 (1.1982 - 1.1990)
No. 2, 3, 4, 5
23.935 - 23.955 (0.9423 - 0.9431)Ð
Camshaft runout [TIR*] Ð 0.02 (0.0008)
Camshaft sprocket runout [TIR*] Less than 0.15 (0.0059) Ð
Camshaft end play 0.070 - 0.148 (0.0028 - 0.0058) 0.24 (0.0094)
*: Total indicator reading
EM671
Cam height ªAºIntake 39.505 - 39.695 (1.5553 - 1.5628)
Exhaust 39.905 - 40.095 (1.5711 - 1.5785)
Wear limit of cam height0.15 (0.0059)
Valve timing
PBIC0187E
Unit: degree
abcde f
224 212 2 30 þ2 46
SERVICE DATA AND SPECIFICATIONS (SDS)YD25DDTi
Valve Seat (Cont'd)
EM-3093

Wheels and Tires
PICKUP (2WD)
Tire Wheel2-wheel drive model
Europe
Single cab King cab Double cab
195R14C-8PR 5J-14 X X X
195R15C-8PR 5-1/2K-15 X X X
255/70R16 7JJ-16 Ð X*3 X*3
265/70R16LT 7JJ-16 Ð X*3 X*3
X: Applicable
Ð: Not applicable
PICKUP (4WD)
Tire Wheel4-wheel drive model
Europe
205R16C-8PR 6J-16 X
255/70R16 7JJ-16 X
265/70R16LT 7JJ-16 X
X: Applicable
Ð: Not applicable
Dimensions
DestinationEurope
Vehicle type 2-wheel drive model 4-wheel drive model
Wheelbase Long Long
Cab or bed type Single cab King cab Double cab Single cab King cab Double cab
Overall length*1 mm (in)5,010 (197.2)
5,170 (203.5)*15,035 (198.2)
5,170 (203.5)*14,945 (194.7)
5,080 (200.0)*15,010 (197.2)
5,170 (203.5)*15,035 (198.2)
5,170 (203.5)*14,945 (194.7)
5,080 (200.0)*1
Overall width mm (in) 1,690 (66.5)1,690 (66.5)
1,825 (71.9)*21,690 (66.5)
1,825 (71.9)*21,825 (71.9) 1,825 (71.9) 1,825 (71.9)
Overall height mm (in) 1,610 (63.4)1,610 (63.4)
1,695 (66.7)*21,620 (63.8)
1,705 (67.1)*21,700 (66.9) 1,700 (66.9)*31,715 (67.5)
1,720 (67.7)*3
Wheelbase mm (in) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1)
TreadFront mm (in) 1,395 (54.9)1,395 (54.9)
1,525 (60.0)*21,395 (54.9)
1,525 (60.0)*21,525 (60.0) 1,525 (60.0) 1,525 (60.0)
Rear mm (in) 1,390 (54.7)1,390 (54.7)
1,505 (59.3)*21,390 (54.7)
1,505 (59.3)*21,505 (59.3) 1,505 (59.3) 1,505 (59.3)
Ground clearance mm (in) 180 (7.1)180 (7.1)
220 (8.7)*2180 (7.1)
220 (8.7)*2215 (8.5) 220 (8.7) 220 (8.7)
*1: On step bumper equipped models
*2: 4WD appearance models
*3: With optional 255/70R16 tires
IDENTIFICATION INFORMATION
GI-3007

Service Data and Specifications (SDS)
STARTER
TypeM2TS0571 M3T29482D S114-348A S114-295B S13-527B
MITSUBISHI HITACHI
Reduction Non-reduction Reduction
Applied model2WD 4WD 2WD 4WD
YD25 Z24 ZD30
Standard Standard Option Standard
System voltage V 12
No-load
Terminal voltage V 11.0 11.5 11.0
Current A Less than 145 Less than 60 Less than 160*
Revolution rpm More than 3,200More than
6,500More than
7,000More than
6,000More than
3,300
Minimum diameter of commutator mm (in) 31.4 (1.236) 39.0 (1.535) 35.5 (1.398)
Minimum length of brush mm (in) 11.0 (0.433) 11.5 (0.453) 12.0 (0.472) 11.0 (0.433)
Brush spring tension N (kg, lb)26.7 - 36.1
(2.7 - 3.7, 6.0 - 8.2)13.7 - 25.5
(1.4 - 2.6,
3.1 - 5.7)17.7 - 21.6
(1.8 - 2.2,
4.0 - 4.9)17.6 - 21.6
(1.8 - 2.2,
4.0 - 4.9)28.4 - 34.3
(2.9 - 3.5,
6.4 - 7.7)
Clearance between bearing metal and
armature shaft mm (in)Less than 0.2 (0.008) Ð
Clearance ª!º between pinion front edge
and pinion stopper mm (in)Ð0.5 - 2.0
(0.020 - 0.079)0.3 - 2.5
(0.012 - 0.098)Ð
Movement ª!º in height of pinion assembly
mm (in)0.5 - 2.0
(0.020 - 0.079)Ð0.3 - 2.0
(0.01 - 0.079)
*: Includes magnet switch current.
STARTING SYSTEM
EL-3017
