2000 TOYOTA TUNDRA Owners Manual

TUNDRA (34413U)
97
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of Pº position when the
brake pedal is depressed (with the ignition
switch in ONº or ACCº position and the
selector lever pulled toward you).
(a) Normal driving1. Start the engine as instructed in How to start the engineº in Part 3. The
transmission must be in Pº or Nº.
2. With your foot holding down the brake pedal, shift the selector lever to Dº.
When the lever is in Dº position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always turn the overdrive switch on for
better fuel economy and quieter driving. If
the engine coolant temperature is low, the
transmission will not shift into the over-
drive gear even with the overdrive switch
on.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting.
(b) Using engine braking
To use engine braking, you can downshift
the transmission as follows:

Turn off the overdrive switch. The O/D
OFFº indicator light will come on and
the transmission will downshift to the
third gear.

Shift into the 2º position. The trans-
mission will downshift to the second
gear when the vehicle speed drops
down to or lower than the following
speed, and more powerful engine brak-
ing will be obtained.
Two- wheel drive models 5VZ- FE engine 115 km/h (71 mph)
2UZ- FE engine 120 km/h (75 mph)
Four- wheel drive models
5VZ- FE engine Front drive control lever in H2º or
H4º
109 km/h (68 mph)
Front drive control lever in L4º 37 km/h (23 mph) 2UZ- FE engine
2WDº or 4HIº mode is selected 120 km/h (75 mph)
4LOº mode is selected 41 km/h (25 mph)

Shift into the Lº position. The trans-
mission will downshift to the first gear
when the vehicle speed drops down to
or lower than the following speed, and
maximum engine braking will be ap-
plied.
Two- wheel drive models
5VZ- FE engine 55 km/h (34 mph)
2UZ- FE engine 58 km/h (36 mph)
Four- wheel drive models 5VZ- FE engine Front drive control lever in H2º or
H4º
52 km/h (32 mph)
Front drive control lever in L4º 10 km/h ( 6 mph)
2UZ- FE engine 2WDº or 4HIº mode is selected 58 km/h (36 mph)
4LOº mode is selected 11 km/h ( 7 mph)
ProCarManuals.com

TUNDRA (34413U)
98
Vehicles with cruise controlÐWhen the
cruise control is being used, even if you
downshift the transmission by turning off
the overdrive switch, engine braking will
not be applied because the cruise control
is not cancelled. For ways to decrease
the vehicle speed, see Cruise controlº in
this chapter.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
(c) Using 2º and Lº positions
The 2º and Lº positions are used for
strong engine braking as described pre-
viously.
With the selector lever in 2º or Lº, you
can start the vehicle in motion as with the
lever in Dº.
With the selector lever in 2º, the vehicle
will start in the first gear and automatical-
ly shift to the second gear.
With the selector lever in Lº, the trans-
mission is engaged in the first gear.
NOTICE

Be careful not to overrev the en-gine. Watch the tachometer to keepengine rpm from going into the redzone. The approximate maximum al-
lowable speed for each position isgiven below for your reference:
Two- wheel drive models
5VZ- FE engineÐ2º 115 km/h (71 mph) . . . . . . . . .
Lº 60 km/h (37 mph)
. . . . . . . . . .
2UZ- FE engineÐ 2º 120 km/h (75 mph)
. . . . . . . . .
Lº 65 km/h (40 mph)
. . . . . . . . . .
Four- wheel drive models
5VZ- FE engineÐFront control lever in H2º or
H4º 2º 110 km/h (68 mph)
. . . . . . . . .
Lº 60 km/h (37 mph)
. . . . . . . . . .
Front control lever in L4º 2º 40 km/h (25 mph)
. . . . . . . . . .
Lº 20 km/h (12 mph)
. . . . . . . . . .
2UZ- FE engineÐ
2WDº or 4HIº mode is selected 2º 120 km/h (75 mph) . . . . . . . . .
Lº 65 km/h (40 mph)
. . . . . . . . . .
4LOº mode is selected 2º 45 km/h (28 mph)
. . . . . . . . . .
Lº 25 km/h (16 mph)
. . . . . . . . . .

Do not continue hill climbing for a
long time in the 2º or Lº posi-tion. This may cause severe auto-
matic transmission damage fromoverheating. To prevent such dam-age, use Dº position for hill climb-
ing or hard towing.
(d) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the selector lever to the
Rº position.
NOTICE
Never shift into reverse while the ve-hicle is moving.
ProCarManuals.com

TUNDRA (34413U)
99
(e) Parking1. Bring the vehicle to a complete stop.
2. With the brake pedal pressed down, fully depress the parking brake pedal
to apply the parking brake securely.
3. With the brake pedal pressed down, shift the selector lever to the Pº posi-
tion.
CAUTION
While the vehicle is moving, never
attempt to move the selector lever
into Pº position under any circum-
stances. Serious mechanical damage
and loss of vehicle control may re-
sult.
(f) Good driving practice

If the transmission repeatedly shifts up
and down between third gear and over-
drive when climbing a gentle slope, the
overdrive switch should be turned off.
Be sure to turn the switch on immedi-
ately afterward.

When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Do not hold the vehicle on an up-
grade with the accelerator pedal. Itcan cause the transmission to over-heat. Always use the brake pedal or
parking brake.
(g) Rocking your vehicle if stuck
CAUTION
If your vehicle becomes stuck in
snow, mud, sand, etc., then you may
attempt to rock the vehicle free by
moving it forward and backward. Do
not attempt this procedure if people
or objects are anywhere near the ve-
hicle. During the rocking operation
the vehicle may suddenly move for-
ward or backward as it becomes un-
stuck, causing injury or damage to
nearby people or objects.
NOTICE
If you rock your vehicle, observe thefollowing precautions to prevent dam-age to the transmission and otherparts.

Do not depress the accelerator ped-al while shifting the selector leveror before the transmission is com-
pletely shifted to forward or reversegear.
ProCarManuals.com

TUNDRA (34413U)
100

Do not race the engine and avoidspinning the wheels.

If your vehicle remains stuck afterrocking the vehicle several times,
consider other ways such as tow-ing.
Manual transmission

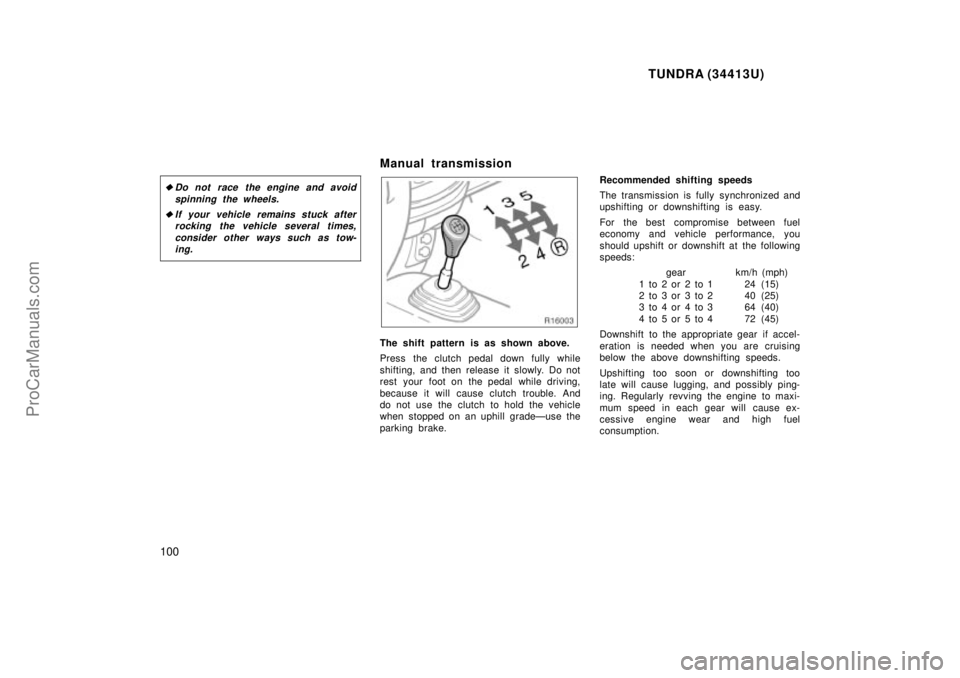

The shift pattern is as shown above.
Press the clutch pedal down fully while
shifting, and then release it slowly. Do not
rest your foot on the pedal while driving,
because it will cause clutch trouble. And
do not use the clutch to hold the vehicle
when stopped on an uphill gradeÐuse the
parking brake. Recommended shifting speeds
The transmission is fully synchronized and
upshifting or downshifting is easy.
For the best compromise between fuel
economy and vehicle performance, you
should upshift or downshift at the following
speeds:
gear km/h (mph)
1 to 2 or 2 to 1 24 (15)
2 to 3 or 3 to 2 40 (25)
3 to 4 or 4 to 3 64 (40)
4 to 5 or 5 to 4 72 (45)
Downshift to the appropriate gear if accel-
eration is needed when you are cruising
below the above downshifting speeds.
Upshifting too soon or downshifting too
late will cause lugging, and possibly ping-
ing. Regularly revving the engine to maxi-
mum speed in each gear will cause ex-
cessive engine wear and high fuel
consumption.
ProCarManuals.com

TUNDRA (34413U)
101
Maximum allowable speeds
To get on a highway or to pass slower
traffic, maximum acceleration may be nec-
essary. Make sure you observe the follow-
ing maximum allowable speeds in each
gear:
Two- wheel drive modelsgear km/h (mph)
1 45 (28)
2 85 (53)
3 125 (78)
4 165 (112)
Four- wheel drive models gear km/h (mph)
H2º or H4º L4º
1 45 (28) 15 ( 9)
2 85 (53) 30 (18)
3 125 (78) 45 (28)
4 165 (103) 70 (43)
NOTICE
Do not downshift if you are going
faster than the maximum allowablespeed for the next lower gear.
Good driving practice

If it is difficult to shift into reverse, put
the transmission in neutral, release the
clutch pedal momentarily, and then try
again.

When towing a trailer, in order to main-
tain engine braking efficiency, do not
use the fifth gear.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
NOTICE
Make sure the vehicle is completely
stopped before shifting into reverse.
Use the front drive control lever to se-
lect the following transfer modes.
H2º (high speed position, two- wheel
drive): Lever at H2º
Use this for normal driving on dry, hard-
surfaced roads. This position gives greater
economy, the quietest ride and least wear.
H4º (high speed position, four- wheel
drive): Lever at H4º
Use this for normal driving on wet, icy or
snow- covered roads. This position pro-
vides greater traction than two- wheel
drive.
Four- wheel drive systemÐ
(a) Front drive control
(lever type)
ProCarManuals.com

TUNDRA (34413U)
102
Nº (neutral position): Lever at Nº
No power is delivered to the wheels. The
vehicle must be stopped.
L4º (low speed position, four- wheel
drive): Lever at L4º
Use this for maximum power and traction.
Use L4º for climbing or descending steep
hills, off- road driving, and hard pulling in
sand, mud or deep snow.
The 4WDº (four- wheel drive) indicator
light comes on when the H4º, Nº or L4º
mode is selected.
See (c) Shifting procedure (lever type)º
for further instructions.Use the 2WD/4HIº and 4LOº buttons
to select the following transfer modes.
1. 2WDº (high speed position, two- wheel drive): 2WD/4HIº and 4LOº
buttons left out
Use this for normal driving on dry,
hard- surfaced roads. This position
gives greater economy, the quietest
ride and least wear.
2. 4HIº (high speed position, four- wheel drive): 2WD/4HIº button pushed
in
The 4HIº (high speed four- wheel
drive) indicator light comes on when
the 4HIº mode is selected.
Use this for normal driving on wet, icy
or snow- covered roads. This position
provides greater traction than two-
wheel drive.
3. 4LOº (low speed position, four- wheel drive): With the 2WD/4HIº
button pressed in, push the 4LOº
button
The 4LOº (low speed four- wheel drive)
indicator light comes on when the
4LOº mode is selected.
Use this for maximum power and trac-
tion. Use 4LOº mode for climbing or
descending steep h ills, off- road driving,
and hard pulling in s and, mud or deep
snow.
(a) Front drive control
(button type)
ProCarManuals.com

TUNDRA (34413U)
103
See (c) Shifting procedure (button type)º
for further instructions.

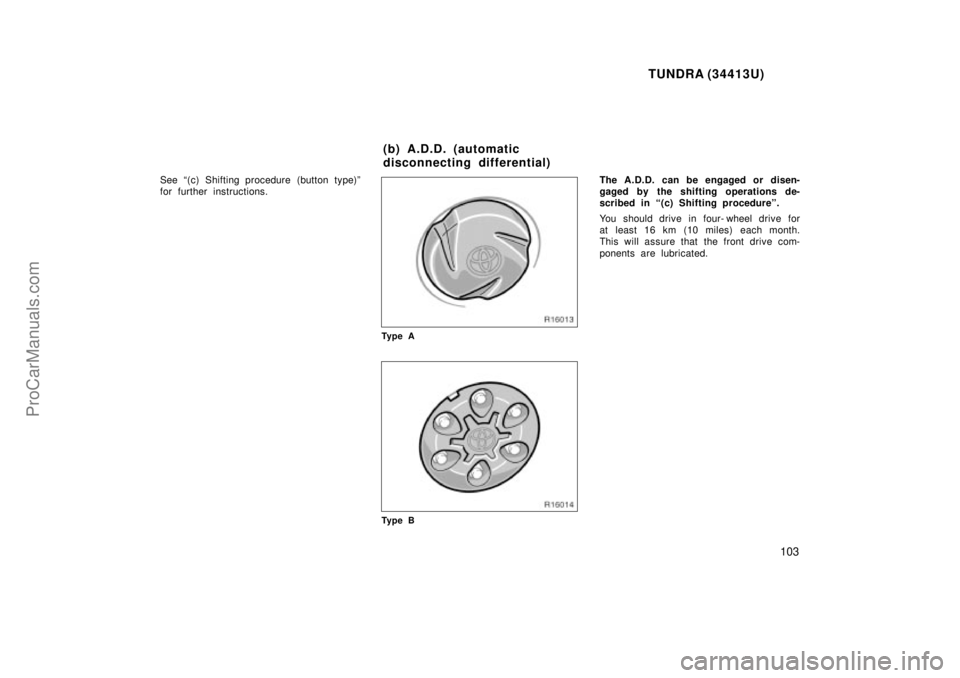

Ty p e A
Ty p e B
The A.D.D. can be engaged or disen-
gaged by the shifting operations de-
scribed in (c) Shifting procedureº.
You should drive in four- wheel drive for
at least 16 km (10 miles) each month.
This will assure that the front drive com-
ponents are lubricated.
(b) A.D.D. (automatic
disconnecting differential)
ProCarManuals.com

TUNDRA (34413U)
104
SHIFTING BETWEEN H2º AND H4º
To shift from H2º to H4º, reduce the
vehicle speed to less than 80 km/h (50
mph) and move the front drive control
lever. You need not depress the clutch
pedal.
If you have trouble shifting in cold weath-
er, reduce the vehicle speed or stop the
vehicle and reshift.
CAUTION
Never move the front drive control
lever if wheels are slipping. Stop the
slipping or spinning before shifting.
To shift from H4º to H2º, simply move
the front drive control lever.
This can be done at any speed. You need
not depress the clutch pedal.
If the indicator light does not go off when
you shift the transfer into H2º, drive
straight ahead while accelerating or decel-
erating, or drive forward or backward in a
short distance. SHIFTING BETWEEN H4º AND L4º
To shift from H4º to L4º,
stop the
vehicle or reduce the vehicle speed to
less than 8 km/h (5 mph). With your foot
off the accelerator pedal, depress the
clutch pedal and move the front drive con-
trol lever.
To shift from L4º to H4º, depress the
clutch pedal and move the front drive con-
trol lever.
This can be done at any speed. SHIFTING BETWEEN H2º AND H4º
To shift from H2º to H4º,
reduce the
vehicle speed to less than 80 km/h (50
mph) and move the front drive control
lever.
If you have trouble shifting in cold weath-
er, reduce the vehicle speed or stop the
vehicle and reshift.
CAUTION
Never move the front drive control
lever if wheels are slipping. Stop the
slipping or spinning before shifting.
To shift from H4º to H2º, simply move
the front drive control lever.
This can be done at any speed.
If the indicator light does not go off when
you shift the transfer into H2º, drive
straight ahead while accelerating or decel-
erating, or drive forward or backward in a
short distance.
SHIFTING BETWEEN H4º AND L4º
To shift between H4º and L4º, stop
the vehicle and put the transmission in
Nº. With the brake pedal depressed,
move the front drive control lever.
(c) Shifting procedure
(lever type with manual
transmission) (c) Shifting procedure
(lever type with automatic
transmission)
ProCarManuals.com
