2000 TOYOTA TUNDRA Owners Manual

TUNDRA (34413U)
89
(a)If parking brake is
off, stop and
check.
(b) Fasten driver 's
seat belt.
(d) Stop and check.
(In the instrument
clusterÐindicator
and buzzer) If the indicator
or buzzer
comes on...
Do this.
(c)
Fasten front
passenger 's seat
belt.
(Right side of the air
conditioning controlsÐ
indicator only)
(h)Take vehicle to
Toyota dealer.Do this.
(type B)
(type A)
If the indicator
or buzzer
comes on...
(g) Fill up tank.
(i)
Close all doors.
(f) Take vehicle to
Toyota dealer.
(e)Stop and check.
(n)Remove key.
Key reminder
buzzer Do this.
If the indicator
or buzzer
comes on...
(l) Stop and check.
(m) Add washer fluid.
(o) Shift the transfer
mode again,
correctly.
Four- wheel
drive system
warning
buzzer
(k)
Shift front drive
control lever out of
Nº.
(j)Take vehicle to
To y o t a
d ealer
immediately.
Service reminder indicators
an d warn in g bu zzers
ProCarManuals.com

TUNDRA (34413U)
90
(a) Brake System Warning Light
This light has the following functions:
Parking brake reminder
If this light is on, make sure the parking
brake is fully released. The light should
go off.
Low brake fluid level warning
If this light comes on and stays on while
you are driving, slow down and pull off
the road. Then stop the vehicle carefully.
Remember that stopping distance and ped-
al effort may be increased. There may be
a problem somewhere in the brake sys-
tem. Check the fluid level of the see-
through reservoir.
To make sure the parking brake has not
caused the warning light to come on,
check to see that the parking brake is
fully released.
If the brake fluid level is low...
At a safe place, test your brakes by start-
ing and stopping.

If you judge that the brakes still work
adequately, drive cautiously to your
nearest dealer or shop for repairs.

If the brakes are not working, have the
vehicle towed in for repairs. (For tow-
ing information, see Part 4.)
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
If the brake fluid level is correct...
Have the warning system checked by your
Toyota dealer.
(b) Driver's Seat Belt Reminder Lightand Buzzer
This light and buzzer remind you to
buckle up the driver's seat belt.
Once the ignition key is turned to ONº or
STARTº, the reminder light flashes and
buzzer sounds if the driver 's seat belt is
not fastened. Unless the driver fastens the
belt, the light keeps flashing and the
buzzer stops after about 4 to 8 seconds.
(c) Front Passenger 's Seat Belt Re- minder Light
This light reminds you to buckle up the
front passenger 's seat belt. Once the ignition key is turned to ONº or
STARTº, the reminder light flashes if a
passenger sits in the front passenger seat
and does not fasten the seat belt. Unless
the front passenger fastens the belt, the
light keeps flashing.
If luggage load is placed on the front
passenger seat, depending on its weight
and how it is placed on the seat, built- in
sensors in the seat cushion may detect
the pressure, causing the reminder light to
keep flashing.
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
ProCarManuals.com

TUNDRA (34413U)
91
(e) Low Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with thewarning light onÐeven for one block.It may ruin the engine.
(f) Malfunction indicator lamp
This lamp comes on in the following
cases.
a. The fuel tank is completely empty. (See
Fuel gaugeº in Chapter 1- 5 for instruc-
tions.)
b. The fuel tank cap is not tightened se-
curely. (See Fuel tank capº in Chapter
1- 2 for instructions.)
c. There is a problem somewhere in your
engine or automatic transmission electrical
system.
If it comes on while you are driving in
case c, have your vehicle checked/re-
paired by your Toyota dealer as soon as
possible.
(g) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual. (h) ABSº Warning Light
This light warns that there is a problem
somewhere in your anti- lock brake sys-
tem.
If the light comes on while you are driv-
ing, have your vehicle checked by your
Toyota dealer as soon as possible.
The light will come on when the ignition
key is turned to the ONº position. After
a few seconds, the light will go off.
When the ABSº warning light is on (and
the brake system warning light is off), the
brake system operates conventionally but
anti- lock brake system is not assisting
brake performance so that the wheels can
lock- up during sudden braking or braking
on slippery road surfaces.
(i) Open Door Warning Light
This light remains on until all the doors
are completely closed.
ProCarManuals.com

TUNDRA (34413U)
92
(j) SRS Warning Light
This light will come on when the igni-
tion key is turned to the ACCº or
ONº position. After about 6 seconds,
the light will go off. This means the
system of the airbag and front seat belt
pretensioners are operating properly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, seat belt pretensioner assemblies,
inflators, warning light, interconnecting wir-
ing and power sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.

The light does not come on when the
ignition key is turned to the ACCº or
ONº position or remains on.

The light comes on or flashes while
driving.(k) Unengaged Parkº Warning Light
(with automatic transmission and
front drive control lever)
This light warns that the transmission
Parkº mechanism is not engaged. If the
front drive control lever is in the Nº posi-
tion while the selector lever is in the Pº
position, the transmission will disengage
and the wheels will not lock.
CAUTION
To restore the park function, shift the
front drive control lever out of Nº,
or the vehicle can move.
(l) Automatic Transmission Fluid Tem- perature Warning Light
This light warns that the automatic trans-
mission fluid temperature is too high.
If this light comes on while you are driv-
ing, slow down and pull off the road. Stop
the vehicle at a safe place and put the
selector lever in Pº. With the engine id-
ling, wait until the light goes off. If the
light goes off, you may start the vehicle
again. If the light does not go off, call a
Toyota dealer or qualified repair shop for
assistance. (m) Low Windshield Washer Fluid Level
Warning Light (with daytime running
light system)
This light warns that the windshield wash-
er fluid level is too low. Add washer fluid
at your earliest opportunity. (For instruc-
tions, see Adding washer fluidº in Chapter
7- 3.)
(n) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver 's door with
the ignition key in the ACCº or LOCKº
position.
(o) Four- wheel drive system warning buzzer
This buzzer reminds you that the transfer
mode is not selected correctly.
If the buzzer sounds when you shift the
transfer from 2WDº to 4HIº, 4LOº to
4HIº, 4HIº to 4LOº, or 4LOº to 2WDº
mode, follow the instructions in Four-
wheel drive systemº in Chapter 1- 6.
ProCarManuals.com

TUNDRA (34413U)
93
CHECKING SERVICE REMINDER INDICA-
TORS (except the low fuel level warning
light and low windshield washer fluid
level warning light)1. Apply the parking brake.
2. Open one of the doors. The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Turn the ignition key to ACCº. The SRS warning light should come on.
It goes off after about 6 seconds.
5. Turn the ignition key to ONº, but do not start the engine.
All the service reminder indicators ex-
cept the open door warning light and
SRS warning light should come on. The
ABSº warning light goes off after a
few seconds.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, either the bulb is burned out or the
circuit is in need of repair. Have it
checked by your Toyota dealer as soon as
possible.
ProCarManuals.com

TUNDRA (34413U)
94
ProCarManuals.com

TUNDRA (34413U)
95
Part 1
OPERATION OF
INSTRUMENTS AND
CONTROLSÐ
Chapter 1- 6
Ignition switch,
Transmission and
Parking brake

Ignition switch with steering lock

Automatic transmission

Manual transmission

Four- wheel drive system

P ar k ing br ak e

Cruise control

Clutch start cancel switchSTARTºÐStarter motor on. The key
will return to the ONº position when
released.
For starting tips, see Part 3.
ONºÐEngine on and all accessories
on.
This is the normal driving position.
ACCºÐAccessories such as the radio
operate, but the engine is off.
If you leave the key in the ACCº or
LOCKº position and open the driver's
door, a buzzer will remind you to remove
the key.
LOCKºÐEngine is off and the steering
wheel is locked. The key can be re-
moved only at this position. You must push in the key to turn the key
from ACCº to the LOCKº position. On
vehicles with an automatic transmission,
the selector lever must be in the Pº posi-
tion before pushing the key.
When starting the engine, the key may
seem stuck at the LOCKº position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
CAUTION
For manual transmission:
Never remove the key when the ve-
hicle is moving, as this will lock the
steering wheel and result in loss of
steering control.
NOTICE
Do not leave the key in the ONº
position if the engine is not running.The battery will discharge and theignition could be damaged.
Ignition switch with steering
lock
ProCarManuals.com

TUNDRA (34413U)
96

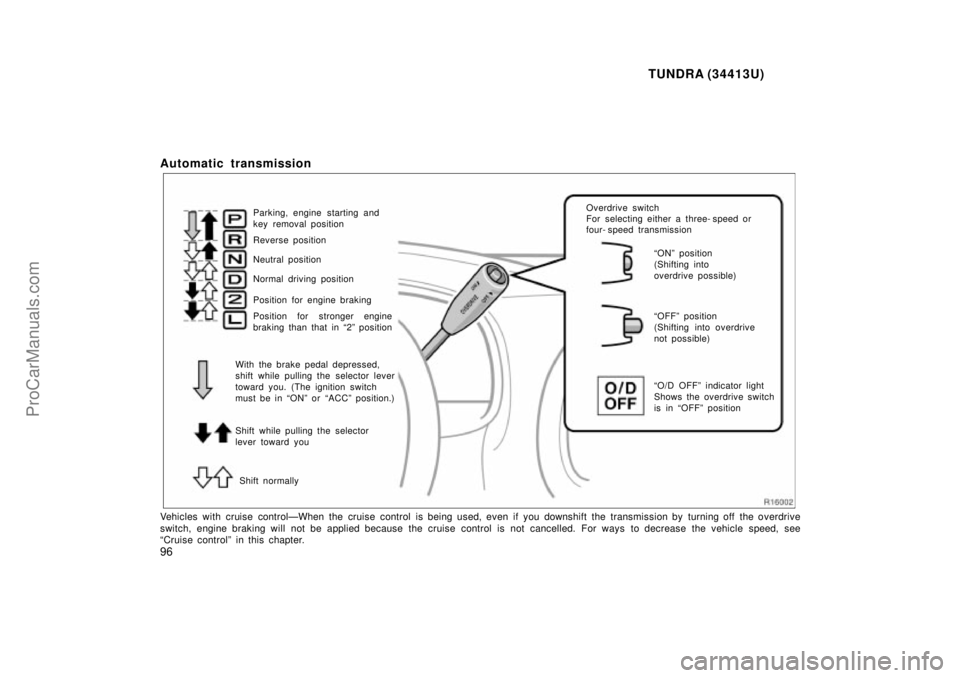

Automatic transmission
Shift while pulling the selector
lever toward you With the brake pedal depressed,
shift while pulling the selector lever
toward you. (The ignition switch
must be in ONº or ACCº position.)Parking, engine starting and
key removal position
Reverse position
Neutral position
Normal driving position
Position for engine braking
Position for stronger engine
braking than that in 2º position
Shift normally Overdrive switch
For selecting either a three- speed or
four- speed transmission
OFFº position
(Shifting into overdrive
not possible) ONº position
(Shifting into
overdrive possible)
O/D OFFº indicator light
Shows the overdrive switch
is in OFFº position
Vehicles with cruise controlÐWhen the cruise control is being used, even if you downshift the transmission by turning off the o verdrive
switch, engine braking will not be applied because the cruise control is not cancelled. For ways to decrease the vehicle speed, see
Cruise controlº in this chapter.
ProCarManuals.com
