2000 TOYOTA TUNDRA Owners Manual

TUNDRA (34413U)
257
Remove the bolts.a: Rear turn signal light
b: Stop and tail and rear side marker light
c: Back- up light
ÐLicense plate lights (type A)
Use a Phillips- head screwdriver.
ÐRear turn signal, stop and
tail and rear side marker, and
back- up lights
ProCarManuals.com

TUNDRA (34413U)
258
ÐLicense plate lights (type B)
ProCarManuals.com

TUNDRA (34413U)
259

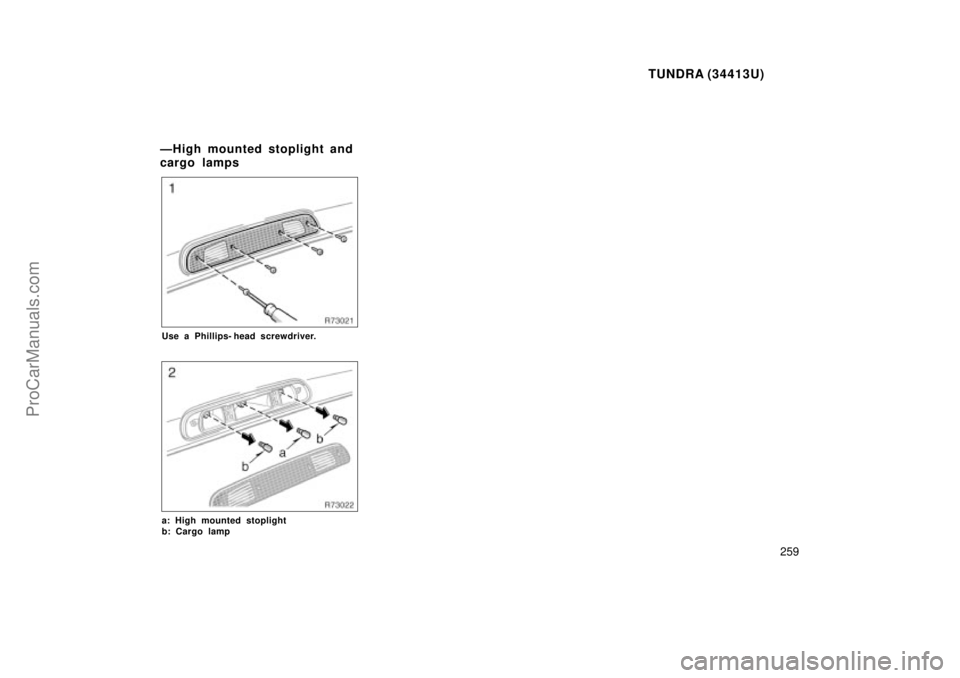

Use a Phillips- head screwdriver.
a: High mounted stoplight
b: Cargo lamp
ÐHigh mounted stoplight and
cargo lamps
ProCarManuals.com

TUNDRA (34413U)
260
ProCarManuals.com

TUNDRA (34413U)
261
Part 8
SPECIFICATIONS

Dimensions

Payload

Engine

Fuel

Service specifications

Ti r es

Fuses
Dimensions
TWO- WHEEL DRIVE MODELS
Standard cab models Access cab models
Overall length mm (in.)
Overall height
* 5mm (in.)
Front tread mm (in.)
Rear tread mm (in.) Overall width mm (in.)
Wheelbase mm (in.)5405 (212.8)
*
1
5525 (217.5)*25525 (217.5)
1910 (75.2)
1940 (76.4)
*3
2015 (79.3)*4
1800 (70.9)*6
1805 (71.1)*7
1810 (71.3)*8
1815 (71.5)*9
3260 (128.3)
1680 (66.1)
1648 (64.9)
1648 (64.9) 1680 (66.1)
3260 (128.3) 1800 (70.9) 1910 (75.2)
*
1: Without rear bumper*2: With rear bumper*3: With wheel arch moulding*4: With over fender*5: Unladen vehicle*6: With 2UZ- FE engine and
without P265 tires
*7: With 5VZ- FE engine and
without P265 tires
*8: With 2UZ- FE engine and
with P265 tires
*9: With 5VZ- FE engine and
with P265 tires
ProCarManuals.com

TUNDRA (34413U)
262
FOUR- WHEEL DRIVE MODELSStandard cab models Access cab models
Overall length mm (in.)
Overall height
* 5mm (in.)
Overall width mm (in.)
5405 (212.8)
*
1
5525 (217.5)*25525 (217.5)
1910 (75.2)
1940 (76.4)
*3
2015 (79.3)*4
1820 (71.7)*6
1825 (71.9)*7
1830 (72.0)*8
1835 (72.2)*9
1815 (71.5) 1910 (75.2)
1940 (76.4)
*3
* 1
: Without rear bumper*2: With rear bumper*3: With wheel arch moulding*4: With over fender*5: Unladen vehicle*6: With 2UZ- FE engine and
without P265 tires
*7: With 5VZ- FE engine and
without P265 tires
Front tread mm (in.)
Rear tread mm (in.)
Wheelbase
mm (in.) 3260 (128.3)
1675 (65.9)
1648 (64.9)
1648 (64.9) 1675 (65.9)
3260 (128.3)
*
8: With 2UZ- FE engine and
with P265 tires
*9: With 5VZ- FE engine and
with P265 tires
ProCarManuals.com

TUNDRA (34413U)
263
Payload*
U.S.A.kg (lb.)
Standard cab
5VZ- FE engineTwo- wheel drive modelsManual transmissionStandard grade773 (1705)
Automatic transmissionStandard grade753 (1661)
Four- wheel drive modelsManual transmissionSR5 grade651 (1436)
Automatic transmissionSR5 grade631 (1392)
2UZ- FE engineFour- wheel drive modelsAutomatic transmissionSR5 grade879 (1938)
Access cab5VZ- FE engineTwo- wheel drive modelsManual transmissionSR5 grade731 (1612)
Automatic transmissionSR5 grade710 (1567)
Limited grade653 (1441)
Four- wheel drive modelsManual transmissionSR5 grade762 (1680)
Automatic transmissionSR5 grade736 (1624)
Limited grade679 (1499)
2UZ- FE engineTwo- wheel drive modelsAutomatic transmissionSR5 grade872 (1924)
Limited grade815 (1798)
Four- wheel drive modelsAutomatic transmissionSR5 grade694 (1532)
Limited grade637 (1406)
ProCarManuals.com

TUNDRA (34413U)
264
Canadakg (lb.)
Standard cab
5VZ- FE engineTwo- wheel drive modelsManual transmissionStandard grade763 (1683)
Automatic transmissionStandard grade743 (1639)
Four- wheel drive modelsManual transmissionStandard grade653 (1440)
Automatic transmissionStandard grade633 (1396)
Access cab5VZ- FE engineTwo- wheel drive modelsAutomatic transmissionSR5 grade700 (1545)
Four- wheel drive modelsManual transmissionSR5 grade746 (1646)
Automatic transmissionSR5 grade726 (1602)
2UZ- FE engineTwo- wheel drive modelsAutomatic transmissionSR5 grade862 (1902)
Four- wheel drive modelsAutomatic transmissionSR5 grade684 (1509)
*: Occupants + luggage
