2000 TOYOTA TUNDRA Owners Manual

TUNDRA (34413U)
65
2. To remove the child restraint system,press the buckle- release button and al-
low the belt to retract.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Anchor bracket
U.S.A.
Anchor brackets
Canada
Ð U sin g a to p st rap
(standard cab models)
ProCarManuals.com

TUNDRA (34413U)
66
Use the anchor bracket on the back panel
to attach the top strap.
TO USE THE ANCHOR BRACKET:1. Remove the passenger head re- straint.2. Lightly push down on the top sur-face of the anchor bracket cover,
then pull it forward to remove.
ProCarManuals.com

TUNDRA (34413U)
67
3. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see ºChild restraintº in this
chapter.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
4. Replace the passenger head re- straint.
Store any removed covers in a safe place
such as the glove box.
Be sure to replace all covers when the
anchor bracket is not in use.Outside position
Center position (Canada only)
Ð U sin g a to p st rap
(access cab models)
ProCarManuals.com

TUNDRA (34413U)
68
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Anchor bracketsRouting devices
U.S.A.
Anchor brackets Routing devices
Canada
Use the routing device on the rear of the
seat back and the anchor bracket on the
side floor to attach the top strap.
ProCarManuals.com

TUNDRA (34413U)
69
TO USE THE ANCHOR BRACKET:
Outside position1. Remove the head restraint.
Routing
device
2. Route the top strap through the routing device as shown in the il-
lustration.
CAUTION
Make sure the top strap is not
twisted.
3. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket on the side floor and tighten
the top strap.
For instructions to install the child re-
straint system, see ºChild restraintº in this
chapter.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
ProCarManuals.com

TUNDRA (34413U)
70

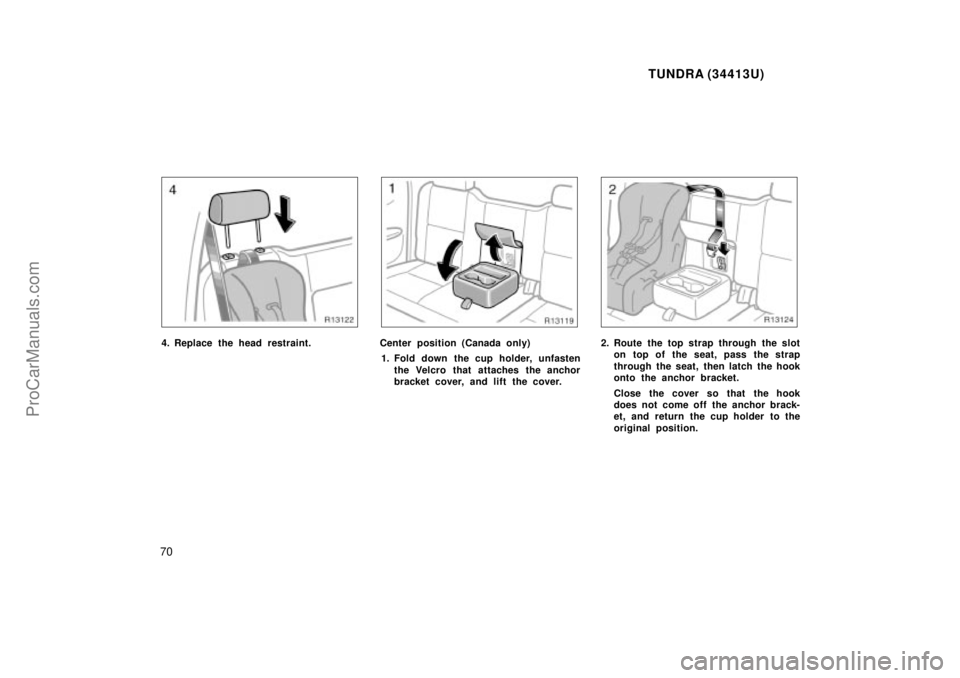

4. Replace the head restraint.Center position (Canada only)
1. Fold down the cup holder, unfasten the Velcro that attaches the anchor
bracket cover, and lift the cover.2. Route the top strap through the sloton top of the seat, pass the strap
through the seat, then latch the hook
onto the anchor bracket.
Close the cover so that the hook
does not come off the anchor brack-
et, and return the cup holder to the
original position.
ProCarManuals.com

TUNDRA (34413U)
71

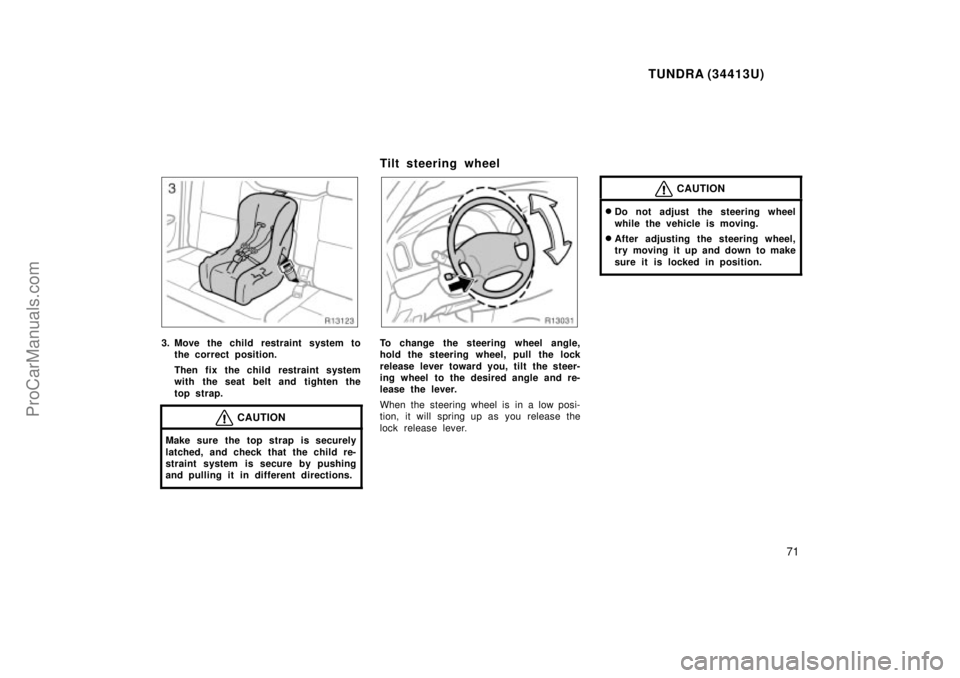

3. Move the child restraint system tothe correct position.
Then fix the child restraint system
with the seat belt and tighten the
top strap.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Tilt steering wheel
To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
lease the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION

Do not adjust the steering wheel
while the vehicle is moving.

After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
ProCarManuals.com

TUNDRA (34413U)
72

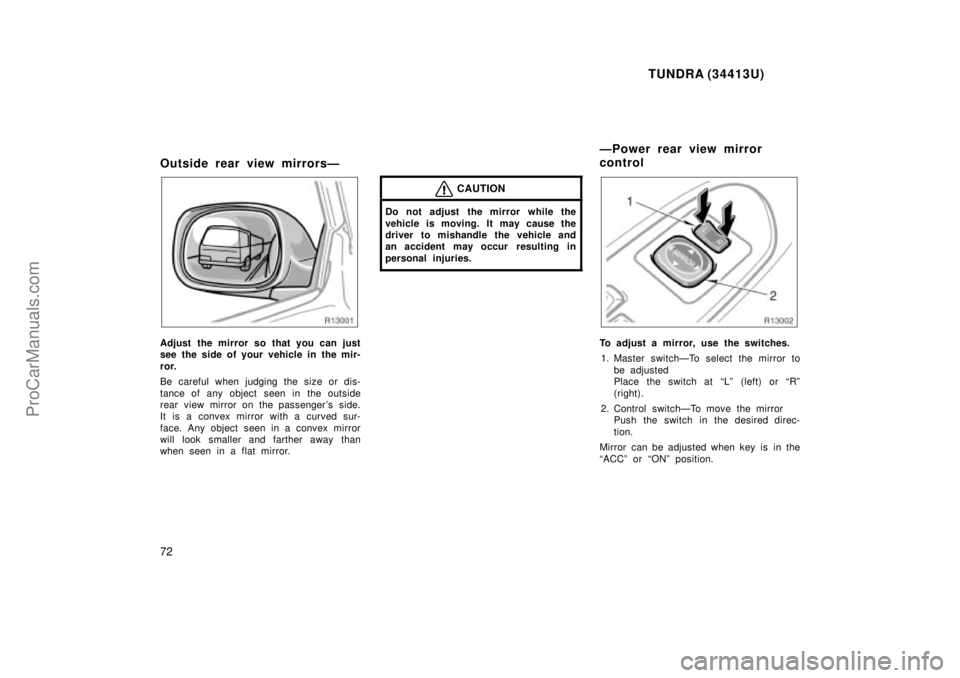

Outside rear view mirrorsÐ
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger 's side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal injuries.
To adjust a mirror, use the switches.1. Master switchÐTo select the mirror to be adjusted
Place the switch at Lº (left) or Rº
(right).
2. Control switchÐTo move the mirror Push the switch in the desired direc-
tion.
Mirror can be adjusted when key is in the
ACCº or ONº position.
ÐPower rear view mirror
control
