TUNDRA (34413U)
32
ÐSeat belt extender
If your seat belt cannot be fastened se-
curely because it is not long enough, a
personalized seat belt extender is avail-
able from your Toyota dealer free of
charge.
Please contact your local Toyota dealer so
that the dealer can order the proper re-
quired length for the extender. Bring the
heaviest coat you expect to wear for prop-
er measurement and selection of length.
Additional ordering information is available
at your Toyota dealer.
CAUTION
When using the seat belt extender,
observe the following. Failure to fol-
low these instructions could result in
less effectiveness of the seat belt re-
straint system in case of vehicle acci-
dent, increasing the chance of per-
sonal injury.

Never use the seat belt extender if
you can fasten the seat belt without
it.

Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, or for
another person or at a different
seating position than the one origi-
nally intended for.
To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the PRESSº signs on
the buckle- release buttons of the ex-
tender and the seat belt are both facing
outward as shown.
You will hear a click when the tab locks
into the buckle.
When releasing the seat belt, press on
the buckle- release button on the extender,
not on the seat belt. This helps prevent
damage to the vehicle interior and extend-
er itself.
When not in use, remove the extender
and store in the vehicle for future use.
ProCarManuals.com

TUNDRA (34413U)
102
Nº (neutral position): Lever at Nº
No power is delivered to the wheels. The
vehicle must be stopped.
L4º (low speed position, four- wheel
drive): Lever at L4º
Use this for maximum power and traction.
Use L4º for climbing or descending steep
hills, off- road driving, and hard pulling in
sand, mud or deep snow.
The 4WDº (four- wheel drive) indicator
light comes on when the H4º, Nº or L4º
mode is selected.
See (c) Shifting procedure (lever type)º

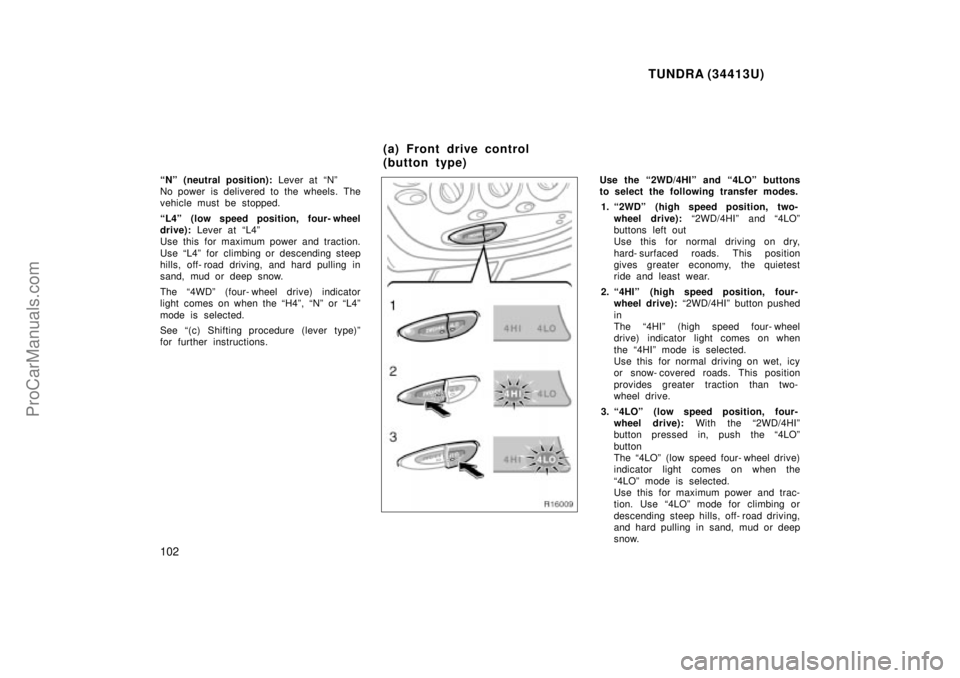

for further instructions.Use the 2WD/4HIº and 4LOº buttons
to select the following transfer modes.
1. 2WDº (high speed position, two- wheel drive): 2WD/4HIº and 4LOº
buttons left out
Use this for normal driving on dry,
hard- surfaced roads. This position
gives greater economy, the quietest
ride and least wear.
2. 4HIº (high speed position, four- wheel drive): 2WD/4HIº button pushed
in
The 4HIº (high speed four- wheel
drive) indicator light comes on when
the 4HIº mode is selected.
Use this for normal driving on wet, icy
or snow- covered roads. This position
provides greater traction than two-
wheel drive.
3. 4LOº (low speed position, four- wheel drive): With the 2WD/4HIº
button pressed in, push the 4LOº
button
The 4LOº (low speed four- wheel drive)
indicator light comes on when the
4LOº mode is selected.
Use this for maximum power and trac-
tion. Use 4LOº mode for climbing or
descending steep h ills, off- road driving,
and hard pulling in s and, mud or deep
snow.
(a) Front drive control
(button type)
ProCarManuals.com

TUNDRA (34413U)
11 4
Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.
ÐUsing your audio system:
controls and features

Ty p e 1
ProCarManuals.com

TUNDRA (34413U)
11 5
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see TUNEº knob or
SEEKº button). Push and hold down the
button until you hear a beepÐthis will set
the station to the button. The button num-
ber will appear on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button (The display
will show AMº, FM1º or FM2º when you
push AMº FM1´2º).
(Program)
Push
º to select the other side of a
cassette tape. The display indicates which
side is currently selected (
º indicates
top side,
º indicates bottom side).
Auto- reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fast forward buttons)
Cassette Player
Push the fast forward button to fast for-
ward a cassette tape. FFº will appear on
the display. Push the reverse button to
rewind a tape. REWº will appear on the
display.
To stop the tape while it is fast forward-
ing, push the fast forward button or
TAPEº; to stop the tape while it is re-
winding, push the reverse button or
TAPEº.
If a tape side rewinds completely, the cas-
sette player will stop and then play that
same side. If a tape fast forwards com-
pletely, the cassette player will play the
other side of the tape, using the auto- re-
verse feature.
Compact Disc Player
If you want to fast forward or reverse
through a compact disc track, push and
hold in the fast forward or reverse button.
When you release the button, the compact
disc player will resume playing. AM
Push AMº to turn on the radio and select
the AM band. AMº will appear on the
display.
If the audio system is off, you can turn
on the radio by pushing AMº. Also, push
AMº to switch from cassette or compact
disc operation to radio operation.
CTRL / MODE (Audio control and mode
adjustment)
Manual tone adjustment functionÐ
This knob is used to adjust the tone
manually.
For low- pitch tone adjustment, push
CTRL / MODEº repeatedly until BASº
appears on the display. Then turn the
knob to suit your preference.
The display will show the range from
BAS -5º to BAS 5º.
For high- pitch tone adjustment, push
CTRL / MODEº repeatedly until TREº
appears on the display. Then turn the
knob to suit your preference.
The display will show the range from
TRE -5º to TRE 5º.
ProCarManuals.com

TUNDRA (34413U)
120
Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.


Ty p e 2
ProCarManuals.com

TUNDRA (34413U)
121
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see TUNEº knob or
SEEKº button). Push and hold down the
button until you hear a beepÐthis will set
the station to the button. The button num-
ber will appear on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button (The display
will show AMº, FM1º or FM2º when you
push AMº FM1´2º).
(Eject button)
Push the cassette tape eject button to
eject a cassette. Push the compact disc
eject button to eject a compact disc.
After you turn the ignition to LOCKº, you
will be able to eject a cassette or disc but
you will not be able to reinsert it.
(Program)
Push
º to select the other side of a
cassette tape. The display indicates which
side is currently selected (
º indicates
top side,
º indicates bottom side).
Auto- reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fast forward buttons)
Cassette Player
Push the fast forward button to fast for-
ward a cassette tape. FFº will appear on
the display. Push the reverse button to
rewind a tape. REWº will appear on the
display.
To stop the tape while it is fast forward-
ing, push the fast forward button or
TAPEº; to stop the tape while it is re-
winding, push the reverse button or
TAPEº.
If a tape side rewinds completely, the cas-
sette player will stop and then play that
same side. If a tape fast forwards com-
pletely, the cassette player will play the
other side of the tape, using the auto- re-
verse feature. Compact Disc Player
If you want to fast forward or reverse
through a compact disc track, push and
hold in the fast forward or reverse button.
When you release the button, the compact
disc player will resume playing.
AM
Push AMº to turn on the radio and select
the AM band. AMº will appear on the
display.
If the audio system is off, you can turn
on the radio by pushing AMº. Also, push
AMº to switch from cassette or compact
disc operation to radio operation.
CTRL / MODE (Audio control and mode
adjustment)
Manual tone adjustment functionÐ
This knob is used to adjust the tone
manually.
For low- pitch tone adjustment, push
CTRL / MODEº repeatedly until BASº
appears on the display. Then turn the
knob to suit your preference.
The display will show the range from
BAS -5º to BAS 5º.
ProCarManuals.com

TUNDRA (34413U)
126
Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.


Ty p e 3
ProCarManuals.com

TUNDRA (34413U)
127
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see TUNEº knob or
SEEKº button). Push and hold down the
button until you hear a beepÐthis will set
the station to the button. The button num-
ber will appear on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button (The display
will show AMº, FM1º or FM2º when you
push AMº FM1´2º).
(Eject button)
Push the cassette tape eject button to
eject a cassette. Push the compact disc
eject button to eject a compact disc.
After you turn the ignition to LOCKº, you
will be able to eject a cassette or disc but
you will not be able to reinsert it.
(Program)
Push
º to select the other side of a
cassette tape. The display indicates which
side is currently selected (
º indicates
top side,
º indicates bottom side).
Auto- reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fast forward buttons)
Cassette Player
Push the fast forward button to fast for-
ward a cassette tape. FFº will appear on
the display. Push the reverse button to
rewind a tape. REWº will appear on the
display.
To stop the tape while it is fast forward-
ing, push the fast forward button or
TAPEº; to stop the tape while it is re-
winding, push the reverse button or
TAPEº. If a tape side rewinds completely, the cas-
sette player will stop and then play that
same side. If a tape fast forwards com-
pletely, the cassette player will play the
other side of the tape, using the auto- re-
verse feature.
Compact Disc Player
If you want to fast forward or reverse
through a compact disc track, push and
hold in the fast forward or reverse button.
When you release the button, the compact
disc player will resume playing.
AM
Push AMº to turn on the radio and select
the AM band. AMº will appear on the
display.
If the audio system is off, you can turn
on the radio by pushing AMº. Also, push
AMº to switch from cassette or compact
disc operation to radio operation.
ProCarManuals.com
