2000 BMW MOTORRAD C1 Rider's Manual (in English)

111
7
General information and controls

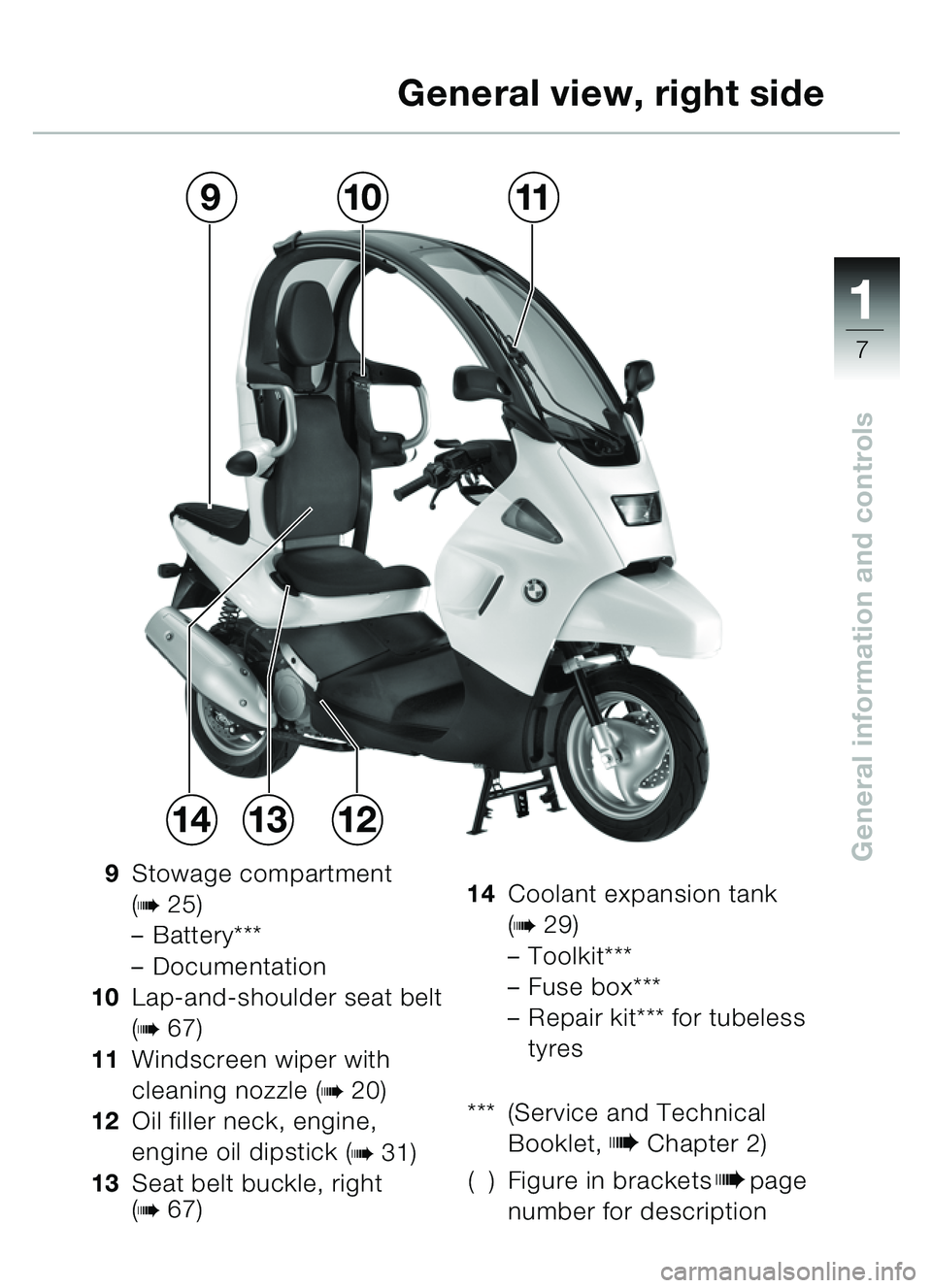

General view, right side
9Stowage compartment
(
b25)
– Battery***
– Documentation
10 Lap-and-shoulder seat belt
(
b67)
11 Windscreen wiper with
cleaning nozzle (
b20)
12 Oil filler neck, engine,
engine oil dipstick (
b31)
13 Seat belt buckle, right
(
b67) 14
Coolant expansion tank
(
b29)
– Toolkit***
– Fuse box***
– Repair kit*** for tubeless
tyres
*** (Service and Technical Booklet, b Chapter 2)
( ) Figure in brackets bpage
number for description
131412
10119


11
8
General information and controls
d Warning:
If the front crash element is
damaged, have the damage
assessed by a specialist
workshop, preferably an au-
thorised BMW dealer - safety-
relevant component.
Avoid catching/trapping the
seat belt strap.
1 Front crash element
2 Roof frame
3 Handlebar impact cushion
4 Main frame
5 Seat belts (
b64-69)
d Warning:
Have the side crash elements
replaced, preferably by an au-
thorised BMW dealer, if they
are cracked, broken off or
damaged in any other way -
safety-relevant components.
6 Right shoulder bar with side
crash element
7 Head rest
8 Roof frame padding
9 Left shoulder bar with side
crash element
( ) Figure in bracketsbpage number for
description
Safety elements
129534768


111
9
General information and controls
1Switch array (b16)
2 Brake fluid reservoir for rear
brake (
b36)
3 Central release for seat
belts (
b69)
4 Lever B of easy-lift mecha-
nism (
b56)
5 Instrument cluster (
b10)
6 Lever A of easy-lift mecha-
nism (
b56) 7
Brake fluid reservoir, front
brake (
b36)
8 Ignition switch and steering
lock (
b14)
9 LED for alarm system*
(
bRider's Manual, optional
accessories)
* Optional extra
( ) Figure in brackets
bpage number for
description
Cockpit
567824319


11
10
General information and controls
1Speedometer
2 Trip meter/odometer (
b12)
3 Telltale and warning lights
(
b11)
4 Fuel gauge
5 Adjusting button (
b13)
– Clock - minutes
6 Clock 7
Adjusting button for:
–Trip meter/odometer
(
b12)
– Resetting the trip meter
(
b12)
– Clock - hours (
b13)
( ) Figure in bracketsbpage number for
description
Instrument panel
657
3142


111
11
General information and controls
13476
9
5
8
2
1Flashing turn indicator
repeater, left, green
s
2 “Seat belt ” telltale light, red
1 (b66)
3 Telltale light, high-beam
headlight, blue
q
4 Warning light, engine oil
pressure, red
p
5Warning light, coolant
temperature, red
\b (b29)
– lights up for approx. 5 sec
after ignition is switched
on 6
Warning light, fuel
level/approx. 2.5 litres
(4.4 Imp. pints) remaining in
tank, orange
m (b32)
7 Flashing turn indicator
repeater, right, green
t
8 Warning lights, ABS check,
red
l (b78)
9 Warning lights, ABS check,
red
l (b78)
( ) Figure in bracketsbpage number for
description
Telltale and warning lights


11
12
General information and controls
Changing between
odometer/trip meter
Briefly press button 1.
– Display 2 changes when the
button is pressed from:
– ODO = odometer reading
to
– TRIP = trip meter reading
Resetting trip meter
reading
Set the display to “TRIP ”
 Press button 3 for at least 1
second.
\f Note:
Disconnecting the battery al-
ways resets the trip meter to
zero.
The odometer reading remains
in memory.
Odometer
213


111
13

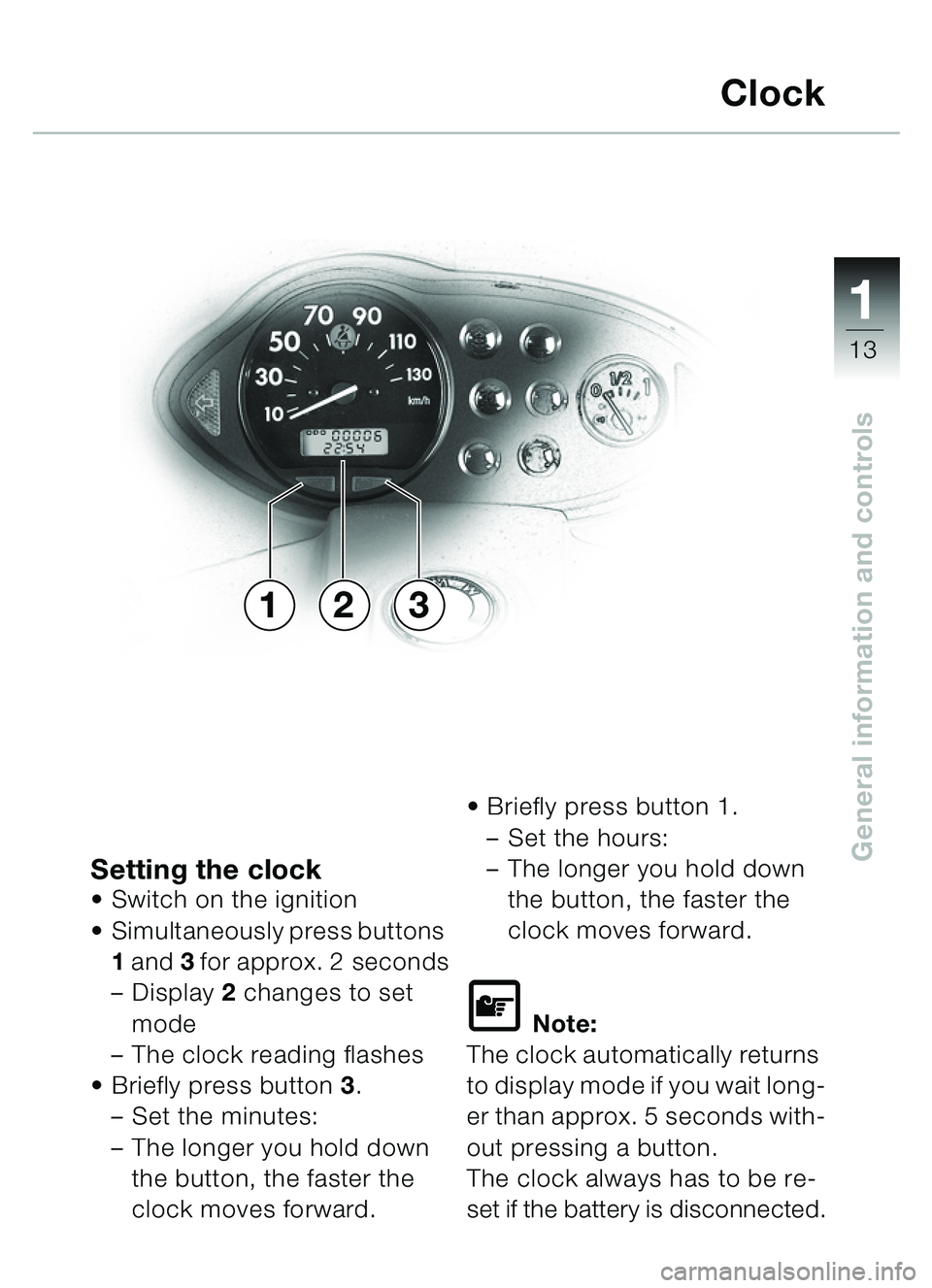

General information and controlsSetting the clockSwitch on the ignition
 Simultaneously press buttons
1 and 3 for approx. 2 seconds
– Display 2 changes to set
mode
– The clock reading flashes
 Briefly press button 3.
– Set the minutes:
– The longer you hold down
the button, the faster the
clock moves forward.
Briefly press button 1.
– Set the hours:
– The longer you hold down
the button, the faster the
clock moves forward.
\f Note:
The clock automatically returns
to display mode if you wait long-
er than approx. 5 seconds with-
out pressing a button.
The clock always has to be re-
set if the battery is disconnected.
Clock
231


11
14
General information and controls

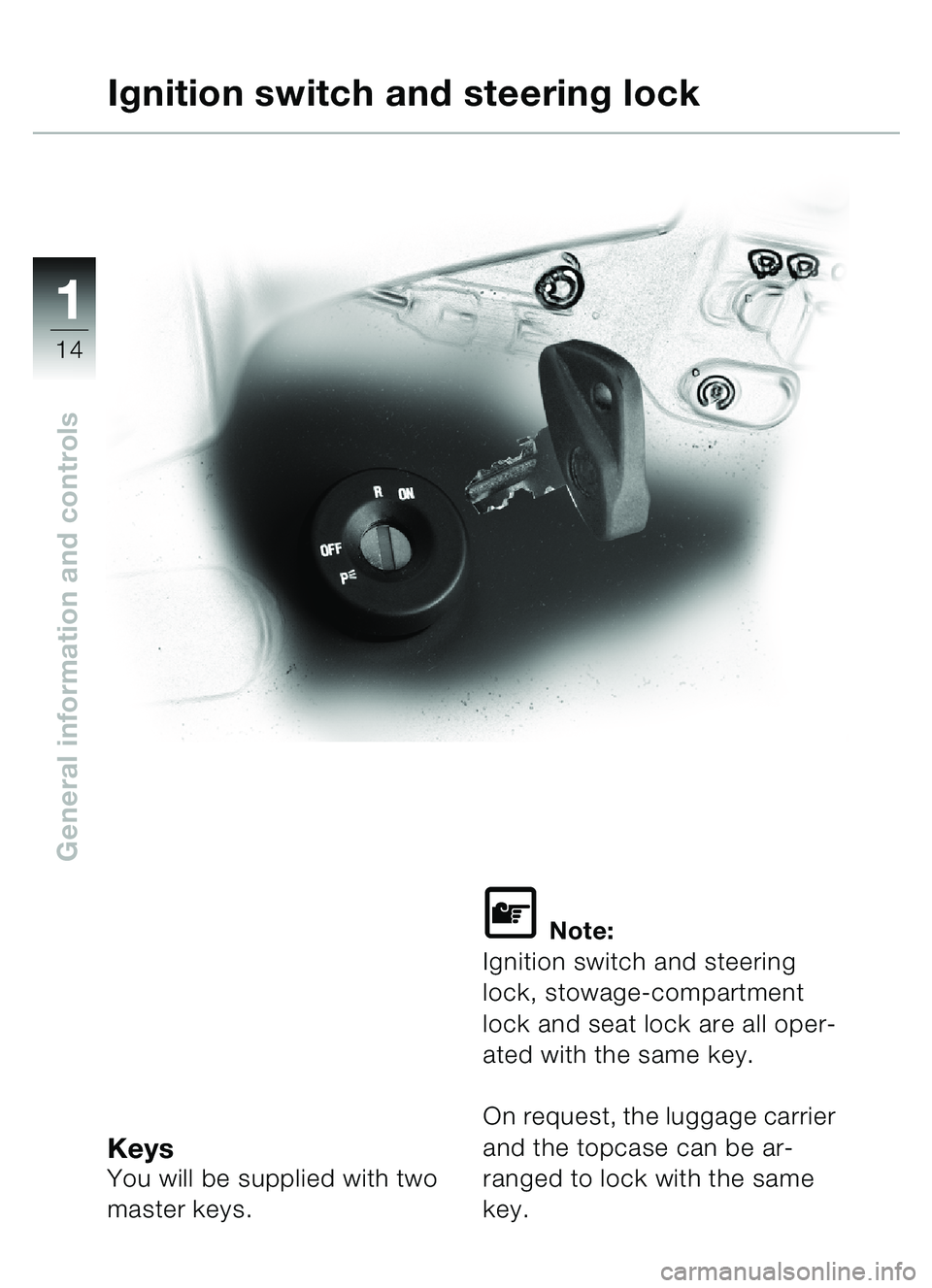

KeysYou will be supplied with two
master keys.
\f Note:
Ignition switch and steering
lock, stowage-compartment
lock and seat lock are all oper-
ated with the same key.
On request, the luggage carrier
and the topcase can be ar-
ranged to lock with the same
key.
Ignition switch and steering lock
