1998 JAGUAR X308 lower

6.
Remove stan ds and lower veh
icl
e. Refer to Section 100-02.

7. CAUTI
O
N: Remove brake flui
d spillage immediately from
paint work, with clean water.
Check brake fluid level.
Check brak e flu
id level is
at the maximum mark.
Remo
ve cloth.
Fi
t ca
p.
8.
Re
move paint work protection
covers, and close engine
compartment.
9. Start the engine and repeatedly press the brake pedal until
brake pressure is evident.

Install brake pads.
1
. Install pads.
2. Position anti-rattle spring.
3. Install pins - make sure pin collets are fully engaged
into caliper.
4. Repeat above procedure to install opposite side brake pads.
5. Fit wheels.
For additional information, refer to: Wheel and Tire
(20
4-04
Wheels and Tires, Remo val and Installation).
6. Remove stands an d lower vehicle.
For additional information, refer to: Using the Workshop Jack

(10
0-02 Jacking and Lifting, General Procedures).

7. CAUTI
ON: Remove brake flui
d spillage immediately from
paint work, with clean water.
Check brake fluid level.
Check brak
e fluid level is
at the maximum mark.
Re
move cloth.
Fi

t cap.
8.
R
emove paint work protection
covers, and close engine
compartment.
9. Start the engine and repeatedly press the brake pedal until
brake pressure is evident.

means of a manual adjustment
mechanism
at each set of shoes. Refer to General Procedur es in section 206-05.
If the vehicle is driven above 5 km/h with the parking brake applied, a warning lamp and text message will appear on the
message center. The message clears when the brake is released or the speed drops below 3 km/h.
Parking Brake Shoe Arrangement

The adjuster mech
anism enables manual
adjustment of the brake shoes.
Retai
ning pins keep the shoes in contact with the dust shield.
The brake

shoes locate into the expander lever and the adjuster mechanism.
R
e
turn springs retr
act the brake shoes when the parking brake is released.
Th
e expander lever mechanism moves the brake shoes outwar
ds, in contact with the brake drum when the parking
brake is applied.


It e
m
Par
t
Number
De
scr
iption
1—Adjust
er Me
chanism
2—R
e
taining Pins
3—Brake Sh
oe
s
4—Upper
Return
Spring
5—Lower Return Spring
6—Expander

Lever Mechanism

Parking Brake and Ac
tuation - Pa
rking Brake Cable Adjustment
Gen
eral Procedures

1.
Raise rear of vehicle and support on stands. See section 100-
02.
2. Make sure gear selector is in neutral position.

3. Adjust parkin
g brake cable.
R

otate adjusting nut, until
the parking brake can be
applied by raising the parking brake lever 3 to 5 clicks.
4. CAUTION: Make sure that th e rear wheels rotate freely
when the parking brake lever is released.
Remove stands an d lower vehicle.

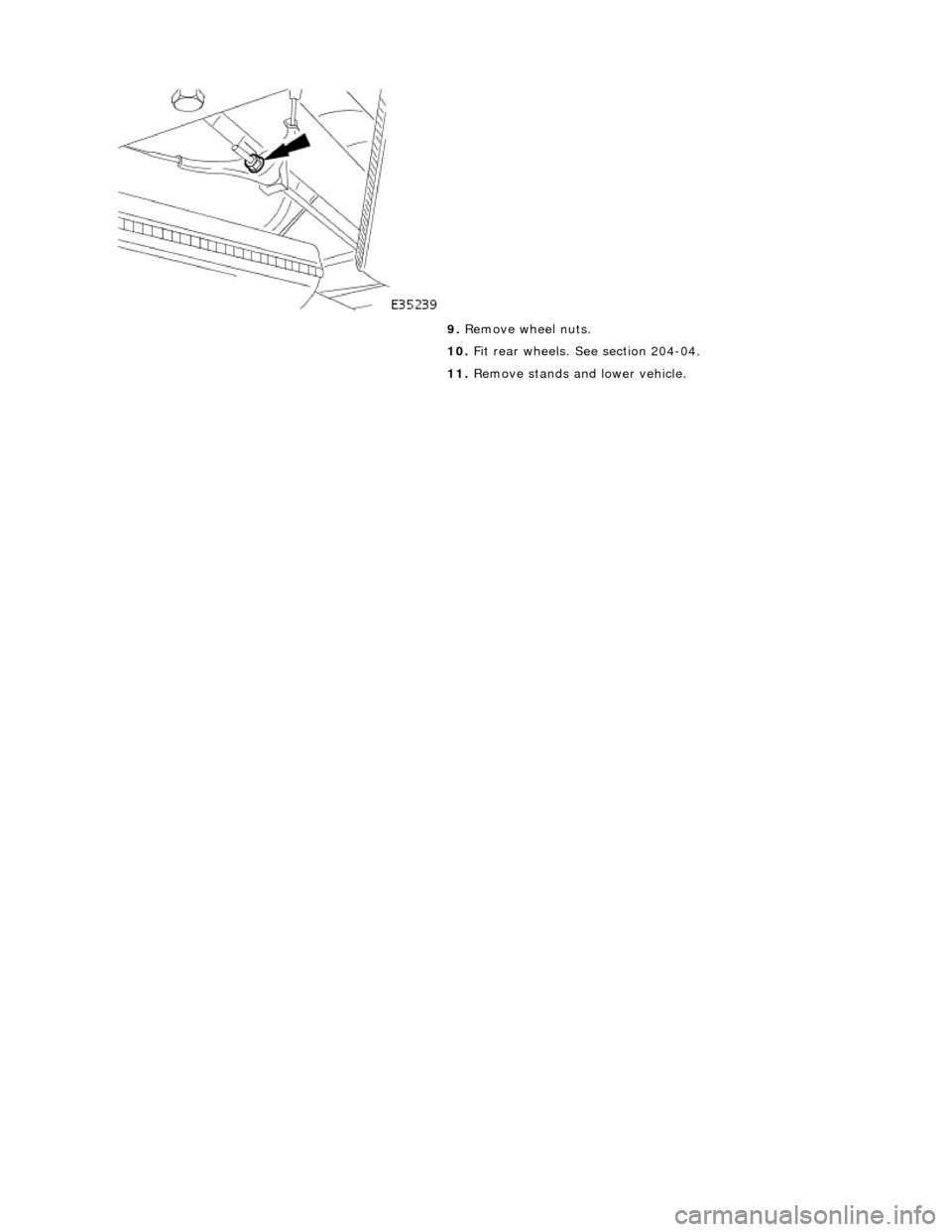

9.
Re
move wheel nuts.
10. Fit rear wheels. See section 204-04.
11. Remove stands an d lower vehicle.

Parking Brake and Act
uation - Parking Brake Control Shroud
Re
moval and Installation
Remov

al
Installation

1.
Position ha
ndbrake lever fully up.
2. Remove trim from handbrake lever.
1. Release press stud at to p of handbrake lever trim.
2. Ease lower moulding away from boss at base of lever and slide trim upwards.
1. Slide trim over handbrake lever and position lower moulding
over boss.
2. Fasten press stud at top of trim.
3. Check that 'J' gate selector is in position P.
4. Lower handbrake lever, checki ng for freedom of movement.
5. Pull handbrake lever fully up.

I
nstallation

1
. Remove upper return spring.
2. Remove lower return spring.
9. Remove brake dust and clean components, see WARNING
above.
10. Repeat procedure to remove pa rking brake shoes on opposite
side of vehicle.

1. I
nstall brake shoes to vehicle.
Install brake shoes to parkin
g brake lever-me
chanism in
the arrangement shown.

2. N
OTE: Make sure retaining pin is seated correctly in backing
plate.
Install rear shoe retaining pin.
Align hu
b access hole.
Inst

all retaining pin.

3. Inst
all adjuster assembly.
Lubricate adjuster

mechanism
with appropriate grease.
Move
front shoe forwards.
Inst

all adjuster assembly.
4. NOTE: Make sure retaining pin is seated correctly in backing

plate.
Install front
shoe
retaining pin.
Align hu
b acc
ess hole.
Inst
al
l retaining pin.
5. Make sure brake shoes are seat ed correctly in adjuster and
lever mechanism.
6. Repeat procedure to install parking brake shoes on opposite
side of vehicle.
7. Install both rear br ake discs. Refer to operation 70.10.13.
8. Set parking brake. Refer to operation 70.35.37.
9. Fit rear wheels. See section 204-04.
10. Remove stands an d lower vehicle.
