1998 JAGUAR X308 lower

6. Remove both mounting brac kets from the suspension
subframe.
1. Remove bush center bolt from bracket.
2. Remove bolts securi ng bracket to body.
Remove bracket.
Following the same procedure, remove bracket on
opposite side.
7. To permit access, lower jack approximately 25 mm.

8. Remove and retain spacer from top of each bush.

9. Remove bolts securing link assemblies to suspension subframe.
1. Remove bolt.
2. Ensure spacer remain s captive in bracket.
Following the same procedure, remove bolt from opposite
side of subframe.
10. With assistance to support su bframe, remove the subframe
center to differential casing bolts.

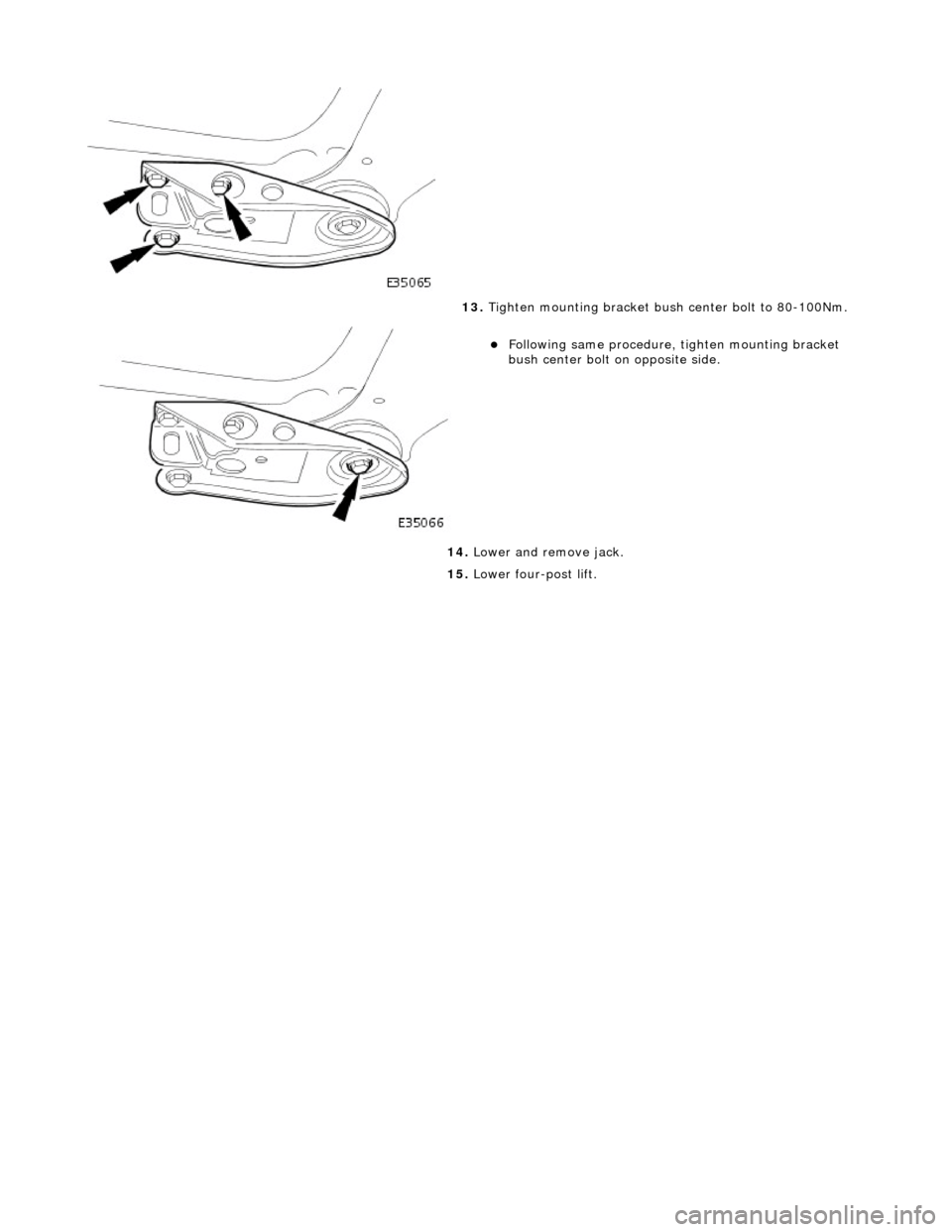

13. Tighten mounting bracket bush center bolt to 80-100Nm.
Following same procedure, tighten mounting bracket
bush center bolt on opposite side.
14. Lower and remove jack.
15. Lower four-post lift.
