1998 FORD WINDSTAR Owners Manual

56
*
[AS21050(ALL)08/95]
Rear Seat Radio Controls
*
[AS21055(ALL)08/95]
Using the Rear Seat Radio Controls
[AS21060(ALL)08/96]
Rear seat radio controls are standard equipment on all models
with an overhead console.
*
[AS21065(ALL)08/96]
The rear seat radio controls are located at the rear of the
overhead console and the headphone jack is behind the driver
on the left side of the vehicle. These controls duplicate several
radio functions of the radio and allow the use of headphones in
the vehicle.
[AS21068(ALL)08/96]
7-1/2 pica art:0060676-D
Rear Seat Radio Controls
*
[AS21070(ALL)06/95]
How to turn the rear seat radio controls on and off
[AS21075(ALL)04/96]
Press memory preset buttons ª1º and ª3º simultaneously on the
face of your radio to turn the rear seat radio controls on. A
headphones symbol (j) will appear in the display when the
rear seat controls are on. Press ª1º and ª3º simultaneously
again to turn rear seat radio controls off.
*
[AS21080(ALL)03/96]
How to adjust the volume
*
[AS21085(ALL)12/93]
Press the right (+) side of the ªVOLUMEº rocker switch to
increase volume, and push the left (-) side to decrease the
volume of the rear speakers.
[AS21090(ALL)09/95]
NOTE: Rear seat control volume can be set no higher than
current radio setting unless speakers are turned off.
See note underHow to turn speakers on and off.
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

Electronic Sound Systems
57
*
[AS21095(ALL)06/95]
Setting the AM or FM frequency band
*
[AS21100(ALL)06/95]
Push the ªBANDº button to change the frequency band.
*
[AS21105(ALL)06/95]
Using the ªMEMORYº button
*
[AS21110(ALL)06/95]
Push the ªMEMORYº button to access the station you have set
into memory button 1 on the face of the radio. Successively
pushing this button will access, numerically, all stations set into
the Station Memory Preset buttons (1 through 5).
*
[AS21115(ALL)06/95]
How to turn the speakers on and off
*
[AS21120(ALL)06/95]
When the rear seat controls are on, push the ªSPKRS ON-OFFº
button to turn all speakers off. Push again to turn all speakers
on.
[AS21125(ALL)04/96]
NOTE: Turning the ignition off, then on again will not turn
the speakers back on, if previously turned off by the
ªSPKRS ON-OFFº button on the rear seat controls.
*
[AS21130(ALL)06/95]
Using the ªSEEKº function
[AS21135(ALL)04/96]
Press the right (
a) side of the ªSEEKº rocker switch to seek to
the next radio station. Press the left (
b) side of the ªSEEKº
rocker switch to seek to the previous radio station.
[AS21140(ALL)08/96]
NOTE: When using the rear seat controls with a Premium
Audio System, the ªSEEKº function on the rear seat
controls will also function with cassettes, seeking the
next (ªSEEK
aº) or previous (ªSEEK
bº) selection on
the tape.
*
[AS21145(ALL)06/95]
Using headphones with the rear seat controls
*
[AS21150(ALL)10/95]
Two 3.5 mm headphone jacks have been provided on the rear
seat controls. Plug headphone(s) into the provided jack(s) to
operate headphones.
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

58
[AS21200(ALL)09/94]
33-1/2 pica
art:0060677-A

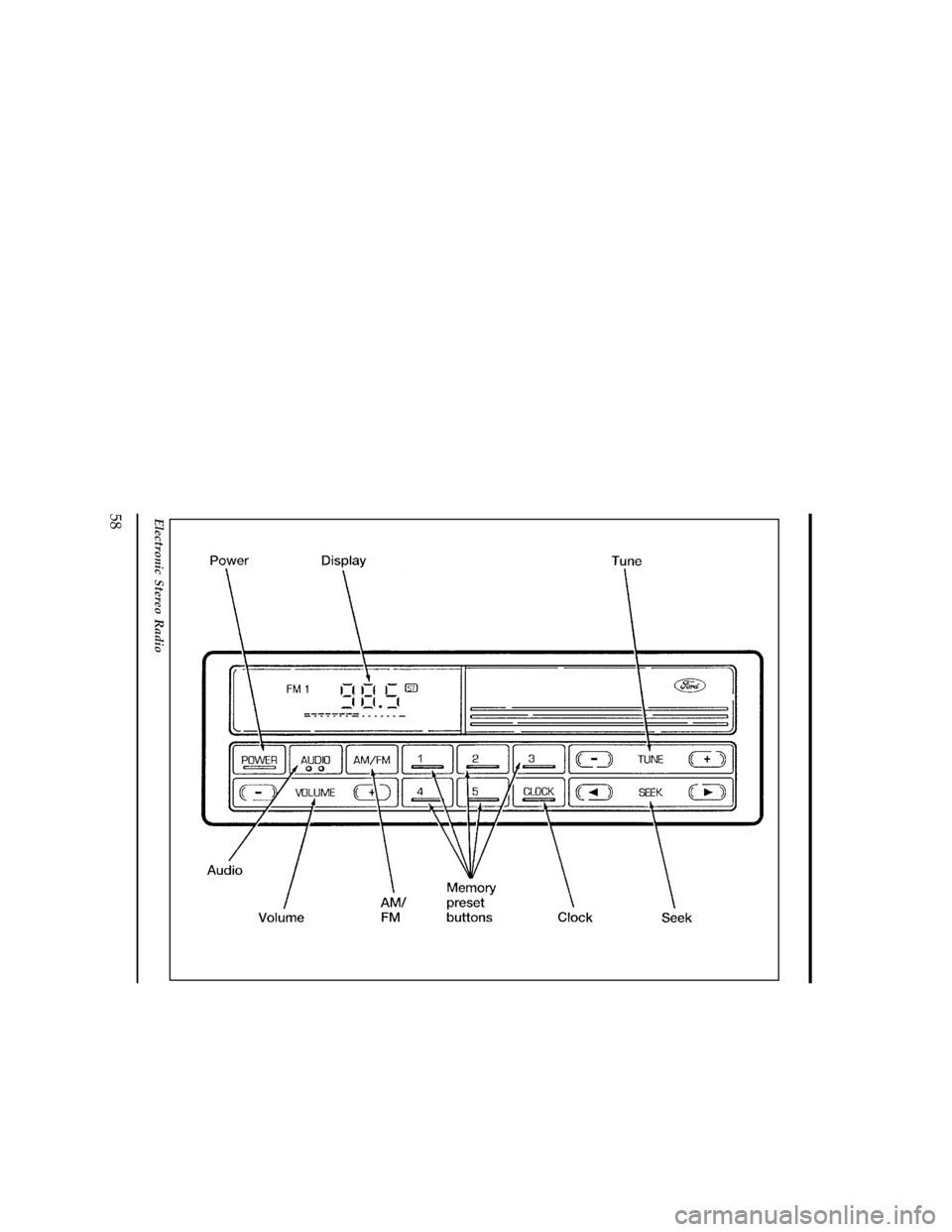

Electronic Stereo Radio
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

Electronic Sound Systems
59
[AS21250(ALL)09/94]
33-1/2 pica
art:0060678-A

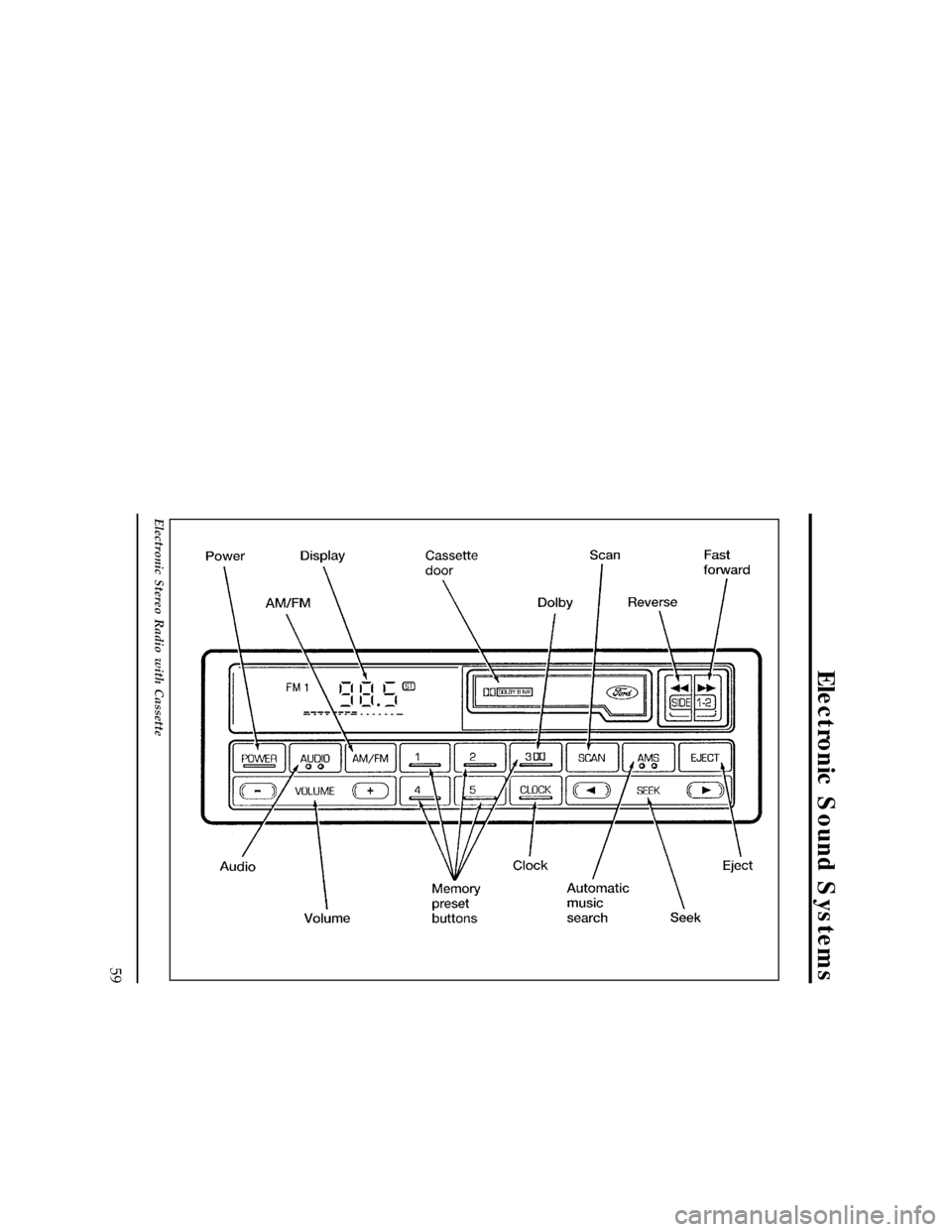

Electronic Stereo Radio with Cassette
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

60
%*
[AS21300(ALL)09/95]
Electronic Stereo and Stereo Cassette
Radios
*
[AS21400(ALL)03/96]
Using the Controls on Your New Radio
*
[AS21500(ALL)08/95]
How to turn the radio on and adjust the volume
*
[AS21701(ALL)10/95]
Press the ªPOWERº button to turn the radio on. Press it again
to turn it off.
*
[AS21950(ALL)02/96]
Press the right (+) side of the ªVOLUMEº button to increase the
volume. Press the left (s) side of the button to decrease the
volume. Illuminated bars in the display show the relative
volume level.
*
[AS21975(ALL)02/96]
NOTE: If the volume level is set above a certain listening
level when the ignition switch is turned off, when the
ignition switch is turned back on, the volume will
come back to a ªnominalº listening level. However, if
the radio power is turned off, the volume will remain
in the position it was set at when radio power was
switched off.
*
[AS22100(ALL)03/96]
Selecting the AM or FM frequency band
*
[AS22225(ALL)02/96]
Push the ªAM/FMº button to select the desired frequency band.
Pushing the button more than once will alternate between AM,
FM1 and FM2. These functions are used with the station
memory buttons described underHow to tune radio stations.
*
[AS22300(ALL)02/96]
How to tune radio stations (Stereo Radio)
*
[AS22400(ALL)02/96]
There are three ways for you to tune in to a particular station.
You can manually locate the station by using the ªTUNEº
button, ªSEEKº the station or select the station by using the
memory preset buttons, which you can set to any desired
frequency.
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

Electronic Sound Systems
61
%*
[AS22410(ALL)02/96]
How to tune radio stations (Stereo Cassette Radio)
*
[AS22420(ALL)06/96]
There are four ways for you to tune in to a particular station.
You can manually locate the station by using Automatic Music
Search (ªAMSº), ªSEEKº the station, ªSCANº to the station or
select the station by using the memory buttons, which you can
set to any desired frequency.
*
[AS22450(ALL)03/96]
n
Using the ªTUNEº function
*
[AS22700(ALL)03/96]
Manual tuning adjusts your radio to any allowable broadcast
frequency, whether or not a station is present on that
frequency. (SeeAll About Radio Frequenciesin this section.)
*
[AS22730(ALL)02/96]
n
Using the ªAMSº function to manually tune your radio
(Stereo Cassette Radio)
*
[AS22740(ALL)02/96]
You can change the frequency up or down one increment at
a time by first pressing the ªAMSº button (display shows
ªTUNEº) then within approximately five seconds pressing
and releasing either the right
aor left
bside of the
ªSEEKº button. To change frequencies quickly, press and
hold downeither the right or left side of the ªSEEKº button.
*
[AS22750(ALL)03/96]
Manual tuning adjusts your radio to any allowable broadcast
frequency, whether or not a station is present on that
frequency. (SeeAll About Radio Frequenciesin this section.)
*
[AS22800(ALL)04/96]
n
Using the ªSEEKº function
[AS22900(ALL)07/96]
This feature on your radio allows you to automatically select
listenable stations up or down the frequency band. Press the
right
aside of the ªSEEKº button to select the next
listenable station up the frequency band. Press the left
b
side of the button to select the next listenable station down
the frequency band. By holding the button down, listenable
stations can be passed over to reach the desired station.
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

62
*
[AS23160(ALL)02/96]
n
Using the ªSCANº function (Stereo Cassette Radio)
*
[AS23170(ALL)06/95]
Press the ªSCANº button to enter the scan mode. The radio
will begin scanning up the frequency band, stopping on each
listenable station for approximately a five-second sampling.
This continues until you press the ªSCANº button a second
time. The display flashes ªAMº or ªFM.º
*
[AS23200(ALL)03/96]
n
Setting the station MEMORY PRESET buttons
*
[AS23325(ALL)02/96]
Your radio is equipped with 5 station memory buttons.
These buttons can be used to select up to 5 preset AM
stations and 10 preset FM stations (5 in FM1 and 5 in FM2).
*
[AS23400(ALL)08/95]
Follow the easy steps below to set these buttons to the desired
frequencies:
*
[AS23500(ALL)06/96]1.
Select a band, then select a frequency.
*
[AS23700(ALL)06/96]2.
Press one of the memory preset buttons and hold the button
until the sound returns. That station is now held in memory
on that button.
*
[AS23800(ALL)06/96]3.
Follow the two steps above for each station memory preset
button you want to set.
*
[AS23900(ALL)03/96]
NOTE: If the vehicle's battery is disconnected, the clock and
station memory preset buttons will need to be reset.
*
[AS24000(ALL)10/95]
Adjusting the tone balance and speaker output of your
radio
*
[AS24100(ALL)02/96]
n
Increasing or decreasing bass response
*
[AS24225(ALL)02/96]
Push the ªAUDIOº button repeatedly until the display reads
ªBASS.º Push the right (+) side of the ªVOLUMEº button to
increase bass (more ªlowsº), and push the left (s) side to
decrease bass (less ªlowsº).
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

Electronic Sound Systems
63
*
[AS24300(ALL)02/96]
n
Increasing or decreasing treble response
*
[AS24425(ALL)02/96]
Push the ªAUDIOº button repeatedly until the display reads
ªTREB.º Push the right (+) side of the ªVOLUMEº button to
increase the treble (more ªhighsº), and push the left (s) side
to decrease treble (less ªhighsº).
*
[AS24500(ALL)02/96]
Speaker features and operation
*
[AS24600(ALL)02/96]
n
Adjusting speaker balance
*
[AS24725(ALL)02/96]
Balance control allows you to adjust the sound distribution
between the right and left speakers. Push the ªAUDIOº
button repeatedly until the display reads ªBAL.º Push the
right (+) side of the ªVOLUMEº button to shift the sound to
the right speakers, and push the left (s) side to shift the
sound to the left speakers.
*
[AS24800(ALL)04/96]
n
Adjusting speaker fader
*
[AS24925(ALL)02/96]
Fade control allows you to adjust the sound distribution
between the front and rear speakers. Push the ªAUDIOº
button repeatedly until the display reads ªFADE.º Push the
right (+) side of the ªVOLUMEº button to shift the sound to
the front speakers, and push the left (s) side to shift the
sound to the rear speakers.
[AS24950(ALL)09/95]
NOTE: Illuminated bars in the display show relative levels of
bass and treble and positions of speaker balance and
fader functions for five seconds after adjustments are
made, then revert to volume level set.
%*
[AS25000(ALL)06/96]
Using the Controls of Your Cassette Tape Player
*
[AS25500(ALL)08/95]
How to insert a tape
[AS25600(ALL)05/95]
Insert a cassette (with theopen edge to the right) firmly into
the tape door opening, making sure the cassette is completely in
and ªseated.º
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996
