1998 FORD WINDSTAR Owners Manual

Seating and Safety Restraints
201
[SS33000(ALL)12/95]
n
FRONT PASSENGER SEATING POSITION Ð You must use
the tether strap anchor location provided on the back of the
seat cushion frame. (Refer to Figure 1.)
[SS33100(ALL)12/95]
10-1/2 pica
art:0050180-A

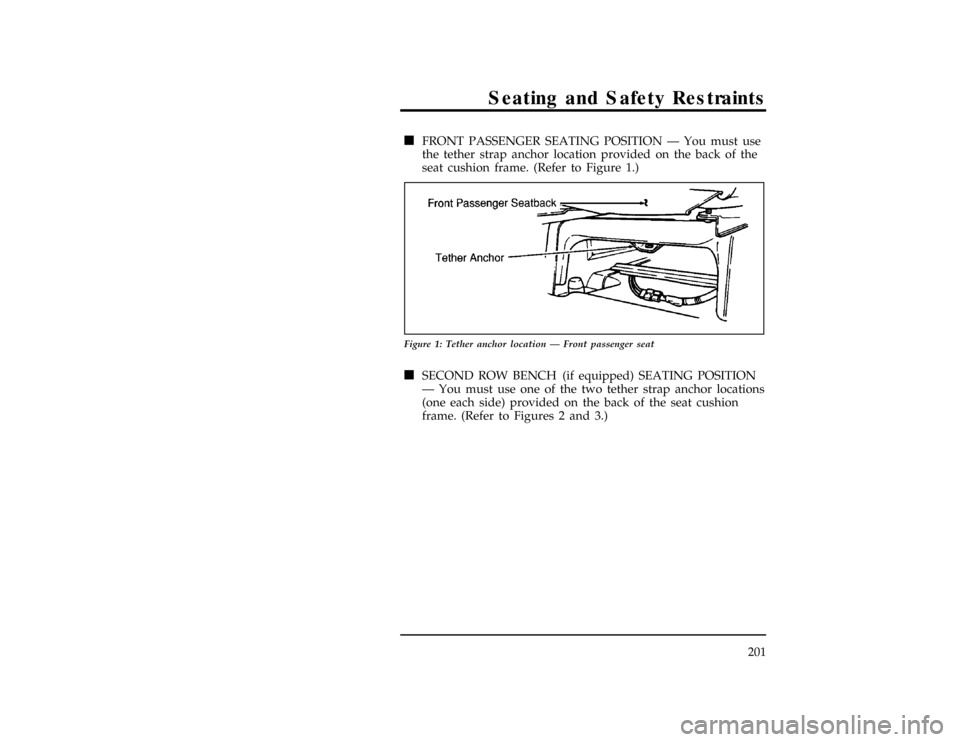

Figure 1: Tether anchor location Ð Front passenger seat
[SS33200(ALL)09/96]
n
SECOND ROW BENCH (if equipped) SEATING POSITION
Ð You must use one of the two tether strap anchor locations
(one each side) provided on the back of the seat cushion
frame. (Refer to Figures 2 and 3.)
File:06wnsss.ex
Update:Fri Oct 11 10:48:20 1996

202
[SS33300(ALL)12/95]
13-1/2 pica
art:0050181-A

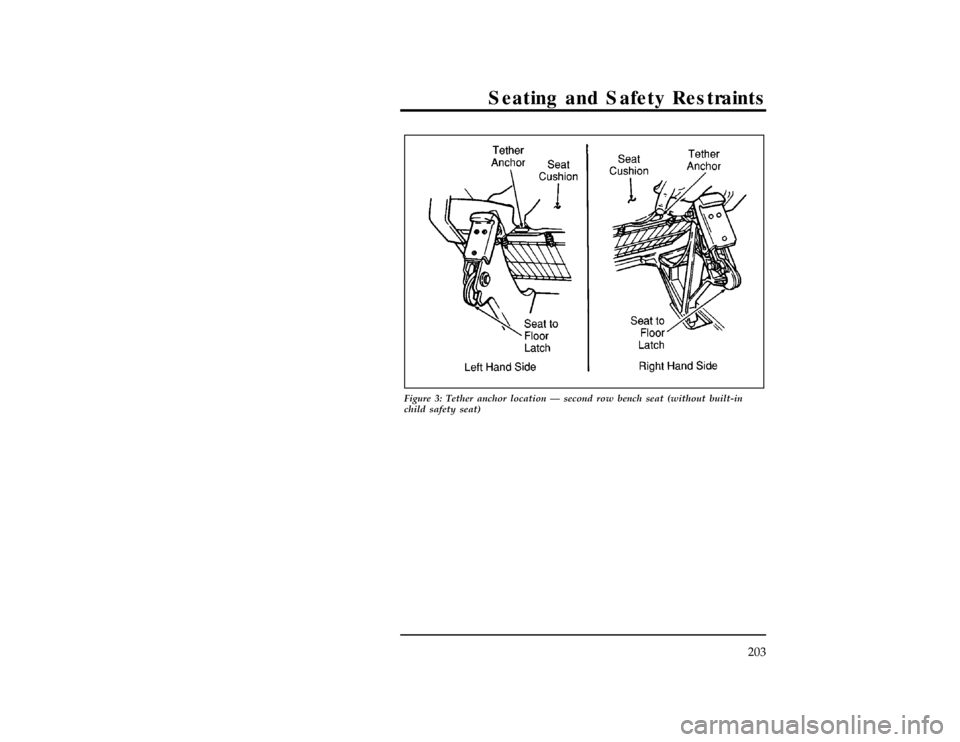

Figure 2: Tether anchor location Ð second row bench seat (with built-in child
safety seat)
File:06wnsss.ex
Update:Fri Oct 11 10:48:20 1996

Seating and Safety Restraints
203
[SS33400(ALL)12/95]
17-1/2 pica
art:0050184-A

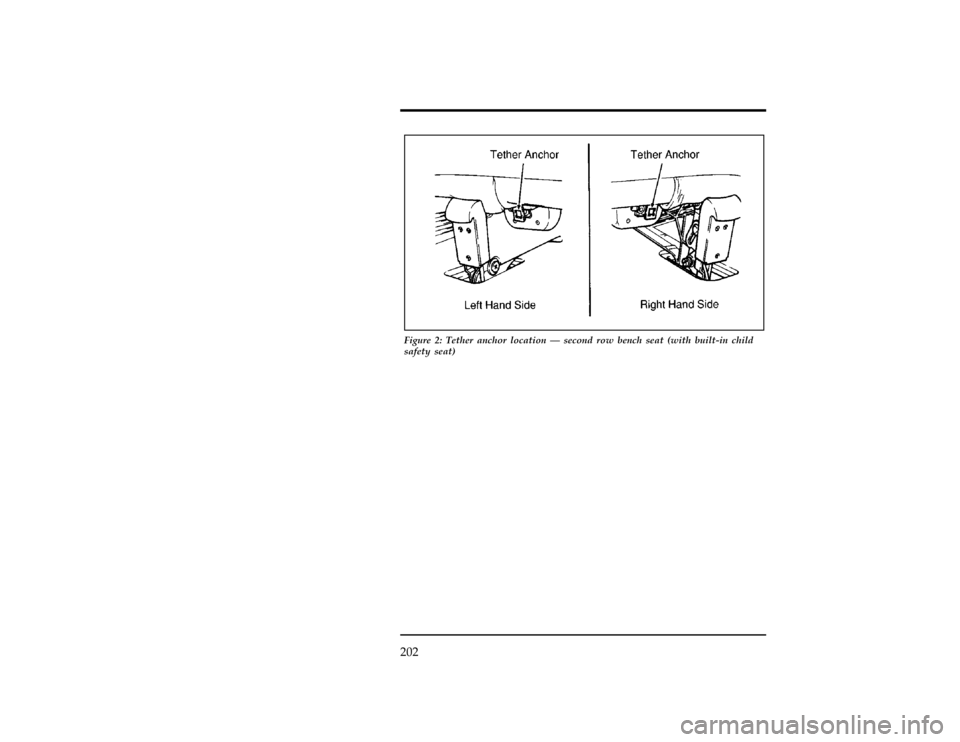

Figure 3: Tether anchor location Ð second row bench seat (without built-in
child safety seat)
File:06wnsss.ex
Update:Fri Oct 11 10:48:20 1996

204
[SS33500(ALL)12/95]
n
SECOND ROW BUCKET (if equipped) SEATING POSITION
Ð You must use the tether strap anchor location provided
on the back of the seat cushion. (Refer to Figure 4.)
[SS33600(ALL)12/95]
13-1/2 pica
art:0050178-A
Figure 4: Tether anchor location Ð second row bucket seat
*
[SS33700(ALL)01/96]
RWARNING
Only use the tether attachment hole locations shown in
the illustrations. The tether anchor may not perform
properly if the wrong mounting location is used.
[SS33800(ALL)12/95]
Once you have attached the safety seat, test the seat before you
place the child in it. Tilt the seat from side to side. Also try to
tug the seat forward. Check to see if the belt holds the seat in
place.
[SS33900(ALL)12/95]
RWARNING
If the safety seat is not anchored properly, the risk of a
child being injured in a collision or sudden stop greatly
increases.
File:06wnsss.ex
Update:Fri Oct 11 10:48:20 1996

205
Starting
%*
[TO00200(ALL)01/96]
Fuel-Injected Engines
[TO00300(ALL)07/96]
Since your vehicle has a fuel-injected engine,the most
important thing to remember is to avoid pressing down on the
acceleratorwhile cranking the engine to start. Only use the
accelerator when you have problems getting your vehicle
started.
%*
[TO00400(ALL)01/96]
Preparing to Start Your Vehicle
*
[TO00500(ALL)02/96]
RWARNING
Do not start your vehicle in a closed garage or in other
enclosed areas. Exhaust fumes can be toxic. Always open
the garage door before you start the engine.
*
[TO00600(ALL)01/96]
Before you start your vehicle, always:
*
[TO00700(ALL)01/96]1.
Make sure you and all your passengers buckle your safety
belts. SeeSafety beltsin the Index for more details.
*
[TO00800(ALL)01/96]2.
Make sure the headlamps and other accessories are turned
off when starting.
[TO00900(ALL)12/95]3.
Make sure that the gearshift lever is in Park (P) and the
parking brake is set before you turn the key.
[TO01000(ALL)07/96]
Before you start your vehicle, you should test the warning lights
on the instrument cluster to make sure that they work. Refer to
theInstrumentationchapter.
[TO01100(ALL)12/95]
Starting the Engine
[TO01200(ALL)12/95]
To start the engine:
[TO01300(ALL)07/96]1.
Follow the steps underPreparing to Start Your Vehicle.
*
[TO01400(ALL)01/96]2.
Keep your foot on the brake pedal and turn the ignition key
to ON.
File:08wntos.ex
Update:Mon Oct 7 11:45:28 1996

206
*
[TO01500(ALL)12/95]3.
DO NOT depress the accelerator pedal when starting your
engine. DO NOT use the accelerator until after the engine is
running and you are ready to drive away.
[TO01600(ALL)12/95]4.
Turn the key to the START position until the engine starts.
(Release the key after the engine has started and it will
return to the ON position.)
[TO01700(ALL)12/95]
If you have difficulty in turning the key, rotate the steering
wheel slightly to relieve any binding.
%*
[TO01800(ALL)01/96]
For a cold engine:
*
[TO01900(ALL)01/96]
n
At temperatures10ÊF (-12ÊC) andbelow:If the engine does
not start infifteen (15) secondson the first try, turn the key
to OFF, wait approximately ten (10) seconds so you do not
flood the engine, then try again.
*
[TO02000(ALL)01/96]
n
At temperaturesabove10ÊF(-12ÊC):If the engine does not
start infive (5) secondson the first try, turn the key to OFF,
wait approximately ten (10) seconds so you do not flood the
engine, then try again.
*
[TO02100(ALL)01/96]
For a warm engine:
*
[TO02200(ALL)01/96]
n
Do not hold the key in the START position for more than
five (5) secondsat a time. If the engine does not start within
five (5) seconds on the first try, turn the key to the OFF
position. Wait a few seconds after the starter stops, then try
again.
*
[TO02300(ALL)01/96]
Whenever you start your vehicle, release the key as soon as the
engine starts. Excessive cranking could damage the starter.
[TO02400(ALL)09/96]
After you start the engine, let it idle for a few seconds.Keep
your foot on the brake pedalandplace the gearshift lever in
gear. Release the parking brake,put the gearshift lever in gear,
slowly release the brake pedal and drive away in the normal
manner.
File:08wntos.ex
Update:Mon Oct 7 11:45:28 1996

Starting
207
*
[TO02500(ALL)12/95]
NOTE: Your vehicle has an interlock that prevents you from
shifting out of P (Park) unless your foot is on the
brake pedal.
*
[TO02600(ALL)01/96]
If the engine still does not start after two attempts:
[TO02700(ALL)04/96]1.
Turn the key to the OFF position and wait about two
minutes.
*
[TO02800(ALL)01/96]2.
Press the accelerator all the way to the floor and hold it.
[TO02900(ALL)12/95]3.
Turn the key to the START position.
[TO03000(ALL)12/95]4.
Release the key when the engine starts.
*
[TO03100(ALL)03/96]5.
Release the accelerator gradually as the engine speeds up.
*
[TO03200(ALL)05/96]
If the engine still does not start, the fuel pump shut-off switch
may have been activated. For directions on how to reset the
switch seeFuel Pump Shut-Off Switchin the index.
[TO03300(ALL)12/95]
A computer system controls the engine's idle rpm. When you
start your vehicle, the engine's idling rpm normally runs high.
These faster engine speeds will make your vehicle move slightly
faster than when the engine is at its normal warm engine idle
speed. It should, however, slow down when the vehicle warms
up. If it does not, have the idle rpm checked.
*
[TO03400(ALL)01/96]
RWARNING
Do not park, idle, or drive your vehicle in dry grass or
other dry ground cover. The emission system heats up
the engine compartment and exhaust system, which can
start a fire.
File:08wntos.ex
Update:Mon Oct 7 11:45:28 1996

208
%*
[TO03500(ALL)01/96]
Using the Engine Block Heater (If equipped)
[TO03600(ALL)12/95]
Using your engine block heater is strongly recommended if you
live in a region where temperatures consistently reachs20ÊF
(s29ÊC) orbelow during the winter months. An engine block
heater warms the engine coolant which improves starting,
warms up the engine faster, and allows the heater-defrost
system to respond more quickly.
*
[TO03700(ALL)01/96]
RWARNING
To prevent electrical shock, do not use your heater with
ungrounded electrical systems or two-pronged (cheater)
adapters.
*
[TO03800(ALL)01/96]
For best results, plug the heater in at least three hours before
you start your vehicle. Using the heater for longer than three
hours will not damage the engine, so you can leave it plugged
in all night to start your vehicle the following morning.
*
[TO03900(ALL)12/95]
Guarding Against Exhaust Fumes
[TO04000(ALL)12/95]
Carbon monoxide, although colorless and odorless, is present in
exhaust fumes.
*
[TO04100(ALL)02/96]
RWARNING
Do not start your vehicle in a closed garage or in other
enclosed areas. Exhaust fumes can be toxic. Always open
the garage door before you start the engine.
*
[TO04200(ALL)01/96]
RWARNING
If you ever smell exhaust fumes of any kind inside your
vehicle, have your dealer inspect and fix your vehicle
immediately. Do not drive if you smell exhaust fumes.
These fumes are harmful and could kill you.
File:08wntos.ex
Update:Mon Oct 7 11:45:28 1996
