1998 FORD WINDSTAR Owners Manual

Controls and Features
121
% [CF39000(ALL)01/96]
Console (If equipped)
[CF39100(ALL)01/96]
Your vehicle may have a full console. Console features are
detailed in the following illustration. To open the console lid,
lift up on the latch toward the rear of the console. If your
vehicle has the CD changer (a dealer installed option), this
console could also house the changer and conceal it from sight.
[CF39200(ALL)08/96]
17-1/2 pica
art:0050015-C

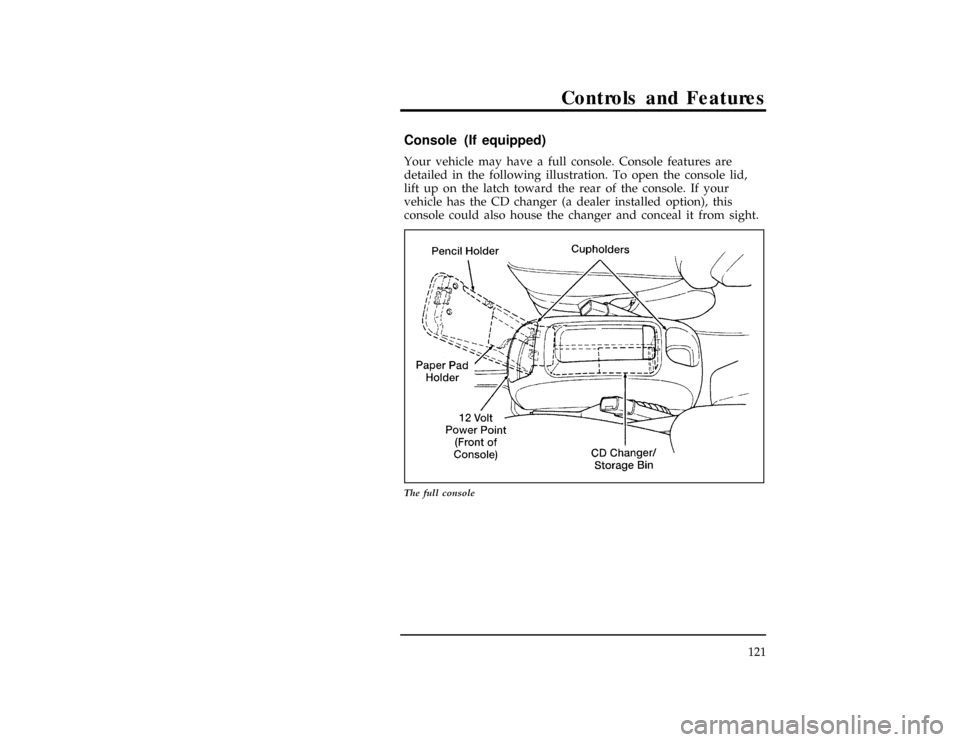

The full console
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

122
%*
[CF39300(ALL)01/96]
Liftgate
*
[CF39400(ALL)01/96]
Liftgate opening procedure
[CF39500(ALL)01/96]1.
To open the liftgate, insert the door key into the lock and
turn it clockwise. You can also unlock the latch (but not
release it) with the power door lock system.
*
[CF39600(ALL)01/96]2.
Reach under the license plate light shield and release the
liftgate latch by squeezing the paddle handle rearward.
[CF39700(ALL)01/96]3.
To make the gate swing up to the fully opened position, pull
back and upward on the latch paddle handle under or
behind the license plate shield.
[CF39800(ALL)09/96]
13-1/2 pica
art:0050108-C
Opening the liftgate
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

Controls and Features
123
[CF39900(ALL)01/96]
Make certain that you close the liftgate door before driving your
vehicle. Possible damage may occur to the liftgate door lift
cylinders and attaching hardware if the liftgate door is not
closed prior to driving.
*
[CF40000(ALL)01/96]
RWARNING
Make sure that the liftgate door and/or window are
closed to prevent exhaust fumes from being drawn into
the vehicle. This will also prevent passengers and cargo
from falling out. If you must drive with the liftgate door
or window open, keep the vents open so outside air
comes into the vehicle.
*
[CF40100(ALL)01/96]
Liftgate closing procedure
*
[CF40200(ALL)01/96]1.
To make the liftgate swing downward, reach up and pull the
lower edge of the liftgate (or the loop handle on the inner
trim panel of vehicles with this option) and pull downward.
*
[CF40300(ALL)01/96]2.
When you have pulled down the liftgate enough so that you
can reach the license plate light shield, push the shield down
and forward to close the latch and liftgate. At this point, the
latch is not locked.
[CF40400(ALL)09/96]3.
You can lock the liftgate latch by pushing down the
night-lock button (located on the inside of the liftgate at the
bottom of the window) before you pull down and close the
liftgate. You can also lock the liftgate latch by inserting your
vehicle's door key and turning it counterclockwise after you
have closed the liftgate, by pressing LOCK on your
remote (if equipped), or by using the power door locks on
the front doors or the power lock switch in the cargo area.
*
[CF40500(ALL)01/96]
The liftgate area is only intended for cargo, not passengers. You
can open and close the liftgate from outside the vehicle. It
cannot be opened from inside the cargo area.
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

124
%*
[CF40600(ALL)10/96]
Cargo Net (If equipped)
*
[CF40700(ALL)10/96]
The cargo net is designed to hold your cargo upright between
the third row bench seat and the liftgate to prevent it from
moving around the cargo area.
*
[CF40800(ALL)10/96]
To install the cargo net:
*
[CF40900(ALL)10/96]
Attach the loops on the four corners of the net to the four
retainers on the cargo area rear quarter panels. Pull on the net
to be sure that it is fastened securely.
*
[CF41000(ALL)10/96]
RWARNING
Be sure to secure all four loops into the retainers. The
cargo restrained in the net must not exceed 50 lbs.
(22.5 kg) or the net may not stay secured.
*
[CF41100(ALL)10/96]
To remove the cargo net, remove the loops from the four
retainers.
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

Controls and Features
125
[CF41200(ALL)10/96]
17-1/2 pica
art:0050013-A

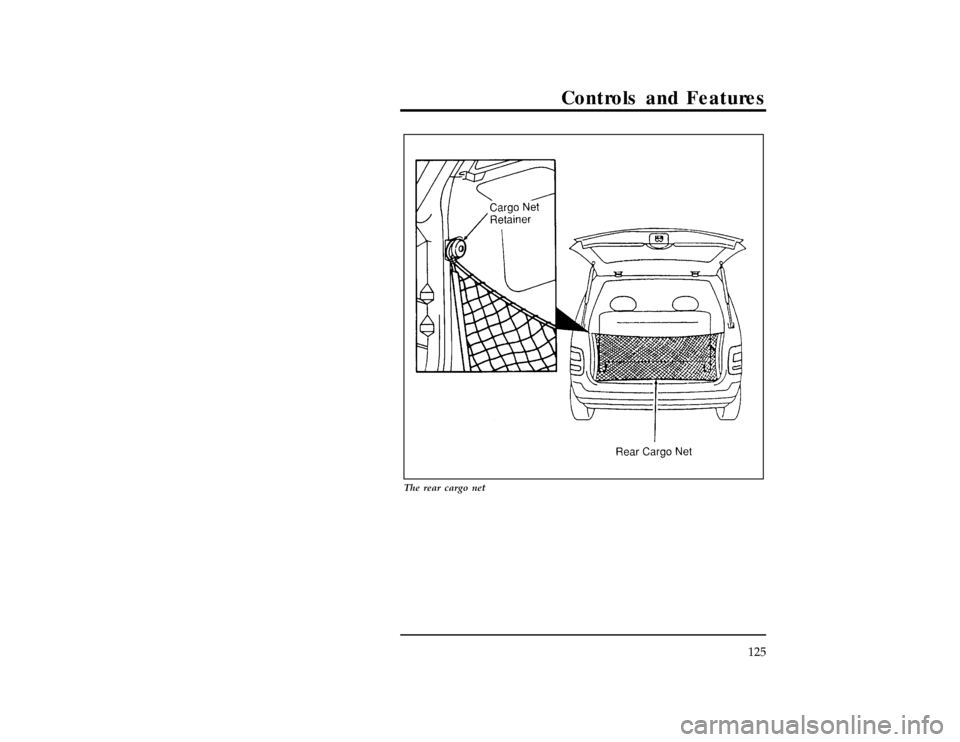

The rear cargo net
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

126
%*
[CF44800(ALL)01/96]
Battery Saver
[CF44900(ALL)01/96]
When the ignition switch is turned to OFF, the vehicle will turn
off battery voltage to the interior lamps after 45 minutes. (The
exterior lamps are not affected.) The purpose is to minimize
extended battery drain if the lights have inadvertently been left
on or if a door or the glove box is not completely closed.
However, the timer will be immediately reset to another 45
minutes if any of the following occurs:
[CF45000(ALL)01/96]
n
any door is open or closed
[CF45100(ALL)01/96]
n
the front door handle is lifted (for Illuminated Entry only)
[CF45200(ALL)01/96]
n
taking the key IN or OUT of the ignition switch
[CF45300(ALL)01/96]
n
the Keyless Entry keypad is used
[CF45400(ALL)01/96]
n
the Remote Entry transmitter is activated
*
[CF45500(ALL)05/96]
Remote Entry System (If equipped)
[CF45600(ALL)08/96]
If your vehicle has the remote entry system, you can lock and
unlock the vehicle doors without using a key. The remote entry
system also has a personal alarm feature. The buttons that
control the system are located on the hand held transmitter that
comes with your vehicle.
*
[CF45700(ALL)05/96]
The system will work with up to four remotes. Your vehicle
came with two remotes. Additional remotes can be ordered
from your dealer.
*
[CF45800(ALL)01/96]
The remote entry features only operate with the ignition in the
OFF position.
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

Controls and Features
127
[CF45900(ALL)01/96]
10-1/2 pica
art:0050158-B

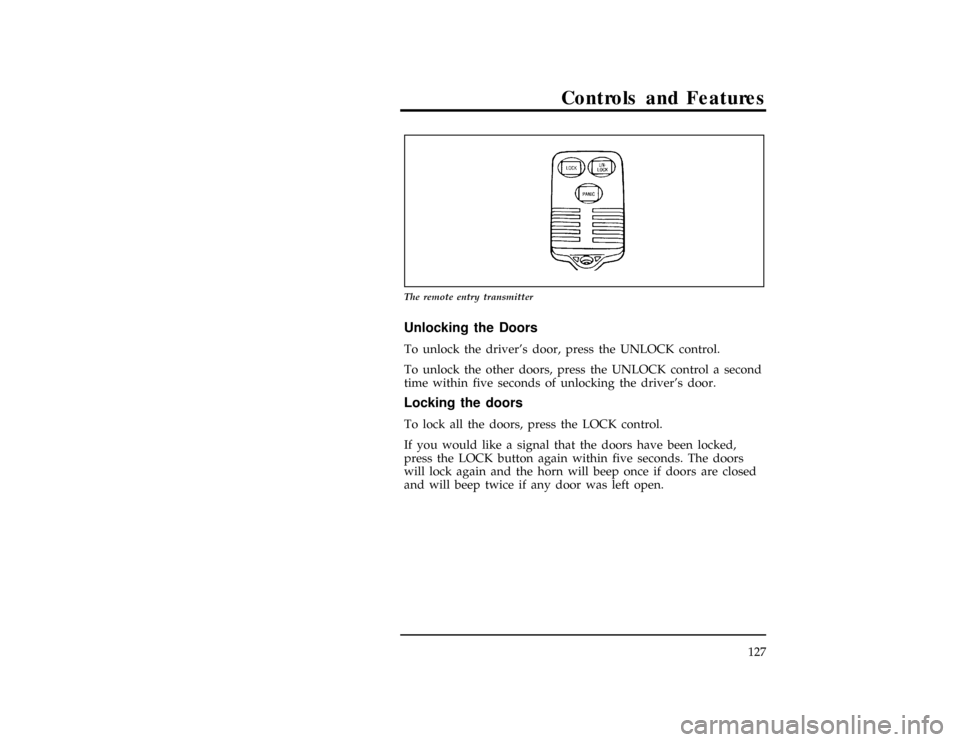

The remote entry transmitter
% [CF46000(ALL)07/96]
Unlocking the Doors
*
[CF46100(ALL)04/96]
To unlock the driver's door, press the UNLOCK control.
*
[CF46200(ALL)04/96]
To unlock the other doors, press the UNLOCK control a second
time within five seconds of unlocking the driver's door.
*
[CF46300(ALL)04/96]
Locking the doors
*
[CF46400(ALL)04/96]
To lock all the doors, press the LOCK control.
[CF46500(ALL)08/96]
If you would like a signal that the doors have been locked,
press the LOCK button again within five seconds. The doors
will lock again and the horn will beep once if doors are closed
and will beep twice if any door was left open.
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

128
%*
[CF46600(ALL)03/96]
Activating the remote personal alarm
[CF46700(ALL)08/96]
If you wish to activate the remote personal alarm, press the
PANIC button. This will honk the horn and flash the tail lamps
and low beam headlamps for approximately two minutes and
forty-five seconds. You can turn it OFF by pressing the PANIC
button again on the same transmitter or by turning the ignition
key to the RUN position. If the alarm does not turn off, move
the transmitter closer to the vehicle and press the button again.
[CF46800(ALL)01/96]
When you use the remote entry UNLOCK, or PANIC buttons,
the illuminated entry system turns on the interior lights for 25
seconds. You can turn these lights off with the LOCK button or
by turning the ignition to the RUN position.
[CF46900(ALL)07/96]
Replacing the batteries
*
[CF47000(ALL)05/96]
The remote is powered by two coin type three-volt lithium 2016
batteries (included) that should last for several years of normal
use. If you notice a significant decrease in operating range, the
batteries should be replaced. Replacement batteries can be
purchased at most pharmacies, watch stores or at your Ford or
Lincoln-Mercury dealer.
*
[CF47100(ALL)01/96]
NOTE: The operating range of the remote entry system can
also be affected by weather conditions (such as very
cold temperatures) or structures around the vehicle
(buildings, other vehicles, radio towers, etc.). Typical
operating range will allow you to be up to 33 feet (10
meters) away from your vehicle.
