RWARNING
To avoid injury, never run the engine with one wheel off
the ground, such as when changing a tire.
*
[ER09900(ALL)01/96]
RWARNING
To lessen the risk of personal injury, do not put any part
of your body under the vehicle while changing a tire. Do
not start the engine when your vehicle is on the jack.
The jack is only meant for changing the tire.
*
[ER10000(ALL)01/96]
RWARNING
Never raise your vehicle by using a bumper jack. The
bumper could be damaged or the jack could slip and you
could be injured.
[ER10100(ALL)01/96]
NOTE: Never raise your vehicle by placing the jack on the
torsion bar (within axle) or front or rear suspension
components. Serious damage to these components may
occur.
[ER10200(ALL)08/96]6.
Your vehicle may be equipped with one of two types of jack
and handle asemblies. Operation of each type is described as
follows:
[ER10210(ALL)08/96]
a. Separate Lug Nut Wrench and Jack Handle Type.
[ER10220(ALL)08/96]
Insert the jack handle into the jack and slide the tapered end
of the jack handle through the slot in the lug nut wrench.
[ER10230(ALL)08/96]
b. Articulated Hex Handle Type
[ER10240(ALL)08/96]
Remove the handle assembly from the jack retaining bracket.
Swing the hex socket end outward to an approximate right
angle position. Place the hex socket end on the hex nut of
the jack assembly. Turn the handle clockwise to raise the
vehicle off the ground.
File:10wners.ex
Update:Mon Oct 7 11:47:52 1996

Roadside Emergencies
259
[ER10300(ALL)01/96]
17-1/2 pica
art:0050118-A
The jack and handle assembly
*
[ER10400(ALL)01/96]7.
Turn the lug nut wrench (attached to the jack handle)
clockwise to raise the vehicle off the ground.
*
[ER10500(ALL)01/96]8.
Remove the wheel lug nuts with the lug nut wrench.
*
[ER10600(ALL)01/96]9.
Remove the flat tire and replace it with the spare tire.
*
[ER10700(ALL)01/96]10.
Place the wheel lug nuts on the spare tire. Use the lug nut
wrench to screw the lug nuts snug against the wheel, but do
not tighten fully.
*
[ER10800(ALL)01/96]11.
Lower the vehicle by turning the jack handle
counterclockwise.
*
[ER10900(ALL)01/96]12.
Use the wheel lug wrench to tighten lug nuts in the
appropriate sequence. Re-check for complete tightness.
File:10wners.ex
Update:Mon Oct 7 11:47:52 1996

260
%*
[ER11000(ALL)01/96]
7-1/2 pica art:0040176-A
Lug nut tightening sequence
[ER11100(ALL)01/96]
The lug nuts should be tightened to 83-113 ft-lb (113-153 Nm).
*
[ER11200(ALL)01/96]13.
Replace the wheel cover by pressing it into place. If you
have the standard wheel covers, you must align the notch in
the wheel cover with the tire's valve stem and align the
recess in the back of the wheel cover with one of the lug
nuts. If you have the optional aluminum wheel, press the
center wheel cap into place after matching up the design of
the wheel cap to the wheel.
[ER11300(ALL)01/96]14.
Replace the jack in the storage compartment and make sure
the jack is securely fastened.
*
[ER11400(ALL)01/96]15.
Store the flat tire under the vehicle just as you would store
the spare tire. Refer to the section onStowing the Spare Tire
in this chapter.
[ER11500(ALL)01/96]16.
Unblock the wheels.
*
[ER11600(ALL)01/96]
Retighten the lug nuts to the specified torque at 500 miles
(800 km) of operation, after any wheel change, or any time the
lug nuts are loosened.
File:10wners.ex
Update:Mon Oct 7 11:47:52 1996

Roadside Emergencies
261
*
[ER11700(ALL)01/96]
Stowing the spare tire
[ER11800(ALL)01/96]1.
To raise the tire to the stowed position, lay the tire on the
ground with the interior side facing up. Install the retainer
through the wheel center and slide the tire under the vehicle.
Fit the hex-shaped end of the wheel lug wrench over the hex
nut in the floor of the cargo area. Turn the wheel lug
wrench clockwise until the tire is raised to its original
position underneath the vehicle.
[ER11850(ALL)08/96]
If your vehicle has 16" wheels, lift one end of the tire, route the
cable end through the center of the wheel and install the 16"
wheel retainer.
[ER11900(ALL)01/96]
NOTE: The hex nut ratchets when the tire is raised to the
stowed position. It will not allow you to over-tighten.
*
[ER12000(ALL)01/96]2.
Check for proper seating against the underbody supports
and retighten if necessary.
[ER12100(ALL)01/96]
RWARNING
Check the tire seating position for looseness and make
sure the tire is not too far forward to avoid axle contact.
*
[ER12200(ALL)01/96]
RWARNING
Make sure the spare tire and jacking equipment are
stowed and secured in the proper storage location.
File:10wners.ex
Update:Mon Oct 7 11:47:52 1996

262
%*
[ER12300(ALL)02/96]
Jump-Starting Your Vehicle
*
[ER12400(ALL)01/96]
Your vehicle's battery may discharge if you leave the lights or
any electrical equipment on after you turn the engine off. If this
happens, you may be able to jump-start from a booster battery
to start your vehicle.
*
[ER12500(ALL)02/96]
RWARNING
The gases around the battery can explode if exposed to
flames, sparks, or lit cigarettes. An explosion could result
in injury or vehicle damage.
*
[ER12600(ALL)05/96]
RWARNING
To protect yourself when charging a battery, always
shield your face and eyes. Make sure that you can
breathe fresh air.
%*
[ER12700(ALL)02/96]
RWARNING
Applying too much pressure on the ends when lifting a
battery could cause acid to spill. Lift the battery with a
carrier or with your hands on the opposite corners.
%*
[ER12800(ALL)05/96]
RWARNING
Batteries contain sulfuric acid which burns skin, eyes,
and clothing.
*
[ER12900(ALL)02/96]
If the acid touches someone's skin, eyes, or clothing,
immediately flush the area with water for at least 15 minutes. If
someone swallows the acid, have him or her drink lots of milk
or water first, then Milk of Magnesia, a beaten egg, or vegetable
oil. Call a doctor immediately.
File:10wners.ex
Update:Mon Oct 7 11:47:52 1996

Roadside Emergencies
263
*
[ER13000(ALL)02/96]
To avoid damaging your vehicle or your battery, and to avoid
injury to yourself, follow these directions for preparing your
vehicle to jump-start and connecting the jumper cables in the
order they are given. If in doubt, call for road service.
[ER13100(ALL)01/96]
To prepare your vehicle for jump-starting:
[ER13200(ALL)01/96]1.
Use only a 12-volt battery to jump-start your vehicle. Your
vehicle has a 12-volt starting system, so you need to use a
12-volt jumper system. You can damage your starting motor,
ignition system, and other electrical parts if you connect
them to a 24-volt power supply (either two 12-volt batteries
in series or a 24-volt motor generator set).
[ER13300(ALL)04/96]2.
Do not disconnect the battery of the vehicle that needs a
jump-start. You could damage the vehicle's electrical system.
[ER13400(ALL)04/96]3.
Park the second vehicle close to the hood of your vehicle,
but make sure the vehicles do not touch each other. Set the
parking brake on both vehicles and stay clear of the engine
cooling fan.
[ER13500(ALL)04/96]4.
Check the battery terminals and remove any excessive
corrosion before you attach the jumper cables.
*
[ER13600(ALL)01/96]5.
Turn on the heater blower in both vehicles. Turn off all other
switches and lights in both vehicles to prevent possible
damage to either vehicle's electrical systems.
File:10wners.ex
Update:Mon Oct 7 11:47:52 1996

264
% [ER13700(ALL)01/96]
To connect the jumper cables:
[ER13800(ALL)04/96]1.
Connect one end of the first jumper cable to the positive (+)
terminal of the dead battery. (You can connect either jumper
cable to the positive (+) terminal, as long as you use the
same cable for both positive terminals.) Most jumper cables
have a red cable and a black cable. The red cable is generally
used for the positive terminals and the black for the negative
ones.
*
[ER13900(ALL)02/96]2.
Connect the other end of the first cable to the positive (+)
terminal of the booster battery.
[ER14000(ALL)04/96]3.
Connect one end of the second cable to the negative (s)
terminal of the booster battery Ð NOT to the dead battery.
[ER14100(ALL)01/96]4.
Connect the other end of that cable to a good, unpainted
metallic surface in the engine compartment of the vehicle
that needs a jump-start. The following illustration shows
where you can find a metallic surface.
*
[ER14200(ALL)02/96]
RWARNING
Do not connect the end of the second cable to the
negative (s) terminal of the battery to be jumped. A
spark may cause an explosion of the gases that surround
the battery.
File:10wners.ex
Update:Mon Oct 7 11:47:52 1996

Roadside Emergencies
265
[ER14300(ALL)09/96]

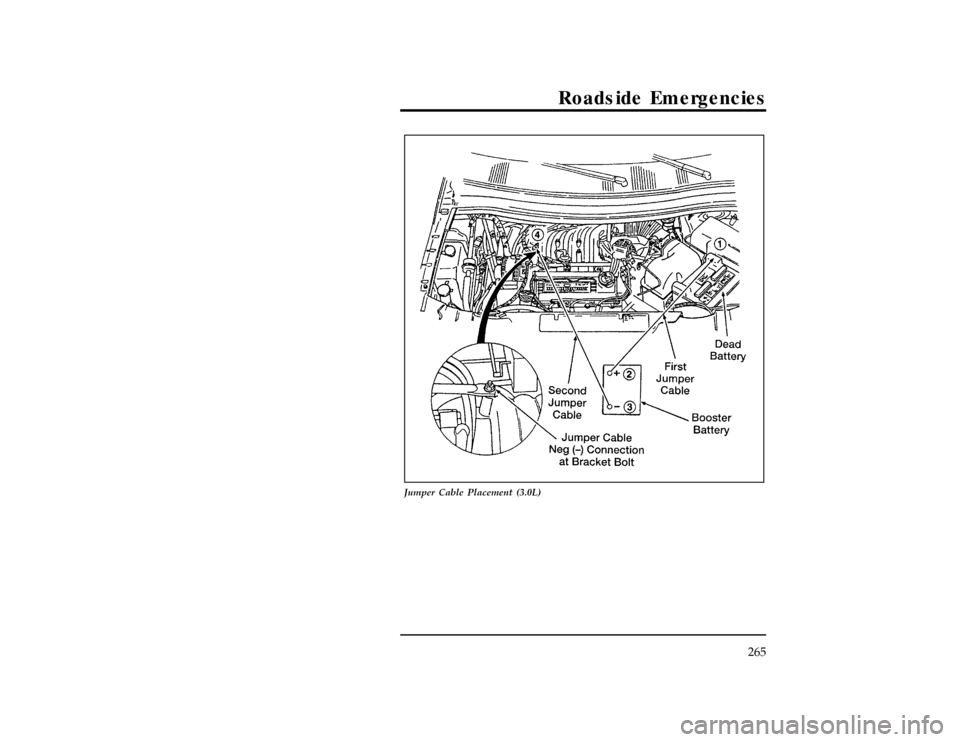

24 pica art:0050022-C
