1998 FORD WINDSTAR Owners Manual

306
*
[MC28400(ALL)01/96]
Comparisons With Environmental Protection Agency
(EPA) Fuel Economy Estimates
[MC28500(ALL)01/96]
EPA fuel economy figures are obtained from laboratory tests
under simulated road conditions and therefore are estimates
which may not reflect the actual conditions you experience. The
tests also do not exactly duplicate your personal style of
driving, including all your stops, starts, and lane changes. Other
factors that may affect fuel economy include using the air
conditioning, driving speed, vehicle load and tire inflation
pressure. The EPA fuel economy estimate is not a guarantee
that you will achieve the fuel economy shown.
%*
[MC28600(ALL)01/96]
Improving Fuel Economy
[MC28700(ALL)01/96]
You can improve the fuel economy for your vehicle in three
ways:
[MC28800(ALL)07/96]1.
Maintain your vehicle effectively. A well-tuned, properly
maintained vehicle gives you better fuel economy. Follow the
schedules for maintaining your vehicle that are in the
Maintenance Schedulebooklet.
[MC28900(ALL)04/96]2.
Drive your vehicle efficiently. Change your driving habits to
conserve fuel:
[MC29000(ALL)04/96]
n
Do not drive with your foot on the brake.
[MC29100(ALL)04/96]
n
Watch traffic so that you do not have to stop suddenly.
[MC29200(ALL)01/96]
n
Do not accelerate suddenly. Drive at a steady speed
whenever you can.
[MC29300(ALL)04/96]
n
Do not let the engine idle for a long time.
[MC29400(ALL)01/96]
n
Do not carry loads that are too heavy. To find out the limits
for the loads that your vehicle can carry, seeDriving with a
heavy loadin the Index.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
307
[MC29500(ALL)01/96]
n
Keep the tires properly inflated. To find out the
recommended tire pressure, seeChecking the pressure of the
tireslater in this chapter.
[MC29600(ALL)01/96]
n
Use your air conditioning system wisely. To find out about
fuel economy and air conditioning, seeClimate control systems
in the Index.
[MC29700(ALL)01/96]
In addition to your individual driving habits, optional
equipment, such as air conditioning, can have a significant effect
on fuel economy. Various aftermarket add-on items that increase
aerodynamic drag can also reduce fuel economy.
%*
[MC29800(ALL)01/96]
Emission Control System
*
[MC29900(ALL)01/96]
Your vehicle is equipped with a catalytic converter which
enables your vehicle to comply with applicable exhaust emission
requirements.
*
[MC30000(ALL)01/96]
To make sure that the catalytic converter and the other emission
control parts continue to work properly:
*
[MC30100(ALL)01/96]
n
Use only unleaded fuel.
*
[MC30200(ALL)01/96]
n
Avoid running out of fuel.
*
[MC30300(ALL)01/96]
n
Never turn off the ignition while your vehicle is moving,
especially at high speeds.
[MC30400(ALL)07/96]
n
Have the services listed in yourMaintenance Schedulebooklet
performed according to the specified schedule. The scheduled
maintenance services are required because they are
considered essential to the life and performance of your
vehicle and to its emission system.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

308
*
[MC30500(ALL)01/96]
RWARNING
Do not park, idle, or drive your vehicle in dry grass or
other dry ground cover. The emission system heats up
the engine compartment and exhaust system, which can
start a fire.
*
[MC30600(ALL)01/96]
RWARNING
Do not remove the floor carpet in your vehicle. Emission
controls cause high exhaust temperatures under the floor.
*
[MC30700(ALL)05/96]
RWARNING
Exhaust leaks may result in the entry of harmful and
potentially lethal fumes into the passenger compartment.
Under extreme conditions excessive exhaust temperatures
could damage the fuel system, the interior floor covering,
or other vehicle components, possibly causing a fire.
*
[MC30900(ALL)01/96]
Watch for fluid leaks, strange odors, smoke and loss of oil
pressure. Also watch for the charge warning light, the check
engine light, or the temperature warning light. These sometimes
indicate that the emission system is not working properly.
*
[MC31000(ALL)01/96]
Do not make any unauthorized changes to your vehicle or
engine. Changes that cause more unburned fuel to reach the
exhaust system can increase the temperature of the engine or
exhaust system.
*
[MC31100(ALL)01/96]
By law, anyone who manufactures, repairs, services, sells, leases
vehicles, trades vehicles, or supervises a fleet of vehicles is not
permitted to intentionally remove an emission control device or
prevent it from working. In some of the United States and in
Canada, vehicle owners may be liable if their emission control
device is removed or is prevented from working.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
309
%*
[MC31200(ALL)01/96
]
In general, maintenance, replacement, or service of the emission
control devices or systems in your new Ford Motor Company
vehicle or engine may be performed at your expense by any
automotive repair establishment or individual using automotive
parts equivalent to those with which your vehicle or engine was
originally equipped.
*
[MC31300(ALL)01/96]
Ford strongly recommends the use of genuine Ford replacement
parts. If other than Ford or Motorcraft parts or Ford authorized
remanufactured parts are used for maintenance replacements or
for the service of components affecting emission control, such
non-Ford parts should be equivalent to genuine Ford Motor
Company parts in performance and durability. It is the owner's
responsibility to determine the equivalency of such parts. Please
consult your warranty booklet for complete warranty
information.
*
[MC31400(ALL)08/95]
Never use a metal exhaust collector when you service your
vehicle. If the metal collector contacts any of your vehicle's
plastic trim or bumper parts they could melt or deform.
*
[MC31500(ALL)01/96]
Do not drive your vehicle if it does not operate properly. See
your dealer if the engine runs on for more than five seconds
after you shut it off or if it misfires, surges, stalls, or backfires.
*
[MC31600(ALL)01/96]
Information about your vehicle's emissions control system is on
the Vehicle Emission Control Information decal located on or
near the engine. This decal identifies engine displacement and
gives some tune-up specifications.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

310
%*
[MC31700(ALL)03/96
]
How to Prepare Your Vehicle for
Inspection/Maintenance (I/M) Testing
*
[MC31800(ALL)07/96]
In some localities it may become a legal requirement to pass an
Inspection/Maintenance (I/M) test of the On-Board Diagnostic
(OBD) II system. If the vehicle's powertrain system or its battery
has just been serviced, the OBD II system is reset to a not ready
for I/M testing condition. To prepare for I/M testing, the law
specifies that additional mixed city and highway driving is
required to complete the check of the OBD II system.
*
[MC31825(ALL)07/96]
The driving modes required to reach the ready condition consist
of a minimum of 30 minutes of city and highway driving as
described below:
*
[MC32000(ALL)07/96]
n
At least twenty minutes driving in stop and go, city type
traffic with at least four idle periods.
*
[MC32100(ALL)07/96]
n
At least ten minutes of driving on an expressway or
highway.
*
[MC32200(ALL)07/96]
Before completing the above driving modes, the engine must be
warmed up and at operating temperature. Once started, the
vehicle must not be turned off during these driving modes.
[MC33200(ALL)01/96]
Lights
*
[MC33300(ALL)01/96]
It is a good idea to check the operation of the following lights
frequently:
*
[MC33400(ALL)01/96]
n
headlamps
*
[MC33500(ALL)01/96]
n
tail lamps
*
[MC33600(ALL)01/96]
n
brakelamps
*
[MC33700(ALL)01/96]
n
hazard flasher
*
[MC33800(ALL)01/96]
n
turn signals
*
[MC33900(ALL)05/96]
n
license plate lamps
*
[MC34000(ALL)01/96]
n
fog lamps
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
311
%*
[MC34100(ALL)01/96]
The alignment of your headlamps should be checked if:
*
[MC34200(ALL)01/96]
n
oncoming motorists frequently signal you to turn off your
vehicle's high beams when you do not have the high beams
on
*
[MC34300(ALL)01/96]
n
the headlamps do not seem to give you enough light to see
clearly at night
*
[MC34400(ALL)01/96]
n
the headlamp beams are not pointed slightly down and to
the right
% [MC34500(ALL)04/96]
Replacing the Headlamp Bulb
*
[MC34600(ALL)03/96]
The headlamps on your vehicle use replaceable bulbs. When the
lamp burns out, simply replace the bulb, rather than the whole
lamp.
*
[MC34700(ALL)01/96]
RWARNING
Handle a halogen headlamp bulb carefully and keep out
of children's reach. Grasp the bulb only by its plastic
base and do not touch the glass. The oil from your hand
could cause the bulb to break the next time the
headlamps are operated.
*
[MC34800(ALL)01/96]
Do not remove the burned out bulb unless you can immediately
replace it with a new one. If a bulb is removed for an extended
period of time, contaminants may enter the headlamp and affect
its performance.
[MC34900(ALL)04/96]
To remove the headlamp bulb:
*
[MC35000(ALL)01/96]1.
Make sure that the engine is off and the headlamp switch on
the instrument panel is in the OFF position.
[MC35100(ALL)01/96]2.
Lift the hood and locate the headlamp bulb installed in the
rear of the headlamp. Remove the electrical connector from
the bulb by pulling the connector away from the bulb
assembly.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

312
[MC35200(ALL)01/96]
17-1/2 pica
art:0050182-A

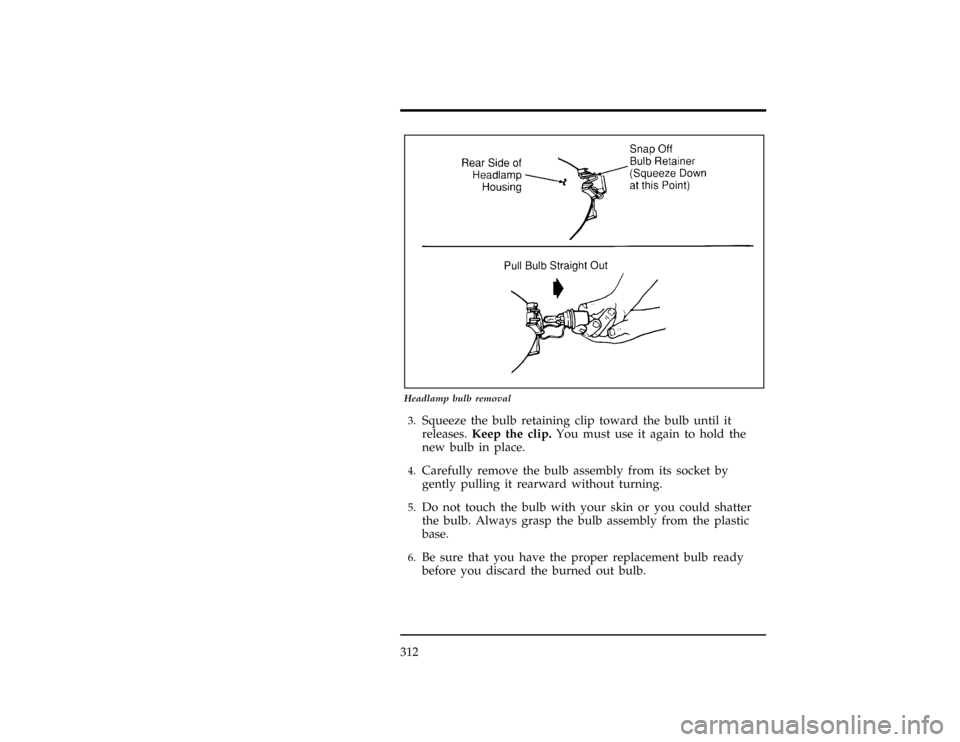

Headlamp bulb removal
[MC35300(ALL)01/96]3.
Squeeze the bulb retaining clip toward the bulb until it
releases.Keep the clip.You must use it again to hold the
new bulb in place.
*
[MC35400(ALL)01/96]4.
Carefully remove the bulb assembly from its socket by
gently pulling it rearward without turning.
*
[MC35500(ALL)01/96]5.
Do not touch the bulb with your skin or you could shatter
the bulb. Always grasp the bulb assembly from the plastic
base.
*
[MC35600(ALL)01/96]6.
Be sure that you have the proper replacement bulb ready
before you discard the burned out bulb.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
313
*
[MC35700(ALL)01/96]
To install a bulb:
*
[MC35800(ALL)01/96]1.
With the flat side of the bulb's plastic base facing upward,
insert the glass end of the bulb into the socket. You may
need to turn the bulb left or right to line up the grooves in
the plastic base with the tabs in the socket. When the
grooves are aligned, push the bulb into the socket until the
plastic base contacts the rear of the socket. Do not touch the
glass with your fingers.
[MC35900(ALL)01/96]2.
Snap the retaining clip over the plastic base.
*
[MC36000(ALL)01/96]3.
Push the electrical connector into the rear of the plastic base
until it snaps, locking it into place.
*
[MC36100(ALL)01/96]4.
Turn the headlamps on and make sure that they work
properly. If the headlamp was correctly aligned before you
changed bulbs, you should not need to align it again.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996
