1998 FORD WINDSTAR Owners Manual

314
% [MC36200(ALL)01/96]
Replacing the Taillamp Bulbs
[MC36300(ALL)01/96]
To remove a bulb:
[MC36400(ALL)01/96]1.
Open the liftgate.
[MC36500(ALL)01/96]2.
Remove two screws along top edge of taillamp lens.
[MC36600(ALL)01/96]3.
Grasp lens with fingers at point B and pull side of lens out
until snap attachment releases.
[MC36700(ALL)01/96]
13-1/2 pica
art:0050177-A

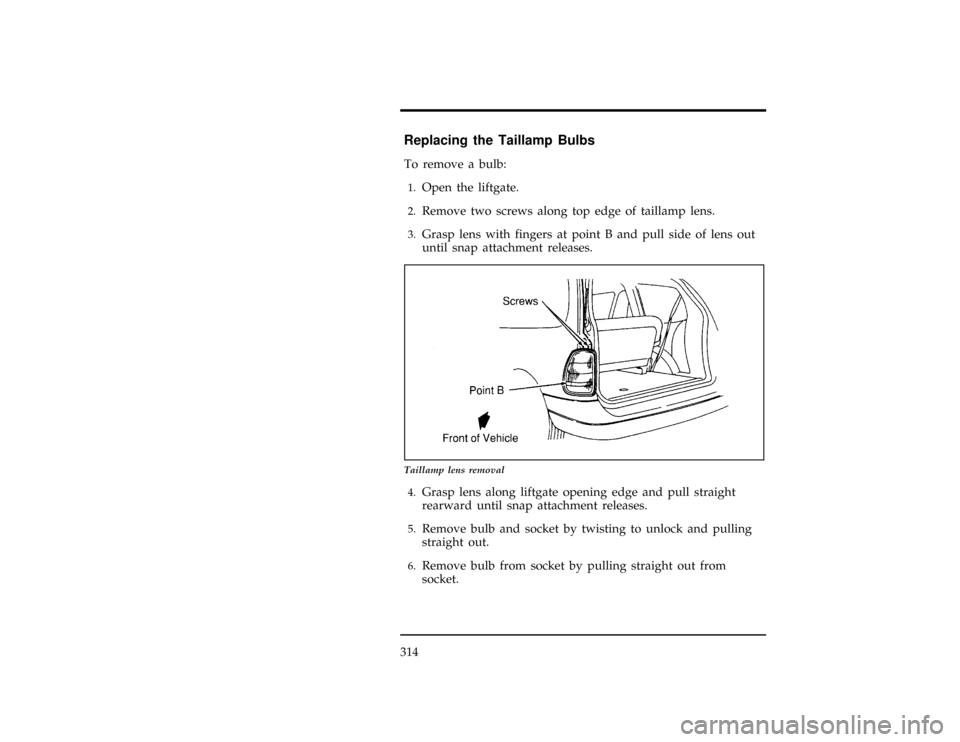

Taillamp lens removal
[MC36800(ALL)01/96]4.
Grasp lens along liftgate opening edge and pull straight
rearward until snap attachment releases.
[MC36900(ALL)01/96]5.
Remove bulb and socket by twisting to unlock and pulling
straight out.
[MC37000(ALL)01/96]6.
Remove bulb from socket by pulling straight out from
socket.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
315
[MC37100(ALL)01/96]
To install a taillamp bulb:
[MC37200(ALL)01/96]1.
Insert new bulb into socket by pushing bulb until it is locked
in position.
[MC37300(ALL)01/96]2.
Install socket into lamp by aligning socket to lamp and
turning clockwise until locked in place.
[MC37400(ALL)01/96]3.
Align pins along liftgate edge with holes in body and snap
attachment into retainer.
[MC37500(ALL)01/96]4.
Rock lens around on outer edge and snap in second snap
attachment.
[MC37600(ALL)01/96]5.
Replace two screws along top edge of lens.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

316
[MC37700(ALL)01/96]
33-1/2 pica art:0050019-E

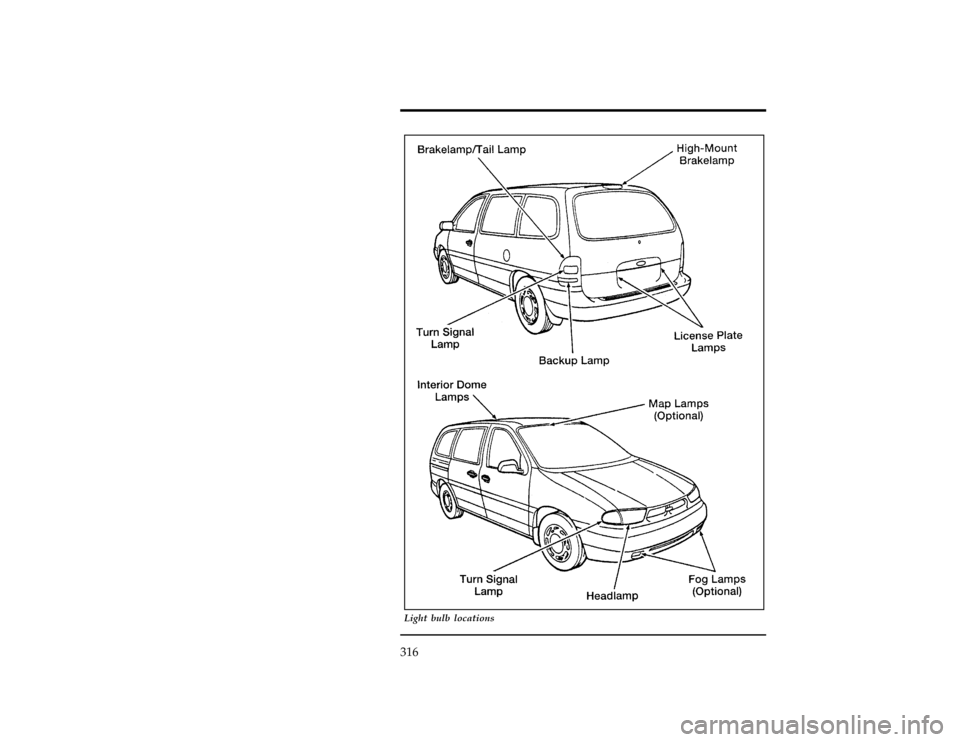

Light bulb locations
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
317
[MC37800(ALL)01/96]
Replacing The Fog Lamp Bulb
[MC37900(ALL)01/96]
To remove a bulb:
[MC38000(ALL)01/96]1.
Disconnect wiring connector from lamp.
[MC38100(ALL)01/96]2.
Rotate bulb and socket to remove from lamp.
*
[MC38200(ALL)01/96]
To install a bulb:
[MC38300(ALL)01/96]1.
Install bulb and socket into lamp and rotate.
[MC38400(ALL)01/96]2.
Connect wiring connector to lamp.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

318
%*
[MC38500(ALL)03/96
]

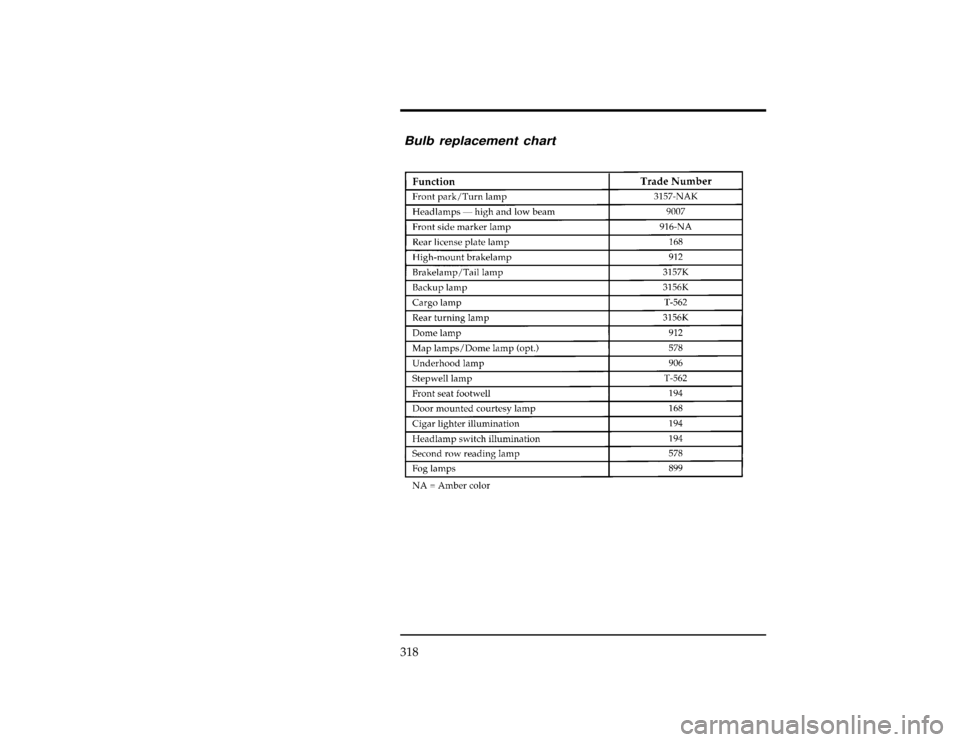

Bulb replacement chart
% [MC38600(ALL)01/96]
twenty-eight pica
chart:0050116-EFile:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
319
%*
[MC38700(ALL)04/96]
Cleaning Your Vehicle
%*
[MC38800(ALL)01/96]
Washing and Polishing Your Vehicle
*
[MC38900(ALL)01/96]
Wash the outside of your vehicle, including the underside, with
a mild detergent.
*
[MC39000(ALL)01/96]
DO NOT:
*
[MC39100(ALL)01/96]
n
Wash your vehicle with hot water
*
[MC39200(ALL)01/96]
n
Wash your vehicle while it sits in direct sunlight
*
[MC39300(ALL)01/96]
n
Wash your vehicle while the body is hot
*
[MC39400(ALL)01/96]
Pollen, bird droppings and tree sap can damage the paint,
especially in hot weather. Wash your vehicle as often as
necessary to keep it clean.
*
[MC39500(ALL)01/96]
Take similar precautions if your vehicle is exposed to chemical
industrial fallout.
*
[MC39600(ALL)01/96]
Paint damage resulting from fallout is not related to a defect in
paint materials or workmanship and therefore is not covered by
warranty. Ford, however, believes that continual improvement
in customer satisfaction is a high priority. For this reason, Ford
has authorized its dealers to repair, at no charge to the owner,
the surfaces of new vehicles damaged by environmental fallout
within 12 months or 12,000 miles (20,000 km) of purchase,
whichever comes first. Customers may be required to bring their
vehicle in for inspection by a Ford representative.
*
[MC39700(ALL)01/96]
Polish your vehicle to remove harmful deposits and protect the
finish.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

320
%*
[MC39800(ALL)01/96]
Cleaning Chrome and Aluminum Parts
*
[MC39900(ALL)12/95]
Wash chrome and aluminum parts with a mild detergent. Do
not use steel wool, abrasive cleaners, fuel, or strong detergents.
%*
[MC40000(ALL)01/96]
Cleaning Plastic Parts
*
[MC40100(ALL)01/96]
Some of your vehicle's exterior trim parts are plastic. Clean with
a tar and road oil remover if necessary. Use a vinyl cleaner for
routine cleaning.
*
[MC40200(ALL)01/96]
Do not clean plastic parts with thinners, solvents or
petroleum-based cleaners.
%*
[MC40300(ALL)01/96
]
If you have your vehicle rustproofed, remove oversprayed
rustproofing with a tar and road oil remover. If rustproofing is
not removed from plastic and rubber parts, it can cause
deterioration.
%*
[MC40400(ALL)02/96]
Cleaning the Safety Belts
*
[MC40500(ALL)02/96]
Clean the safety belts with any mild soap solution that is
recommended for cleaning upholstery or carpets. Do not bleach
or dye the belt webbing because this may weaken it.
*
[MC40600(ALL)01/96]
Your Built-In Child Seat may be cleaned with mild soap and
water. Do not use household cleaners as they may weaken the
webbing or damage the plastic parts. For your convenience, the
liner can be removed, machine-washed, and air-dried.
*
[MC40700(ALL)05/96]
Cleaning the Instrument Panel Lens
*
[MC40800(ALL)01/96]
Clean the instrument panel lens with a soft cloth and a glass
cleaner, such as Ford Ultra-Clear Spray Glass Cleaner, or
equivalent. Do not use paper towel or any abrasive cleaner to
clean the lens as these may cause scratches.
%*
[MC40900(ALL)01/96]
Cleaning the Exterior Lamps
*
[MC41000(ALL)01/96]
Do not use dry paper towel, chemical solvents or abrasive
cleaners to clean the lamps, as these may cause scratches or
crack the lamps.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
321
%*
[MC41100(ALL)02/96]
Cleaning the Interior Lamps
*
[MC41200(ALL)02/96]
Your interior dome lamps and map lamps are plastic and
should be cleaned with a mild detergent diluted in water. Rinse
them with clear water.
%*
[MC41300(ALL)03/96]
Cleaning the Seats
*
[MC41400(ALL)01/96]
Leather and vinyl
[MC41500(ALL)01/96]
For routine cleaning, wipe the surface with a soft, damp cloth.
For more thorough cleaning, wipe the surface with a leather
cleaner of a mild soap.
%*
[MC41600(ALL)05/96]
Fabric
*
[MC41700(ALL)05/96]
Remove dust and loose dirt with a whisk broom or a vacuum
cleaner. Remove fresh spots immediately. Follow the directions
that come with the cleaner.
*
[MC41800(ALL)05/96]
NOTE: Before using any cleaner, test it on a small, hidden
area of fabric. If the fabric's color or texture is
adversely affected by a particular cleaner, do not use
it.
