1998 FORD WINDSTAR audio

*
[PI01800(ALL)05/95]
Table of ContentsIntroduction..................... 1
Instrumentation.................... 7
Audio........................ 29
Controls and Features................. 71
Seating and Safety Restraints............. 135
Starting...................... 205
Driving...................... 211
Roadside Emergencies................ 235
Maintenance and Care................ 269
Capacities and Specifications............. 323
Reporting Safety Defects............... 329
Customer Assistance................ 331
Accessories..................... 341
Quick Index.................... 349
Index........................ 359
Service Station Information............. 380
File:01wnpis.ex
Update:Mon Oct 7 11:38:09 1996

34
*
[AS04200(ALL)02/96]
To deactivate the Auto Memory Store mode and return to the
manually-set memory button stations (or those stations set using
Auto Memory Load), simply push the ªAUTO PRESETº button.
Display will show ªAUTOº then ªOFF.º The next time Auto
Memory Store is activated on that band, the radio will store the
next set of five strong stations.
*
[AS04400(ALL)08/95]
Using the ªAUDIOº button to adjust the tone balance
and speaker output
*
[AS04500(ALL)02/96]
n
Increasing or decreasing bass response
*
[AS04600(ALL)08/95]
Push the ªAUDIOº button repeatedly until the display reads
ªBASS.º Push the ª+º side of the ªVOLº button to increase
bass (more ªlowsº), and push the ª-º side to decrease bass
(less ªlowsº).
*
[AS04700(ALL)02/96]
n
Increasing or decreasing treble response
*
[AS04800(ALL)08/95]
Push the ªAUDIOº button repeatedly until the display reads
ªTREB.º Push the ª+º side of the ªVOLº button to increase
treble (more ªhighsº), and push the ª-º side to decrease
treble (less ªhighsº).
*
[AS05100(ALL)02/96]
n
Adjusting speaker balance
*
[AS05200(ALL)08/95]
Balance control allows you to adjust the sound distribution
between the right and left speakers. Push the ªAUDIOº
button repeatedly until the display reads ªBAL.º Push the
ª+º side of the ªVOLº button to shift the sound to the right
speakers, and push the ª-º side to shift the sound to the left
speakers.
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

Electronic Sound Systems
35
*
[AS05300(ALL)04/96]
n
Adjusting speaker fader
*
[AS05400(ALL)08/95]
Fade control allows you to adjust the sound distribution
between the front and rear speakers. Push the ªAUDIOº
button repeatedly until the display reads ªFADE.º Push the
ª+º side of the ªVOLº button to shift the sound to the front
speakers, and push the ª-º side to shift the sound to the rear
speakers.
[AS05500(ALL)09/95]
NOTE: Illuminated bars in the display show relative levels of
bass and treble and positions of speaker balance and
fader functions for five seconds after adjustments are
made, then revert to volume level set.
%*
[AS05600(ALL)08/95]
Clock operation
*
[AS05700(ALL)08/95]
When in the radio mode, push the ªCLOCKº button to switch
from radio frequency to clock. Only the clock numerals will be
displayed in the clock mode Ð there is no A.M./P.M.
indication. When in the clock mode, the time will be displayed
until the button is pushed again. However, if you retune the
radio while it is in the clock mode, the new radio frequency
will be displayed for approximately ten seconds and then
change back to clock.
*
[AS05800(ALL)08/95]
When in the CD mode, push the ªCLOCKº button to change
the display from elapsed time mode to track number mode to
clock mode. If the CD track selection is changed when you are
in the clock or elapsed time mode, the new track number will
be displayed for approximately ten seconds and then revert
back to the previous mode.
*
[AS05900(ALL)08/95]
To set the clock, simultaneously press the ªCLOCKº button and
either the bottom (
b) half of the ªSEEKº button to set hours,
or the top (
a) half of the ªSEEKº button to set minutes.
[AS06000(ALL)04/96]
NOTE: The clock can be set with the radio and/or ignition on
or off.
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

Electronic Sound Systems
39
*
[AS09300(ALL)10/95]
n
Automatic Disc Storage
*
[AS09400(ALL)10/95]
If the disc is ejected from the CD player but is not removed
from the disc opening within approximately 10 seconds, the
player will automatically reload the disc for storage, unless
the disc is automatically ejected due to a ªfocus errorº (disc
inserted upside down). In this case, the disc will not be
automatically reloaded.
*
[AS09500(ALL)04/96]
How to eject the disc
*
[AS09600(ALL)10/95]
Push the ªEJECTº button to stop play, eject the disc and resume
radio operation of your audio system.
[AS09700(ALL)09/95]
NOTE: You can eject the disc while the radio power and/or
ignition is on or off.
%*
[AS09710(ALL)08/95]
How To Take Care of and Clean Your CD Player and
Discs
*
[AS09720(ALL)08/95]
To ensure the continued performance of your Ford Compact
Disc Player, carefully read the following precautions:
*
[AS09730(ALL)04/96]
n
Always handle the disc by its edge. Never touch the playing
surface.
*
[AS09740(ALL)08/95]
n
Before playing, inspect the disc for any contamination. If
needed, clean the disc with an approved disc cleaner, such as
the DiscwasherHCompact Disc Cleaner or the Allsop 3H
Compact Disc Cleaner, by wiping from the center out to the
edges.Do not use a circular motion to clean.
*
[AS09750(ALL)06/96]
n
Do not clean discs with solvents such as benzine, thinner,
commercially available cleaners or antistatic spray intended
for analog records.
*
[AS09760(ALL)04/96]
n
Do not expose the disc to direct sunlight or heat sources
such as defroster and floor heating ducts. Do not leave any
discs in a parked car in direct sunlight where there may be a
considerable rise in temperature or damage may result.
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

42
[AS09925(ALL)04/95]
33-1/2 pica
art:0060675-B

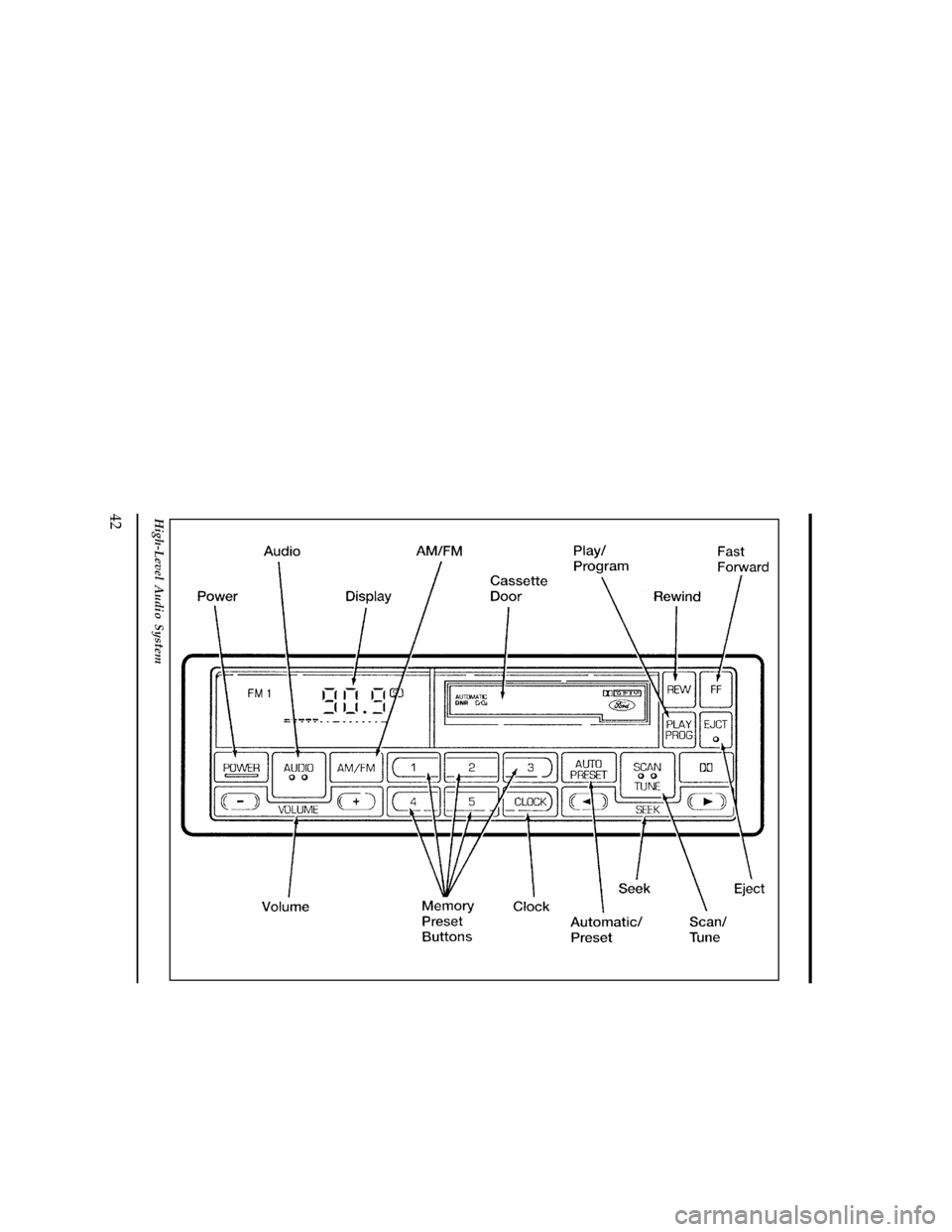

High-Level Audio System
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

Electronic Sound Systems
43
%*
[AS09930(ALL)08/95]
High-Level Audio System
[AS09940(ALL)07/91]
Ford's High-Level Audio System delivers quality performance
for maximum listening enjoyment.
*
[AS09950(ALL)03/96]
Using the Controls on Your New Radio
*
[AS09960(ALL)03/96]
How to turn the radio on and off
*
[AS09970(ALL)10/95]
Press the ªPOWERº button to turn the radio on. Press it again
to turn it off.
*
[AS09990(ALL)03/96]
How to adjust the volume
*
[AS10000(ALL)03/96]
Press the (R/S) side of the ªVOLº button to increase/decrease
the volume. Bars illuminate in the display to show the relative
volume level.
*
[AS10010(ALL)02/96]
NOTE: If the volume level is set above a certain listening
level when the ignition switch is turned off, when the
ignition switch is turned back on, the volume will
come back to a ªnominalº listening level. However, if
the radio power is turned off, the volume will remain
in the position it was set at when radio power was
switched off.
*
[AS10020(ALL)03/96]
Selecting the AM or FM frequency band
*
[AS10030(ALL)08/95]
Push the ªAM/FMº button to select the desired frequency band.
When in the radio mode, pushing the button more than once
will alternate between AM, FM1 and FM2. These functions are
used with the station memory buttons described underHow to
Tune Radio Stations.
%*
[AS10040(ALL)03/96]
How to tune radio stations
*
[AS10050(ALL)10/95]
There are four ways for you to tune in a particular station. You
can manually locate the station using the ªSCAN/TUNEº
button, ªSEEKº the station, ªSCANº to the station or select the
station by using the memory buttons, which you can set to any
desired frequency. These four methods are described below.
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

46
[AS10270(ALL)02/96]
Activate Auto Memory Store by pushing the ªAUTO PRESETº
button once. Your radio will set the first five strong stations of
the band you are in (AM, FM1 or FM2) into the memory
buttons. The display will show ªAUTOº, then run through the
frequencies, stopping momentarily on the stations being set into
the memory buttons. The radio is now in the ªAUTOº mode for
the selected band and this display will show ªAUTOº each time
a preset is activated.
*
[AS10280(ALL)10/95]
NOTE: If there are fewer than five strong stations in the
frequency band, the remaining unfilled buttons will
store the last strong station detected on the band.
*
[AS10290(ALL)03/96]
After all stations have been filled, the radio will begin playing
the station stored on memory button 1.
*
[AS10300(ALL)02/96]
To deactivate the Auto Memory Store mode and return to the
manually-set memory button stations (or those stations set using
Auto Memory Load), simply push the ªAUTO PRESETº button.
Display will show ªAUTOº then ªOFF.º The next time Auto
Memory Store is activated on that band, the radio will store the
next set of five strong stations.
*
[AS10310(ALL)10/95]
Adjusting the tone balance and speaker output of your
radio
*
[AS10320(ALL)02/96]
n
Increasing or decreasing bass response
*
[AS10330(ALL)08/95]
Push the ªAUDIOº button repeatedly until the display reads
ªBASS.º Push the ª+º side of the ªVOLº button to increase
bass (more ªlowsº), and push the ª-º side to decrease bass
(less ªlowsº).
*
[AS10340(ALL)02/96]
n
Increasing or decreasing treble response
*
[AS10350(ALL)08/95]
Push the ªAUDIOº button repeatedly until the display reads
ªTREB.º Push the ª+º side of the ªVOLº button to increase
treble (more ªhighsº), and push the ª-º side to decrease
treble (less ªhighsº).
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

Electronic Sound Systems
47
*
[AS10360(ALL)02/96]
n
Adjusting speaker balance
*
[AS10370(ALL)08/95]
Balance control allows you to adjust the sound distribution
between the right and left speakers. Push the ªAUDIOº
button repeatedly until the display reads ªBAL.º Push the
ª+º side of the ªVOLº button to shift the sound to the right
speakers, and push the ª-º side to shift the sound to the left
speakers.
*
[AS10380(ALL)04/96]
n
Adjusting speaker fader
*
[AS10390(ALL)08/95]
Fade control allows you to adjust the sound distribution
between the front and rear speakers. Push the ªAUDIOº
button repeatedly until the display reads ªFADE.º Push the
ª+º side of the ªVOLº button to shift the sound to the front
speakers, and push the ª-º side to shift the sound to the rear
speakers.
[AS10400(ALL)09/95]
NOTE: Illuminated bars in the display show relative levels of
bass and treble and positions of speaker balance and
fader functions for five seconds after adjustments are
made, then revert to volume level set.
