1997 SUBARU LEGACY light

B5M0123B
2. INSPECTION OF BODY HARNESS, CONNECTOR
AND AIRBAG WARNING LIGHT
1) Turn ignition switch“OFF”and connect body harness
connector (B31) to test connector A connector (1A).
G5M0455
2) Connect battery ground cable and turn ignition switch
“ON”, (engine off) and connect connectors (3A) and (4A) to
check if warning light goes out. If it does, go to step 4)
below. If it remains on, check body harness and repair if
necessary.
B5M0124A
3) If body harness is satisfactory, replace airbag warning
light module

1. After problem has been eliminated, discon-
nect connectors (3A) and (4A).
G5M0559
4) Turn ignition switch“OFF”, disconnect battery ground
cable and then wait at least 20 seconds, and re-connect
connectors (AB1) and (B31).
5) Remove instrument panel lower cover and disconnect
(AB3) with (AB8), then disconnect connector (AB6) from
airbag control module, and connect
it to test harness B2 connector (8B).
G5M0458
6) Connect battery ground cable and turn ignition switch
“ON,”(engine off) and connect connectors (6B) and (7B) to
check if warning light goes out. If it does, go to“3.
GROUNDING CIRCUIT INSPECTION”. If it remains on,
replace airbag main harness. After problem has been
eliminated, disconnect connectors (6B) and (7B).
36
5-5SUPPLEMENTAL RESTRAINT SYSTEM
5. Diagnostics Chart with Trouble Code

O: AIRBAG WARNING LIGHT REMAINS OFF.
DIAGNOSIS:
Fuse No. 15 is blown.
Body harness circuit is open.
Airbag warning light is faulty.
Airbag main harness is faulty.
Airbag control module is faulty.
1. Fuse No. 15 inspection
O.K.
Not O.K.
Replace fuse No. 15.
2. Body harness inspection
O.K.
Not O.K.
Repair body harness.
3. Airbag warning light module (in combination
meter) inspection
O.K.
Not O.K.
Replace airbag warning light module.
4. Airbag main harness inspection
O.K.
Not O.K.
Replace airbag main harness.
Replace airbag control module.
CAUTION:
Before performing diagnostics on airbag system, turn
ignition switch“OFF”, disconnect battery ground
terminal, and then wait at least 20 seconds.
G5M0460
1. FUSE No. 15 INSPECTION
1) Remove and visually check fuse No. 15.
2) If fuse is blown, replace it with a new one. After con-
necting battery cable and turning ignition switch“ON”,ifit
blows again, proceed to“2. BODY HARNESS INSPEC-
TION”.
2. BODY HARNESS INSPECTION
Turn ignition switch“ON”(engine off) to make sure other
warning lights (in combination meter) illuminate. If they do
not, check body harness.




38
5-5SUPPLEMENTAL RESTRAINT SYSTEM
5. Diagnostics Chart with Trouble Code

B5M0122B

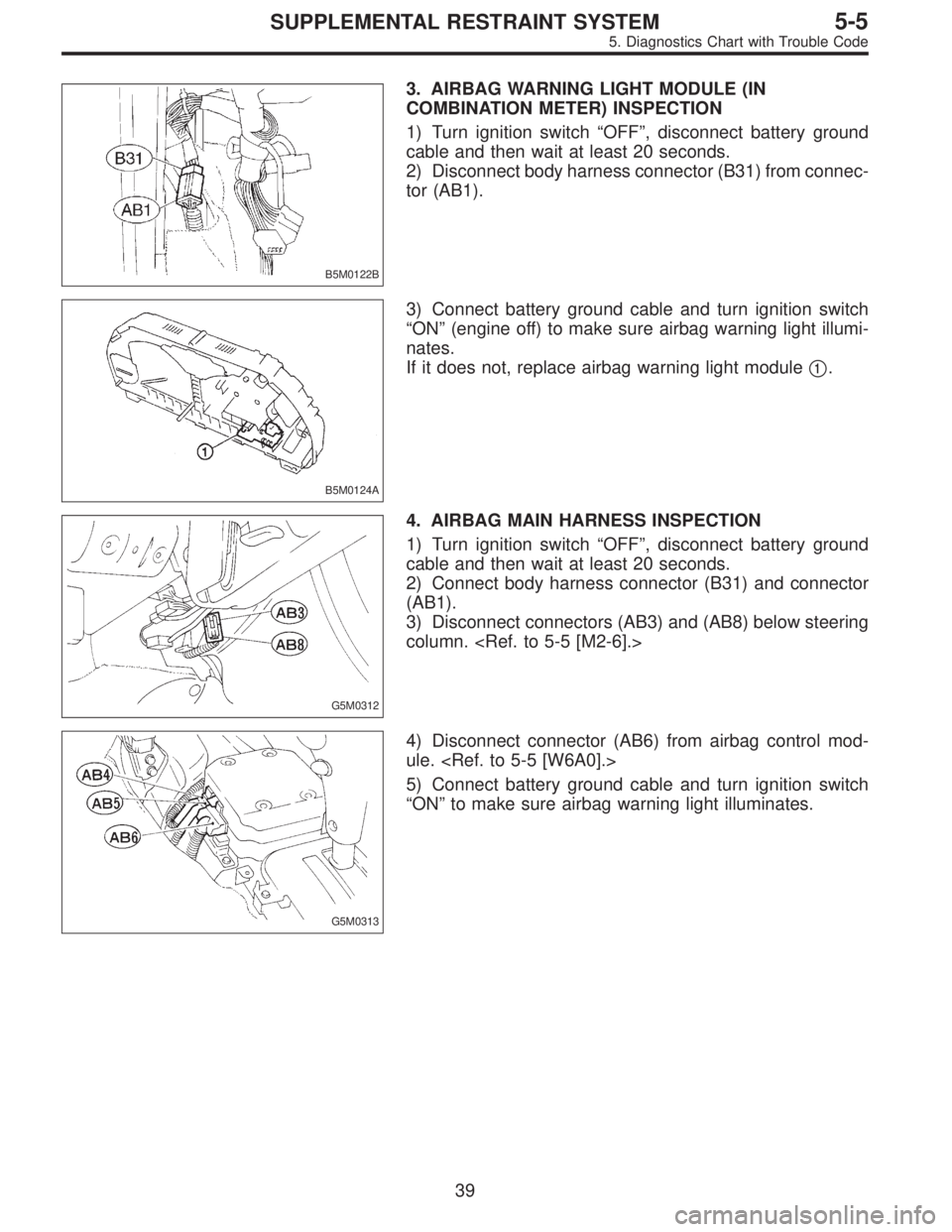

3. AIRBAG WARNING LIGHT MODULE (IN
COMBINATION METER) INSPECTION
1) Turn ignition switch“OFF”, disconnect battery ground
cable and then wait at least 20 seconds.
2) Disconnect body harness connector (B31) from connec-
tor (AB1).
B5M0124A
3) Connect battery ground cable and turn ignition switch
“ON”(engine off) to make sure airbag warning light illumi-
nates.
If it does not, replace airbag warning light module

1.
G5M0312
4. AIRBAG MAIN HARNESS INSPECTION
1) Turn ignition switch“OFF”, disconnect battery ground
cable and then wait at least 20 seconds.
2) Connect body harness connector (B31) and connector
(AB1).
3) Disconnect connectors (AB3) and (AB8) below steering
column.
G5M0313
4) Disconnect connector (AB6) from airbag control mod-
ule.
5) Connect battery ground cable and turn ignition switch
“ON”to make sure airbag warning light illuminates.
39
5-5SUPPLEMENTAL RESTRAINT SYSTEM
5. Diagnostics Chart with Trouble Code

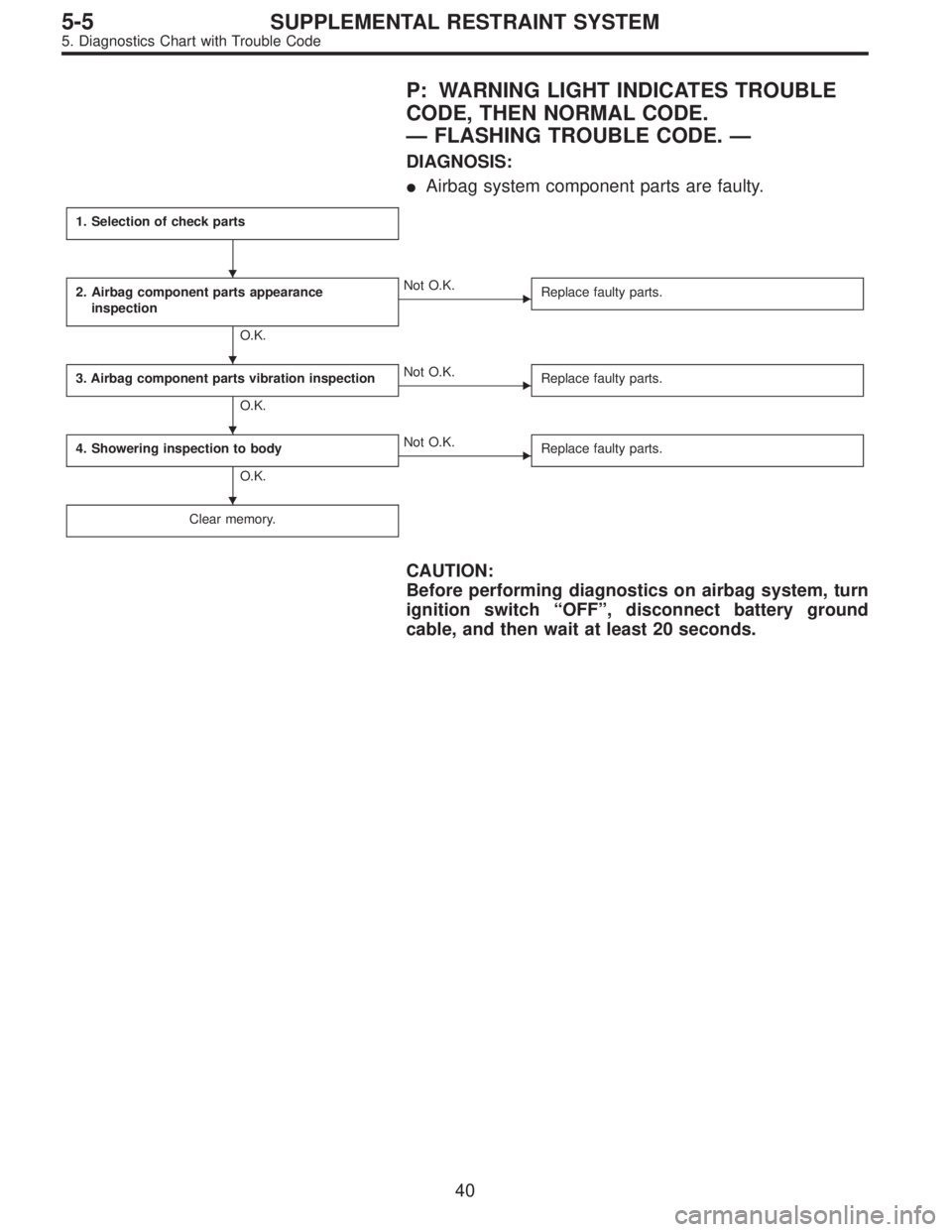

P: WARNING LIGHT INDICATES TROUBLE
CODE, THEN NORMAL CODE.
—FLASHING TROUBLE CODE.—
DIAGNOSIS:
Airbag system component parts are faulty.
1. Selection of check parts
2. Airbag component parts appearance
inspection
O.K.
Not O.K.
Replace faulty parts.
3. Airbag component parts vibration inspection
O.K.
Not O.K.
Replace faulty parts.
4. Showering inspection to body
O.K.
Not O.K.
Replace faulty parts.
Clear memory.
CAUTION:
Before performing diagnostics on airbag system, turn
ignition switch“OFF”, disconnect battery ground
cable, and then wait at least 20 seconds.




40
5-5SUPPLEMENTAL RESTRAINT SYSTEM
5. Diagnostics Chart with Trouble Code

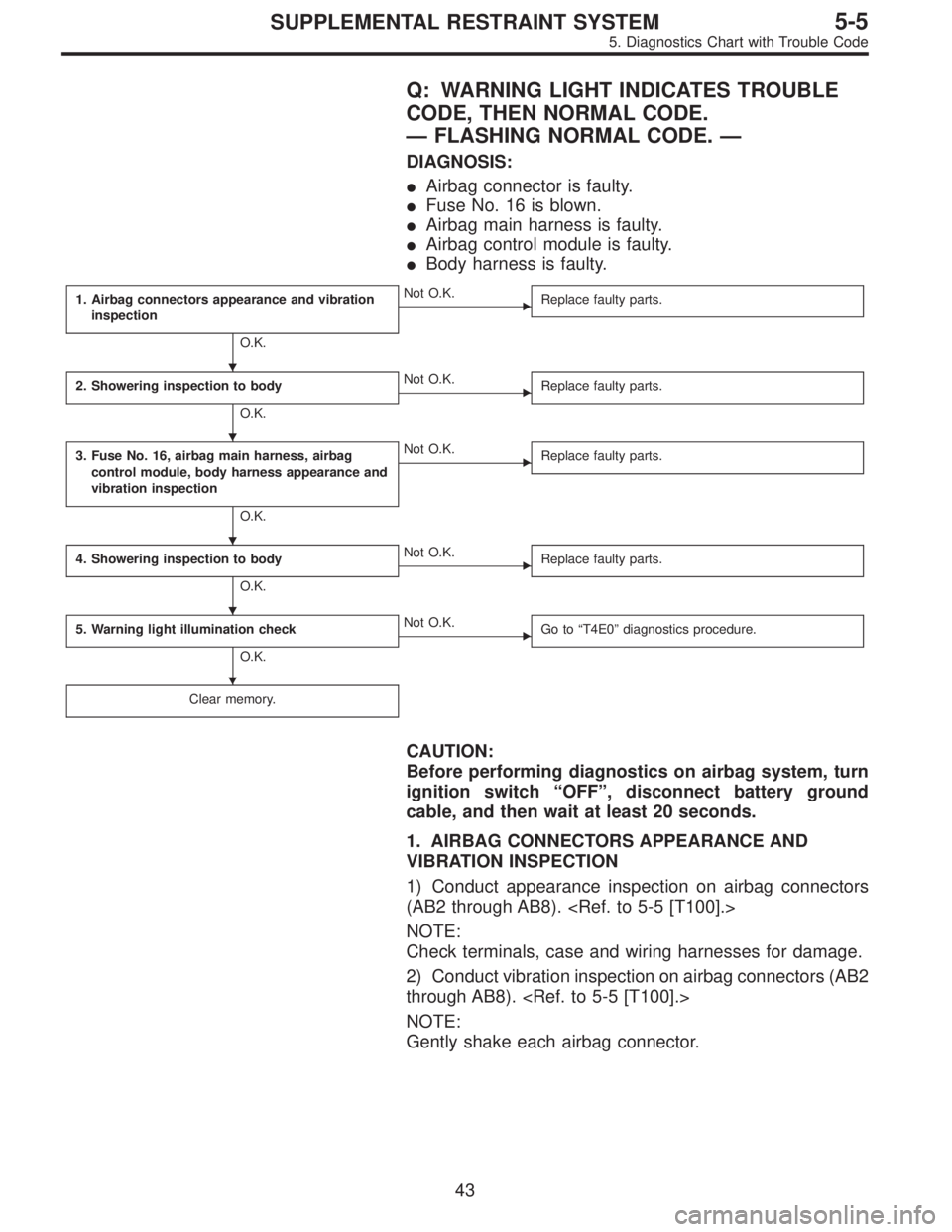

Q: WARNING LIGHT INDICATES TROUBLE
CODE, THEN NORMAL CODE.
—FLASHING NORMAL CODE.—
DIAGNOSIS:
Airbag connector is faulty.
Fuse No. 16 is blown.
Airbag main harness is faulty.
Airbag control module is faulty.
Body harness is faulty.
1. Airbag connectors appearance and vibration
inspection
O.K.
Not O.K.
Replace faulty parts.
2. Showering inspection to body
O.K.
Not O.K.
Replace faulty parts.
3. Fuse No. 16, airbag main harness, airbag
control module, body harness appearance and
vibration inspection
O.K.
Not O.K.
Replace faulty parts.
4. Showering inspection to body
O.K.
Not O.K.
Replace faulty parts.
5. Warning light illumination check
O.K.
Not O.K.
Go to“T4E0”diagnostics procedure.
Clear memory.
CAUTION:
Before performing diagnostics on airbag system, turn
ignition switch“OFF”, disconnect battery ground
cable, and then wait at least 20 seconds.
1. AIRBAG CONNECTORS APPEARANCE AND
VIBRATION INSPECTION
1) Conduct appearance inspection on airbag connectors
(AB2 through AB8).
NOTE:
Check terminals, case and wiring harnesses for damage.
2) Conduct vibration inspection on airbag connectors (AB2
through AB8).
NOTE:
Gently shake each airbag connector.





43
5-5SUPPLEMENTAL RESTRAINT SYSTEM
5. Diagnostics Chart with Trouble Code

G5M0461
2. SHOWERING INSPECTION TO BODY
1) Spray water on vehicle body.
CAUTION:
Do not directly spray water on airbag components.
2) Check passenger compartment for traces of leaking.
NOTE:
If leaks are noted, also check wiring harnesses as water
may leak along them and wet airbag connectors.
3. FUSE No. 16, AIRBAG MAIN HARNESS, AIRBAG
CONTROL MODULE, BODY HARNESS APPEARANCE
AND VIBRATION INSPECTION
1) Conduct appearance inspection on fuse No. 16 5-5 [T5L3].>, airbag main harness ,
airbag control module and body
harness.
NOTE:
Also check connectors, terminals, wiring harness and case
for damage.
2) Conduct vibration inspection on fuse No. 16, airbag
main harness, airbag control module and body harness.
NOTE:
Gently shake each part.
G5M0461
4. SHOWERING INSPECTION TO BODY
1) Spray water on vehicle body.
CAUTION:
Do not directly spray water on each part.
2) Check passenger compartment for traces of leaking.
NOTE:
If leaks are noted, check wiring harnesses as water may
leak along them and get parts wet.
5. WARNING LIGHT ILLUMINATION CHECK
Turn ignition switch“ON”(engine off) and observe airbag
warning light.
Airbag warning light comes“ON”for 8 seconds then goes
out and stays out.
44
5-5SUPPLEMENTAL RESTRAINT SYSTEM
5. Diagnostics Chart with Trouble Code

4. Diagnostics Chart for On-board
Diagnostic System
A: BASIC DIAGNOSTICS PROCEDURE
1) Airbag warning light comes “ON”.
2) Turn ignition switch to “ON”, (engine “OFF”) and observe airbag warning light.
3) If airbag warning light stays “ON” after about 7 seconds or remains “OFF”, or comes back “ON” after 30 seconds, this indicates a
current problem. Proceed to step 8).
If airbag warning light comes “ON” for about 7 seconds, then goes out and stays out, this indicates normal system operation at this
time. Check the memory for intermittent problems by performing the procedure outlined in 5-5b [T4B0] “ON-BOARD DIAGNOSTICS”.
Proceed to step 4).
4) If trouble code indicated, proceed to step 5).
If normal code indicated, proceed to step 6).
5) Repair and replacement, proceed to step 7).
6) Repair and replacement, proceed to step 7).
7) Turn ignition switch “ON”, (engine “OFF”) and observe airbag warning light. If airbag warning light stays “ON” after about 7 seconds
or comes back “ON” after 30 seconds, proceed to step 8).
If airbag warning light comes “ON” for about 7 seconds, then goes out and stays out, proceed to step 9).
8) Repair and replacement. Proceed to step 10).
9) Clear memory. Proceed to step 10).
10) END
B5M0115B
B: ON-BOARD DIAGNOSTIC
When the airbag system is in functioning condition, the
airbag warning light will remain on for about 7 seconds and
go out when the ignition switch is set to ON.
If there is any malfunction, the airbag warning light will
either stay on or off continuously. In such cases, perform
on-board diagnostic in accordance with the specified pro-
cedure to determine trouble codes.
1) Turn ignition switch ON (with engine OFF).
2) Connect DIAG. terminal

1to No. 1 terminal of diagno-
sis connector

2located below lower cover.
3) Check in accordance with the trouble code indicated by
the AIRBAG warning light, and record the trouble codes.
4) Turn the ignition switch “OFF” and remove the DIAG.
terminal from No.1 terminal of diagnosis connector.
9
5-5bSUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
4. Diagnostics Chart for On-board Diagnostic System

B5M0116B
C: CLEAR MEMORY
After eliminating problem as per trouble code, clear
memory as follows:
Make sure ignition switch is ON (and engine off). Connect
one DIAG. terminal

1on diagnosis connector
2terminal
No. 1.
While warning light is flashing, connect the other DIAG.
terminal

3on terminal No. 2 for at least three seconds.
After memory is cleared, normal warning light flashing rate
resumes. (Warning light flashes every 0.6 seconds ON-
OFF operation.) Memory cannot be cleared if any problem
exists.
After clear memory and then DIAG. terminals

1and
3,
extract from diagnosis connector

2.
10
