Page 3038 of 3342
B4M0973
10AF1CHECK OUTPUT OF STOP LIGHT
SWITCH USING SELECT MONITOR.
1) Press [F], [0] and [9] on the select monitor.
2) Depress the brake pedal.
3) Read the stop light switch output on the select monitor
display.
: Is the reading indicated on monitor display
less than 1.5 V?
: Go to step10AF2.
: Go to step10AF3.
B4M1265
10AF2CHECK OUTPUT OF STOP LIGHT
SWITCH USING SELECT MONITOR.
1) Release the brake pedal.
2) Read the stop light switch output on the select monitor
display.
: Is the reading indicated on monitor display
between 10 V and 15 V?
: Go to step10AF5.
: Go to step10AF3.
10AF3
CHECK IF STOP LIGHTS COME ON.
Depress the brake pedal.
: Do stop lights turn on?
: Go to step10AF4.
: Repair stop lights circuit.
162
4-4dBRAKES [ABS 5.3i TYPE]
10. Diagnostics Chart with Select Monitor
Page 3039 of 3342

B4M1259A
10AF4
CHECK OPEN CIRCUIT IN HARNESS.
1) Turn ignition switch to OFF.
2) Disconnect connector from ABSCM&H/U.
3) Depress brake pedal.
4) Measure voltage between ABSCM&H/U connector and
chassis ground.
Connector & terminal
(F49) No. 2—Chassis ground:
: Is the voltage between 10 V and 15 V?
: Go to step10AF5.
: Repair harness between stop light switch and
ABSCM&H/U connector.
10AF5CHECK POOR CONTACT IN CONNEC-
TORS.
: Is there poor contact in connector between
stop light switch and ABSCM&H/U?
FOREWORD [T3C1].>
: Repair connector.
: Go to step10AF6.
10AF6
CHECK ABSCM&H/U.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM&H/U.
: Go to step10AF7.
10AF7CHECK ANY OTHER TROUBLE CODES
APPEARANCE.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
163
4-4dBRAKES [ABS 5.3i TYPE]
10. Diagnostics Chart with Select Monitor
Page 3069 of 3342

B5M0115B
B: ON-BOARD DIAGNOSTIC
When the airbag system is in functioning condition, the
airbag warning light will remain on for 8 seconds and go out
when the ignition switch is set to ON.
If there is any malfunction, the airbag warning light will
either stay on or off continuously. In such cases, perform
on-board diagnostic in accordance with the specified pro-
cedure to determine trouble codes.
1) Turn ignition switch ON (with engine OFF).
2) Connect DIAG. terminal
1to No. 1 terminal of diagno-
sis connector
2located below lower cover.
3) Check in accordance with the trouble code indicated by
the AIRBAG warning light, and record the trouble codes.
4) Turn the ignition switch “OFF” and remove the DIAG.
terminal from No.1 terminal of diagnosis connector.
B5M0116B
C: CLEAR MEMORY
After eliminating problem as per trouble code, clear
memory as follows:
Make sure ignition switch is ON (and engine off). Connect
one DIAG. terminal
1on diagnosis connector2terminal
No. 1.
While warning light is flashing, connect the other DIAG.
terminal
3on terminal No. 2 for at least three seconds.
After memory is cleared, normal warning light flashing rate
resumes. (Warning light flashes every 0.6 seconds ON-
OFF operation.) Memory cannot be cleared if any problem
exists.
After clear memory and then DIAG. terminals
1and3,
extract from diagnosis connector
2.
9
5-5SUPPLEMENTAL RESTRAINT SYSTEM
4. Diagnostics Chart for On-board Diagnostic System
Page 3071 of 3342

Trouble code/Contents of troubles Memory function Contents of diagnosis Page
Airbag warning light remains on. Not provided.1) Airbag warning light is faulty.
2) Airbag control module to airbag warning light
harness circuit is shorted or open.
3) Grounding circuit is faulty.
4) Airbag control module is faulty.
5) (AB1) and (B31) are not connected properly.36
Airbag warning light remains off. Not provided.1) Fuse No. 15 is blown.
2) Body harness circuit is open.
3) Airbag warning light is faulty.
4) Airbag main harness is faulty.
5) Airbag control module is faulty.40
Warning light
indicates trouble
code, then normal
code.Flashing trouble
code.Provided. Airbag system component parts are faulty. 42
Flashing
normal code.
Not provided.1) Airbag connector is faulty.
2) Fuse No. 16 is blown.
3) Airbag main harness is faulty.
4) Airbag control module is faulty.
5) Body harness is faulty.45
2. HOW TO READ TROUBLE CODES
The AIRBAG warning light flashes a code corresponding to
the faulty parts.
The long segment (1.2 sec on) indicates a“ten”, and the
short segment (0.3 sec on) indicates a“one”.
B5M0117A
11
5-5SUPPLEMENTAL RESTRAINT SYSTEM
4. Diagnostics Chart for On-board Diagnostic System
Page 3072 of 3342
![SUBARU LEGACY 1997 Service Repair Manual E: DIAGNOSTICS PROCEDURE
Airbag warning light stays on after 8 seconds.
1) Perform on-board diagnostic. <Ref. to 5-5 [T4B0].>
2) Are trouble codes 2, 4, 12, 13, 22, 23, 24 or 32 indicated? <Ref. to 5- SUBARU LEGACY 1997 Service Repair Manual E: DIAGNOSTICS PROCEDURE
Airbag warning light stays on after 8 seconds.
1) Perform on-board diagnostic. <Ref. to 5-5 [T4B0].>
2) Are trouble codes 2, 4, 12, 13, 22, 23, 24 or 32 indicated? <Ref. to 5-](/manual-img/17/57434/w960_57434-3071.png)

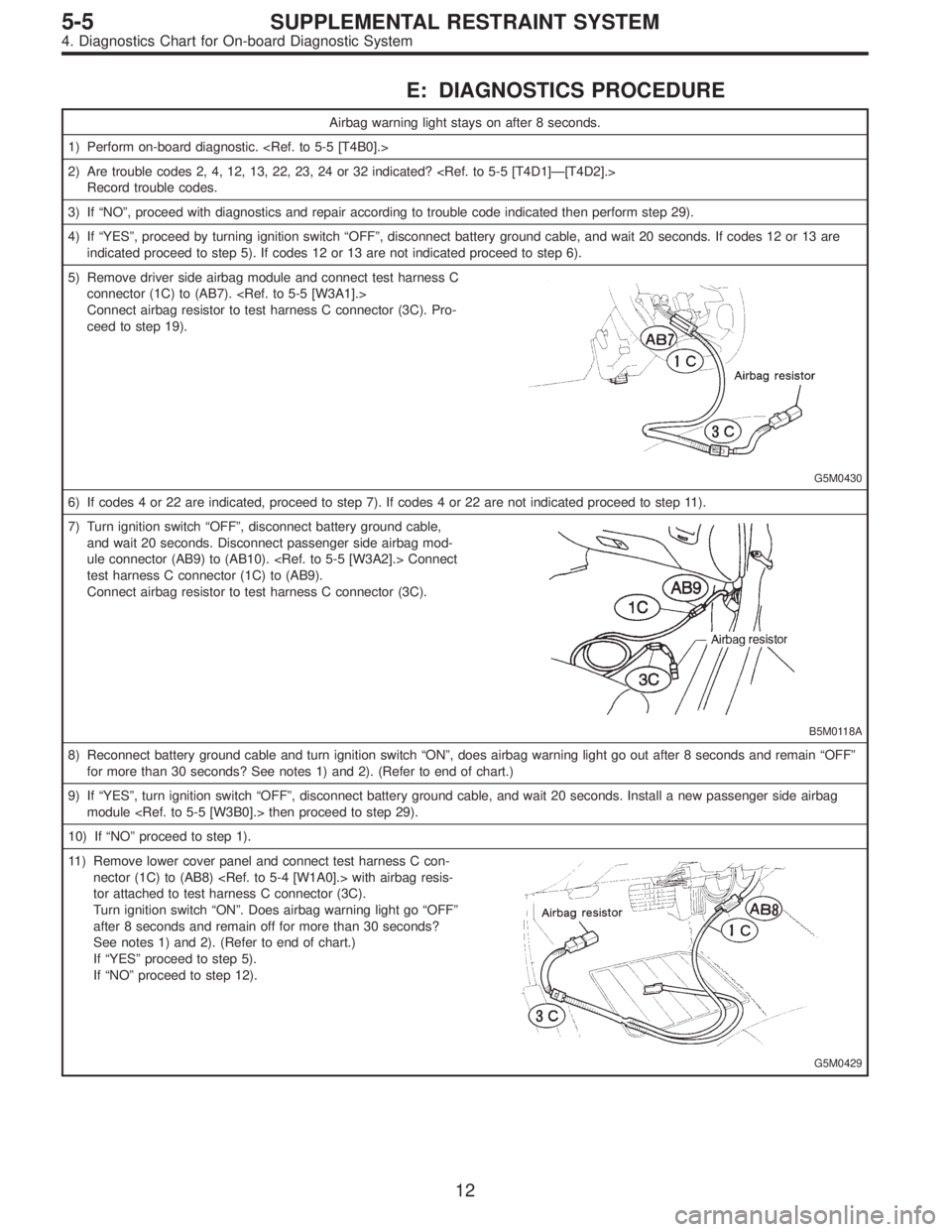

E: DIAGNOSTICS PROCEDURE
Airbag warning light stays on after 8 seconds.
1) Perform on-board diagnostic.
2) Are trouble codes 2, 4, 12, 13, 22, 23, 24 or 32 indicated?
Record trouble codes.
3) If“NO”, proceed with diagnostics and repair according to trouble code indicated then perform step 29).
4) If“YES”, proceed by turning ignition switch“OFF”, disconnect battery ground cable, and wait 20 seconds. If codes 12 or 13 are
indicated proceed to step 5). If codes 12 or 13 are not indicated proceed to step 6).
5) Remove driver side airbag module and connect test harness C
connector (1C) to (AB7).
Connect airbag resistor to test harness C connector (3C). Pro-
ceed to step 19).
G5M0430
6) If codes 4 or 22 are indicated, proceed to step 7). If codes 4 or 22 are not indicated proceed to step 11).
7) Turn ignition switch“OFF”, disconnect battery ground cable,
and wait 20 seconds. Disconnect passenger side airbag mod-
ule connector (AB9) to (AB10). Connect
test harness C connector (1C) to (AB9).
Connect airbag resistor to test harness C connector (3C).
B5M0118A
8) Reconnect battery ground cable and turn ignition switch“ON”, does airbag warning light go out after 8 seconds and remain“OFF”
for more than 30 seconds? See notes 1) and 2). (Refer to end of chart.)
9) If“YES”, turn ignition switch“OFF”, disconnect battery ground cable, and wait 20 seconds. Install a new passenger side airbag
module then proceed to step 29).
10) If“NO”proceed to step 1).
11) Remove lower cover panel and connect test harness C con-
nector (1C) to (AB8) with airbag resis-
tor attached to test harness C connector (3C).
Turn ignition switch“ON”. Does airbag warning light go“OFF”
after 8 seconds and remain off for more than 30 seconds?
See notes 1) and 2). (Refer to end of chart.)
If“YES”proceed to step 5).
If“NO”proceed to step 12).
G5M0429
12
5-5SUPPLEMENTAL RESTRAINT SYSTEM
4. Diagnostics Chart for On-board Diagnostic System
Page 3073 of 3342

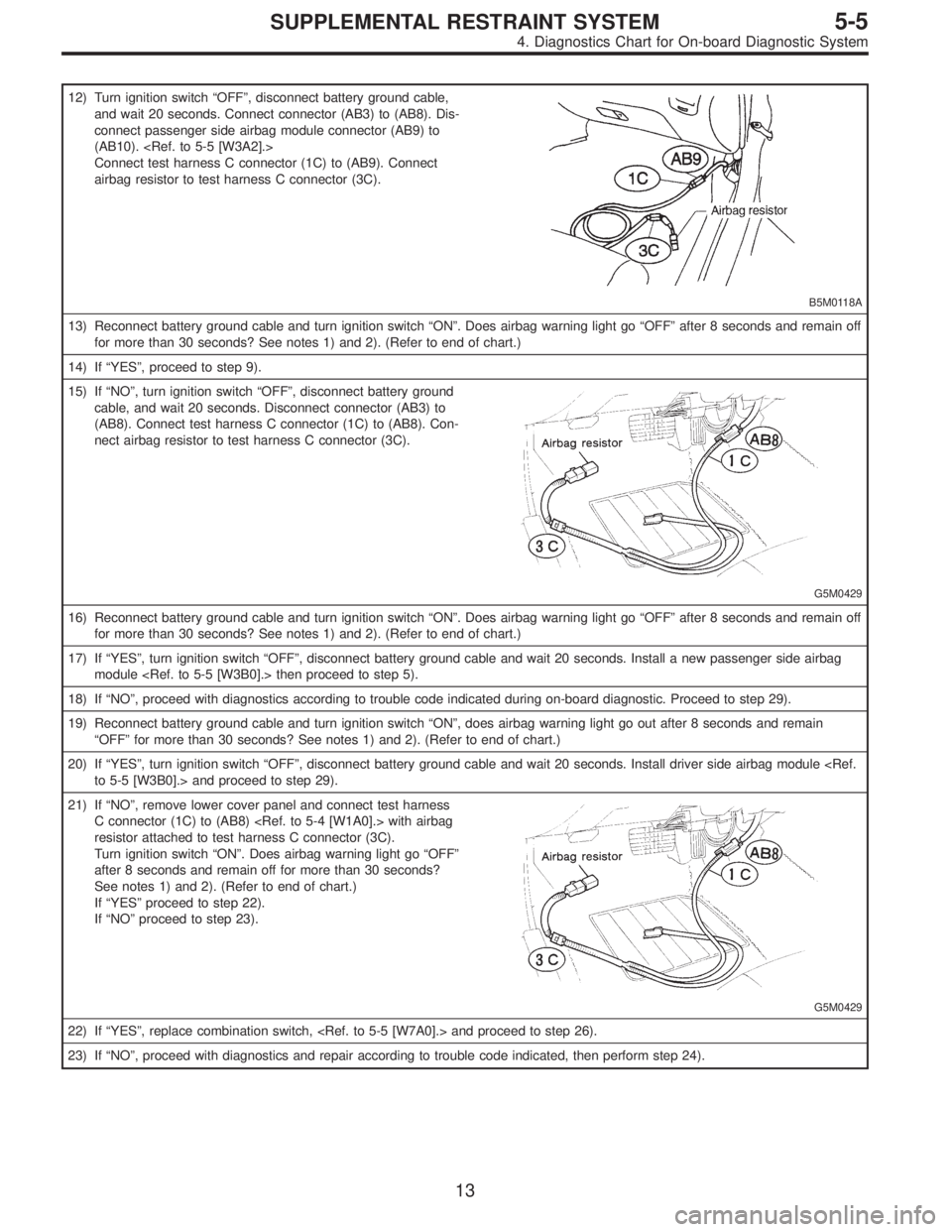

12) Turn ignition switch“OFF”, disconnect battery ground cable,
and wait 20 seconds. Connect connector (AB3) to (AB8). Dis-
connect passenger side airbag module connector (AB9) to
(AB10).
Connect test harness C connector (1C) to (AB9). Connect
airbag resistor to test harness C connector (3C).
B5M0118A
13) Reconnect battery ground cable and turn ignition switch“ON”. Does airbag warning light go“OFF”after 8 seconds and remain off
for more than 30 seconds? See notes 1) and 2). (Refer to end of chart.)
14) If“YES”, proceed to step 9).
15) If“NO”, turn ignition switch“OFF”, disconnect battery ground
cable, and wait 20 seconds. Disconnect connector (AB3) to
(AB8). Connect test harness C connector (1C) to (AB8). Con-
nect airbag resistor to test harness C connector (3C).
G5M0429
16) Reconnect battery ground cable and turn ignition switch“ON”. Does airbag warning light go“OFF”after 8 seconds and remain off
for more than 30 seconds? See notes 1) and 2). (Refer to end of chart.)
17) If“YES”, turn ignition switch“OFF”, disconnect battery ground cable and wait 20 seconds. Install a new passenger side airbag
module then proceed to step 5).
18) If“NO”, proceed with diagnostics according to trouble code indicated during on-board diagnostic. Proceed to step 29).
19) Reconnect battery ground cable and turn ignition switch“ON”, does airbag warning light go out after 8 seconds and remain
“OFF”for more than 30 seconds? See notes 1) and 2). (Refer to end of chart.)
20) If“YES”, turn ignition switch“OFF”, disconnect battery ground cable and wait 20 seconds. Install driver side airbag module
to 5-5 [W3B0].> and proceed to step 29).
21) If“NO”, remove lower cover panel and connect test harness
C connector (1C) to (AB8) with airbag
resistor attached to test harness C connector (3C).
Turn ignition switch“ON”. Does airbag warning light go“OFF”
after 8 seconds and remain off for more than 30 seconds?
See notes 1) and 2). (Refer to end of chart.)
If“YES”proceed to step 22).
If“NO”proceed to step 23).
G5M0429
22) If“YES”, replace combination switch, and proceed to step 26).
23) If“NO”, proceed with diagnostics and repair according to trouble code indicated, then perform step 24).
13
5-5SUPPLEMENTAL RESTRAINT SYSTEM
4. Diagnostics Chart for On-board Diagnostic System
Page 3074 of 3342
![SUBARU LEGACY 1997 Service Repair Manual 24) Turn ignition switch“OFF”, disconnect battery ground cable,
and wait 20 seconds. Remove driver side airbag module and
connect test harness C connector (1C) to (AB7) <Ref. to 5-5
[W3A1].> with SUBARU LEGACY 1997 Service Repair Manual 24) Turn ignition switch“OFF”, disconnect battery ground cable,
and wait 20 seconds. Remove driver side airbag module and
connect test harness C connector (1C) to (AB7) <Ref. to 5-5
[W3A1].> with](/manual-img/17/57434/w960_57434-3073.png)

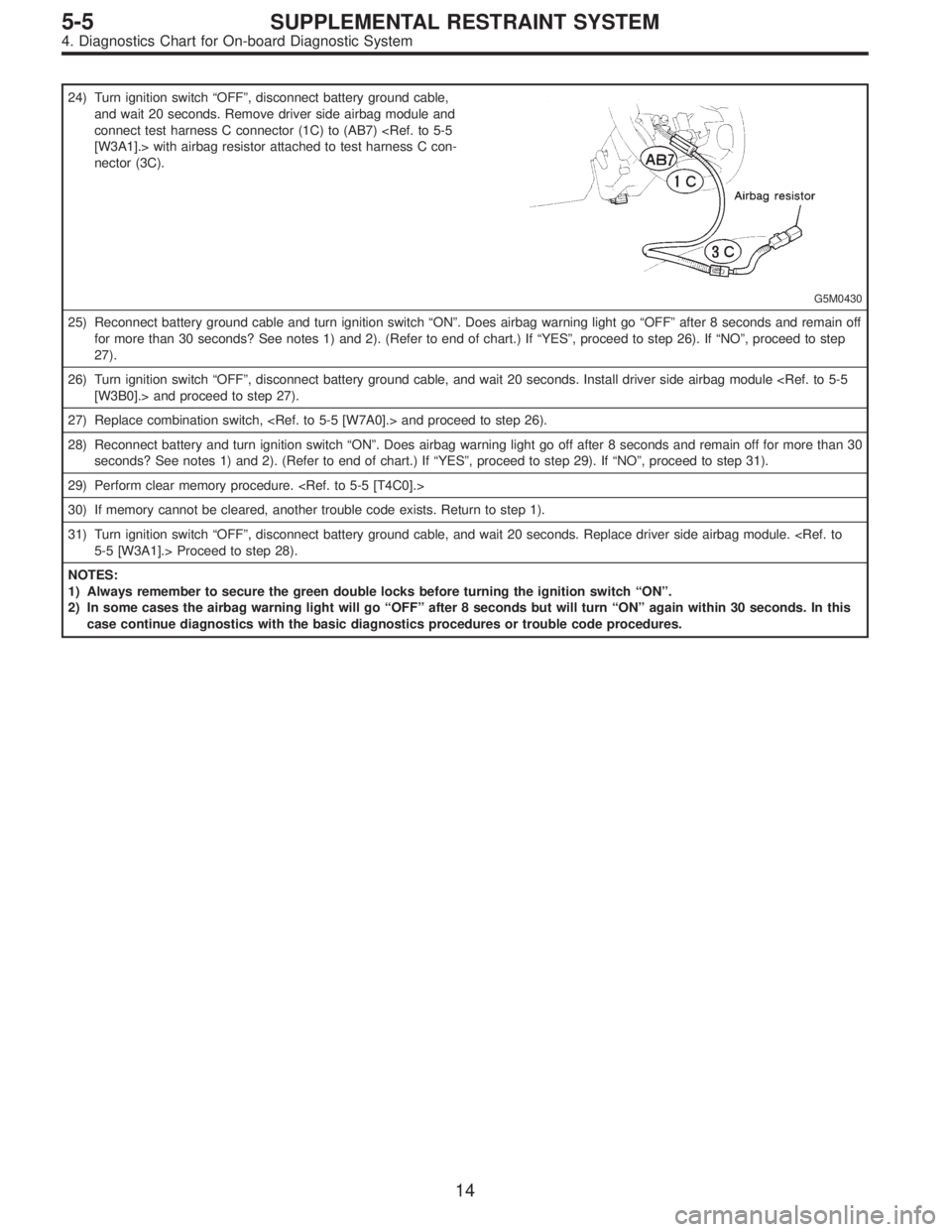

24) Turn ignition switch“OFF”, disconnect battery ground cable,
and wait 20 seconds. Remove driver side airbag module and
connect test harness C connector (1C) to (AB7)
[W3A1].> with airbag resistor attached to test harness C con-
nector (3C).
G5M0430
25) Reconnect battery ground cable and turn ignition switch“ON”. Does airbag warning light go“OFF”after 8 seconds and remain off
for more than 30 seconds? See notes 1) and 2). (Refer to end of chart.) If“YES”, proceed to step 26). If“NO”, proceed to step
27).
26) Turn ignition switch“OFF”, disconnect battery ground cable, and wait 20 seconds. Install driver side airbag module
[W3B0].> and proceed to step 27).
27) Replace combination switch, and proceed to step 26).
28) Reconnect battery and turn ignition switch“ON”. Does airbag warning light go off after 8 seconds and remain off for more than 30
seconds? See notes 1) and 2). (Refer to end of chart.) If“YES”, proceed to step 29). If“NO”, proceed to step 31).
29) Perform clear memory procedure.
30) If memory cannot be cleared, another trouble code exists. Return to step 1).
31) Turn ignition switch“OFF”, disconnect battery ground cable, and wait 20 seconds. Replace driver side airbag module.
5-5 [W3A1].> Proceed to step 28).
NOTES:
1) Always remember to secure the green double locks before turning the ignition switch “ON”.
2) In some cases the airbag warning light will go “OFF” after 8 seconds but will turn “ON” again within 30 seconds. In this
case continue diagnostics with the basic diagnostics procedures or trouble code procedures.
14
5-5SUPPLEMENTAL RESTRAINT SYSTEM
4. Diagnostics Chart for On-board Diagnostic System
Page 3095 of 3342

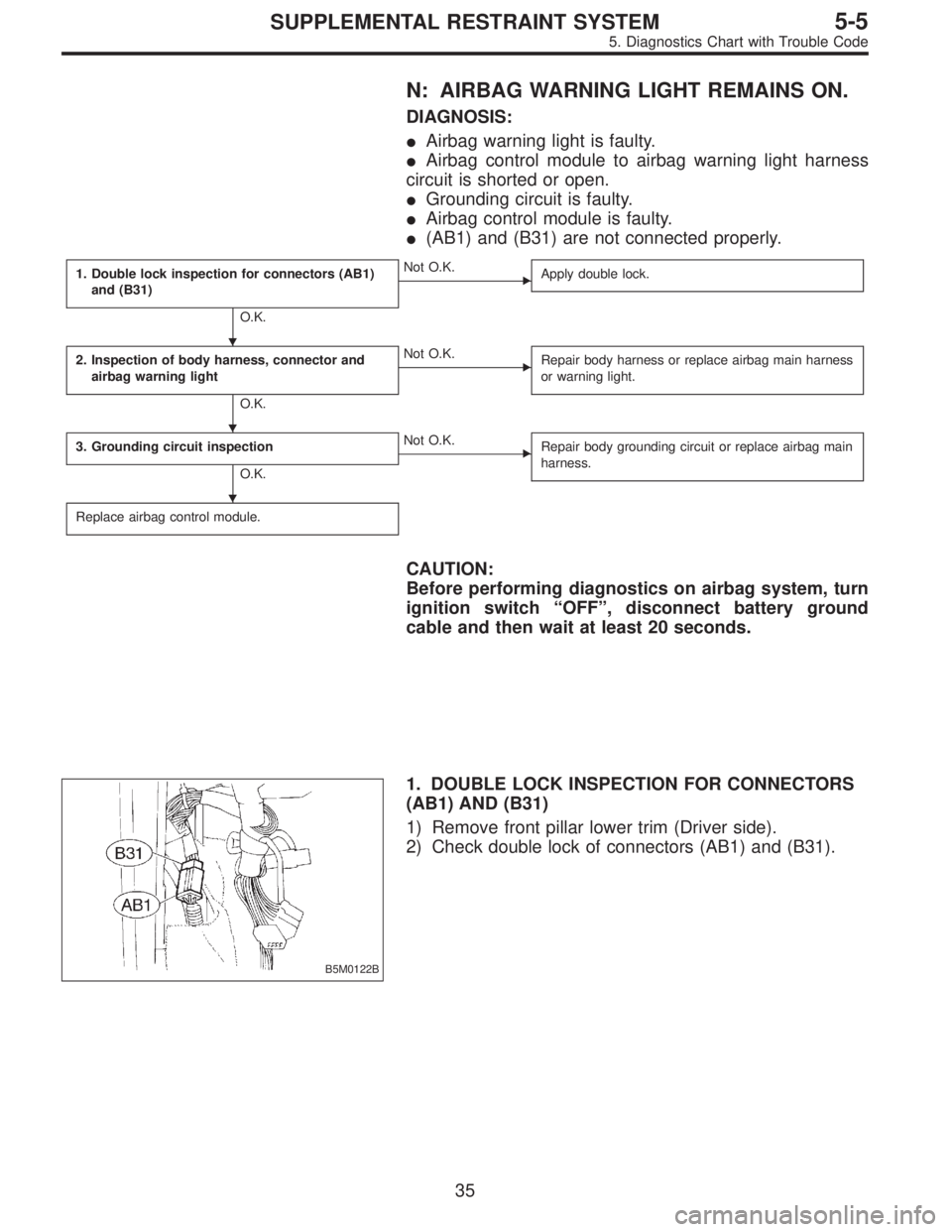

N: AIRBAG WARNING LIGHT REMAINS ON.
DIAGNOSIS:
Airbag warning light is faulty.
Airbag control module to airbag warning light harness
circuit is shorted or open.
Grounding circuit is faulty.
Airbag control module is faulty.
(AB1) and (B31) are not connected properly.
1. Double lock inspection for connectors (AB1)
and (B31)
O.K.
Not O.K.
Apply double lock.
2. Inspection of body harness, connector and
airbag warning light
O.K.
Not O.K.
Repair body harness or replace airbag main harness
or warning light.
3. Grounding circuit inspection
O.K.
Not O.K.
Repair body grounding circuit or replace airbag main
harness.
Replace airbag control module.
CAUTION:
Before performing diagnostics on airbag system, turn
ignition switch“OFF”, disconnect battery ground
cable and then wait at least 20 seconds.
B5M0122B
1. DOUBLE LOCK INSPECTION FOR CONNECTORS
(AB1) AND (B31)
1) Remove front pillar lower trim (Driver side).
2) Check double lock of connectors (AB1) and (B31).
35
5-5SUPPLEMENTAL RESTRAINT SYSTEM
5. Diagnostics Chart with Trouble Code
