1997 SUBARU LEGACY differential

Automatic
transmissionOil pumpType Variable-capacity type vane pump
Driving method Driven by engine
Number of vanes 9 pieces
Hydraulic
controlTy p eElectronic/hydraulic control
[Four forward speed changes by electrical signals of car speed
and accelerator (throttle) opening]
Fluid Dexron II or Dexron III type Automatic transmission fluid
Fluid
capacity2200 cc 7.9(8.4 US qt, 7.0 Imp qt)
2500 cc 9.5(10.0 US qt, 8.4 Imp qt)
LubricationLubrication system Forced feed lubrication with oil pump
Oil Automatic transmission fluid (above mentioned.)
Cooling Cooling system Liquid-cooled cooler incorporated in radiator
HarnessInhibitor switch 12 poles
Transmission harnessFWD ... 11 poles
AWD ... 13 poles
TransferTransfer clutch Hydraulic multi-plate clutch
Clutch number of transfer clutch Drive plate & driven plate 5
Control method Electronic, hydraulic type
LubricantThe same Automatic Transmission Fluid used in automatic
transmission.
1st reduction gear ratio 1.000 (53/53)
Final
reductionFinal gear
ratioFront driveFWD 3.900 (39/10)
AWD2200 cc 4.111 (37/9)
2500 cc 4.444 (40/9)
Speedometer gear ratio2200 cc & LSi 0.83 (19/23)
GT 0.80 (20/25)
OUTBACK 0.76 (19/25)
Lubrication oilAPI, GL-5
Oil capacity Front drive 1.2(1.3 US qt, 1.1 Imp qt)
ATF cooling
systemRadiation capacity 1.651 kW (1,420 kcal/h, 5,635 BTU/h)
3
3-2SPECIFICATIONS AND SERVICE DATA
1. Automatic Transmission and Differential

B: ADJUSTING PARTS
G3M0774
4
3-2SPECIFICATIONS AND SERVICE DATA
1. Automatic Transmission and Differential

No. Part Name Part Number Dimension mm (in) Application
1 Control piston2500 cc 31235AA000—030
13.5
0.030
0.037(0.53150.0012
0.0015), 13.50.023
0.030(0.53150.0009
0.0012),
13.50.016
0.023(0.53150.0006
0.0009), 13.50.009
0.016(0.53150.0004
0.0006)Adjusting side clear-
ance of oil pump
2200 cc 31235AA040 — 070
2 Cam ring 31241AA001 — 03117
0.010
0.017(0.66930.0004
0.0007), 170.003
0.010(0.66930.0001
0.0004),
17+0.004
0.003(0.6693+0.0002
0.0001), 17+0.011
+0.004(0.6693+0.0004
+0.0002)Adjusting side clear-
ance of oil pump
3 Vane (Oil pump) 31243AA000 — 03017
0.030
0.037(0.66930.0012
0.0015), 170.023
0.030(0.66930.0009
0.0012),
170.016
0.023(0.66930.0006
0.0009), 17+0.009
+0.016(0.6693+0.0004
+0.0006)Adjusting side clear-
ance of oil pump
4 Rotor (Oil pump) 31240AA000 — 03017
0.030
0.037(0.66930.0012
0.0015), 170.023
0.030(0.66930.0009
0.0012),
170.016
0.023(0.66930.0006
0.0009), 17+0.009
+0.016(0.6693+0.0004
+0.0006)Adjusting side clear-
ance of oil pump
5Thrust washer
(Reverse clutch)31299AA000 — 0600.7, 0.9, 1.1, 1.3, 1.5, 1.7, 1.9
(0.028, 0.035, 0.043, 0.051, 0.059, 0.067, 0.075)Adjusting end play of
reverse clutch drum
6 Bearing race 803031021 — 0270.8, 1.0, 1.2, 1.4, 1.6, 1.8, 2.0
(0.031, 0.039, 0.047, 0.055, 0.063, 0.071, 0.079)Adjusting total end
play
7 Retaining plate 31567AA350 — 4004.6, 4.8, 5.0, 5.2, 5.4, 5.6 (0.181, 0.189, 0.197, 0.205,
0.213, 0.220)Adjusting clearance
of reverse clutch
8 Retaining plate31567AA340,
31567AA190 — 2603.4, 3.6, 3.8, 4.0, 4.2, 4.4, 4.6, 4.8, 5.0
(0.134, 0.142, 0.150, 0.157, 0.165, 0.173, 0.181, 0.189,
0.197)Adjusting clearance
of high clutch
9 Retaining plate31567AA010,
31567AA060 — 1104.0, 4.2, 4.4, 4.6, 4.8, 5.0, 5.2
(0.157, 0.165, 0.173, 0.181, 0.189, 0.197, 0.205)Adjusting clearance
of forward clutch
10 Retaining plate 31567AA410 — 4708.0, 8.2, 8.4, 8.6, 8.8, 9.0, 9.2
(0.315, 0.323, 0.331, 0.339, 0.346, 0.354, 0.362)Adjusting clearance
of overrunning clutch
11Retaining plate
No. 231667AA180 — 2506.5, 6.8, 7.1, 7.4, 7.7, 8.0, 8.2, 8.4
(0.256, 0.268, 0.280, 0.291, 0.303, 0.315, 0.323, 0.331)Adjusting clearance
of low and reverse
brake
12Pressure plate
(Front)31593AA151 — 1813.3, 3.7, 4.1, 4.5
(0.130, 0.146, 0.161, 0.177)Adjusting clearance
of transfer clutch
13Thrust bearing
(35x53xT)806536020,
806535030 — 070,
0903.8, 4.0, 4.2, 4.4, 4.6, 4.8, 5.0
(0.150, 0.157, 0.165, 0.173, 0.181, 0.189, 0.197)Adjusting end play of
transfer clutch
14Washer
(38.1 x 50 x T)803038021 — 0230.95, 1.00, 1.05
(0.0374, 0.0394, 0.0413)Adjusting backlash
of differential bevel
gear
15 Drive pinion shim 31451AA050 — 1000.150, 0.175, 0.200, 0.225, 0.250, 0.275
(0.0059, 0.0069, 0.0079, 0.0089, 0.0098, 0.0108)Adjusting drive pin-
ion height
5
3-2SPECIFICATIONS AND SERVICE DATA
1. Automatic Transmission and Differential

C: LOCATION AND INSTALLING DIRECTION
OF THRUST NEEDLE BEARING
B3M0400A
6
3-2SPECIFICATIONS AND SERVICE DATA
1. Automatic Transmission and Differential

Unit: mm (in)
No. Part Name Part Number Inside diameter Outside diameter Dimension Application
AThrust needle
bearing806530020 30 (1.18) 47 (1.85) 3.3 (0.130)A place of high
clutch
BThrust needle
bearing806537010 38 (1.50) 53 (2.09) 3.2 (0.126)A place of high
clutch hub
CThrust needle
bearing806537010 38 (1.50) 53 (2.09) 3.2 (0.126)A place of front
sun gear
DThrust needle
bearing806558020 58 (2.28) 78 (3.07) 4.0 (0.157)A place of front
planetary carrier
EThrust needle
bearing806535120 35 (1.38) 53 (2.09) 4.8 (0.189)A place of rear
sun gear
FThrust needle
bearing806534010 34 (1.34) 53 (2.09) 3.37 (0.1327)A place of rear
internal gear
GThrust needle
bearing806558020 58 (2.28) 78 (3.07) 4.0 (0.157)A place of
overrunning clutch
hub
HThrust needle
bearing806542010 42 (1.65) 59 (2.32) 3.6 (0.142)A place of low &
reverse brake
IThrust needle
bearing806536020
806535030
36 (1.42) 53 (2.09)3.8, 4.0, 4.2, 4.4,
4.6, 4.8, 5.0
(0.150, 0.157,
0.165, 0.173,
0.181, 0.189,
0.197)Adjusting end
play of transfer
clutch
∼
806535070
806535090
7
3-2SPECIFICATIONS AND SERVICE DATA
1. Automatic Transmission and Differential

D: FLUID PASSAGES
G3M0776
8
3-2SPECIFICATIONS AND SERVICE DATA
1. Automatic Transmission and Differential

G3M0777
9
3-2SPECIFICATIONS AND SERVICE DATA
1. Automatic Transmission and Differential

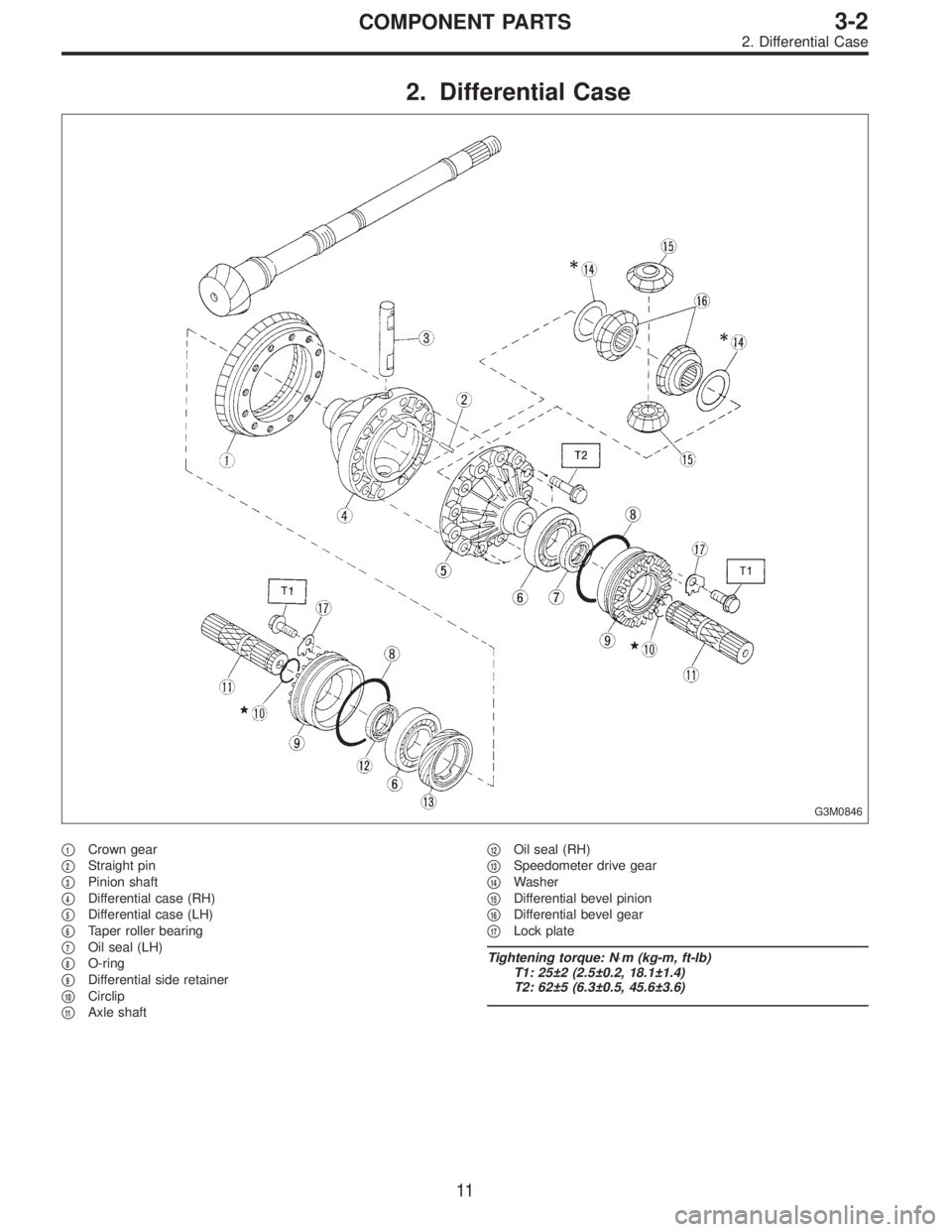

2. Differential Case
G3M0846

1Crown gear


2Straight pin


3Pinion shaft


4Differential case (RH)


5Differential case (LH)


6Taper roller bearing


7Oil seal (LH)


8O-ring


9Differential side retainer


10Circlip


11Axle shaft

12Oil seal (RH)


13Speedometer drive gear


14Washer


15Differential bevel pinion


16Differential bevel gear


17Lock plate
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 25±2 (2.5±0.2, 18.1±1.4)
T2: 62±5 (6.3±0.5, 45.6±3.6)
11
3-2COMPONENT PARTS
2. Differential Case
