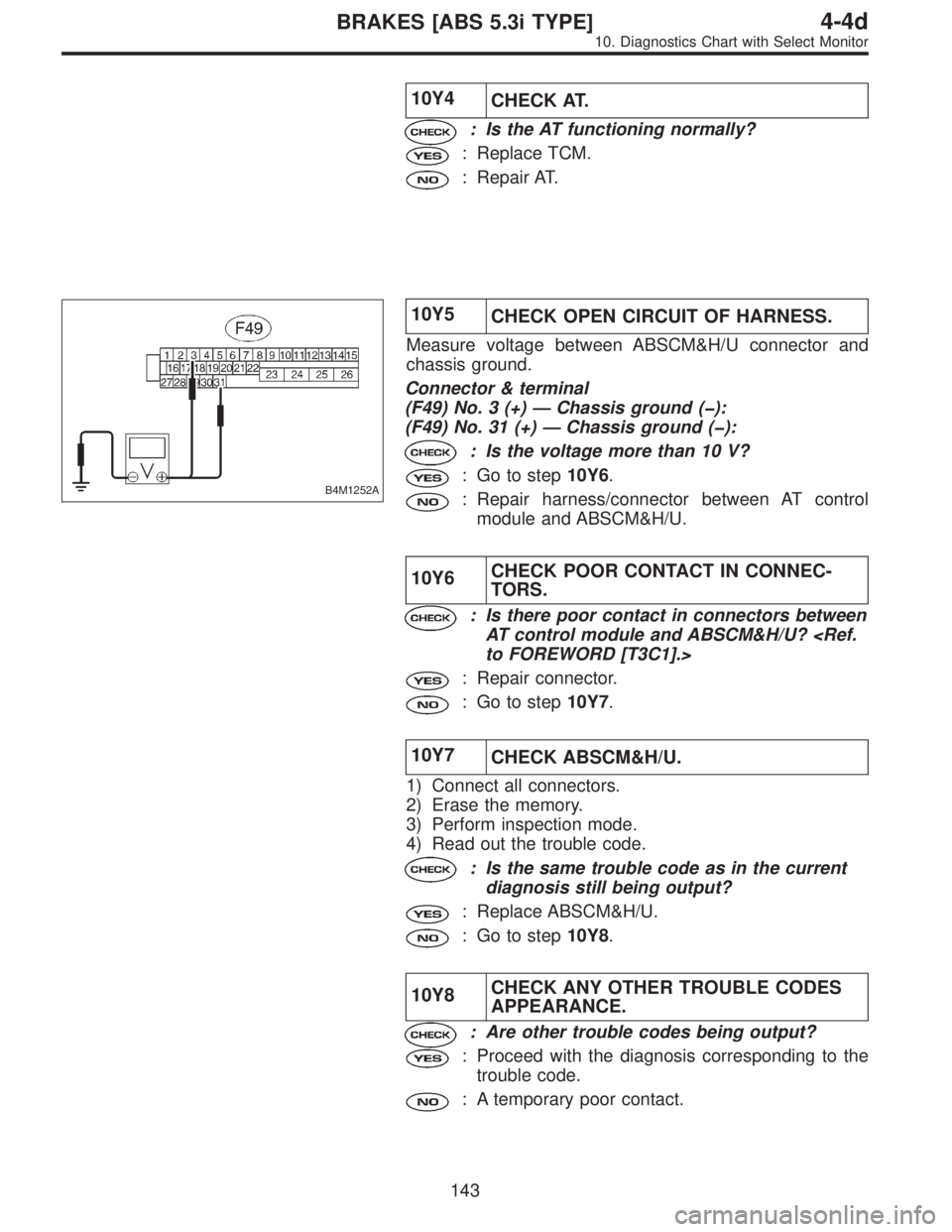

1997 SUBARU LEGACY ESP

10Y4
CHECK AT.
: Is the AT functioning normally?
: Replace TCM.
: Repair AT.
B4M1252A
10Y5
CHECK OPEN CIRCUIT OF HARNESS.
Measure voltage between ABSCM&H/U connector and
chassis ground.
Connector & terminal
(F49) No. 3 (+)—Chassis ground ():
(F49) No. 31 (+)—Chassis ground ():
: Is the voltage more than 10 V?
: Go to step10Y6.
: Repair harness/connector between AT control
module and ABSCM&H/U.
10Y6CHECK POOR CONTACT IN CONNEC-
TORS.
: Is there poor contact in connectors between
AT control module and ABSCM&H/U? to FOREWORD [T3C1].>
: Repair connector.
: Go to step10Y7.
10Y7
CHECK ABSCM&H/U.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM&H/U.
: Go to step10Y8.
10Y8CHECK ANY OTHER TROUBLE CODES
APPEARANCE.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
143

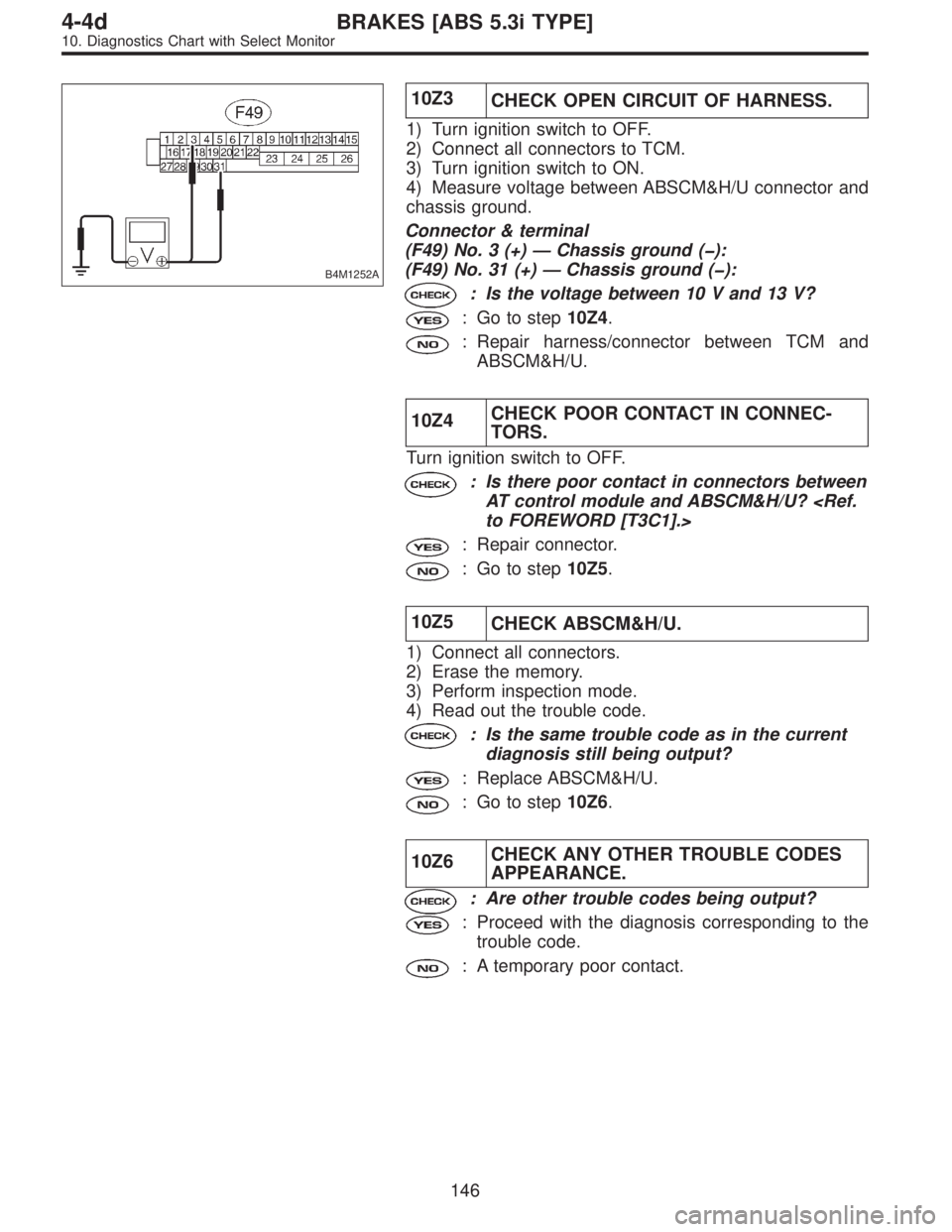

4-4dBRAKES [ABS 5.3i TYPE]
10. Diagnostics Chart with Select Monitor

B4M1252A
10Z3
CHECK OPEN CIRCUIT OF HARNESS.
1) Turn ignition switch to OFF.
2) Connect all connectors to TCM.
3) Turn ignition switch to ON.
4) Measure voltage between ABSCM&H/U connector and
chassis ground.
Connector & terminal
(F49) No. 3 (+)—Chassis ground ():
(F49) No. 31 (+)—Chassis ground ():
: Is the voltage between 10 V and 13 V?
: Go to step10Z4.
: Repair harness/connector between TCM and
ABSCM&H/U.
10Z4CHECK POOR CONTACT IN CONNEC-
TORS.
Turn ignition switch to OFF.
: Is there poor contact in connectors between
AT control module and ABSCM&H/U? to FOREWORD [T3C1].>
: Repair connector.
: Go to step10Z5.
10Z5
CHECK ABSCM&H/U.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM&H/U.
: Go to step10Z6.
10Z6CHECK ANY OTHER TROUBLE CODES
APPEARANCE.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
146
4-4dBRAKES [ABS 5.3i TYPE]
10. Diagnostics Chart with Select Monitor

10AA4
CHECK ABSCM&H/U.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM&H/U.
: Go to step10AA5.
10AA5CHECK ANY OTHER TROUBLE CODES
APPEARANCE.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
149

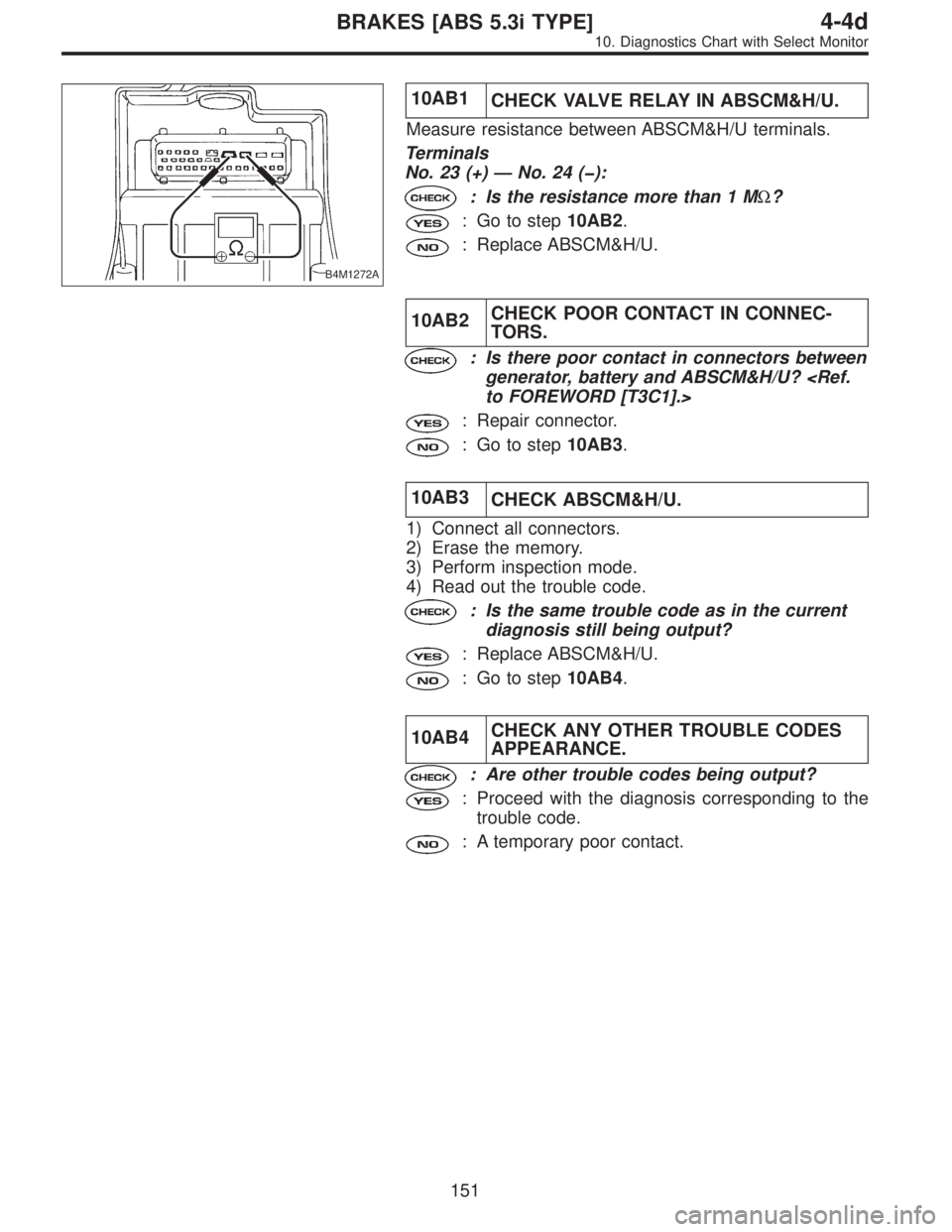

4-4dBRAKES [ABS 5.3i TYPE]
10. Diagnostics Chart with Select Monitor

B4M1272A
10AB1
CHECK VALVE RELAY IN ABSCM&H/U.
Measure resistance between ABSCM&H/U terminals.
Terminals
No. 23 (+)—No. 24 ():
: Is the resistance more than 1 MΩ?
: Go to step10AB2.
: Replace ABSCM&H/U.
10AB2CHECK POOR CONTACT IN CONNEC-
TORS.
: Is there poor contact in connectors between
generator, battery and ABSCM&H/U? to FOREWORD [T3C1].>
: Repair connector.
: Go to step10AB3.
10AB3
CHECK ABSCM&H/U.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM&H/U.
: Go to step10AB4.
10AB4CHECK ANY OTHER TROUBLE CODES
APPEARANCE.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
151

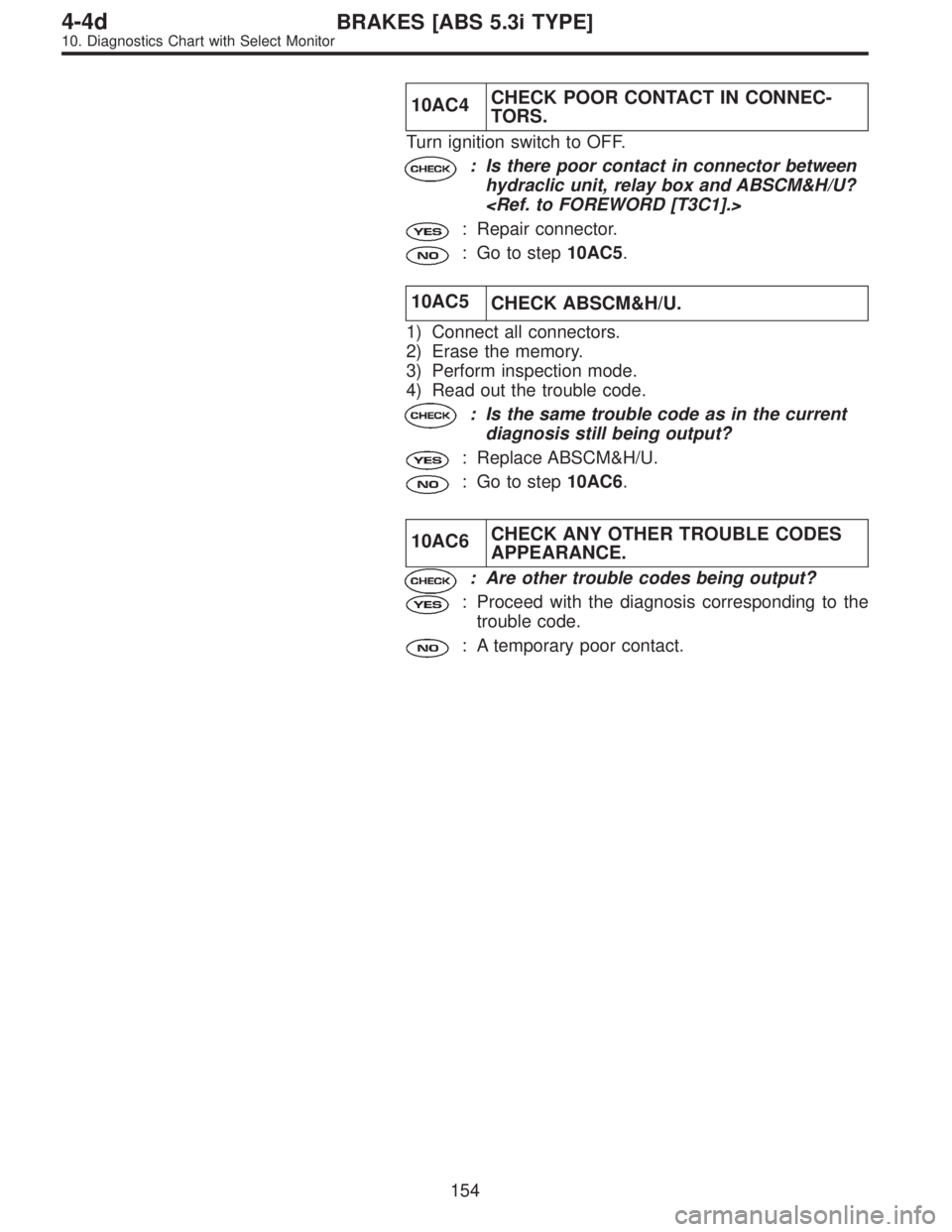

4-4dBRAKES [ABS 5.3i TYPE]
10. Diagnostics Chart with Select Monitor

10AC4CHECK POOR CONTACT IN CONNEC-
TORS.
Turn ignition switch to OFF.
: Is there poor contact in connector between
hydraclic unit, relay box and ABSCM&H/U?

: Repair connector.
: Go to step10AC5.
10AC5
CHECK ABSCM&H/U.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM&H/U.
: Go to step10AC6.
10AC6CHECK ANY OTHER TROUBLE CODES
APPEARANCE.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
154

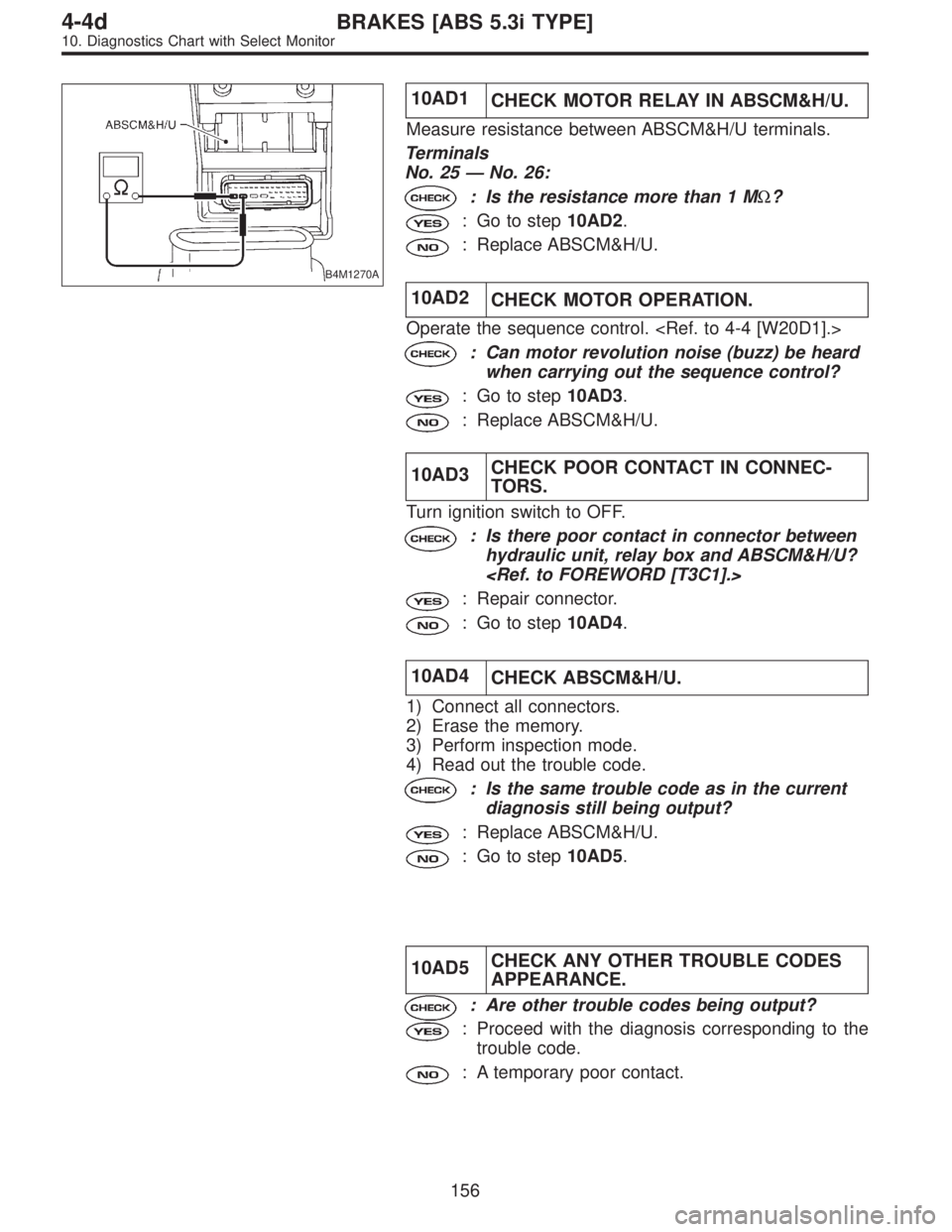

4-4dBRAKES [ABS 5.3i TYPE]
10. Diagnostics Chart with Select Monitor

B4M1270A
10AD1
CHECK MOTOR RELAY IN ABSCM&H/U.
Measure resistance between ABSCM&H/U terminals.
Terminals
No. 25—No. 26:
: Is the resistance more than 1 MΩ?
: Go to step10AD2.
: Replace ABSCM&H/U.
10AD2
CHECK MOTOR OPERATION.
Operate the sequence control.
: Can motor revolution noise (buzz) be heard
when carrying out the sequence control?
: Go to step10AD3.
: Replace ABSCM&H/U.
10AD3CHECK POOR CONTACT IN CONNEC-
TORS.
Turn ignition switch to OFF.
: Is there poor contact in connector between
hydraulic unit, relay box and ABSCM&H/U?

: Repair connector.
: Go to step10AD4.
10AD4
CHECK ABSCM&H/U.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM&H/U.
: Go to step10AD5.
10AD5CHECK ANY OTHER TROUBLE CODES
APPEARANCE.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
156

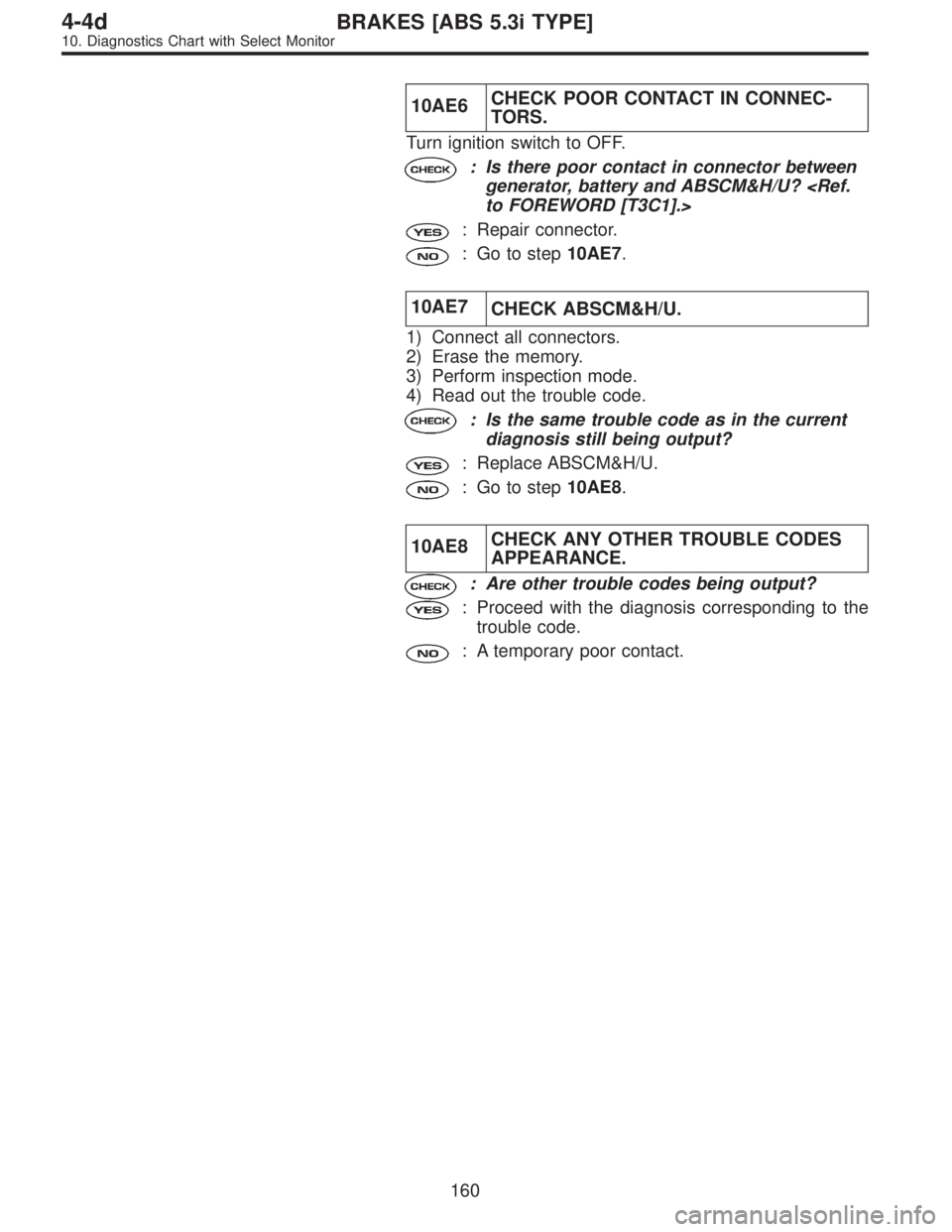

4-4dBRAKES [ABS 5.3i TYPE]
10. Diagnostics Chart with Select Monitor

10AE6CHECK POOR CONTACT IN CONNEC-
TORS.
Turn ignition switch to OFF.
: Is there poor contact in connector between
generator, battery and ABSCM&H/U? to FOREWORD [T3C1].>
: Repair connector.
: Go to step10AE7.
10AE7
CHECK ABSCM&H/U.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM&H/U.
: Go to step10AE8.
10AE8CHECK ANY OTHER TROUBLE CODES
APPEARANCE.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
160

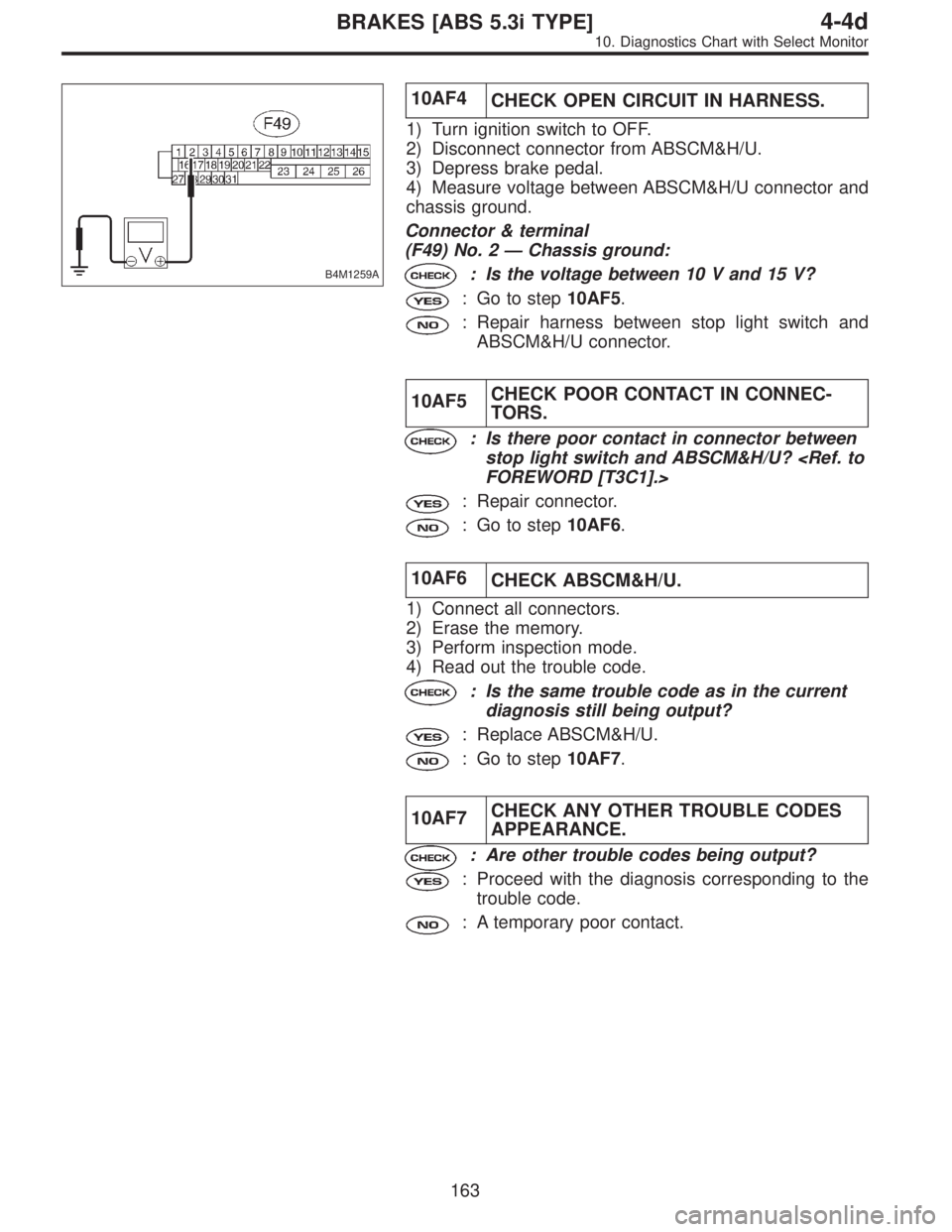

4-4dBRAKES [ABS 5.3i TYPE]
10. Diagnostics Chart with Select Monitor

B4M1259A
10AF4
CHECK OPEN CIRCUIT IN HARNESS.
1) Turn ignition switch to OFF.
2) Disconnect connector from ABSCM&H/U.
3) Depress brake pedal.
4) Measure voltage between ABSCM&H/U connector and
chassis ground.
Connector & terminal
(F49) No. 2—Chassis ground:
: Is the voltage between 10 V and 15 V?
: Go to step10AF5.
: Repair harness between stop light switch and
ABSCM&H/U connector.
10AF5CHECK POOR CONTACT IN CONNEC-
TORS.
: Is there poor contact in connector between
stop light switch and ABSCM&H/U? FOREWORD [T3C1].>
: Repair connector.
: Go to step10AF6.
10AF6
CHECK ABSCM&H/U.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM&H/U.
: Go to step10AF7.
10AF7CHECK ANY OTHER TROUBLE CODES
APPEARANCE.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
163
4-4dBRAKES [ABS 5.3i TYPE]
10. Diagnostics Chart with Select Monitor
