1997 SUBARU LEGACY ESP

OBD0229
R: DTC P0139
—REAR OXYGEN SENSOR CIRCUIT SLOW
RESPONSE—
WIRING DIAGRAM:
B2M1292
NOTE:
Check rear oxygen sensor circuit.

442
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B3M0383
(5) Designate mode using function key.
(6) Read data on Subaru select monitor.
Function mode: F09
SPECIFIED DATA:
0.5±0.2 V (Throttle fully closed.)
4.6±0.3 V (Throttle fully open.)
[Must be changed correspondingly with accelera-
tor pedal operation (from“released”to
“depressed”position).]
B3M0238A
4. CHECK POWER SUPPLY TO THROTTLE POSITION
SENSOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from throttle position sensor.
3) Turn ignition switch to ON.
4) Measure power supply voltage to throttle position sen-
sor.
Connector & terminal / Specified voltage:
(E13) No. 1—Body / 5.12±0.1 V
OBD0145A

Using Subaru select monitor:
(1) Turn ignition switch to OFF.
(2) Connect the Subaru select monitor to data link con-
nector.
(3) Turn ignition switch to ON and Subaru select moni-
tor switch to ON.
OBD0506
(4) Designate mode using function key.
(5) Read data on Subaru select monitor.
Function mode: F14
SPECIFIED DATA:
5.12±0.1 V
43
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
7. Diagnostic Chart with Trouble Code

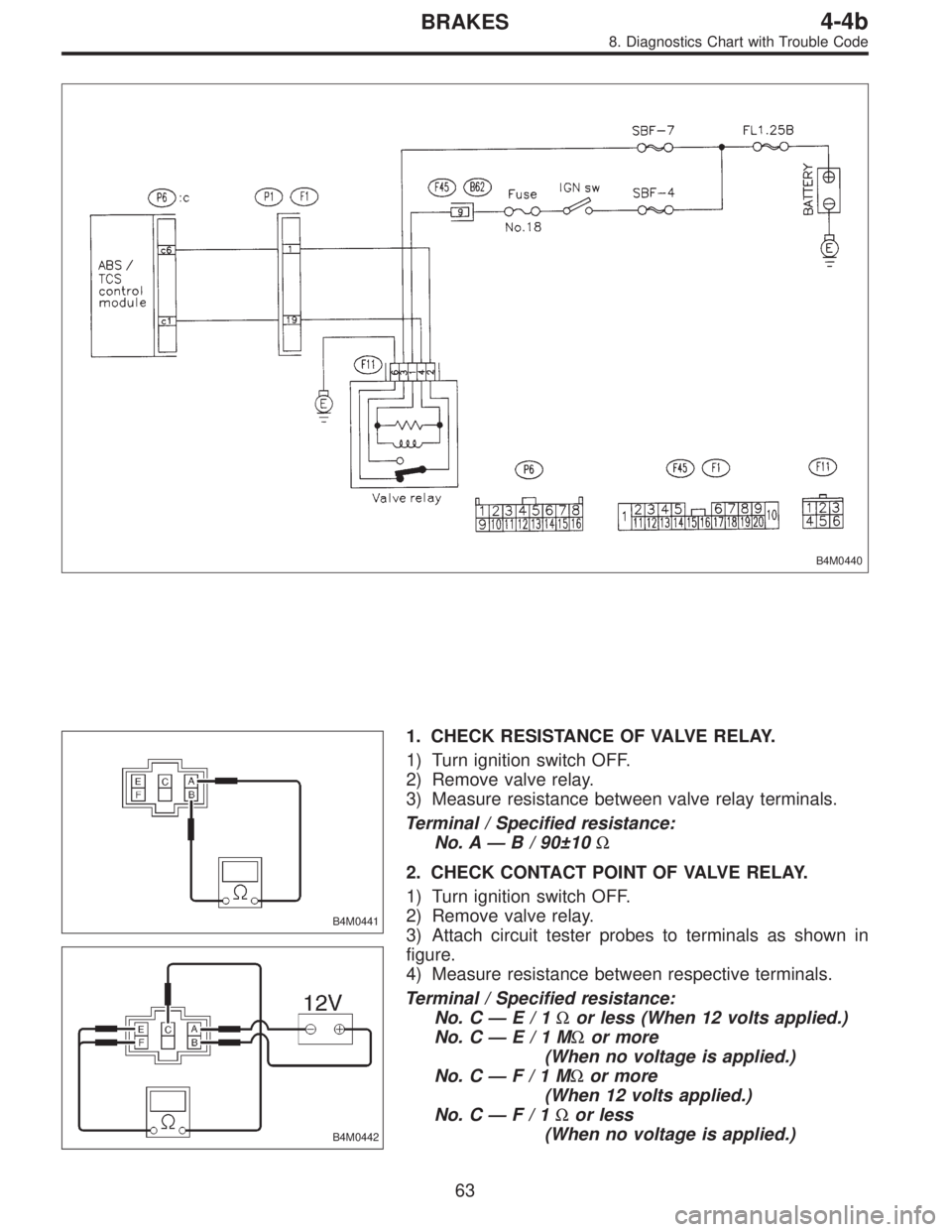

B4M0440
B4M0441
1. CHECK RESISTANCE OF VALVE RELAY.
1) Turn ignition switch OFF.
2) Remove valve relay.
3) Measure resistance between valve relay terminals.
Terminal / Specified resistance:
No. A—B / 90±10Ω
B4M0442
2. CHECK CONTACT POINT OF VALVE RELAY.
1) Turn ignition switch OFF.
2) Remove valve relay.
3) Attach circuit tester probes to terminals as shown in
figure.
4) Measure resistance between respective terminals.
Terminal / Specified resistance:
No. C—E/1Ωor less (When 12 volts applied.)
No. C—E/1MΩor more
(When no voltage is applied.)
No. C—F/1MΩor more
(When 12 volts applied.)
No. C—F/1Ωor less
(When no voltage is applied.)
63
4-4bBRAKES
8. Diagnostics Chart with Trouble Code

8B6CHECK POOR CONTACT IN CONNEC-
TOR BETWEEN ABSCM AND ABS SEN-
SOR.
: Is there poor contact in connectors between
ABSCM and ABS sensor?
: Repair connector.
: Go to step8B7.
8B7
CHECK ABSCM.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM.
: Go to next.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
NOTE:
Check harness and connectors between ABSCM and ABS
sensor.
33
4-4cBRAKES [ABS 5.3 TYPE]
8. Diagnostics Chart with Trouble Code

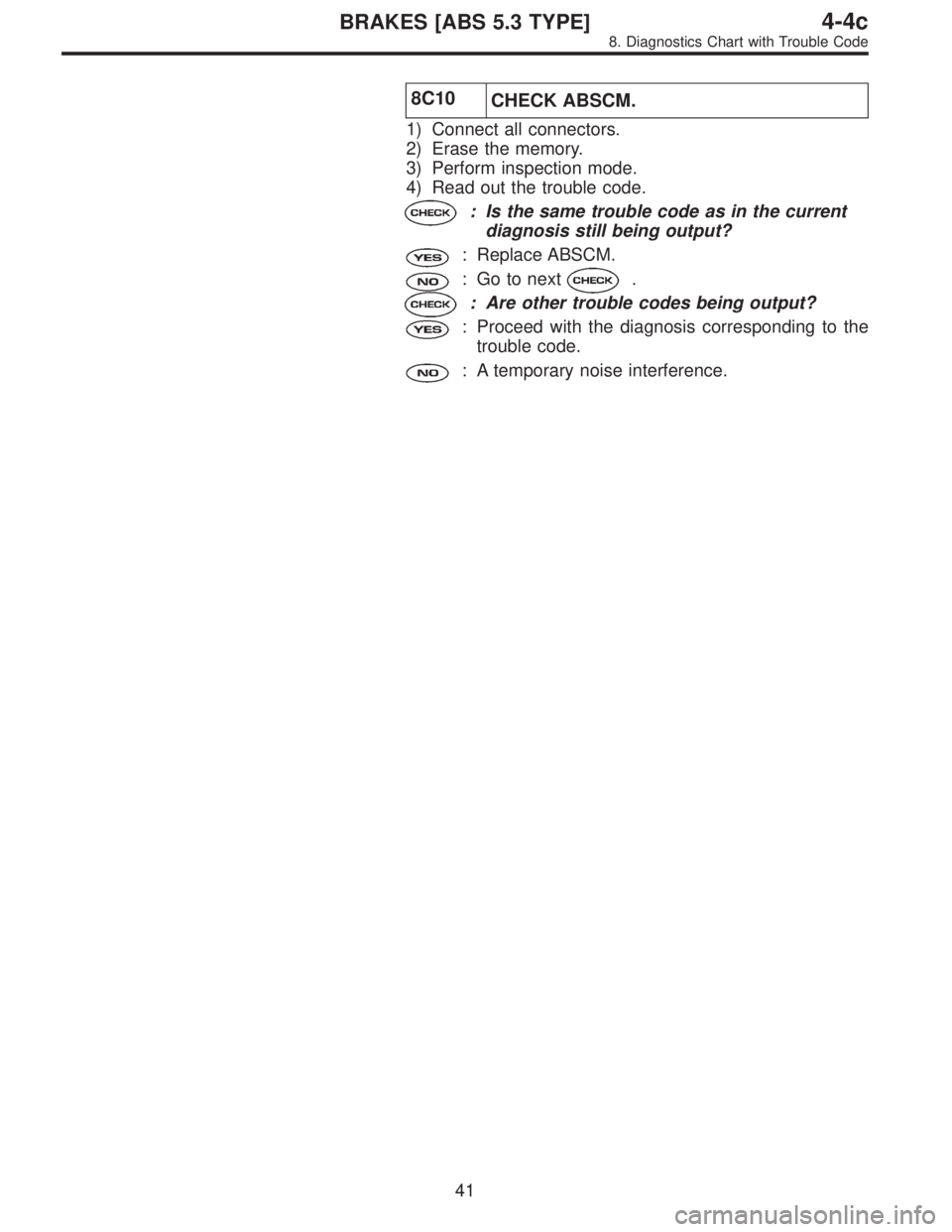

8C10
CHECK ABSCM.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM.
: Go to next.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary noise interference.
41
4-4cBRAKES [ABS 5.3 TYPE]
8. Diagnostics Chart with Trouble Code

10) Remove disc rotor from hub.
: Is the ABS sensor pole piece or the tone
wheel contaminated by dirt or other foreign
matter?
: Thoroughly remove dirt or other foreign matter.
: Go to next.
: Are there broken or damaged teeth in the
ABS sensor pole piece or the tone wheel?
: Replace ABS sensor or tone wheel.
: Go to next step.
11) Measure hub runout.
: Is the runout less than 0.05 mm (0.0020 in)?
: Go to step8D4.
: Repair hub.
8D4
CHECK ABSCM.
1) Turn ignition switch to OFF.
2) Connect all connectors.
3) Erase the memory.
4) Perform inspection mode.
5) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM.
: Go to next.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
46
4-4cBRAKES [ABS 5.3 TYPE]
8. Diagnostics Chart with Trouble Code

B4M0829A
8E6CHECK HARNESS CONNECTOR
BETWEEN ABSCM AND HYDRAULIC
UNIT.
1) Connect connector to hydraulic unit.
2) Measure resistance between ABSCM connector termi-
nals.
: Trouble code/Connector & terminal
31/(F49) No. 30—No. 1
33/(F49) No. 24—No. 1
35/(F49) No. 23—No. 1
37/(F49) No. 31—No. 1
Is resistance 9.0±0.7Ω?
: Go to step8E7.
: Repair harness connector between ABSCM and
hydraulic unit.
8E7CHECK POOR CONTACT IN CONNEC-
TOR BETWEEN ABSCM AND HYDRAU-
LIC UNIT.
: Is there poor contact in connectors between
ABSCM and hydraulic unit?
: Repair connector.
: Go to step8E8.
8E8
CHECK ABSCM.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM.
: Go to next.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
52
4-4cBRAKES [ABS 5.3 TYPE]
8. Diagnostics Chart with Trouble Code

B4M0836A

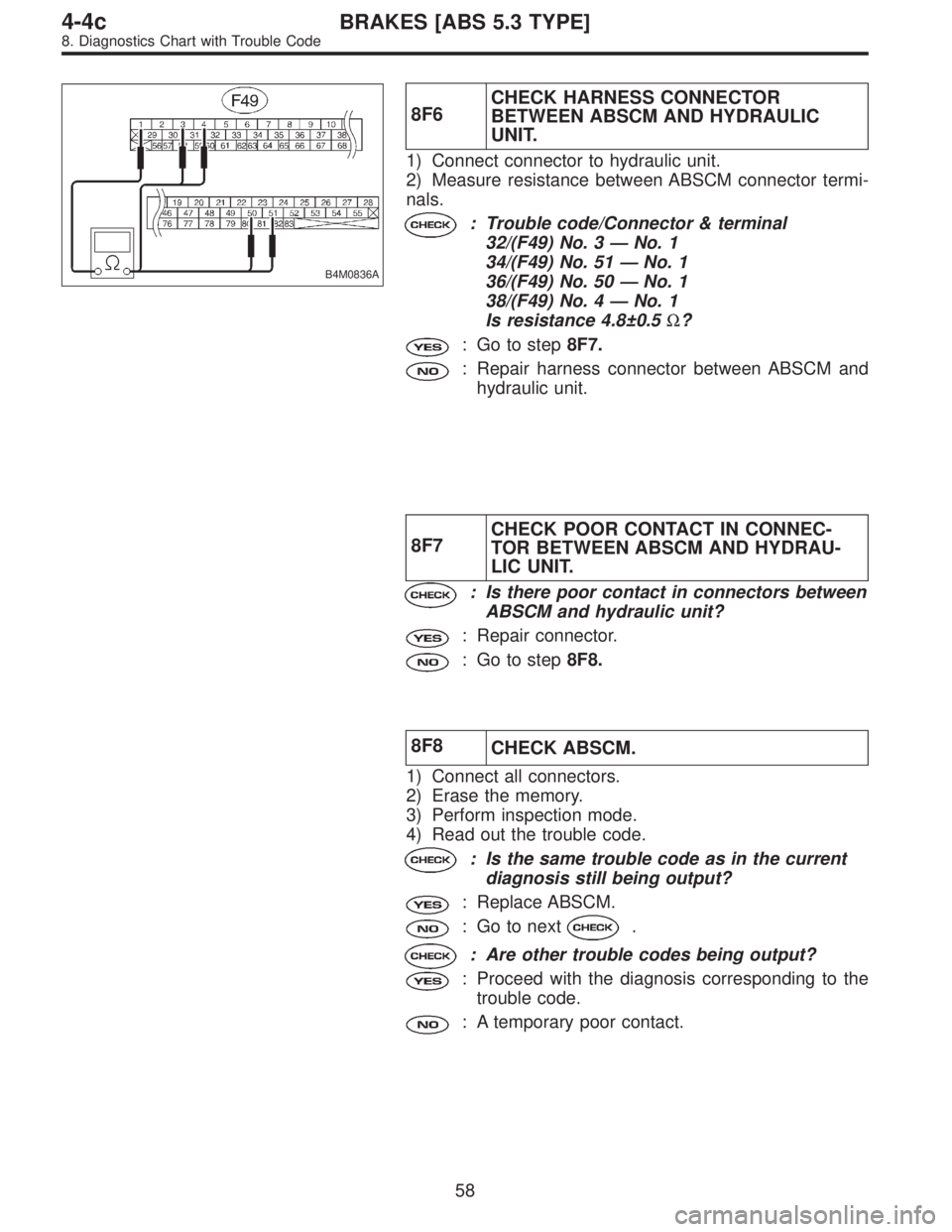

8F6CHECK HARNESS CONNECTOR
BETWEEN ABSCM AND HYDRAULIC
UNIT.
1) Connect connector to hydraulic unit.
2) Measure resistance between ABSCM connector termi-
nals.
: Trouble code/Connector & terminal
32/(F49) No. 3—No. 1
34/(F49) No. 51—No. 1
36/(F49) No. 50—No. 1
38/(F49) No. 4—No. 1
Is resistance 4.8±0.5Ω?
: Go to step8F7.
: Repair harness connector between ABSCM and
hydraulic unit.
8F7CHECK POOR CONTACT IN CONNEC-
TOR BETWEEN ABSCM AND HYDRAU-
LIC UNIT.
: Is there poor contact in connectors between
ABSCM and hydraulic unit?
: Repair connector.
: Go to step8F8.
8F8
CHECK ABSCM.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM.
: Go to next.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
58
4-4cBRAKES [ABS 5.3 TYPE]
