1997 SUBARU LEGACY torque

G2M0082
15) Separate oil strainer from oil strainer stay.
G2M0376
16) Remove oil strainer.
G2M0377
17) Remove baffle plate and oil strainer stay.
B: INSPECTION
By visual check make sure oil pan, oil strainer, oil strainer
stay and baffle plate are not damaged.
G2M0377
C: INSTALLATION
CAUTION:
Before installing oil pan, clean sealant from oil and
engine block.
1) Install baffle plate and oil strainer stay.
Tightening torque:
5N⋅m (0.5 kg-m, 3.6 ft-lb)
11

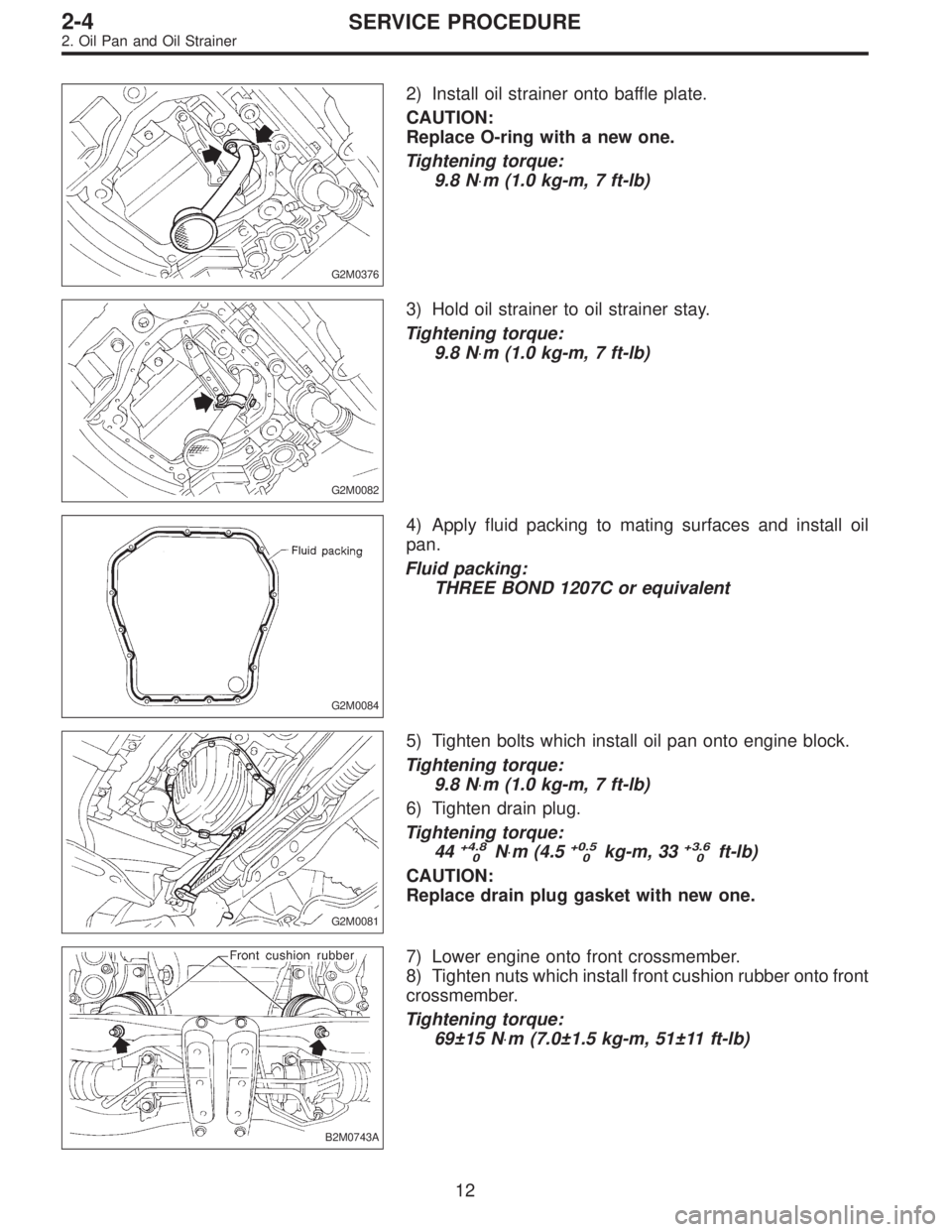

2-4SERVICE PROCEDURE
2. Oil Pan and Oil Strainer

G2M0376
2) Install oil strainer onto baffle plate.
CAUTION:
Replace O-ring with a new one.
Tightening torque:
9.8 N⋅m (1.0 kg-m, 7 ft-lb)
G2M0082
3) Hold oil strainer to oil strainer stay.
Tightening torque:
9.8 N⋅m (1.0 kg-m, 7 ft-lb)
G2M0084
4) Apply fluid packing to mating surfaces and install oil
pan.
Fluid packing:
THREE BOND 1207C or equivalent
G2M0081
5) Tighten bolts which install oil pan onto engine block.
Tightening torque:
9.8 N⋅m (1.0 kg-m, 7 ft-lb)
6) Tighten drain plug.
Tightening torque:
44
+4.8
0N⋅m (4.5+0.5
0kg-m, 33+3.6
0ft-lb)
CAUTION:
Replace drain plug gasket with new one.
B2M0743A
7) Lower engine onto front crossmember.
8) Tighten nuts which install front cushion rubber onto front
crossmember.
Tightening torque:
69±15 N⋅m (7.0±1.5 kg-m, 51±11 ft-lb)
12
2-4SERVICE PROCEDURE
2. Oil Pan and Oil Strainer

B2M0054
9) Install front exhaust pipe.
CAUTION:
Always use the new gaskets.
(1) Place front exhaust pipe on bracket.
(2) Tighten nuts which install front exhaust pipe on
engine.
Tightening torque:
30±5 N⋅m (3.1±0.5 kg-m, 22.4±3.6 ft-lb)
B2M0055
(3) Tighten nuts which install front catalytic converter to
center exhaust pipe.
Tightening torque:
35±5 N⋅m (3.6±0.5 kg-m, 26.0±3.6 ft-lb)
B2M0056
(4) Tighten bolt which installs front exhaust pipe on
bracket.
Tightening torque:
24±3 N⋅m (2.4±0.3 kg-m, 17.4±2.2 ft-lb)
B2M0312
10) Connect connector to rear oxygen sensor. (Except
California 2200 cc model)
B2M0053
11) Lower the vehicle.
CAUTION:
At this time, lower lifting device and release steel
cables.
12) Remove lifting device and steel cables.
13
2-4SERVICE PROCEDURE
2. Oil Pan and Oil Strainer

B2M0724
13) Connect connector to front oxygen sensor.
B2M0725
14) Connect connector to rear oxygen sensor. (California
2200 cc model only)
G2M0302
15) Install pitching stopper.
Tightening torque:
T1: 49±5 N⋅m (5.0±0.5 kg-m, 36.2±3.6 ft-lb)
T2: 57±10 N⋅m (5.8±1.0 kg-m, 42±7 ft-lb)
B2M0320
16) Install radiator upper brackets.
Tightening torque:
12±3 N⋅m (1.2±0.3 kg-m, 8.7±2.2 ft-lb)
B2M0321
17) Install air intake duct.
18) Fill engine oil through filler pipe up to upper point of
level gauge.
Engine oil capacity:
2200 cc ; Upper level
4.0
(4.2 US qt, 3.5 Imp qt)
Lower level
3.0
(3.2 US qt, 2.6 Imp qt)
2500 cc ; Upper level
4.5
(4.8 US qt, 4.0 Imp qt)
14
2-4SERVICE PROCEDURE
2. Oil Pan and Oil Strainer

G2M0091
B: INSTALLATION
1) Install oil pressure switch onto engine block.
Tightening torque:
25±3 N⋅m (2.5±0.3 kg-m, 18.1±2.2 ft-lb)
2) Connect terminal of oil pressure switch.
G2M0090
3) Install generator on bracket and temporary tighten
installing bolts.
B2M0017
4) Install front side V-belt and adjust it.

5) Install V-belt cover.
G2M0088
6) Connect connector and terminal to generator.
16
2-4SERVICE PROCEDURE
3. Oil Pressure Switch

1. Engine Coolant Pump
G2M0201

1Engine coolant pump ASSY


2Gasket


3Heater hose


4Thermostat


5Gasket


6Thermostat case
Tightening torque: N⋅m (kg-m, ft-lb)
T1: First 10+4
0(1.0+0.4
0, 7.2+2.9
0)
Second 10+4
0(1.0+0.4
0, 7.2+2.9
0)
T2: 6.4±0.5 (0.65±0.05, 4.7±0.4)
4
2-5COMPONENT PARTS
1. Engine Coolant Pump

2. Radiator and Radiator Fan
B2M0300A

1Radiator lower cushion


2Radiator


3O-ring


4Air vent plug


5Radiator upper cushion


6Radiator upper bracket


7Clamp


8Radiator inlet hose


9Engine coolant reservoir tank cap


10Over flow hose


11Engine coolant reservoir tank


12Shroud


13Radiator main fan motor ASSY


14Radiator outlet hose

15Radiator drain pipe


16Gasket


17Radiator drain plug


18ATF hose clamp


19ATF inlet hose A


20ATF outlet hose A


21ATF pipe


22ATF outlet hose B


23ATF inlet hose B
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 6.9±1.5 (0.7±0.15, 5.1±1.1)
T2: 12±3 (1.2±0.3, 8.7±2.2)
5
2-5COMPONENT PARTS
2. Radiator and Radiator Fan

3. Engine Coolant Pipe
G2M0203

1Engine coolant temperature sensor


2Engine coolant temperature gauge


3Engine coolant pipe


4O-ring


5By-pass hose
Tightening torque: N⋅m (kg-m, ft-lb)
T: 6.4±0.5 (0.65±0.05, 4.7±0.4)
6
2-5COMPONENT PARTS
3. Engine Coolant Pipe
