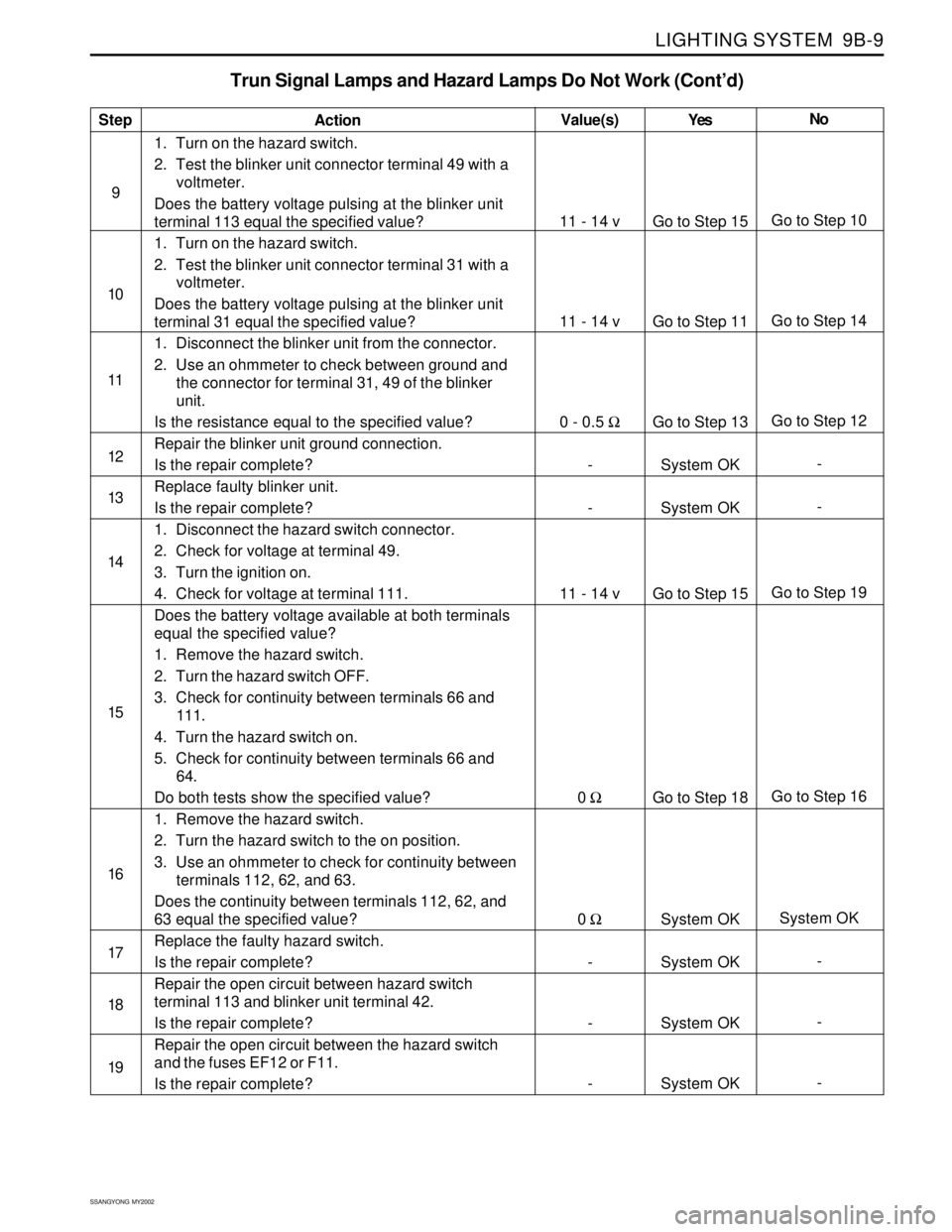

Trun Signal Lamps and Hazard Lamps Do Not Work (Cont’d)
Step
9
10
11
12
13
14
15
16
17
18
19Action
1. Turn on the hazard switch.
2. Test the blinker unit connector terminal 49 with a
voltmeter.
Does the battery voltage pulsing at the blinker unit
terminal 113 equal the specified value?
1. Turn on the hazard switch.
2. Test the blinker unit connector terminal 31 with a
voltmeter.
Does the battery voltage pulsing at the blinker unit
terminal 31 equal the specified value?
1. Disconnect the blinker unit from the connector.
2. Use an ohmmeter to check between ground and
the connector for terminal 31, 49 of the blinker
unit.
Is the resistance equal to the specified value?
Repair the blinker unit ground connection.
Is the repair complete?
Replace faulty blinker unit.
Is the repair complete?
1. Disconnect the hazard switch connector.
2. Check for voltage at terminal 49.
3. Turn the ignition on.
4. Check for voltage at terminal 111.
Does the battery voltage available at both terminals
equal the specified value?
1. Remove the hazard switch.
2. Turn the hazard switch OFF.
3. Check for continuity between terminals 66 and
111.
4. Turn the hazard switch on.
5. Check for continuity between terminals 66 and
64.
Do both tests show the specified value?
1. Remove the hazard switch.
2. Turn the hazard switch to the on position.
3. Use an ohmmeter to check for continuity between
terminals 112, 62, and 63.
Does the continuity between terminals 112, 62, and
63 equal the specified value?
Replace the faulty hazard switch.
Is the repair complete?
Repair the open circuit between hazard switch
terminal 113 and blinker unit terminal 42.
Is the repair complete?
Repair the open circuit between the hazard switch
and the fuses EF12 or F11.
Is the repair complete?Yes
Go to Step 15
Go to Step 11
Go to Step 13
System OK
System OK
Go to Step 15
Go to Step 18
System OK
System OK
System OK
System OKNo
Go to Step 10
Go to Step 14
Go to Step 12
-
-
Go to Step 19
Go to Step 16
System OK
-
-
- Value(s)
11 - 14 v
11 - 14 v
0 - 0.5 Ω
-
-
11 - 14 v
0 Ω
0 Ω
-
-
-

SSANGYONG MY2002
9B-10 LIGHTING SYSTEM

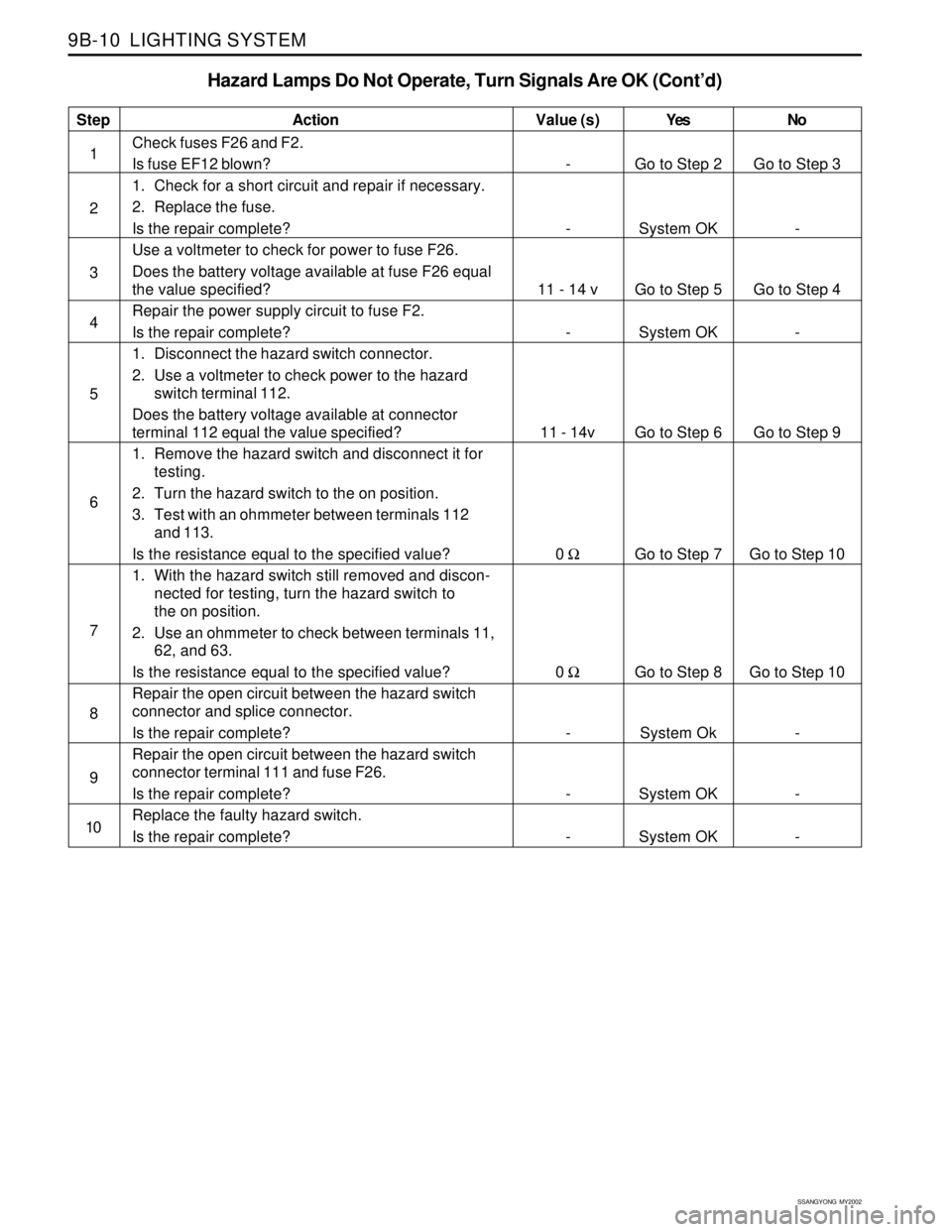

Hazard Lamps Do Not Operate, Turn Signals Are OK (Cont’d)
Step
1
2
3
4
5
6
7
8
9
10Action
Check fuses F26 and F2.
Is fuse EF12 blown?
1. Check for a short circuit and repair if necessary.
2. Replace the fuse.
Is the repair complete?
Use a voltmeter to check for power to fuse F26.
Does the battery voltage available at fuse F26 equal
the value specified?
Repair the power supply circuit to fuse F2.
Is the repair complete?
1. Disconnect the hazard switch connector.
2. Use a voltmeter to check power to the hazard
switch terminal 112.
Does the battery voltage available at connector
terminal 112 equal the value specified?
1. Remove the hazard switch and disconnect it for
testing.
2. Turn the hazard switch to the on position.
3. Test with an ohmmeter between terminals 112
and 113.
Is the resistance equal to the specified value?
1. With the hazard switch still removed and discon-
nected for testing, turn the hazard switch to
the on position.
2. Use an ohmmeter to check between terminals 11,
62, and 63.
Is the resistance equal to the specified value?
Repair the open circuit between the hazard switch
connector and splice connector.
Is the repair complete?
Repair the open circuit between the hazard switch
connector terminal 111 and fuse F26.
Is the repair complete?
Replace the faulty hazard switch.
Is the repair complete?Yes
Go to Step 2
System OK
Go to Step 5
System OK
Go to Step 6
Go to Step 7
Go to Step 8
System Ok
System OK
System OKNo
Go to Step 3
-
Go to Step 4
-
Go to Step 9
Go to Step 10
Go to Step 10
-
-
- Value (s)
-
-
11 - 14 v
-
11 - 14v
0 Ω
0 Ω
-
-
-

LIGHTING SYSTEM 9B-11
SSANGYONG MY2002
INTERIOR ROOM AND LUGGAGE LAMPS

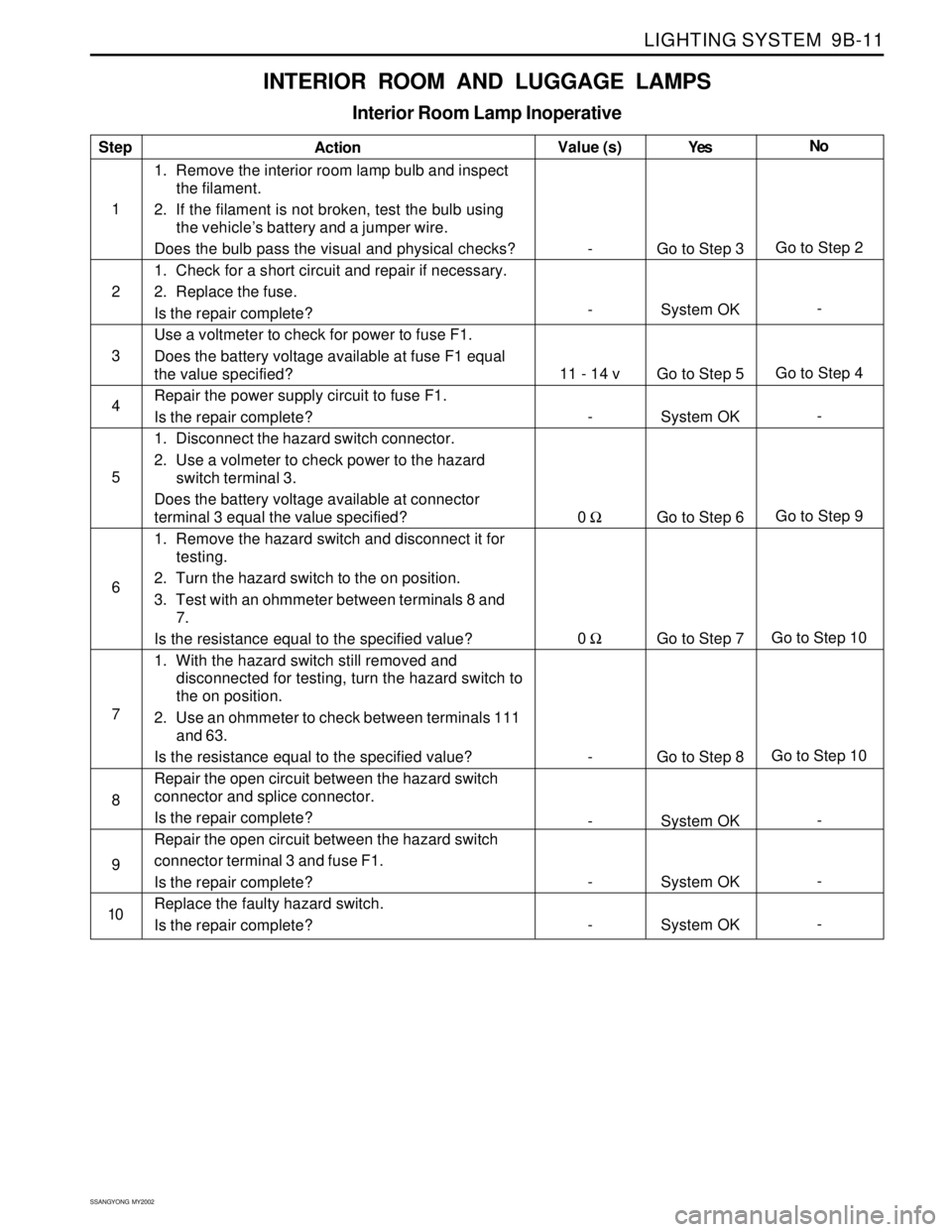

Interior Room Lamp Inoperative
Step
1
2
3
4
5
6
7
8
9
10Action
1. Remove the interior room lamp bulb and inspect
the filament.
2. If the filament is not broken, test the bulb using
the vehicle’s battery and a jumper wire.
Does the bulb pass the visual and physical checks?
1. Check for a short circuit and repair if necessary.
2. Replace the fuse.
Is the repair complete?
Use a voltmeter to check for power to fuse F1.
Does the battery voltage available at fuse F1 equal
the value specified?
Repair the power supply circuit to fuse F1.
Is the repair complete?
1. Disconnect the hazard switch connector.
2. Use a volmeter to check power to the hazard
switch terminal 3.
Does the battery voltage available at connector
terminal 3 equal the value specified?
1. Remove the hazard switch and disconnect it for
testing.
2. Turn the hazard switch to the on position.
3. Test with an ohmmeter between terminals 8 and
7.
Is the resistance equal to the specified value?
1. With the hazard switch still removed and
disconnected for testing, turn the hazard switch to
the on position.
2. Use an ohmmeter to check between terminals 111
and 63.
Is the resistance equal to the specified value?
Repair the open circuit between the hazard switch
connector and splice connector.
Is the repair complete?
Repair the open circuit between the hazard switch
connector terminal 3 and fuse F1.
Is the repair complete?
Replace the faulty hazard switch.
Is the repair complete?Yes
Go to Step 3
System OK
Go to Step 5
System OK
Go to Step 6
Go to Step 7
Go to Step 8
System OK
System OK
System OKNo
Go to Step 2
-
Go to Step 4
-
Go to Step 9
Go to Step 10
Go to Step 10
-
-
- Value (s)
-
-
11 - 14 v
-
0 Ω
0 Ω
-
-
-
-

SSANGYONG MY2002
9B-12 LIGHTING SYSTEM

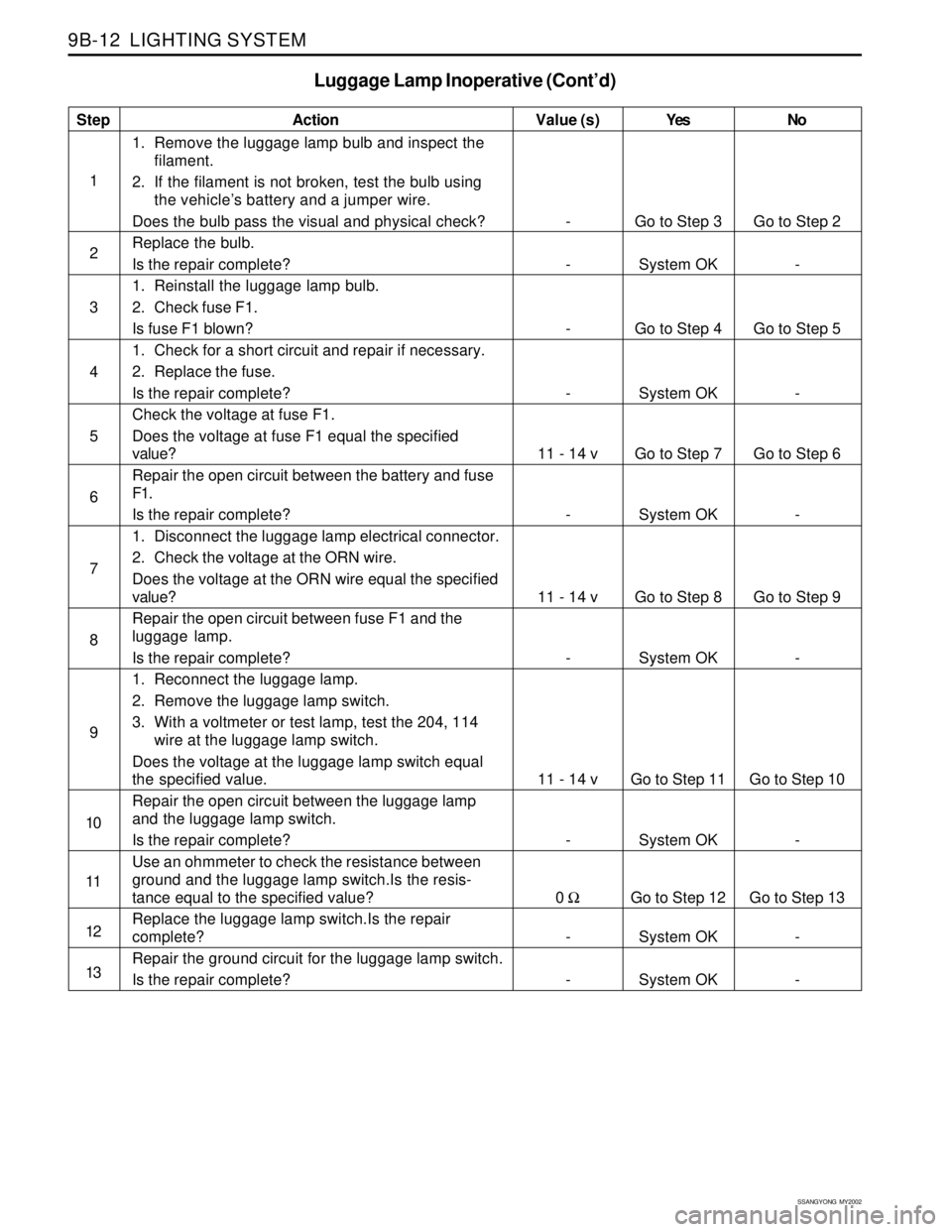

Luggage Lamp Inoperative (Cont’d)
Step
1
2
3
4
5
6
7
8
9
10
11
12
13Action
1. Remove the luggage lamp bulb and inspect the
filament.
2. If the filament is not broken, test the bulb using
the vehicle’s battery and a jumper wire.
Does the bulb pass the visual and physical check?
Replace the bulb.
Is the repair complete?
1. Reinstall the luggage lamp bulb.
2. Check fuse F1.
Is fuse F1 blown?
1. Check for a short circuit and repair if necessary.
2. Replace the fuse.
Is the repair complete?
Check the voltage at fuse F1.
Does the voltage at fuse F1 equal the specified
value?
Repair the open circuit between the battery and fuse
F1.
Is the repair complete?
1. Disconnect the luggage lamp electrical connector.
2. Check the voltage at the ORN wire.
Does the voltage at the ORN wire equal the specified
value?
Repair the open circuit between fuse F1 and the
luggage lamp.
Is the repair complete?
1. Reconnect the luggage lamp.
2. Remove the luggage lamp switch.
3. With a voltmeter or test lamp, test the 204, 114
wire at the luggage lamp switch.
Does the voltage at the luggage lamp switch equal
the specified value.
Repair the open circuit between the luggage lamp
and the luggage lamp switch.
Is the repair complete?
Use an ohmmeter to check the resistance between
ground and the luggage lamp switch.Is the resis-
tance equal to the specified value?
Replace the luggage lamp switch.Is the repair
complete?
Repair the ground circuit for the luggage lamp switch.
Is the repair complete?Yes
Go to Step 3
System OK
Go to Step 4
System OK
Go to Step 7
System OK
Go to Step 8
System OK
Go to Step 11
System OK
Go to Step 12
System OK
System OKNo
Go to Step 2
-
Go to Step 5
-
Go to Step 6
-
Go to Step 9
-
Go to Step 10
-
Go to Step 13
-
- Value (s)
-
-
-
-
11 - 14 v
-
11 - 14 v
-
11 - 14 v
-
0 Ω
-
-

LIGHTING SYSTEM 9B-13
SSANGYONG MY2002
DOOR COURTESY LAMPS

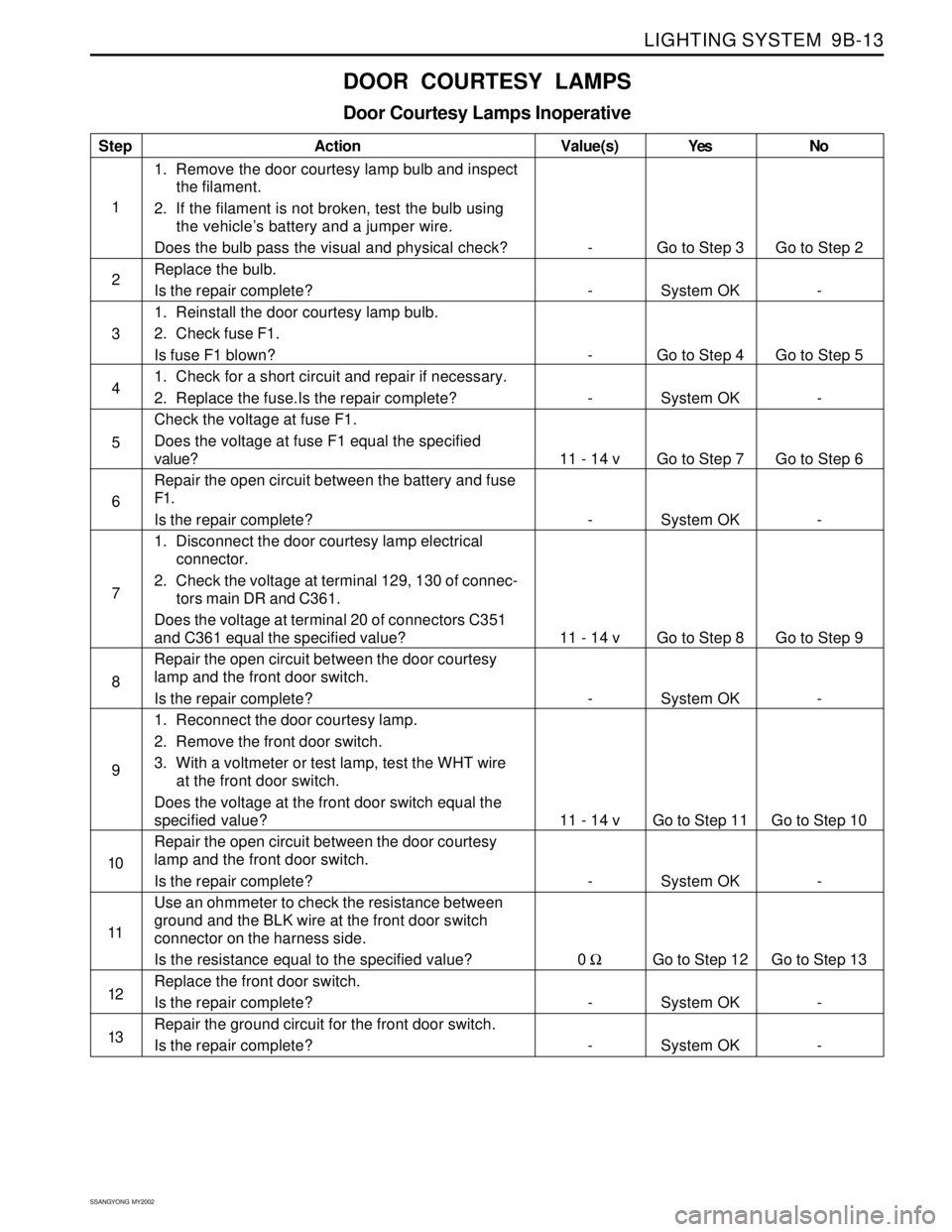

Door Courtesy Lamps Inoperative
Step
1
2
3
4
5
6
7
8
9
10
11
12
13Action
1. Remove the door courtesy lamp bulb and inspect
the filament.
2. If the filament is not broken, test the bulb using
the vehicle’s battery and a jumper wire.
Does the bulb pass the visual and physical check?
Replace the bulb.
Is the repair complete?
1. Reinstall the door courtesy lamp bulb.
2. Check fuse F1.
Is fuse F1 blown?
1. Check for a short circuit and repair if necessary.
2. Replace the fuse.Is the repair complete?
Check the voltage at fuse F1.
Does the voltage at fuse F1 equal the specified
value?
Repair the open circuit between the battery and fuse
F1.
Is the repair complete?
1. Disconnect the door courtesy lamp electrical
connector.
2. Check the voltage at terminal 129, 130 of connec-
tors main DR and C361.
Does the voltage at terminal 20 of connectors C351
and C361 equal the specified value?
Repair the open circuit between the door courtesy
lamp and the front door switch.
Is the repair complete?
1. Reconnect the door courtesy lamp.
2. Remove the front door switch.
3. With a voltmeter or test lamp, test the WHT wire
at the front door switch.
Does the voltage at the front door switch equal the
specified value?
Repair the open circuit between the door courtesy
lamp and the front door switch.
Is the repair complete?
Use an ohmmeter to check the resistance between
ground and the BLK wire at the front door switch
connector on the harness side.
Is the resistance equal to the specified value?
Replace the front door switch.
Is the repair complete?
Repair the ground circuit for the front door switch.
Is the repair complete?Yes
Go to Step 3
System OK
Go to Step 4
System OK
Go to Step 7
System OK
Go to Step 8
System OK
Go to Step 11
System OK
Go to Step 12
System OK
System OKNo
Go to Step 2
-
Go to Step 5
-
Go to Step 6
-
Go to Step 9
-
Go to Step 10
-
Go to Step 13
-
- Value(s)
-
-
-
-
11 - 14 v
-
11 - 14 v
-
11 - 14 v
-
0 Ω
-
-

SSANGYONG MY2002
9B-14 LIGHTING SYSTEM
CIGAR LIGHTER
Cigar Lighter Inoperative
Step
1
2
3
4
5
6
7
8
9Action
Check fuse F15.
Is the fuse blown?
1. Check for a short circuit and repair if necessary.
2. Replace the fuse.
Is the repair complete?
1. Turn the ignition key to the ACC position.
2. Use a voltmeter to check for voltage at fuse F15.
Does the battery voltage available at the fuse F15
match the value specified?
Repair the open power-supply circuit for fuse F15.
Is the repair complete?
1. Remove the electrical connector from the back of
the cigar lighter.
2. Turn the ignition key to the ACC position.
3. Use a voltmeter to check the voltage at terminal 1
of the cigar lighter.
Does the battery voltage available at terminal 1 of the
cigar light match the value specified?
Repair the open circuit between the fuse F15 and the
cigar lighter.
Is the repair complete?
With the ignition key still in the ACC position, use an
ohmmeter to check continuity between terminal 2 of
the cigar lighter connector and ground.
Does the battery voltage match the value specified?
Repair the open ground circuit.
Is the repair complete?
Replace the cigar lignter.
Is the repair complete?Yes
Go to Step 2
System OK
Go to Step 5
System OK
Go to Step 7
System OK
Go to Step 9
System OK
System OKNo
Go to Step 3
-
Go to Step 4
-
Go to Step 6
-
Go to Step 8
-
- Value(s)
-
-
11 - 14 v
-
11 - 14 v
-
11 - 14 v
-
-

SSANGYONG MY2002
9E-2 INSTRUMENTATION, DRIVER INFORMATION
DESCRIPTION AND OPERATION
CIGAR LIGHTER
The cigar lighter is located in the front portion of the
floor console. To use the lighter, push it in completely.
When the lighter is hot, it will release itsef from contact
with the heating element. The lighter and the heating
element can be damaged if the lighter does not fully
release itsef from the heating element.
ASHTRAY
The ashtray is located in the console. To access the
ashtray, pullit out of the ashtray housing. The ashtray
lamp will go on when the parking lamps or headlamps
are turned on.
INSTRUMENT PANEL VENTS
The center and the side vents in the instrument panel
can be adjusted up and down and from side to side.
The side vents can also be aimed toward the side
windows to defog them.
GLOVE BOX
The glove box can be opened by pulling upon the latch
handle.
DIGITAL CLOCK
The digital clock is located in the instrument cluster.
INSTRUMENT CLUSTER
The instrument cluster is located above the steering
column and in the instrument cluster trim panel. The
instrument cluster contains the instruments that
provide the driver with vehicle performance information.
The instrument cluster contains a speedometer, a
tachometer, an odometer, a trip odometer, a
temperature gauge, a fuel gauge, and several indicator
lamps. For replacement of the indicator lamp bulbs
contained in the instrument cluster, refer to “Instrument
Cluster Indicator Lamps Specifications” in the section.
SPEEDOMETER AND
TACHOMETER
The speedometer measures the speed of the vehicle
in km/h (with mph) or mph (with km/h). It consists of
an instrument cluster gauge connected to the vehicle
speed sensor on the transaxle output shaft. The
tachometer measures the engine’s speed in terms of
thousands of revolutions per minute. It consists of an
instrument cluster gauge connected to a sending unit
in the engine con-trol module. Do not operate the
engine in the red zone. Engine damage may occur.
TRIP ODOMETER
The trip odometer measures the distance the vehicle
has traveled since it was last reset. It consists of an
instrument cluster gauge connected to the sending unit
on the tasnsaxle output shaft. The trip oddometer can
be record the distance traveled from any starting point.
FUEL GAUGE
The fuel gauge consists of an instrument cluster gauge
connected to a sending unit in the fuel tank. The fuel
gauge indicates the quantity of fuel in the tank only
when the ignition is turned to ON or ACC. When the
ignition is turned to LOCK or START, the pointer may
come to rest at any position.
TEMPERATURE GAUGE
The temperature gauge consists of an instrument
cluster gauge connected to a temperature sensor that
is in con-tact with the circulating engine coolant. The
temperature gauge indicates the temperature of the
coolant. Prolonged driving or idling in very hot weather
may cause the pointer to move beyond the center of
the gauge. The engine is overheating if the pointer
moves into the red zone at the upper limit of the gauge.
INSTRUMENT CLUSTER
INDICATOR LAMPS
The instrument cluster contains indicator lamps that
indicatethe functioning of certain systems or the
existenceof potential problems with the operation of
the vehicle. The indicator lamps are replaceable. For
replacement of the indicator lamps contained in the
instrument cluster, refer to “instrument cluster indicator
lamps specifications” in this section.
CHIME MODULE
The chime module will sound to bring attention to one
or more of the following conditions:
The lights are on and the ignition not in ACC, ON,
or START.
The ignition key is in the ignition switch when the
driver’s side door is open.
The seat belt is unbuckled when the ignition is in
ACC, ON, or START.
Voltage is supplied at all times through the fuse block
to power the chime module.

INSTRUMENTATION, DRIVER INFORMATION 9E-5
SSANGYONG MY2002
DIAGNOSTIC INFORMATION AND PROCEDURE
CIGAR LIGHTER
Cigar lighter inoperative
Step
1
2
3
4
5
6
7
8
9Action
Check fuse F15.
Is the fuse blown?
1. Check for a short circuit and repair if necessary.
2. Replace the fuse.
Is the repair complete?
1. Turn the ignition key to the ACC position.
2. Use a voltmeter to check for voltage at fuse Ef20.
Does the battery voltage available at the fuse Ef20
match the value specified?
Repair the open power supply circuit for fuse Ef20.
Is the repair complete?
1. Remove the electrical connector from the back of
the cigar lighter.
2. Turn the ignition key to the ACC position.
3. Use a voltmeter to check the voltage at the WHT/
DK BLU wire.
Does the battery voltage available at the WHT/DK
BLU wire match the value specified?
Repair the open circuit between the fuse Ef20 and the
cigar lighter.
Is the repair complete?
With the ignition key still in the ACC position, Con-
nect the voltmeter between the WHT/DK BLU and the
BLK wires at the cigar lighter conector.
Does the battery voltage match the value specified?
Repair the open ground circuit.
Is the repair complete?
Replace the cigar lighter.
Is the repair complete?Yes
Go to Step 2
System OK
Go to Step 5
System OK
Go to Step 7
System OK
Go to Step 9
System OK
System OKNo
Go to Step 3
-
Go to Step 4
-
Go to Step 6
-
Go to Step 8
-
- Value(s)
-
-
11 - 14 v
-
11 - 14 v
-
11 - 14 v
-
-
DISITAL CLOCK
Digital Clock Inoperative
Step
1
2
3Action
Is either of the fuses Ef10 and F4 blown?
1. Check for a short circuit and repair if necessary.
2. Replace the blown fuses.
Is the repair complete?
1. Turn the ignition ON.
2. Use a voltmeter to check battery voltage available
at fuses F4.
Does the voltmeter indicate the value specified?Yes
Go to Step 2
System OK
Go to Step 5No
Go to Step 3
-
Go to Step 4 Value(s)
-
-
11 - 14 v
