1997 PONTIAC PONTIAC Owners Manual

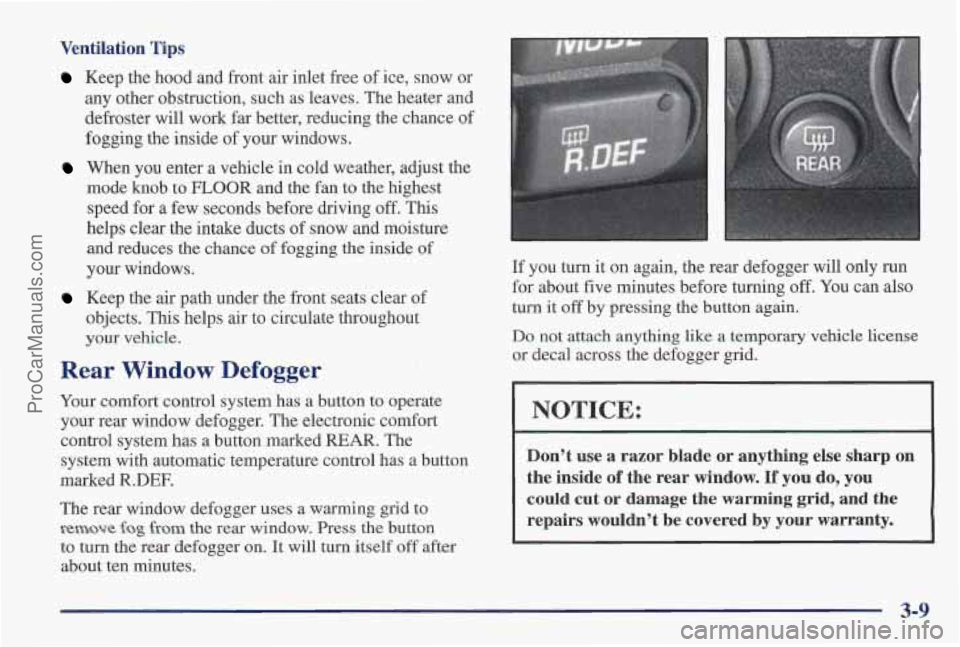

Ventilation Tips
Keep the hood and front air inlet free of ice, snow or
any other obstruction, such as leaves. The heater and
defroster will work far better, reducing the chance of
fogging the inside of your windows.
When you enter a vehicle in cold weather, adjust the
mode knob to
FLOOR and the fan to the highest
speed for a few seconds before driving off. This
helps clear the intake ducts of snow and moisture
and reduces the chance
of fogging the inside of
your windows.
Keep the air path under the front seats clear of
objects. This helps air to circulate throughout
your vehicle.
Rear Window Defogger
Your comfort control system has a button to operate
your rear window defogger. The electronic comfort control system has a button marked
REAR. The
system with automatic temperature control has a button
marked
R.DEF.
The rear window defogger uses a warming grid to
K~~OW fog from the rear window. Press the button
to turn the rear defogger on. It will turn itself off after
about ten minutes.
If you turn it on again, the rear defogger will only run
for about five minutes before turning off.
You can also
turn it off by pressing the button again.
Do not attach anything like a temporary vehicle license
or decal across the defogger grid.
NOTICE:
Don’t use a razor blade or anything else sharp on
the inside
of the rear window. If you do, you
could cut or damage the warming grid, and the
repairs wouldn’t be covered by
your warranty.
3-9
ProCarManuals.com

Audio Systems
Your Delco@ audio system has been designed to operate
easily and give years of listening pleasure.
You will get
the most enjoyment out
of it if you acquaint yourself
with it first, Find out what your Delco system can do
and how
to operate all its controls, to be sure you’re
getting the most
out of the advanced engineering that
went into it.
Setting the Clock for AM-FM Stereo
Press SET. Within five seconds, press and hold the
SEEK clown arrow until the correct hour appears on the
display. Press and hold the
SEEK up arrow until the
correct minute appears on the display.
Setting the Clock for All Systems Except
AM-FM Stereo
Press and hold HR until the correct hour appears. Press
and hold
MIN until the correct minute appears. There
will be a two-second delay before the clock goes into
time-set mode, and the colon on the display will blink
while in this mode.
AM-FM Stereo
Playing the Radio
VOLUME:
Push this knob to turn the system on and
off. To increase volume, turn the knob clockwise. Turn
it counterclockwise to decrease volume.
RCLPROG: Press this button to recall the station
being played or to display the clock.
3-10
ProCarManuals.com

Finding a Station 3. Press any two adjoining pushbuttons at the same
time, within five seconds. Whenever you press the
same buttons, the station you set will return.
AM-FM: Press this button to switch between AM and
FM. The display
shows your selection.
TUNE: Turn the lower knob to choose radio stations. 4. Repeat the steps for each pair of pushbutton.
SEEK: Press the up or down arrow to go to the next Setting the Tone
higher or lower station and stay there.
PUSHBUTTONS: The four numbered pushbuttons let decrease bass.
you return
to your favorite stations. You can set up to
14 stations (seven AM and seven FM). Just:
1. Press AM-FM to select the band. want to decrease
the treble.
BASS: Slide the lever up or down to increase or
TREB: Slide the lever up or down to increase or
decrease treble. If a station is weak or noisy, you may
2. Tune in the desired station.
3. Press SET. (SET will appear on the display.)
4. Press one of the four numbered pushbuttons, within
five seconds. Whenever you press that numbered
pushbutton, the station
you set will return.
5. Repeat the steps for each pushbutton.
In addition to the four stations already set, up to three
more stations may be preset on each band by pressing
two adjoining buttons at the same time. Just:
1. Tune in the desired station.
2. Press SET. (SET will appear on the display.)
Adjusting the Speakers
BALANCE: Turn the control behind the upper knob to
move the sound to the left or right speakers. The middle
position balances the sound between the speakers.
FADE: Turn the control behind the lower knob to move
the sound to the front or rear speakers. The middle
position balances the sound between the speakers.
3-11
ProCarManuals.com

AM-FM Stereo with Cassette Tape Player
(If Equipped)
Playing the Radio
VOL: Push this knob to turn the system on an'd off.
To increase volume, turn the knob clockwise. Turn it
counterclockwise to decrease volume.
RECALL: Display the time with the ignition off by
pressing
this knob. When the radio is playing, press this
knob
to recall the station frequency.
Finding a Station
AM-FM: Press this button to switch between AM, FMl
and FM2. The display shows your selection.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations.
Push the knob back into its store
position when you're not using it.
SEEK: Press the up or down arrow to go to the next
higher or lower station and stay there.
:d
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations.
You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Press AM-FM to select the band.
2. Tune in the desired station.
3. Press and hold one of the six numbered buttons until
SET appears on the display. Whenever
you press that
numbered button,
the station you set will return.
4. Repeat the steps for each pushbutton.
3-12
ProCarManuals.com

Setting the Tone Playing a Cassette
Tape
BASS:
Slide the lever to the right or left to increase or
decrease bass.
TREBLE: Slide the lever to the right or left to increase
or decrease treble. If a station is weak or noisy, you may
want to decrease the treble.
Adjusting the Speakers
BAL:
Press this knob lightly so it extends. Turn this
knob to move the sound to the left or right speakers. The
middle position balances
the sound between the
speakers.
FADE: Press this knob lightly so it extends. Turn this
knob to move the sound to the front or rear speakers.
The middle position balances the sound between
the speakers.
Push these knobs back into their stored positions when
you’re not using them. Your
tape player
is built to work best with tapes that are
30 to 45 minutes long on each side. Tapes longer than
that are
so thin they may not work well in this player.
While the tape
is playing, use the VOL, FADE, BAL,
BASS and TREB controls just as you do for the radio.
The display will show an arrow to show which side
of
the tape is playing. When the down indicator arrow is
lit, selections listed
on the bottom side of the cassette are
playing. When the
up arrow is lit, selections listed on the
top side of the cassette are playing. The tape player
automatically begins playing the other side when it
reaches the end of the tape.
If E and a number appear on the radio display, the tape
won’t play because of an error.
0 ElO: The tape is tight and the player can’t turn the
tape hubs. Remove the tape. Hold the tape with the
open end down and try
to turn the right hub
counterclockwise with
a pencil. Turn the tape over
and repeat.
If the hubs do not turn easily, your tape
may be damaged and should not be used in the
player. Try
a new tape to make sure your player is
working properly.
0 Ell: The tape is broken. Try a new tape.
3-13
ProCarManuals.com

If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer.
If your radio
displays an error number, write it down and provide it to
your dealer when reporting the problem.
PREV (1): Press this button or the SEEK down arrow to
search for the previous selection on the tape, Your tape
must have at least three seconds of
silence between each
selection for
PREV or SEEK to work. The tape direction
arrow blinks during
PREV or SEEK operation. Press
PREV or the
SEEK down assow to stop searching. The
sound will mute during
PREV or SEEK operation.
NEXT (2): Press this button or the SEEK up arrow to
search for the next selection on the tape. If you hold the
button, the player will continue moving forward through
the tape. Your tape must have at least three seconds
of
silence between each selection for NEXT or SEEK to
work. The tape direction arrow blinks during NEXT or
SEEK operation. Press NEXT or the SEEK up arrow to
stop searching. The sound will mute during NEXT or
SEEK operation.
PROG (3): Press this button to play the other side of
the tape.
flu (4): Press this button to reduce background
noise. Note that the double-6) symbol will appear on
the display. Dolby* Noise Reduction is' manufactured under a
license from Dolby Laboratories Licensing Corporation.
Dolby and the double-D symbol are tradernarks
of
Dolby Laboratories Licensing Corporation.
REV (5): Press this button to reverse the tape rapidly.
Press
it again to return to playing speed. The radio will
play the last-selected station while the tape reverses.
You may select stations during REV operation by using
SEEK or TUNE,
FWD (6): Press this button to advance quickly to
another part of the tape. Press the button again
to return
to playing speed. The radio will play the last-selected
station while the tape advances.
You may select stations
during
FWD operation by using SEEK or TUNE.
AM-FM: Press this button to play the radio when a tape
is in the player.
TAPEFLAY: Press this button to change to the tape
function when the radio is
on. The tape symbol with an
arrow will appear on
the display when the tape is active.
To return to playing the radio, press the AM-FM button.
E JECE Press this button to remove the tape. The radio
will play.
EJECT may be activated with either the
ignition or radio
off. Cassettes may be loaded with the
radio and ignition off if this button is pressed first.
3-14
ProCarManuals.com

CLN: If this message appears on the display, the
cassette tape player needs to be cleaned. It will still play
tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See “Care
of
Your Cassette Tape Player” in the Index. After you clean
the player, press and hold EJECT for five seconds to
reset the CLN indicator. The radio will display
--- to
show the indicator was reset.
CD Adapter Kits
It is possible to use a CD adapter kit with your cassette
tape player after activating the bypass feature on your
tape player.
AM-FM Stereo with Cassette Tape Player
and Equalizer
(If Equipped)
To activate the bypass feature, the ignition must be on.
Turn your radio off. Press TAPELPLAY and hold for
three seconds. After three seconds, the tape symbol in
the display will flash for two seconds indicating the
feature is active. Turn the radio on and insert
the adapter.
This override feature will remain active until EJECT
is pressed.
Playing the Radio
VOL: Push this knob to turn the system on and off. To
increase volume, turn
the knob clockwise. Turn it
counterclockwise to decrease volume.
RECALL: Display the time with the ignition off by
pressing this knob. When the radio is playing, press this
knob to recall the station frequency.
3-15
ProCarManuals.com

Finding a Station
AM-FM: Press this button to switch between AM, FMl
and FM2. The display shows your selection.
TUNE: Press this knob lightly so it extends, Turn it to
choos’e radio stations. Push the knob back into its stored
position when you’re not using it,
SEEK: Press the up or down arrow to go to the next
higher or lower station and stay there.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations.
You can set up to
18 stations (six AM, six FM 1 and six FM2). Just:
1. Press AM-FM to select the band.
2. Tune in the desired station.
3. Press and hold one of the six numbered buttons until
SET appears on the display. Whenever you press that
numbered button, the station
you set will return.
4. Repeat the steps for each pushbutton,
Setting the Tone
EQUALIZER: A seven band equalizer is part of your
audio system. Slide the levers up to boost or down to
reducle frequency range.
Adjusting the Speakers
BAL: Press this knob lightly so it extends. Turn it to
move the sound to the left
or right speakers. The middle
position balances the sound between the speakers.
FADE: Press this knob lightly so it extends. Turn it to
move the sound to the front or
rear speakers. The middle
position balances the sound between the speakers.
Push these knobs back into their stored positions when
you’re not using them.
Playing a Cassette Tape
Your tape player is built to work best with tapes that are
30 to 45 minutes long on each side. Tapes longer than
that
are so thin they may not work well in this player.
While the tape is playing, use the
VOL, FADE and BAL
controls just as you do for the radio. The display will
show an arrow to show which side
of the tape is playing.
When the down indicator
arrow is lit, selections listed
on the bottom side
of the cassette are playing. When the
up
arrow is lit, selections listed on the top side of the
cassette are playing. The tape player automatically
begins playing the other side when
it reaches the end of
the tape.
3-16
ProCarManuals.com
