1997 PONTIAC PONTIAC Owners Manual

Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If
the overload is caused by some electrical problem, have
it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed.
Instrument Panel Fuse Block
r
Some fuses are in a fuse block located inside of the
glove
box behind a small bin, on the right side. To
open, pull on the plastic strap and pull the part out.
The fuse block is inside. On the back edge of this part
is
a fuse puller and a fuse usage chart. To use the fuse
puller, place
the wide end of the fuse puller over the
plastic end
of the fuse. Squeeze the ends over the fuse
and pull it out.
To reinstall the bin, position the lower end and rotate
the top into position. Press
on the sides until it snaps
into place.
ProCarManuals.com

FUSE USAGE CHARY 1
CIRCUIT MALL PGM
WIPER
K I HSEAT/LUM 1 R DEFOG I
SEAT
CIG LTR INTLAMP STOP LAMP AUXlCNSL
CD CHG
CRUISE I/P - lCiN TURN I I I I
ABS ETSl
ABS IGN
Printed in U.S.A.
Circuit Breaker
Description
HEADLMP
Headlamps
PWR SEAT Power Seat, Power Lumbar
PWR
WBO Power Windows
Fuse Description
MALL PGM Mall Module -- Program
MALL Mall
Module
Fuse
WIPER
STR WHL ILUM
STR WHL CTRL
SUNROOF
RADIO
PWR LOCK
HSEATLUM
R DEFOG
RAP
HAZARD
PWR MIR
HVAC HI
CIG LTR
INT LAMP
STOP LP
AUXKNSL
CD CHGR
Description
Wipers
Steering Wheel Illumination
Steering Wheel Control
Sunroof
Radio, Antenna
Mall Module
-- Power Locks
Heated Seats, Power
Lumbar
Rear Defog
Retained Accessory Power,
Mall Module
Hazard Flashers
Power Mirrors
HVAC Blower -- Hi
Cigarette Lighter,
ALDL, Floor
Console Auxiliary Outlet
Mall Module-Interior lamps
Stoplamp
Auxiliary Power, Overhead Console
CD Changer
6-68
ProCarManuals.com

Fuse
ECM
CRUISE
I/P-IGN SIR
TURN
ABS
BTSI
HVAC CTRL
DIC/HVAC
AB’S IGN
DRL
Description
ECM
Cruise Control ChimeMall Module, Cluster, Trip
Computer, Head-Up Display,
Brake-Transaxle Shift Interlock
Supplemental Inflatable Restraint
(Air
Bag)
Turn Signal
Anti-Lock Brakes
PRNDL, Brake-Transaxle Shift Interlock
Blower Control, HVAC
Rear Defog, HVAC, Driver
Information Center, Daytime
Running Lamps, Heated Seats
Anti-Lock Brakes Ignition
Daytime Running Lamps
Underhood Electrical Center
-- Passenger’s Side
Some fuses are in a fuse block on the passenger’s side of
the engine compartment. Pull off the cover labeled
FUSES to expose the fuses.
6-69
ProCarManuals.com

0
COOL FAN 2
0
HEADLAMPS
0
BATT MAIN 2
IGN MAIN 1
0
COOL FAN 1
BATT MAIN 1
0
0
IGN MAIN 2
COOL FAN SERIES r-1 COOL FAN 2
, B/U LP , GLUTCi
TRANSMISSION
n FUELPUMP
0
FUEL PUMP
(SUPERCHARGER
FUEL PUMP SPEED
0
ION MODULE
0 ~1 ,AC-DIODE,
A/C
CLUTCH
El
COOL FAN 1
0
10
In
10
I_) HORN
FOG LP
, ECM I ,FUTURE I , FOG LF ,
0
0
n
6-70
ProCarManuals.com

Fuse
FUTURE
PARK
LP
FOG LP
FUTURE
ECM
FUEL PMP
TCC
ALT
Description
Spare
Chimemall Module, Taillamps,
Park Lamps, Sidemarker Lamps, Dimmable
Lamps
Fog Lamps
Spare
ECM/PCM
Fuel Pump
Automatic Transaxle: Enable,
Switch, Shift,
PWM
Alt Sense
Fuse
RADIO
AC CLU
Description
Radio, Remote Lock Control,
Theft Shock Sensor, Trip
Computer, HVAC Module, ABS
Module, Security LED
AC Clutch
B/U LP
Trunk Release, Back-up Lamps
IGN MODULE
Ignition Module
IGNI-UH
INJ MAF,
Heated Sensors, Canister
Prg,
Boost Solenoid
Fuel Injectors
6-71
ProCarManuals.com

Replacement Bulbs
Exterior Lamps Bulb Number
Back-up ............................... 3 156
Center High-Mounted Stop
................ 1141
Front Parking/Turn Signal
.............. .3357NA
Headlamps ............................. 9007
Stop/Tail/Turn Signal ..................... 3057
Front/Rear Side Marker .................... 194
Capacities and Specifications
Please refer to “Recommended Fluids and Lubricants”
in the Index for more information.
Automatic Transaxle with Overdrive .
Pan Removal and Replacement ... 7.4 quarts (7.0 L)
After Complete Overhaul ......... 10 quarts (9.5 L)
When drainingheplucing converter or auxiliary coolel;
more fluid may be needed,
Cooling System Including Reservoir
3100 (Code M) .............. 11.0 quarts (10.42 L)
3800 (Code K) .............. 10.2 quarts (9.63 L)
3800 Supercharged (Code 1) ... 10.2 quarts (9.63 L)
Refrigerunt (R- 134a),
Air Conditioning” ............. 1.9 pounds (0.85 kg)
Engine Crankcase (Oil Change with Filter Change)
3 100 (Code M) ................ 4.5 quarts (4.3 L)
3800 (Code K) ................ 4.5 quarts (4.3 L)
3800 Supercharged (Code 1) ....... 5 quarts (4.7 L)
Fuel Tank ................. 18.0 gallons (68.0 L)
*See “Air Conditioning Refrigerants ’’ later in this section.
3100 (Code M) Engine Specifications
Type .................................... V6
Displacement ............... 191 CID (3.1L L82)
Firing Order ...................... 1-2-3-4-5-6
Thermostat Temperature
........... 195°F (91°C)
Horsepower
............................. 160
3800 (Code K) Engine Specifications
Type .................................... V4
Displacement ............... 231 CID (3.8L L36)
Firing Order ...................... 1-6-5-4-3-2
Thermostat Temperature
........... 195°F (91°C)
Horsepower ................ ......... 195
6-72
ProCarManuals.com

3800 Supercharged (Code 1)
Engine Specifications
Type .................. ............. V6
Displacement
......... . . 231 CID (3.8LL67)
Firing Order ...................... 1-6-5-4-3-2
Thermostat Temperature 195°F (91OC)
Horsepower
............ . 240
Vehicle Dimensions
Wheelbase ...........
Tread Width
Front
...
Rear ........ ,..
Overall Length ......
Overall Width .....
Overall Height ........
, . 110.5” (280.7 cm)
....... 61.7” (156.8 cm)
..... 61.1” (155.2 cm)
. 196.5” (499.1 cm)
. . 72.7” (184.5 cm)
....... 54.7” (139.0 cm)
.......
Normal Maintenance Replacement Parts
Air Cleaner Filter
Battery
All Engines ..... ... A1208C
3100 (Code M) ................. 600 CCA
3800 (Code K) ...................... 690 CCA
3800 Supercharged (Code 1) ........... 770 CCA
Engine Oil Filter
PCV Valve Radiator Cap
Spark
Plugs
All Engines ................... AC Type PF47
All Engines .... ... CV892C
All Engines
. . . . AC Type RC27
3100 (Code
M) ...
.......
..... AC Type 41-940
Gap:
0.060” (1.52 mm)
3800 (Code K) . . ..... AC Type 41-921
Gap: 0.060” (1.52
mm)
3800 Supercharged (Code 1) ..... AC Type 41-921
Gap:
0.060” (1.52 mm)
Type ..................... ........ Hook
Length ...................... 20” (50.8 cm)
Wiper Blades
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same. If
the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant
is used. If
you’re not sure, ask your Pontiac dealer.
ProCarManuals.com

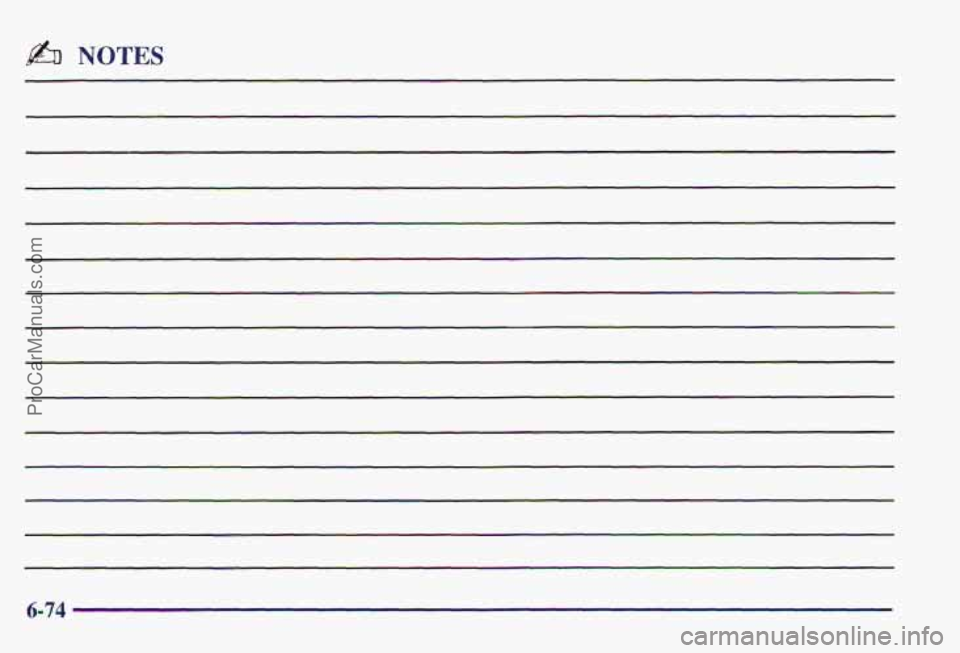

$&I NOTES
