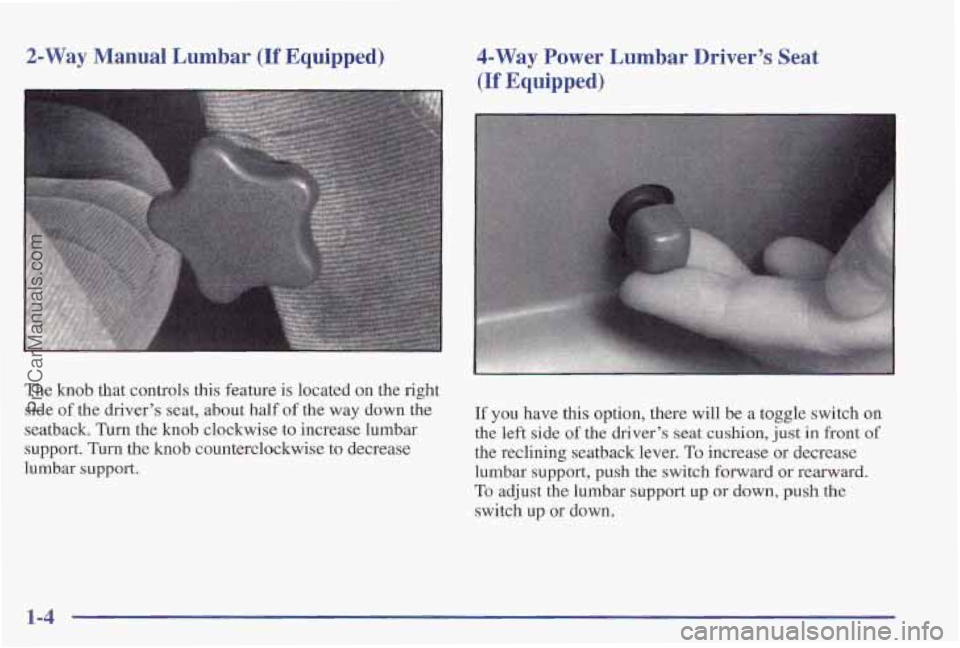

2-Way Manual Lumbar (If Equipped) 4-Way Power Lumbar Driver’s Seat
(If Equipped)
The knob that controls this feature is located on the right
side
of the driver’s seat, about half of the way down the
seatback. Turn the knob clockwise to increase lumbar
support.
Turn the knob counterclockwise to decrease
lumbar support.
If you have this option, there will be a toggle switch on
the left side of the driver’s seat cushion, just in front of
the reclining seatback lever. To increase or decrease
lumbar support, push the switch forward or rearward,
To adjust the lumbar support up or down, push the
switch
up or down.
1-4
ProCarManuals.com

Section 3 Comfort Controls and Audio Systems
In this section, you'll find out how to operate the comfort control and audio systems offered with your Pontiac. Be
sure to read about the particular systems supplied with your vehicle.
3-2
3-2
3-4
3-4
3-8
3-8
3-8
3-9
3- 10
Comfort Controls
Air Conditioning, Air Conditioning with
Electronic Controls Air Conditioning, Air Conditioning with
Automatic and Auxiliary Temperature Control
Heating, Air Conditioning with
Electronic Controls
Heating, Air Conditioning with Automatic
and Auxiliary Temperature Controls
Ventilation System and Tips
Tips for Defogging and Defrosting
Rear Window Defogger Setting the Clock 3- 10
3-15
3-24
3-26
3-29
3-30 3-30
3-30
3-3 1
3-32
3-32
3-32 Radios
CD Adapter Kit
Trunk Mounted CD Changer
Theft-Deterrent Feature
Steering Wheel Controls
Understanding Radio Reception Adding Sound Equipment to Your
Tips About Your Audio System
Care
of Your Cassette Tape Player
Care of Your Compact Discs
Fixed Mast Antenna
Backglass Antenna
.. :le
ProCarManuals.com

Comfort Controls
Air Conditioning with Electronic Controls
Temperature Knob
The center knob changes the temperature of.the air
coming through the system. Turn this
knob toward
red (clockwise) for warmer air. Turn it toward blue
(counterclockwise) for cooler air.
Mode Knob
The right knob has several settings to control the
direction
of airflow:
MAX: This setting recirculates much of the air inside
your vehicle and sends it through the instrument
panel outlets. The air conditioning compressor will
run automatically in this setting: unless the outside
"
With this system, you can control the heating, cooling
and ventilation in your vehicle. The system works best
if
you keep your windows closed while using it. rJ UPPER: This setting brings in outside air and
temperature
is below
38 OF (3.3 O C). (Even when the
compressor is running, you can control the temperature.)
+e
Fan Knob
airects it through the instrument panel outlets.
-+a
The left knob selects the amount of air you want. To turn *'- BI-LEVEL: This setting brings in outside air and
the fan off, turn
fie knob to OFF. The fan must be on tQ directs it two Ways. Half Of the air is directed through
run the air conditioning compressor, the instrument panel outlets. Most of the remaining air is
directed through the floor ducts and a little
to the defrost
and
side window vents.
3-2
ProCarManuals.com

Automatic Control Dual Zone Button Light
For the most efficient operation, you should set the
system temperature and press AUTO. The system will
select the best fan speed and airflow settings to keep you
comfortable. The air conditioning compressor will run if
the outside temperature is above
38 OF (3.3 O C). You may
notice a delay of three to four minutes before the fan
comes on.
Driver's Temperature Knob
The left knob sets the temperature for the entire system
when the light on DUAL button isn't lit.
If the light is
lit, the knob sets the temperature for the driver. Turn the
knob toward red (clockwise) to raise the desired cabin
temperature. Turn it toward blue (counterclockwise) to
lower the temperature. The display will show your
selection for a few seconds, then the outside temperature
will show or be displayed.
Passenger's Temperature Knob
The right knob sets the desired cabin temperature for the
passenger and will automatically force the system into a
dual zone operation, lighting the dual zone button light.
Turn the right knob toward red (clockwise) to raise the
temperature. Turn it toward blue (counterclockwise) to
lower the temperature. The
dual zone button light indicates whether the system
is in single zone
or dual zone operation. When there is
no desire for dual zone operation, push the lit dual zone
button to return to single zone operation. The dual zone
button light will
go off.
The system will operate to achieve your comfort set
point as quick as possible. If you set the temperature for
60°F (16°C)
or 90°F (32"C), the fan will go to it's
highest speed, unless you manually select a lower speed.
The system will maintain full cold or full hot operation
at these settings.
Cold Weather Example: (When you start the vehicle in
cold weather, below freezing or after being parked
overnight). If your Driver Set Temperature is 73°F
(23 "C) and you are in Full Automatic mode, the system
will automatically move the temperature doors to full
hot. The blower will start out at a low speed and the
blower speed will increase
as the engine warms up. The
air will be delivered to the floor. As the interior of the
vehicle warms up to your desired comfort point, the
blower will decrease and
the temperature door will
move to a cooler position to maintain your desired
comfort. As the cabin warms
up or the sun load
increases, the system could switch to air delivered
to the windshield and the floor. (Defog mode)
3-5
ProCarManuals.com

Audio Systems
Your Delco@ audio system has been designed to operate
easily and give years of listening pleasure.
You will get
the most enjoyment out
of it if you acquaint yourself
with it first, Find out what your Delco system can do
and how
to operate all its controls, to be sure you’re
getting the most
out of the advanced engineering that
went into it.
Setting the Clock for AM-FM Stereo
Press SET. Within five seconds, press and hold the
SEEK clown arrow until the correct hour appears on the
display. Press and hold the
SEEK up arrow until the
correct minute appears on the display.
Setting the Clock for All Systems Except
AM-FM Stereo
Press and hold HR until the correct hour appears. Press
and hold
MIN until the correct minute appears. There
will be a two-second delay before the clock goes into
time-set mode, and the colon on the display will blink
while in this mode.
AM-FM Stereo
Playing the Radio
VOLUME:
Push this knob to turn the system on and
off. To increase volume, turn the knob clockwise. Turn
it counterclockwise to decrease volume.
RCLPROG: Press this button to recall the station
being played or to display the clock.
3-10
ProCarManuals.com

AM-FM Stereo with Cassette Tape Player
(If Equipped)
Playing the Radio
VOL: Push this knob to turn the system on an'd off.
To increase volume, turn the knob clockwise. Turn it
counterclockwise to decrease volume.
RECALL: Display the time with the ignition off by
pressing
this knob. When the radio is playing, press this
knob
to recall the station frequency.
Finding a Station
AM-FM: Press this button to switch between AM, FMl
and FM2. The display shows your selection.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations.
Push the knob back into its store
position when you're not using it.
SEEK: Press the up or down arrow to go to the next
higher or lower station and stay there.
:d
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations.
You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Press AM-FM to select the band.
2. Tune in the desired station.
3. Press and hold one of the six numbered buttons until
SET appears on the display. Whenever
you press that
numbered button,
the station you set will return.
4. Repeat the steps for each pushbutton.
3-12
ProCarManuals.com

Setting the Tone Playing a Cassette
Tape
BASS:
Slide the lever to the right or left to increase or
decrease bass.
TREBLE: Slide the lever to the right or left to increase
or decrease treble. If a station is weak or noisy, you may
want to decrease the treble.
Adjusting the Speakers
BAL:
Press this knob lightly so it extends. Turn this
knob to move the sound to the left or right speakers. The
middle position balances
the sound between the
speakers.
FADE: Press this knob lightly so it extends. Turn this
knob to move the sound to the front or rear speakers.
The middle position balances the sound between
the speakers.
Push these knobs back into their stored positions when
you’re not using them. Your
tape player
is built to work best with tapes that are
30 to 45 minutes long on each side. Tapes longer than
that are
so thin they may not work well in this player.
While the tape
is playing, use the VOL, FADE, BAL,
BASS and TREB controls just as you do for the radio.
The display will show an arrow to show which side
of
the tape is playing. When the down indicator arrow is
lit, selections listed
on the bottom side of the cassette are
playing. When the
up arrow is lit, selections listed on the
top side of the cassette are playing. The tape player
automatically begins playing the other side when it
reaches the end of the tape.
If E and a number appear on the radio display, the tape
won’t play because of an error.
0 ElO: The tape is tight and the player can’t turn the
tape hubs. Remove the tape. Hold the tape with the
open end down and try
to turn the right hub
counterclockwise with
a pencil. Turn the tape over
and repeat.
If the hubs do not turn easily, your tape
may be damaged and should not be used in the
player. Try
a new tape to make sure your player is
working properly.
0 Ell: The tape is broken. Try a new tape.
3-13
ProCarManuals.com

CLN: If this message appears on the display, the
cassette tape player needs to be cleaned. It will still play
tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See “Care
of
Your Cassette Tape Player” in the Index. After you clean
the player, press and hold EJECT for five seconds to
reset the CLN indicator. The radio will display
--- to
show the indicator was reset.
CD Adapter Kits
It is possible to use a CD adapter kit with your cassette
tape player after activating the bypass feature on your
tape player.
AM-FM Stereo with Cassette Tape Player
and Equalizer
(If Equipped)
To activate the bypass feature, the ignition must be on.
Turn your radio off. Press TAPELPLAY and hold for
three seconds. After three seconds, the tape symbol in
the display will flash for two seconds indicating the
feature is active. Turn the radio on and insert
the adapter.
This override feature will remain active until EJECT
is pressed.
Playing the Radio
VOL: Push this knob to turn the system on and off. To
increase volume, turn
the knob clockwise. Turn it
counterclockwise to decrease volume.
RECALL: Display the time with the ignition off by
pressing this knob. When the radio is playing, press this
knob to recall the station frequency.
3-15
ProCarManuals.com
