1997 OLDSMOBILE BRAVADA Owners Manual

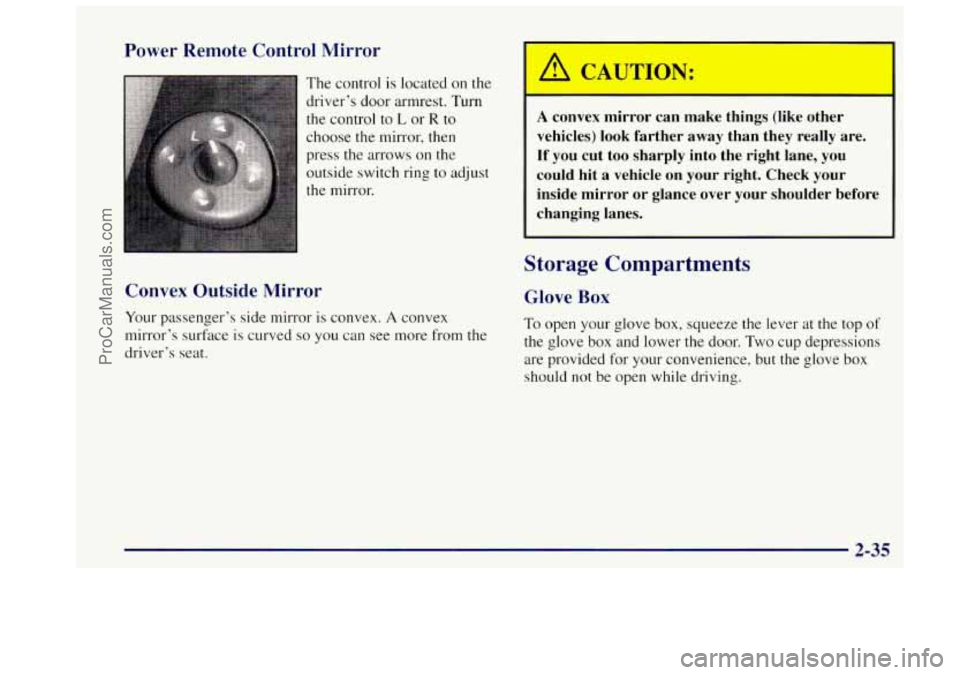

Power Remote Control Mirror
The control is located on the
driver’s door armrest. Turn
the control to L or R to
choose the mirror, then
press the arrows
on the
outside switch ring
to adjust
the mirror.
Convex Outside Mirror
Your passenger’s side mirror is convex. A convex
mirror’s surface is curved
so you can see more from the
driver’s seat.
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Storage Compartments
Glove Box
To open your glove box, squeeze the lever at the top of
the glove
box and lower the door. Two cup depressions
are provided for your convenience, but the glove
box
should not be open while driving.
2-35
ProCarManuals.com

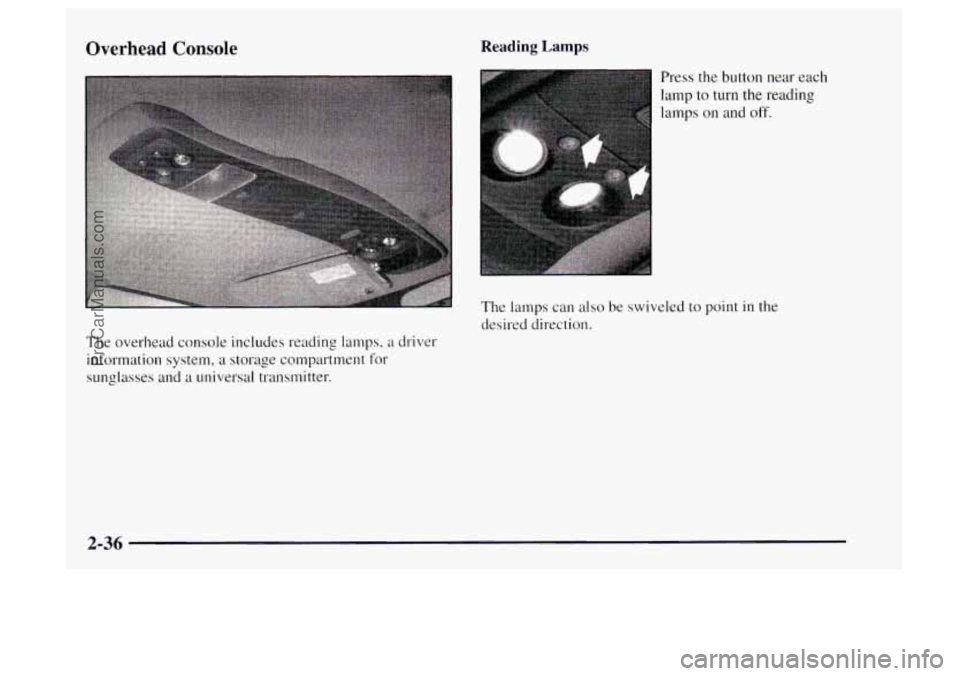

Overhead Console
The overhead console includes reading lamps, a driver
information system,
a storage compartment for
sunglasses and
a universal transmitter.
Reading Lamps
Press the button near each
lamp to
turn the reading
lamps on and
off.
The lamps can also be swiveled to point in the
desired direction.
2-36
ProCarManuals.com

Driver Information System
This system displays the outside air temperature, compass
direction and trip information in the overhead console.
The USNET (United States/metric) button allows you to
switch the display between the English and metric system.
The MODE button can be used to toggle between three
modes of operation:
OFF, COMPREMP and TRIP.
OFF: This turns the system off.
COMP/TEMP: The display provides the outside
temperature and one of eight compass readings to
indicate the direction the vehicle is facing.
Before you turn on the ignition and move the vehicle,
the temperature indicated will be the last outside
temperature recorded with the ignition on. If the outside
temperature is
37 "F (3 " C) or lower, the display will
toggle between the word ICE and the current
temperature every eight seconds. This is a warning to
the driver that road conditions may be icy, and that
appropriate precautions should be taken. The
compass is self-calibrating,
so it does not need to be
manually set. However,
if C (Calibration) is displayed, the
compass will need to
be calibrated. You may also place the
compass in a noncalibrated mode by pressing and holding
the MODE and USMET buttons simultaneously while
in
the COMPmEMP mode. After about 10 seconds, the
compass will display
C and you can release the buttons.
Drive the vehicle in a complete 360" circle three times at
a speed of less than
5 mph (8 km/h), and the compass will
function normally. Once the calibration is complete, the
display will return to
a compass reading.
2-37
ProCarManuals.com

Variance is the difference between magnetic north and
geographic north. In some areas, the difference between
the two can be great enough to cause false compass
readings. If this happens, follow these instructions to set
the variance for your particular location:
1. Find your location on the zone map. Note your
2. Press and hold both the MODE and the US/MET
zone
number.
buttons in the COMP/TEMP mode.
3. After five seconds, the compass will acknowledge
the variation mode by displaying the current zone
number. When it does, release both buttons.
4. Press US/MET until your zone number appears on
the display.
5. Press MODE to enter your zone number. Your
variance is
now set and the display will return to the
COMPITEMP mode.
TRIP: Once in the TRIP mode, pressing the
MODE button
will step you through the following
TRIP functions:
AVG ECON: The average fuel economy since the
0 INST ECON: Instantaneous fuel economy for the
last
reset
is displayed.
last second of driving is displayed.
RANGE: The display indicates the estimated
distance that can be travelled with the remaining fuel
in the tank, based on the fuel economy for the last
few hours
of driving.
FUEL USED: The fuel used since the last reset
is displayed.
AVG SPEED: The average speed since the last reset
is displayed.
To reset the trip computer, press the
MODE and USMET
buttons simultaneously for at least two seconds.
All
functions will be displayed for a half a second once the
system is reset. Reset can only be performed
in the AVG
ECON, FUEL USED and AVG SPEED modes. All three
modes are reset simultaneously.
2-38
ProCarManuals.com

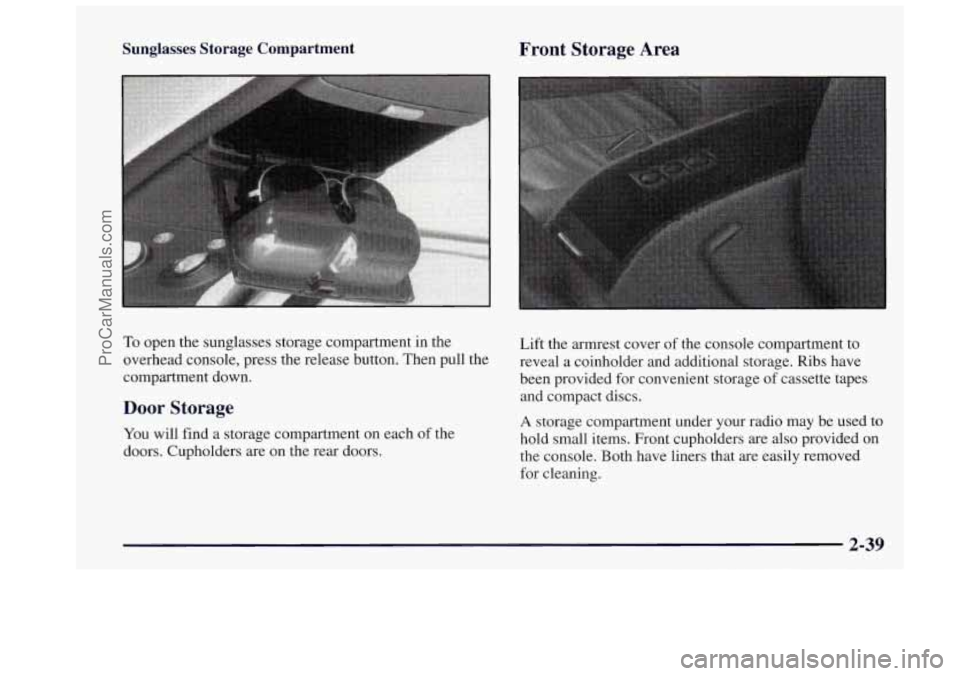

Sunglasses Storage Compartment Front Storage Area
To open the sunglasses storage compartment in the
overhead console, press the release button. Then pull the
compartment down.
Door Storage
You will find a storage compartment on each of the
doors. Cupholders are on the rear doors. Lift
the armrest cover of the console compartment to
reveal a coinholder and additional storage. Ribs have
been provided for convenient storage of cassette tapes
and compact discs.
A storage compartment under your radio may be used to
hold small items. Front cupholders are also provided on
the console. Both have liners that
are easily removed
for cleaning.
2-39
ProCarManuals.com

Convenience Net
A convenience net in the rear of your vehicle helps keep
small items, like gloves and light clothing in place
during sharp turns or quick stops and starts.
The net
is not designed to retain these items during
off-road use. The net is not for larger, heavier items.
The convenience net is anchored to the liftgate door.
Attach the upper loops
to the retainers on either side of
the liftgate opening (the label should be in the upper
passenger’s side corner, visible from the rear of vehicle).
Attach the lower
hooks to the rear cargo tie-downs on
the floor.
Cargo Security Shade
You can use the cargo security shade
the cargo area
of your vehicle.
to cover items in
Grasp the handle and unroll the cover. Latch the posts
into the sockets on the inside
trim panel on the
passenger’s side
of the vehicle to secure it.
I
An improperly stored cargo cover could be
thrown about the vehicle during a collision or
sudden maneuver. You or others could be
injured.
If you remove the cover, always store it
outside
of the vehicle. When you put it back,
always be sure that
it is securely reattached.
2-40
ProCarManuals.com

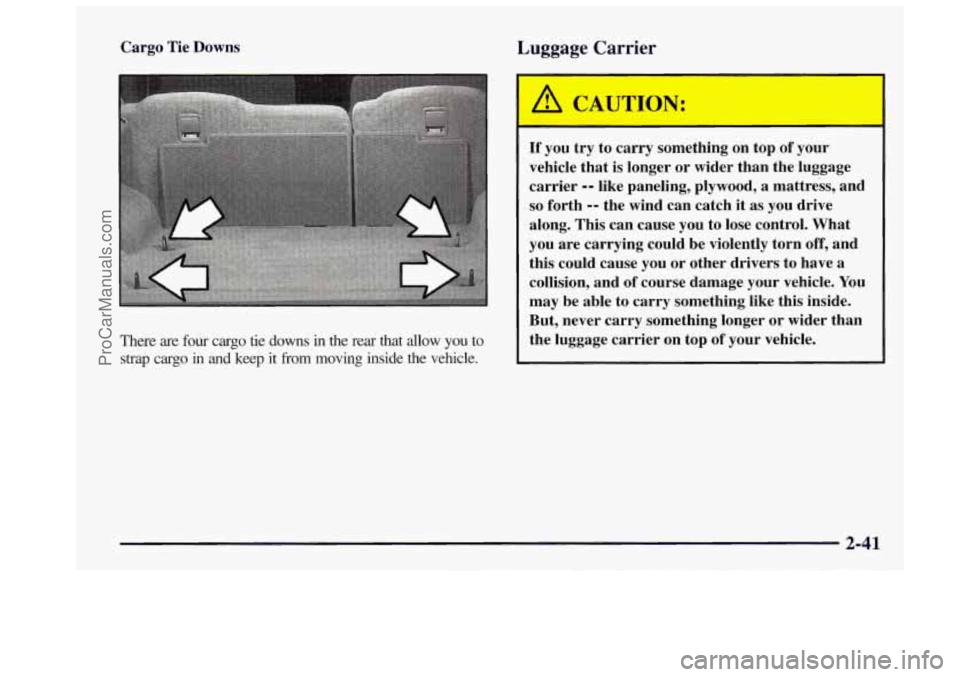

Cargo Tie Downs
There are four cargo tie downs in the rear that allow
you to
strap cargo in and keep it from moving inside the vehicle.
Luggage Carrier
I’
I A CAUTION:
If you try to carry something on top of your
vehicle that is longer or wider than the luggage
carrier
-- like paneling, plywood, a mattress, and
so forth -- the wind can catch it as you drive
along. This can cause you to lose control. What
you are carrying could be violently torn off, and
this could cause you or other drivers to have
a
collision, and of course damage your vehicle. You
may be able to carry something like this inside.
But, never carry something longer or wider than the luggage carrier on top of your vehicle.
I
2-41
ProCarManuals.com

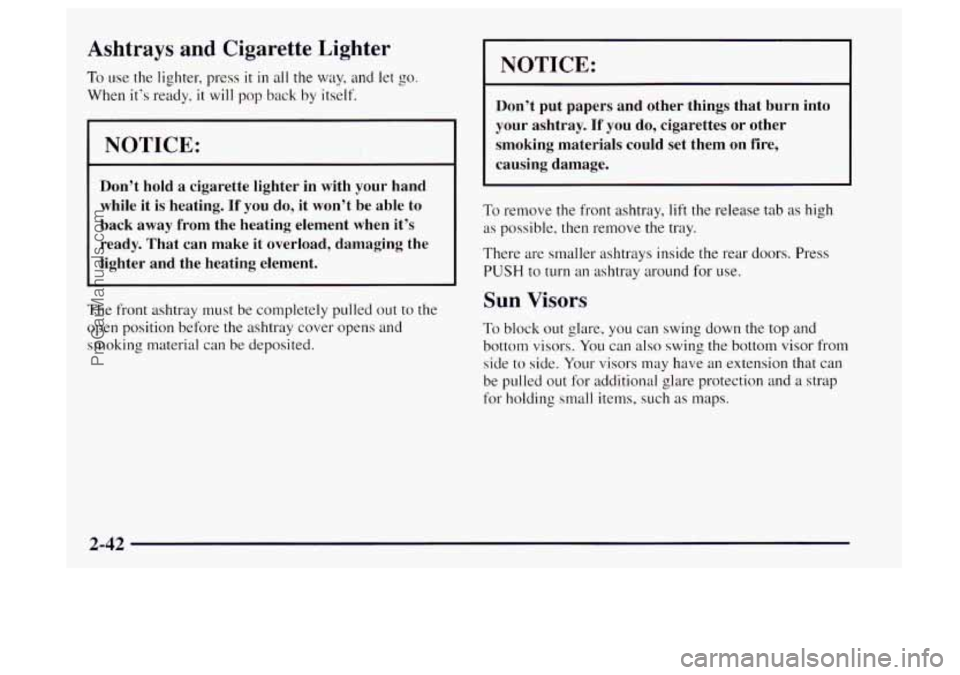

Ashtrays and Cigarette Lighter
To use the lighter, press it in all the way, and let go.
When it’s ready, it will pop back by itself.
I NOTICE:
Don’t hold a cigarette lighter in with your hand
while it is heating.
If you do, it won’t be able to
back away from the heating element when it’s
ready. That can make it overload, damaging the
lighter and the heating element.
The front ashtray must be completely pulled out to the
open position before the ashtray cover opens and
smoking material can be deposited.
NOTICE:
Don’t put papers and other things that burn into
your ashtray.
If you do, cigarettes or other
smoking materials could set them on fire,
causing damage.
To remove the front ashtray,
lift the release tab as high
as possible, then remove the tray.
There are smaller ashtrays inside the rear doors. Press
PUSH to turn an ashtray around for use.
Sun Visors
To block out glare, you can swing down the top and
bottom
visors. You can also swing the bottom visor from
side to side. Your visors may have an extension that can
be pulled out for additional glare protection and a strap
for holding small items, such as maps.
2-42
