1997 OLDSMOBILE BRAVADA Owners Manual

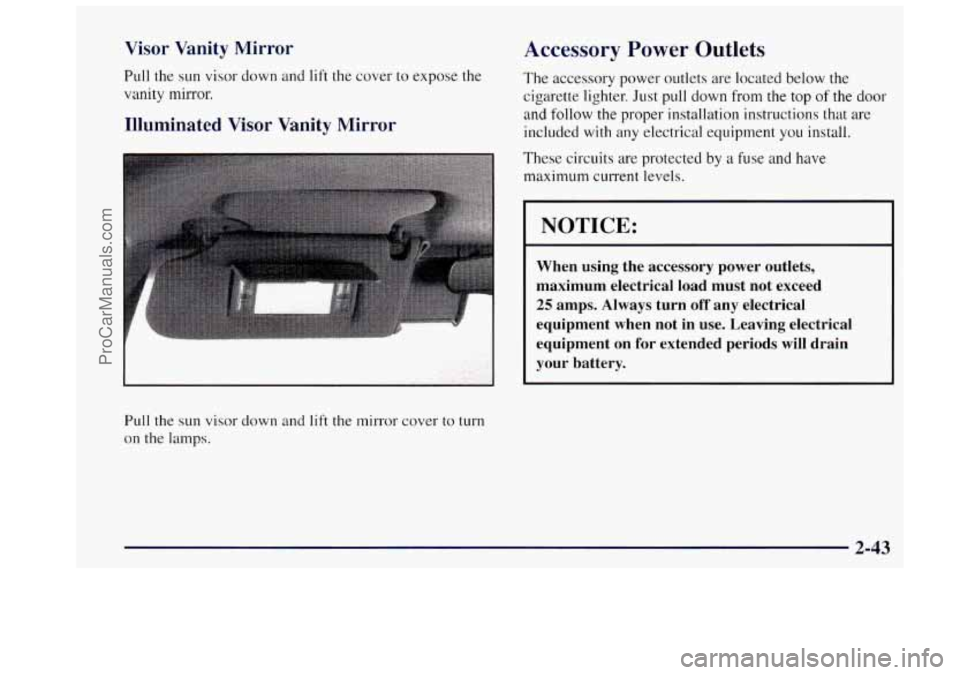

Visor Vanity Mirror
Pull the sun visor down and lift the cover to expose the
vanity mirror.
Illuminated Visor Vanity Mirror
Pull the sun visor down and lift the mirror cover to turn
on the lamps.
Accessory Power Outlets
The accessory power outlets are located below the
cigarette lighter. Just pull down from
the top of the door
and follow the proper installation instructions that are
included with any electrical equipment you install.
These circuits are protected by
a fuse and have
maximum current levels.
I NOTICE:
When using the accessory power outlets,
maximum electrical load must not exceed
25 amps. Always turn off any electrical
equipment when
not in use. Leaving electrical
equipment on for extended periods
will drain
your battery.
2-43
ProCarManuals.com

Sunroof (Option)
Your vehicle may be equipped with a power sliding
sunroof. Press and release the rear side of the button
in
the mini-console to open the sunroof. You can press the
forward side of the button to stop the sunroof before
it is
completely opened. Press and hold the forward side of
the button to close the sunroof. Once the sunroof is
closed, press the forward side of the button
to open the
sunroof to the vent position.
The sunroof is also equipped with a sunshade which
you
can pull forward to block sun rays.
Universal Transmitter
Mini-Console
2-44
ProCarManuals.com

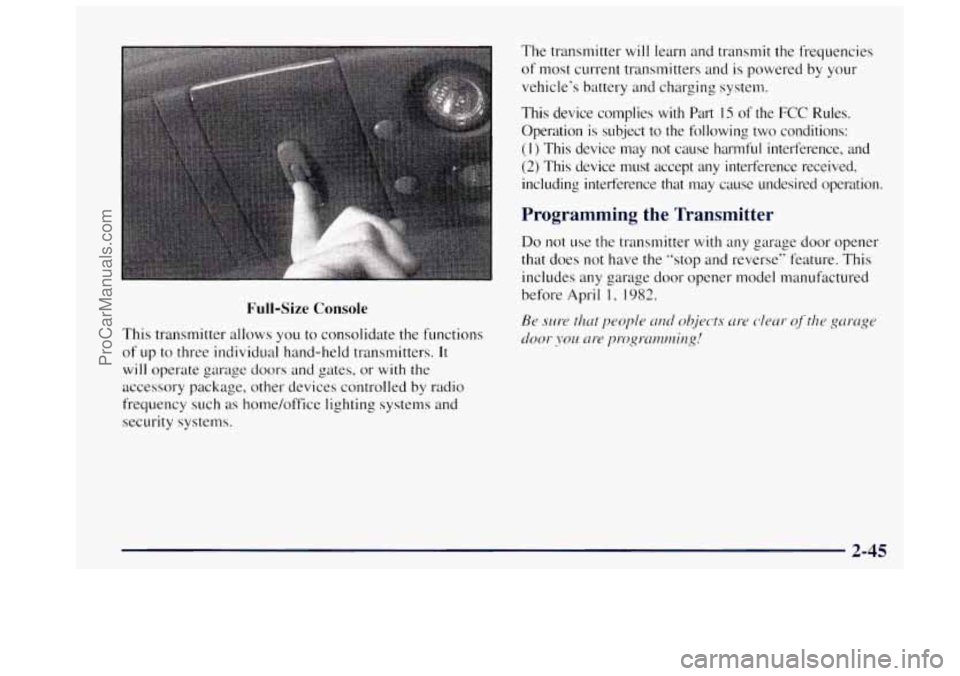

Full-Size Console
This transmitter allows you to consolidate the functions
of up to three individual hand-held transmitters.
It
will operate garage doors and gates, or with the
accessory package, other devices controlled
by radio
frequency such as home/office lighting systems and
security systems. The
transmitter will learn and transmit the frequencies
of most current transmitters and
is powered by your
vehicle‘s battery and charging system.
This device complies
with Part IS of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference. and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Programming the Transmitter
Do not use the transmitter with any garage door opener
that does not have the “stop and reverse” feature. This
includes any garage door opener model manufactured
before April
l? 1982.
Be sure that ppople LII~ objects [[re c-leur of’the gorcrge
~2‘oor JOU nt-e progrmmirzg!
2-45
ProCarManuals.com

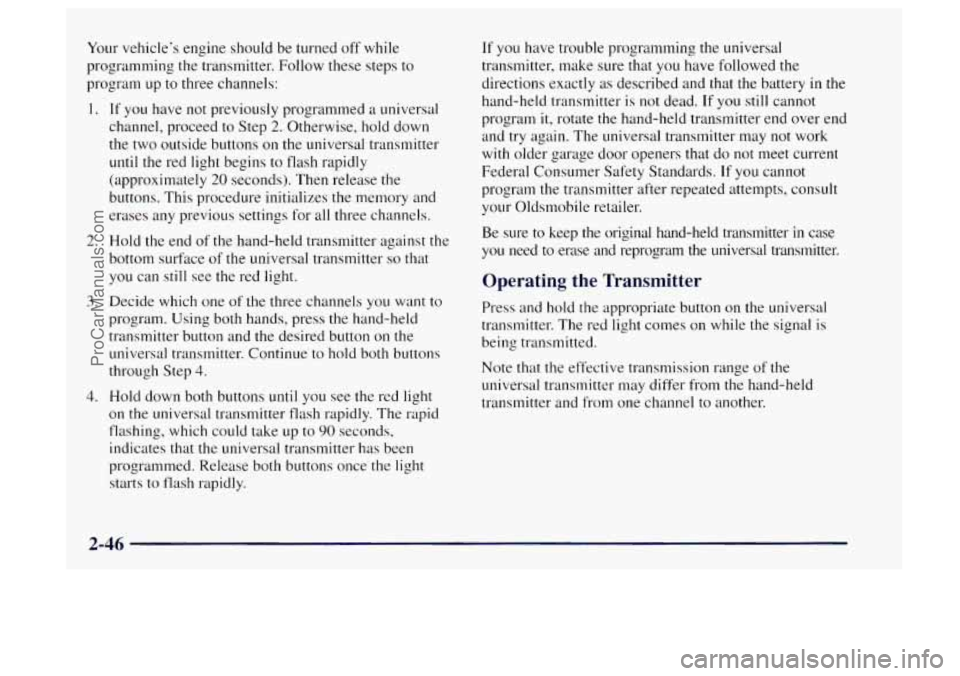

Your vehicle’s engine should be turned off while
programming the transmitter.
Follow these steps to
program up to three channels:
1. If you have not previously programmed a universal
channel, proceed to Step
2. Otherwise, hold down
the two outside buttons
on the universal transmitter
until the red light begins to flash rapidly
(approximately
20 seconds). Then release the
buttons. This procedure initializes the memory and
erases any previous settings for all three channels.
2. Hold the end of the hand-held transmitter against the
bottom surface of the universal transmitter
so that
you can still see the red light.
3. Decide which one of the three channels you want to
program. Using both hands, press the hand-held
transmitter button and the desired button on the
universal transmitter. Continue to hold both buttons
through Step 4.
4. Hold down both buttons until you see the red light
on the universal transmitter flash rapidly. The rapid
flashing, which could take up to
90 seconds,
indicates that the universal transmitter has been
programmed. Release both buttons once the light
starts to flash rapidly.
If you have trouble programming the universal
transmitter, make sure that you have followed the
directions exactly as described and that the battery
in the
hand-held transmitter
is not dead. If you still cannot
program
it, rotate the hand-held transmitter end over end
and try again. The universal transmitter may not work
with older garage door openers that do not meet current
Federal Consumer Safety Standards.
If you cannot
program the transmitter after repeated attempts, consult
your Oldsmobile retailer.
Be sure to keep the original hand-held transmitter
in case
you need to erase and reprogram the universal transmitter.
Operating the Transmitter
Press and hold the appropriate button on the universal
transmitter. The red light comes on while the signal is
being transmitted.
Note that the effective transmission range
of the
universal transmitter may differ from
the hand-held
transmitter and from one channel to another.
2-46
ProCarManuals.com

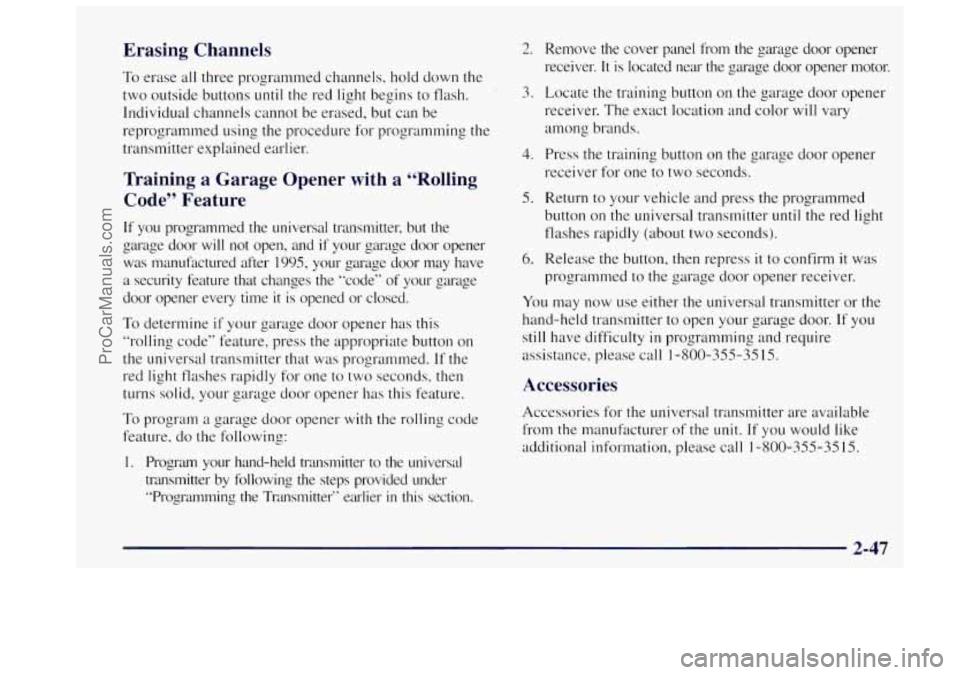

Erasing Channels
To erase all three programmed channels, hold down the
two outside buttons
until the red light begins to flash.
Individual channels cannot be erased, but can be
reprogrammed using the procedure for programming the
transmitter explained earlier.
Training a Garage Opener with a “Rolling
Code” Feature
If you programmed the universal transmitter, but the
garage door will not open, and
if your garage door opener
was manufactured after 1995,
YOLK garage door may have
a security feature that changes the “code” of your garage
door opener every time
it is opened or closed.
To determine if your garage door opener has this
“rolling code” feature, press the appropriate button on
the universal transmitter that was programmed.
If the
red light flashes rapidly for one
to two seconds, then
turns solid, your garage door opener has this feature.
To program a garage door opener- with the rolling code
feature, do the following:
1. Program your hand-held transmitter to the universal
transmitter by following the steps provided under
“Programming the Transmitter” earlier
in this section.
2.
3.
4.
5.
6.
Remove the cover panel from the garage door opener
receiver.
It is located near the garage door opener motor.
Locate the training button on the garage door opener
receiver. The exact location and color will vary
among brands.
Press the training button on the garage door opener
receiver for one to two seconds.
Return to your vehicle and press the programmed
button on the universal transmitter
until the red light
flashes rapidly (about two seconds).
Release the button, then repress
it to confirm it was
programmed to the garage door opener receiver.
You may now use either the universal transmitter or the
hand-held transmitter to open your garage door. If you
still have difficulty
in programming and require
assistance, please call 1-800-355-35 15.
Accessories
Accessories for the universal transmitter are available
from the manufacturer of the
unit. If you would like
additional information, please call 1-800-355-35
15.
2-47
ProCarManuals.com

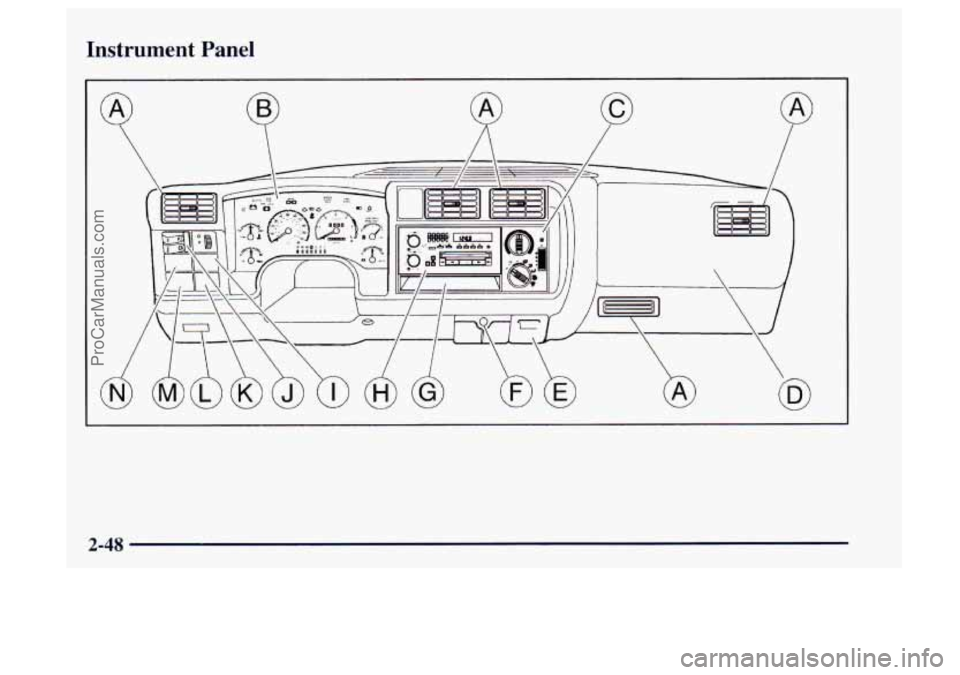

Instrument Panel
2-48
ProCarManuals.com

A. Air Vents
B. Instrument Cluster
C. Comfort Controls
D. Glove Box
E. Ashtray
E Cigarette LightedPower Auxiliary Outlets
G. Storage Compartment
H. Audio System
I. Fog Lamps
J. Lamp Controls
K. Rear Endgate Release
L. Brake Release
M. Rear Window Washermiper
N. Rear Window Defogger
2-49
ProCarManuals.com

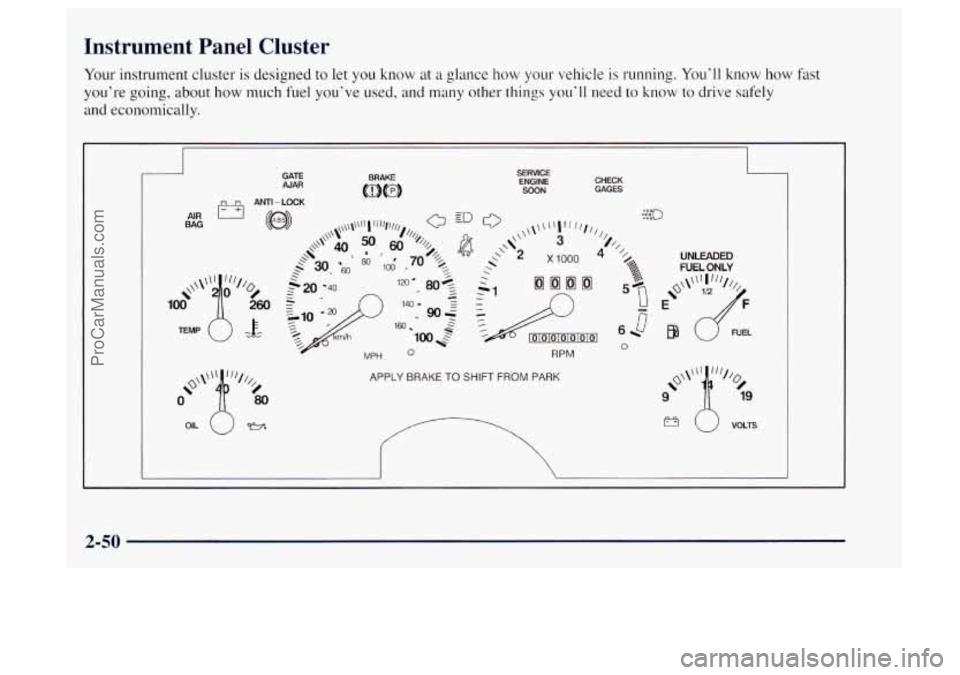

Instrument Panel Cluster
Your instrument cluster is designed to let you know at a glance how your vehicle is running. You'll know how fast
you're going, about
how much fuel you've used, and many other things you'll need to know to drive safely
and economically.
GATE AJAR
h~l ANTI-LOCK
'4 MPH 0
CHECK GAGES
RPM
APPLY BRAKE TO SHIFT FROM PARK
UNLEADED FUEL ONLY
9 '1% o\\\\' "'// 19
